How To Adjust Caster Angle: The Complete Alignment Guide

Adjusting the caster angle alters the forward or backward tilt of the steering axis relative to vertical, optimizing straight-line stability, high-speed tracking, and steering returnability. Achieving precise caster requires specialized alignment equipment, accurate ride height measurements, and systematic suspension adjustments using shims, eccentric cams, or adjustable control arms.

Pre-Operation & Equipment Checklist

Proper wheel alignment begins long before touching the suspension hardware. Caster angle directly influences how a vehicle responds to steering inputs and recovers from a turn, making measurement accuracy paramount. Executing this procedure requires a clean work environment, a calibrated system, and strict adherence to factory vehicle specifications.

• Essential Gear, Tools, and Materials:


  • Professional 4-wheel laser or optical alignment rack with floating turn plates.
  • Digital caster-camber gauge with a magnetic wheel adapter or specialized spindle mount.
  • Metric and standard socket sets, combination wrenches, and torque wrenches.
  • Suspension adjustment hardware specific to the vehicle platform (shim kits, eccentric cam bolts, or adjustable upper/lower control arm ball joint plates).
  • Hydraulic floor jack and heavy-duty jack stands (if working on flat ground without a drive-on lift).
• Mandatory Prerequisite Knowledge and Standards:


  • Complete suspension inspection verifying zero play in ball joints, control arm bushings, tie rod ends, and wheel bearings.
  • Verification of proper tire pressure across all four corners to prevent skewed baseline readings.
  • Vehicle set to factory-specified curb weight or proper ballast distribution.
• Estimated Budget and Duration Benchmarks:


  • DIY time investment: 2 to 4 hours depending on rust levels and suspension design.
  • Professional shop equipment budget: 1,500 to 10,000 USD for portable or rack-mounted optical systems.

Step-by-Step Caster Adjustment Workflow

Step 1: Vehicle Preparation and Baseline Measurement

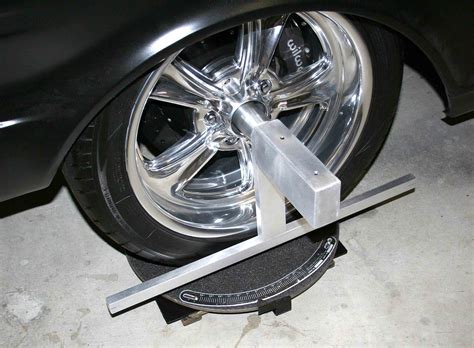

Begin by parking the vehicle on a perfectly level surface with the steering wheel locked in the dead-center position. Ensure the suspension is fully settled by rocking the vehicle up and down at each corner. Mount the digital caster-camber gauge to the front wheel hub or wheel lip. Zero out the gauge according to the manufacturer instructions. Turn the front wheels outward by exactly 20 degrees, level the bubble or digital readout, and record the initial measurement. Turn the wheels inward by 20 degrees in the opposite direction and record the second measurement to calculate the baseline caster angle.

Warning: Never attempt to measure or adjust alignment angles with the vehicle elevated on a frame lift unless using specialized wheel-free spindle adapters. Suspension geometry must be loaded at static ride height.

Step 2: Loosening Suspension Fasteners

Identify the specific mechanism your vehicle uses to adjust caster. Modern double-wishbone and multi-link suspensions typically utilize eccentric cam bolts on the lower control arm, shims placed between the upper control arm cross-shaft and the chassis frame, or threaded adjustable upper control arms. Loosen the retaining nuts and bolts just enough to allow mechanical movement of the control arm without introducing excessive sloppy play.

Pro-Tip: Mark the original position of eccentric cam bolts with a paint pen or scratch awl before loosening them. This provides an immediate visual reference of your baseline setting should you need to reset mid-adjustment.

Step 3: Modifying Control Arm Position

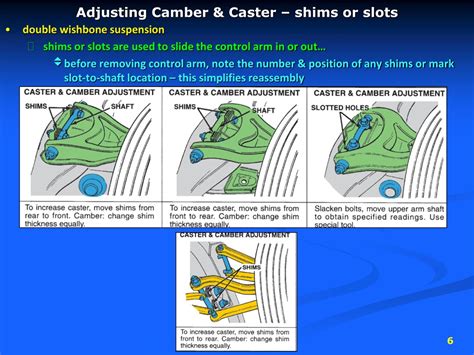

Adjust the suspension geometry according to your target specifications. If using shims on an upper control arm cross-shaft, add or remove shims to shift the front or rear leg of the arm. Removing a shim from the front bolt moves the ball joint forward, increasing positive caster. If using eccentric cams, rotate the bolt heads to push or pull the control arm mounting points outward or inward. For aftermarket adjustable control arms, loosen the jam nuts and spin the adjustment sleeve to lengthen or shorten the arm span.

Step 4: Re-Torquing and Verification Sweep

Once the desired caster angle is reached, carefully tighten all suspension fasteners while maintaining the new position. Take the vehicle through a full steering sweep from lock to lock, then roll the vehicle backward and forward by ten feet to let the suspension settle completely. Remount the alignment gauge, re-zero the device, and perform a fresh caster measurement sweep. If the reading matches your target specification within a tolerance of plus or minus 0.2 degrees, proceed to torque all loosened fasteners to the factory-specified foot-pounds.

Caster Adjustment Mechanisms and Specifications

Common Alignment Failures and Field Fixes

• Slipped Eccentric Bolts During Torque Sequence:


  • Root Cause: The clamping force of the lower control arm bracket is insufficient to overcome road forces, or the cam teeth are stripped.
  • Actionable Fix: Clean the mating surfaces of dirt and corrosion, hold the cam firmly in place with a wrench while tightening the nut to factory torque specification, and replace the cam bolt assembly if teeth show rounding.
• Persistent Steering Pull Despite Equal Caster Readings:


  • Root Cause: Cross-caster discrepancy exceeds allowable limits, or radial tire pull is masking the alignment settings.
  • Actionable Fix: Set the right side caster approximately 0.3 to 0.5 degrees higher than the left side to compensate for crown in standard roadways. If the pull remains, cross-rotate the front tires to diagnose tire-conicity issues.
• Binding Ball Joints After Maximizing Caster:


  • Root Cause: Extreme caster adjustments push the ball joints or steering knuckles past their maximum angular operating design limits.
  • Actionable Fix: Install aftermarket offset ball joints or corrected upper control arms designed to restore proper articulation angles while achieving high positive caster.

Frequently Asked Questions

What does positive caster mean and why is it important?

Positive caster means the upper steering axis tilts backward toward the driver, resembling the geometry of a shopping cart wheel or bicycle fork. This design creates a self-centering steering effect that forces the wheels to track straight ahead at highway speeds and provides heavier, more stable steering feedback through turns.

How does caster angle affect tire wear?

Unlike camber and toe angles, caster angle has virtually no direct impact on tire tread wear. Caster is strictly a directional stability and steering effort metric. If you notice uneven tire wear on your vehicle, inspect your camber and toe settings rather than focusing on the caster adjustments.

Can I adjust caster without a professional alignment machine?

Yes, you can adjust caster at home using a high-quality digital caster-camber gauge equipped with a magnetic spindle or wheel adapter. While professional laser alignment racks offer simultaneous four-wheel measurement, manual gauge sweeps combined with careful turn-plate measurements yield accurate track-ready results.

What are the symptoms of incorrect caster angles?

Incorrect caster typically manifests as wandering steering on straight roads, heavy steering effort if caster is excessively high, or a severe lack of steering wheel returnability after completing a turn if caster is near zero or negative. Uneven caster from left to right will also cause the vehicle to pull continuously toward the side with less positive caster.

Do I need to adjust toe after changing caster?

Yes, altering the caster angle physically shifts the position of the steering knuckle and control arms relative to the steering rack tie rods. This geometrical shift inevitably alters the toe setting, requiring a complete toe adjustment and steering wheel re-centering immediately following any caster modification.
