How To Adjust Points On A Distributor: A Precision Calibration Guide

Adjusting points on a distributor requires setting the mechanical contact breaker gap to exact manufacturer specifications using a non-magnetic feeler gauge or a dwell meter to optimize ignition coil dwell time. Proper gap alignment—typically between 0.014 and 0.019 inches depending on engine architecture—prevents primary ignition circuit arc pitting, high-RPM point bounce, and premature coil failure. Because altering the point gap directly shifts ignition timing, dynamic timing recalibration with a strobe light must immediately follow every mechanical point service.

Pre-Operation Equipment & Mechanical Prep

Calibrating contact breaker points inside a classic distributor requires mechanical precision and cleanliness. Before removing the distributor cap, ensure the ignition circuit is completely de-energized and the engine bay is clean to prevent debris from landing on the breaker plate assembly.

Establishing correct point operation relies on measuring two distinct parameters: the physical gap (distance between tungsten contact pads at peak cam lift) and the electrical dwell angle (the total degrees of distributor shaft rotation during which the points remain closed). Preparing the proper equipment and establishing accurate baseline data beforehand prevents diagnostic errors and improper coil charging.

Essential Equipment & Technical Checklist

• Measurement & Testing Tools: Wire and blade feeler gauge set (non-magnetic brass or high-grade steel polished flat), digital or analog dwell meter with RPM display, inductive strobe timing light, 12V test light or digital multimeter (DMM).
• Hand Tools: Offset flathead screwdrivers, magnetic retrieval pick, breaker bar or 1/2-inch drive socket set (to manually rotate the crankshaft pulley), remote starter switch.
• Chemicals & Consumables: High-temperature distributor cam lubricant (dielectric electrical contact grease or micro-refined lithium grease), contact cleaner aerosol, replacement point set and ignition condenser (if pitting exceeds threshold).
• Prerequisite Knowledge & Specifications: Engine firing order, factory ignition point gap (typically 0.014 to 0.019 inches / 0.35 to 0.48 mm), target dwell angle (e.g., 28° to 34° for standard V8 engines; 45° to 50° for 4-cylinder engines), and base initial timing degrees before Top Dead Center (TDC).
• Estimated Benchmark: Duration ranges from 45 to 90 minutes. Materials cost ranges from $0 (re-gapping existing components) to $35 (replacing points, condenser, and cam lube).

Step-by-Step Point Calibration & Timing Alignment

Step 1: Disassemble and Inspect the Distributor Upper Housing

1. Disconnect the primary low-tension lead running from the negative terminal of the ignition coil to the distributor pass-through terminal.
2. Unclip or unbolt the distributor cap retaining latches. Lift the cap straight off the housing without strain on the high-tension spark plug wires. Invert the cap and inspect the internal carbon button and brass segment terminals for heavy corrosion, tracking lines, or thermal cracking.
3. Pull the ignition rotor off the distributor main shaft (some Ford and Delco-Remy rotors are secured with two underside screws). Inspect the rotor tip for oxidation and burning.
4. Clean the internal breaker plate, contact points, and central distributor cam lobes with residue-free contact cleaner.

Warning: Never use standard petroleum chassis grease on the distributor cam lobes. As the distributor shaft spins at high RPM, centrifugal force will throw thin grease onto the tungsten contact pads, causing immediate electrical arcing, localized overheating, and rapid contact failure.

Step 2: Rotate the Engine Cam to Peak Lobe Elevation

1. Mount a breaker bar with the appropriate socket onto the harmonic balancer bolt on the front of the crankshaft, or attach a remote starter switch across the starter solenoid terminals.
2. Rotate the crankshaft clockwise (in the engine’s normal direction of rotation) while observing the distributor cam and the fiber rubbing block attached to the movable point arm.
3. Stop rotating the moment the heel of the synthetic fiber rubbing block rests directly on the apex (highest peak) of one of the distributor cam lobes.
4. Verify visually that the points are forced open to their maximum wide-open mechanical tolerance.

Step 3: Set Initial Mechanical Point Gap with Feeler Gauges

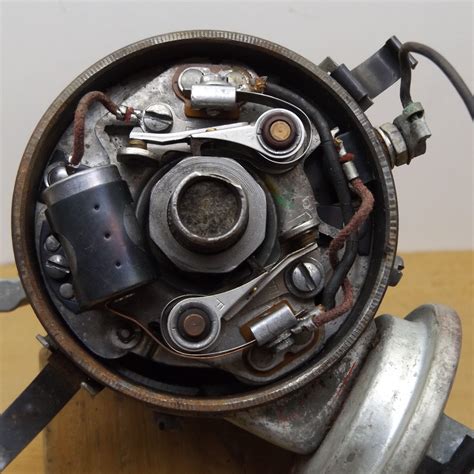

1. Locate the breaker point assembly mounting screws on the breaker plate. There is typically one fixed securing screw and an offset adjustment slot, or an eccentric adjusting screw.
2. Slightly loosen the fixed securing screw just enough to allow the stationary contact bracket to slide under controlled resistance.
3. Select the precise feeler gauge blade specified by your engine manual (for instance, 0.016 inches / 0.40 mm). Slide the feeler gauge squarely between the open tungsten contact pads.
4. Insert a flathead screwdriver into the adjustment slot or turn the eccentric screw until the contact pads close gently onto the feeler gauge blade.
5. Adjust until you feel a smooth, light mechanical drag when sliding the feeler blade back and forth between the contacts. The gauge must not bind tightly, nor should it move through the gap without resistance.
6. Torque the securing screw down firmly while keeping the feeler gauge positioned between the pads to prevent the bracket from shifting during final lock-down. Re-check the drag with the gauge after tightening.

Pro-Tip: If re-using existing breaker points that have developed minor surface transfer (a small dimple on one contact and a matching mound on the other), a standard flat feeler gauge will bridge the high spots and give an inaccurate gap reading. In this situation, use a round wire feeler gauge or replace the points entirely.

Step 4: Lubricate the Distributor Cam and Replace Components

1. Apply a thin, pinhead-sized bead of specialized high-temperature distributor cam lube to the leading edge of the cam lobes. The fiber rubbing block will distribute this grease evenly across the lobes as the engine rotates.
2. Inspect the condenser (capacitor). If replacing the points, always install a matching new condenser to maintain circuit capacitance and prevent arcing across the new point faces.
3. Reinstall the distributor rotor, ensuring it seats fully over its indexing keyway or alignment pin.
4. Reattach the distributor cap, securing both spring clips or locking screws firmly. Reconnect the coil primary lead to the distributor housing terminal.

Step 5: Dynamic Dwell Angle Calibration

1. Connect the green test lead of your dwell meter to the negative (-) terminal of the ignition coil (or the distributor side of the coil) and connect the black lead to a solid engine ground. Set the meter selector switch to the correct engine cylinder count (4, 6, or 8 cylinder mode).
2. Start the engine and let it settle at a warm idle speed (below the threshold where mechanical advance begins, typically under 800 RPM).
3. Read the dwell angle displayed on the meter.
4. Compare the reading to factory specifications:


   • If the dwell reading is lower than spec: The points are staying closed for too short a period; the physical gap is too wide. Remove the cap and narrow the point gap slightly.
   • If the dwell reading is higher than spec: The points are staying closed too long; the physical gap is too narrow. Remove the cap and widen the point gap slightly.
5. On Window-type Delco-Remy distributors (found on many GM vehicles), open the sliding access door on the distributor cap with an Allen wrench while the engine is running. Turn the adjusting screw clockwise to decrease dwell (widen gap) or counter-clockwise to increase dwell (narrow gap) until the exact target degree setting is met.

Step 6: Recalibrate Initial Ignition Timing

1. Disconnect and plug the vacuum advance hose running to the distributor vacuum canister to prevent vacuum advance activation during base timing checks.
2. Connect an inductive timing light to the number one spark plug wire and to 12V battery power.
3. Start the engine and point the timing light strobe at the harmonic balancer timing marks and timing pointer.
4. Loosen the distributor hold-down clamp bolt at the base of the distributor housing.
5. Slowly rotate the entire distributor housing clockwise or counter-clockwise until the timing mark aligns precisely with the specified initial timing degrees (e.g., 8° Before Top Dead Center).
6. Lock down the distributor clamp bolt and re-verify timing with the light. Reconnect the vacuum advance hose.

+-----------------------------------------------------------------------------+ | SPECIAL NOTE ON GAP vs. DWELL vs. TIMING RELATIONSHIP | | | | Wider Point Gap --> Smaller Dwell Angle --> Earlier Timing (Advanced) | | Narrower Point Gap --> Larger Dwell Angle --> Later Timing (Retarded) | +-----------------------------------------------------------------------------+

Technical Ignition Specifications & Mechanical Tolerances

The table below outlines standard operational parameters across major vintage distributor formats. Always cross-reference these default tolerances with your specific vehicle service manual.

Mechanical Troubleshooting & Failure Analysis

1. Severe Pitting and Material Transfer on Contact Faces

• Root Cause: Improper condenser capacitance or an open internal condenser circuit. If metal transfers from the negative to the positive contact, the condenser is under-capacity. If metal transfers from positive to negative, the condenser is over-capacity. Alternatively, a failing ballast resistor sending full 12V battery current during continuous running will burn tungsten points.
• Actionable Fix: Replace both the point assembly and the condenser as a matched pair. Test primary running voltage at the coil positive (+) terminal with the engine running; it should measure between 6.0 and 9.5 volts if a ballast resistor or resistance wire is functioning correctly. Replace damaged ballast components immediately.

2. High-RPM Engine Misfire or "Point Float"

• Root Cause: Loss of spring tension on the movable point arm, excessive point gap settings, or lack of upper distributor shaft lubrication. Point float occurs when the point spring cannot snap the contact arm closed fast enough at high rotational speeds, leading to incomplete coil saturation and ignition misfires.
• Actionable Fix: Measure point arm tension using a spring tension scale (typical specification is 17 to 21 ounces of force). Re-gap points to the tighter side of factory specifications or replace the point set with a high-performance heavy-duty spring variant designed for higher RPM stability.

3. Hard Starting and Severe Engine Detonation (Ping) Post-Adjustment

• Root Cause: The point gap was set too wide, resulting in an abnormally small dwell angle. Because a wider gap opens the points earlier in the distributor cam revolution, this drastically advances the initial ignition timing beyond safe operational limits.
• Actionable Fix: Re-insert feeler gauges and narrow the point gap to specification. Use a timing light to re-set the engine back to its factory base timing setting. Never adjust point gap without verifying timing afterward.

4. Excessive Dwell Angle Drift Across the RPM Band

• Root Cause: Excessive lateral play or wear in the distributor shaft upper bushings, or a worn, loose breaker plate assembly that shifts under vacuum advance load.
• Actionable Fix: Attach a dial indicator to the distributor body and push the main shaft laterally; radial play should not exceed 0.002 to 0.005 inches. If lateral movement is excessive, rebuild the distributor with new bronze bushings or replace the main housing unit entirely.

Frequently Asked Questions

What is the exact relationship between point gap and dwell angle?

Point gap and dwell angle share an inverse mechanical relationship. Increasing the physical point gap causes the rubbing block to hit the cam lobe earlier and stay open longer, which decreases the total dwell angle (degrees points remain closed). Decreasing the point gap keeps the contacts closed longer, increasing the dwell angle.

Can I adjust distributor points accurately without a dwell meter?

Yes, using flat feeler gauges (for new points) or round wire gauges (for used points) will set the gap accurately enough to start and run the engine effectively. However, dynamic tuning with a dwell meter while the engine is idling provides superior accuracy, as it accounts for minor mechanical wear on the distributor cam lobes and rubbing block.

Why must ignition timing be adjusted after setting the points?

The precise moment the points snap open breaks the primary ignition circuit, inducing high voltage in the secondary coil windings to fire the spark plug. Changing the mechanical point gap alters the exact rotational degree at which the contacts break apart, directly advancing or retarding the engine's ignition timing.

How often do contact breaker points require adjustment or replacement?

Standard vintage ignition systems typically require point inspection and re-gapping every 3,000 to 6,000 miles. Complete replacement of the points and condenser, along with lubricating the cam lobes, should occur every 12,000 miles to prevent performance loss from rubbing block wear and contact surface erosion.
