How To Align LiftMaster Garage Door Sensors: The Complete Technical Guide

LiftMaster garage door safety reversing sensors rely on an infrared beam transmitted between a sending and receiving unit mounted 4 to 6 inches above the garage floor. When this invisible optical path is interrupted, the safety system inhibits door closure and reverses a descending garage door to prevent personal injury or property damage. Successful alignment requires verifying power continuity, adjusting mounting brackets, and stabilizing the optical signal until the diagnostic status LEDs on both sensor housings burn a solid, uninterrupted green or amber.

Pre-Operation & Equipment Checklist

Proper alignment of LiftMaster photoelectric safety sensors requires a methodical approach to electrical safety, mechanical positioning, and optical stabilization. Before adjusting hardware, review the operational parameters and standard components required to successfully complete the alignment procedure.

• Essential Gear and Tools: A 1/4-inch nut driver or socket wrench, a Phillips-head screwdriver, a clean microfiber cloth, a flashlight, a step ladder, and a standard digital multimeter capable of reading low-voltage direct current.
• Mandatory Prerequisite Standards: Ensure the garage door opener is completely unplugged from the 120V AC wall outlet to prevent accidental activation during physical bracket adjustments. Verify that the door is in the fully open or manually closed position with no tension anomalies in the torsion or extension springs.
• Budget and Duration Benchmarks: Estimated completion time is 15 to 30 minutes. Zero material cost is required unless physical replacement brackets or wire splices are necessary due to environmental corrosion.

Step-by-Step LiftMaster Sensor Realignment Procedure

Step 1: Inspect and Clean the Optical Lenses

Accumulated dust, spider webs, moisture, and paint overspray frequently degrade the infrared beam transmission between LiftMaster sensor units. Climb your step ladder, locate both the sending sensor (typically emitting a yellow or amber LED indicator) and the receiving sensor (typically emitting a green LED indicator), and wipe the front plastic optical surfaces thoroughly using a clean, dry microfiber cloth. Do not use harsh chemical solvents or abrasive cleaners that could scratch the translucent lens material and scatter the infrared light path.

Pro-Tip: If you notice condensation or water droplets trapped inside the transparent housing of either sensor, gently dry the exterior with a hair dryer on a low, warm setting before proceeding to mechanical adjustments.

Step 2: Verify Power and Diagnostic Indicator Status

Plug the LiftMaster garage door opener back into the electrical outlet and observe the status light indicators on both safety sensors. The sending sensor should display a steady, illuminated LED light indicating it is receiving low-voltage power (typically around 6V to 12V DC) from the logic board via the white/white-with-black-stripe wire pair. The receiving sensor LED will either be unlit, flickering erratically, or glowing faintly if the beam is misaligned.

Warning: Never splice low-voltage control wiring with standard household wire nuts exposed to outdoor moisture, as galvanic corrosion will introduce voltage drops and trigger intermittent safety reversals.

Step 3: Loosen Mounting Hardware and Reset Bracket Geometry

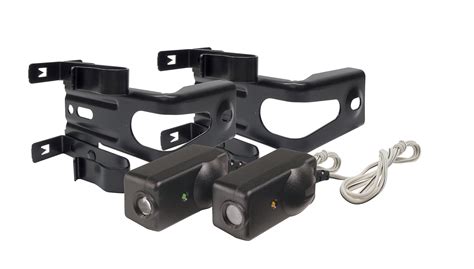

Inspect the stamped steel mounting brackets attached to the vertical wooden door jambs or galvanized steel tracks on both sides of the garage opening. Use your 1/4-inch nut driver to slightly loosen the wing nut or hex screw securing the sensor bracket to the track, allowing the unit to pivot freely without dropping out of position. Ensure the bracket is not bent outward or inward due to accidental impact from lawn equipment, vehicles, or storage boxes.

Step 4: Pivot and Align the Optical Transceiver Face

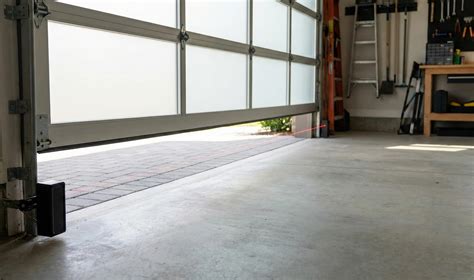

Manually rotate the sending sensor and receiving sensor so that their flat, circular faces point directly toward each other across the 8-to-18-foot expanse of the garage door opening. Adjust the height of both brackets so they sit equidistant from the concrete floor, maintaining the factory-mandated height specification of no more than 6 inches above the floor grade. Watch the green LED indicator on the receiving sensor while making micro-adjustments; a solid, bright green glow confirms that the infrared phototransistor is successfully capturing the modulated light pulses generated by the sending LED diode.

Step 5: Secure Fasteners and Conduct Physical Obstruction Testing

Tighten the mounting bracket hardware firmly, taking care not to over-torque the fasteners and strip the sheet metal threads in the door track. Re-tightening must be performed while maintaining visual confirmation on the green status LED to prevent the bracket from twisting out of alignment as the screw seats. Once secured, clear the garage threshold, press the wall station button to command the door to close, and safely pass a solid object through the infrared beam path. The door must immediately stop its downward travel and reverse upward, verifying that the safety reversal circuit is fully operational.

LiftMaster Sensor Diagnostic Specifications and Technical Parameters

Common Site Failures and Field Fixes

• Symptom: The green receiving LED is completely unlit, and the door refuses to close unless the wall button is held down continuously.


  • Root Cause: Total loss of low-voltage continuity due to a severed wire, a loose terminal screw on the back of the garage door opener logic board, or a completely dead sending unit.
  • Actionable Fix: Inspect the entire length of the 2-conductor wire running from the sensors up to the motor unit. Test continuity using a digital multimeter and securely re-terminate any loose wires at the opener screw terminals.
• Symptom: The green LED is glowing, but the door reverses spontaneously halfway down during bright sunlight conditions.


  • Root Cause: Infrared optical interference caused by direct, blinding sunlight striking the phototransistor lens of the receiving sensor, overwhelming the modulated signal.
  • Actionable Fix: Swap the positions of the sending and receiving sensors so the receiver is sheltered on the side less exposed to direct glare, or install protective tubular sun shields over the sensor lenses.
• Symptom: The green LED flickers erratically when anyone walks near the garage door tracks.


  • Root Cause: Loose mounting brackets or vibrating door tracks that shift out of alignment whenever the opener motor engages.
  • Actionable Fix: Install heavy-duty lock washers behind the mounting bracket fasteners and tighten all track bolts securely to eliminate structural vibration.

Frequently Asked Questions

Why does my LiftMaster garage door sensor light blink green?

A blinking or dim green LED on a LiftMaster safety sensor indicates that the infrared beam is partially blocked, weak, or misaligned. The sensor is detecting some infrared light, but the signal strength is insufficient to maintain a reliable safety circuit connection. Loosen the wing nut, adjust the angle of the sensor until the green light turns solid, and tighten the hardware.

Can I bypass my LiftMaster garage door safety sensors?

You cannot permanently bypass LiftMaster safety reversing sensors because they are a mandatory safety feature required by federal UL 325 standards to prevent crushing injuries. If your sensors are damaged, they must be repaired or replaced; however, you can close the door in an emergency by pressing and holding the wall station push button continuously until the door reaches the fully closed position.

What causes a LiftMaster sending sensor to lose its yellow/amber light?

The yellow or amber LED on the sending sensor indicates that power is reaching the unit from the logic board. If this light is completely off, either the garage door opener is unplugged, the low-wire connection at the motor unit terminal is loose, or the internal circuit board within the sending sensor has suffered electrical component failure due to a power surge.

How do I know if my LiftMaster sensor wires are bad?

If your sensor LEDs show no power despite a properly plugged-in garage door opener, disconnect the wires at the motor unit and measure the DC voltage across the terminals with a multimeter. If voltage reads correctly at the motor but zero at the sensors, the low-voltage wire is broken internally and must be replaced.

Fix your blinking LiftMaster garage door sensors today with our step-by-step alignment guide and restore safe automatic door operation.
