How To Attach A Bimini Top: A Complete Marine Installation Guide

Attaching a Bimini top requires precise structural measurement, secure hardware anchoring to the boat's gunwales, and proper tensioning of the support straps or struts. By establishing a symmetrical mounting baseline, pre-drilling gelcoat with reverse-tapered chamfers to prevent cracking, and utilizing 316 marine-grade stainless steel hardware, you can secure a shade structure capable of withstanding speeds up to 45 mph.

Pre-Installation Planning and Marine Hardware Checklist

Before drilling into your vessel’s gunwales, deck, or rails, you must map out the spatial footprint of the Bimini top. The mounting location determines not only where the frame anchors but also where the canvas will rest when deployed and folded down. Improper placement can block access to cleats, obstruct your field of vision from the helm, or interfere with rod holders and boarding gates.

When planning your layout, remember that the width of the Bimini top frame must match the mounting width (beam distance) of your boat, not the overall width of the hull. This frame possesses some natural spring-action flex, allowing it to adapt to mounting widths that vary by up to three inches from its nominal size.

Required Materials, Tools, and Benchmarks

• Essential Tools and Gear:


  • Variable speed power drill
  • High-speed steel (HSS) drill bits (sized to match your mounting screws)
  • Countersink bit (or a larger drill bit used manually to bevel holes)
  • Marine-grade polyurethane sealant (such as 3M 4200; avoid permanent 3M 5200 for removable hardware)
  • High-tack blue painter's tape
  • Fine-tip marker or center punch
  • Screwdrivers (matching the mounting hardware head, typically Phillips #2 or #3)
  • Tape measure and a long straightedge
• Mandatory Marine Standards:


  • All fasteners must be 316-grade stainless steel to resist saltwater corrosion.
  • Fiberglass gelcoat requires reverse drilling techniques to prevent spider cracking.
  • A minimum clearance of 6 feet from the deck floor is standard for comfortable standing room under the canopy.
• Project Benchmarks:


  • Estimated Budget: $150 to $350 for standard DIY kits; $500+ for premium stainless steel frame kits.
  • Time Required: 1.5 to 3 hours of dedicated work.

Executing the Bimini Top Mounting and Rigging Process

Follow this sequence to mount your Bimini top to fiberglass, aluminum, or pontoon rail surfaces.

Step 1: Establish the Primary Mounting Points

The main deck hinges carry the structural load of the entire Bimini frame. You must locate the exact center point of the area you want to shade.

Measure your boat’s gunwale length from bow to stern on both the port and starboard sides. Use your tape measure to mark the primary mounting point on one side of the boat, typically near the midpoint of the cockpit area.

Once marked, use a cross-boat reference point (such as a cleat, windlass, or windshield frame) to transfer this exact measurement to the opposite gunwale. Symmetry is critical. If your primary deck hinges are out of alignment by even a quarter of an inch, the Bimini frame will twist during deployment, causing uneven canvas tension and premature hardware failure.

Step 2: Prepare the Fiberglass or Metal Surface

Place a 4-inch strip of high-tack blue painter’s tape directly over your marked mounting points on both gunwales. Position the deck hinges over the tape, aligning their center screw holes with your marks. Use a fine-tip marker to draw the outlines of the hinge base and mark the exact center of the screw holes.

The painter's tape serves a dual purpose: it protects the surrounding gelcoat from accidental drill slips and prevents the fiberglass glaze from chipping as the drill bit enters the surface.

Using a spring-loaded center punch, make a small indentation at the center of each marked screw hole. This indentation gives the drill bit a starting point, preventing it from wandering or walking across the surface during the drilling process.

Step 3: Drill Pilot Holes and Bevel the Gelcoat

Select a drill bit that matches the inner core diameter of your mounting screws, excluding the thread depth.

Warning: Drilling straight into fiberglass gelcoat with a standard forward-rotation drill will cause immediate spider cracking and surface chipping.

To prevent this damage, set your power drill to reverse mode. Place the drill bit on your punched mark and run the drill in reverse with light, steady downward pressure until you polish through the brittle top layer of the gelcoat. Once you reach the raw fiberglass laminate beneath, switch the drill back to forward rotation and drill to the depth of the screw.

Once the pilot holes are drilled, remove the painter's tape. Use a countersink bit (or a drill bit twice the diameter of the hole, spun slowly by hand) to create a chamfer, which is a small, 45-degree beveled edge around the top of each hole. This bevel removes the sharp gelcoat edge, preventing the screw threads from catching and cracking the gelcoat when driven in.

Step 4: Seal and Mount the Deck Hinges

Clean any fiberglass dust out of the pilot holes using compressed air or a dry cloth. Moisture intrusion into raw fiberglass or plywood core materials leads to rot and structural failure over time.

Apply a generous dab of marine-grade polyurethane sealant, such as 3M Marine Adhesive Sealant 4200, directly into each pilot hole and around the underside of the deck hinge base.

Align the deck hinge over the holes and insert your stainless steel wood/sheet-metal screws. Tighten the screws using a hand screwdriver to avoid stripping the fiberglass threads with an electric driver. Tighten until the sealant squeezes out around the perimeter of the hinge base. Wipe away any excess sealant immediately using mineral spirits or a clean rag.

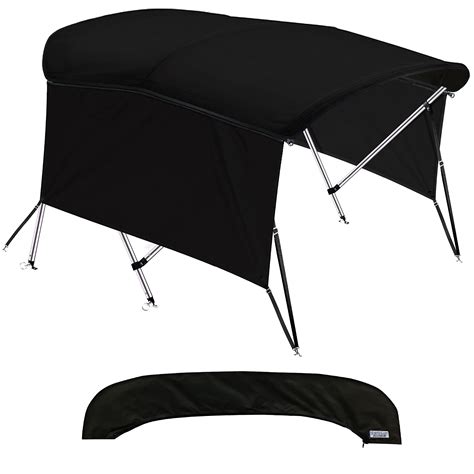

Step 5: Assemble and Hang the Bimini Frame

Assemble the metal bow frame on a clean, soft surface like carpet or grass to avoid scratching the anodized aluminum or stainless steel tubing. Slide the bows together, ensuring all push-pin snap buttons pop out fully through their corresponding alignment holes.

Slip the canvas zippered pockets over the frame bows, making sure the zippered sleeves face the correct direction (the zippered sleeves usually wrap around the intermediate bows, while the main bows sit in deep canvas pockets).

With the help of a second person, lift the assembled Bimini frame onto the boat. Position the main bow jaw slides over the newly installed deck hinges. Insert the quick-release pins or hex bolts through the hinges to secure the frame to the boat.

Step 6: Anchor and Tension the Support Straps

With the main frame pinned to the deck hinges, open the Bimini top fully to its deployed position. Have your helper hold the frame steady and taut.

Locate the four tension straps (two extending forward toward the bow, two extending aft toward the stern). Pull each strap outward until it aligns at approximately a 45-degree angle relative to the gunwale. This 45-degree angle provides the most stable structural geometry to counteract wind shear.

Mark the spots on the gunwales where the strap eye straps (also called pad eyes) will mount. Repeat the drilling, chamfering, and sealing process detailed in Steps 3 and 4 to secure these eye straps.

Clip the snap hooks of the tension straps to the eye straps. Adjust the slide buckles on each strap until the canvas is tight and free of wrinkles.

Pro-Tip: When fully tensioned, the main frame of the Bimini top should remain rigid, with no play or wobbling. If you can shake the frame by hand, tighten the straps further.

Bimini Hardware Selection and Torque Specifications

Selecting the right hardware materials determines how well your Bimini top handles high wind loads and saltwater exposure. The following table outlines the material properties and applications of the three primary marine hardware standards.

Common Marine Mounting Errors and Field Fixes

Even with careful planning, marine environments present challenges that can cause installation issues. Below are three common failure points and how to resolve them.

• Issue 1: Gelcoat Spider Cracking Around Screws




  • Root Cause: This occurs when screws are driven directly into a straight-drilled hole without a beveled shoulder. The expanding screw threads apply radial force directly to the brittle outer glaze of the fiberglass.
  • Actionable Fix: Remove the hardware. Use a rotary tool with a small conical grinding stone to clean away the loose gelcoat around the crack. Fill the void with marine-grade epoxy or gelcoat paste. Let it cure, sand it flush, and re-drill the hole using the reverse-drilling and chamfering techniques outlined in Step 3.

• Issue 2: Bimini Sags, Buffets, or Shakes Underway




  • Root Cause: Loose tension straps or incorrect mounting angles. If the support straps are installed too vertical (greater than 60 degrees) or too horizontal (less than 30 degrees), they cannot resist the wind uplift forces.
  • Actionable Fix: Adjust the position of your eye straps so the tension lines sit at a 45-degree angle to the gunwale. If the straps continue to stretch over time, replace them with rigid stainless steel support struts (also called stiff legs), which lock the Bimini frame into a solid, unmoving position.

• Issue 3: High-Pitch Humming or Whistling at High Speeds




  • Root Cause: Wind passing over flat, highly tensioned nylon webbing straps acts like a reed in a wind instrument, causing high-frequency vibrations.
  • Actionable Fix: Disconnect the strap snap hook, twist the strap three to four times to create a spiral pattern down its length, and re-clip it to the eye strap. This spiral shape disrupts the clean airflow over the webbing, eliminating the wind vortexes that cause the hum.

Frequently Asked Questions

Can I run my boat at high speeds with the Bimini top deployed?

Most standard Bimini tops are rated for speeds up to 35 mph when properly secured. If you plan to run your boat at speeds exceeding 45 mph, you must replace the nylon tension straps with rigid stainless steel support poles and ensure the frame is constructed of 316 stainless steel rather than aluminum.

What is the difference between Bimini support straps and support poles?

Support straps use adjustable webbed nylon and snap hooks to pull the frame forward and backward. Support poles are rigid metal struts that pin directly to the deck, keeping the frame in a fixed, upright position even when the canvas is folded down into a boot.

How do I mount a Bimini top to a pontoon boat rail?

Instead of drilling into fiberglass gunwales, pontoon installations use square rail mounts that clamp directly around the 1-inch or 1.25-inch aluminum square tubing of the playpen rail. These clamps are secured with set screws or through-bolts, eliminating the need to drill into the boat's primary structure.

Should I use 3M 5200 or 3M 4200 adhesive sealant for the deck hinges?

You should use 3M 4200 (or a comparable medium-strength marine polyurethane) because it provides a watertight seal but still allows the hardware to be removed in the future if it gets damaged. 3M 5200 is a permanent structural adhesive that will tear the fiberglass gelcoat away if you ever try to remove the hinges.

Upgrade Your Vessel's Comfort and Protection

Installing a Bimini top elevates your boating experience by providing vital relief from direct sunlight and unexpected weather. Take your time, measure twice, protect your gelcoat, and enjoy many comfortable seasons of cruising on the water.
