How To Bend Exhaust Pipe At Home: A Professional Guide To DIY Mandrel And Compression Bends

Bending exhaust pipe at home without kinking or collapsing the tubing requires a combination of internal support, precise thermal management, and the correct mechanical leverage. Whether you are fabricating a custom downpipe or routing a cat-back system, utilizing methods like sand-packing, hydraulic tubing benders, or segment-pie cuts ensures smooth interior walls and maintains optimal exhaust gas velocity.

Pre-Operation & Equipment Checklist

Fabricating a custom exhaust system in a home garage requires careful planning and specialized hardware to handle thin-walled automotive tubing. Mild steel and stainless steel behave differently under stress, meaning your equipment choices must match your material selections.

• Essential Gear, Tools, and Materials:


  • Rotary tubing bender or hydraulic pipe bender with matching radius dies (1.5-inch to 3-inch outer diameter capabilities).
  • Fine-grain dry silica sand, heavy-duty duct tape, and a rubber mallet (for the sand-packing method).
  • Oxy-acetylene torch or high-output MAPP gas torch for localized thermal softening.
  • TIG or MIG welder if opting for pie-cut segment fabrication.
  • Angle grinder with a thin cutoff wheel and flap discs.
  • Personal Protective Equipment: Leather welding gloves, safety glasses, and a respirator for metal grinding.
• Mandatory Prerequisite Knowledge & Standards:


  • Understanding the difference between crush bending (which reduces cross-sectional area by up to 30%) and mandrel bending (which preserves inner diameter).
  • Knowledge of metal metallurgy: 304 stainless steel work-hardens rapidly, while aluminized mild steel offers forgiving thermal properties for beginners.
• Budget and Duration Benchmarks:


  • Estimated budget ranges from $50 for basic manual benders and sand-packing supplies to $300+ for hydraulic frame benders.
  • Estimated completion time spans between 4 to 8 hours depending on the complexity of the routing angles and whether welding is required.

Step-by-Step Exhaust Bending Workflow

Step 1: Material Selection and Measurement

Begin by sourcing the correct tubing gauge for your application. Most passenger vehicle exhaust systems utilize 16-gauge (0.065-inch wall thickness) or 18-gauge (0.049-inch wall thickness) tubing in aluminized steel or 304 stainless steel. Measure your routing path using a coat hanger or welding wire as a physical template to map out angles, clearance points around suspension components, and clearance tolerances.

Warning: Never use galvanized steel for exhaust fabrication. High exhaust gas temperatures vaporize the zinc coating, releasing toxic zinc oxide fumes that cause metal fume fever.

Step 2: Internal Support Preparation (The Sand-Packing Method)

If you are using a basic manual bender or applying heat without a dedicated internal mandrel, you must prevent the pipe walls from collapsing inward. Seal one end of your exhaust pipe tightly with a heavy-duty steel plug or multiple layers of reinforced duct tape. Fill the pipe completely with bone-dry silica sand, tapping the exterior of the pipe periodically with a rubber mallet to settle the grains tightly. Once completely packed with zero air pockets, seal the top end securely.

Pro-Tip: The sand must be 100% dry. Trapped moisture inside a sealed, heated pipe will instantly flash to steam, creating a dangerous pressure vessel that can rupture the tubing.

Step 3: Applying Heat and Mechanical Force

Secure your bender to a heavy workbench or mount a hydraulic pipe bender firmly to the floor. If your tubing diameter exceeds 2 inches or you are working with thick-walled stainless steel, heat the target bend zone uniformly using an oxy-acetylene torch. Bring the steel to a dull cherry-red color (approximately 1,200°F to 1,400°F) across the outside radius of the intended bend. Apply steady, hydraulic or manual leverage to pull the pipe around the radius die. Move slowly, allowing the metal to flow rather than stretch violently.

Step 4: Quenching, Inspection, and Cleanup

Allow the bent pipe to cool naturally to room temperature, or accelerate cooling with compressed air if working with mild steel (avoid rapid water quenching on stainless steel to prevent localized micro-cracking). Remove the end plugs and pour out the sand. Inspect the interior radius for kinking or rippling. Clean up any scale or discoloration using an angle grinder equipped with a conditioning disc before test-fitting the piece onto your vehicle hangers.

Exhaust Bending Methods Compared

Common Site Failures and Field Fixes

• Severe Kinking at the Inside Radius:


  • Root Cause: Insufficient internal pressure support or applying bending force while the metal was either too cold or overheated past its structural threshold.
  • Actionable Fix: Cut out the kinked section entirely, sleeve the joint with a slip-fit connector, or switch to a sand-packed re-bend with more uniform torch heating.
• Egg-Shaped Cross-Sectional Deformation:


  • Root Cause: Using a bender die that does not match the exact outer diameter (OD) of the exhaust tubing, allowing the pipe to flatten laterally under load.
  • Actionable Fix: Always match your die radius precisely to your pipe size. Correct minor flattening by placing the deformed area in a vise and gently tapping it back to round with a ball-peen hammer.
• Surface Cracking or Splitting on the Outer Radius:


  • Root Cause: Over-stretching low-quality tubing, working with work-hardened stainless steel without proper annealing, or bending a tight radius too quickly.
  • Actionable Fix: Discard the split section. For subsequent bends, heat the outer radius thoroughly to soften the grain structure and decrease your bend angle per pull.

Frequently Asked Questions

Can I bend an exhaust pipe without heating it?

Yes, you can cold-bend thin-walled exhaust tubing using a dedicated mandrel bender or rotary draw bender. However, attempting to cold-bend pipe using standard hydraulic frame benders or without internal support will almost always result in severe kinking and flow restriction.

Why does my exhaust pipe flatten when I try to bend it?

Exhaust pipes flatten because the outer wall stretches while the inner wall compresses during a bend, causing the unsupported sides to cave inward. Using internal media like packed sand or an external sleeve die prevents this structural collapse.

What is the difference between a crush bend and a mandrel bend?

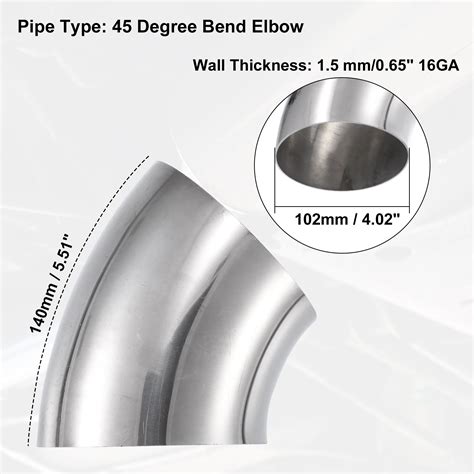

A crush bender pushes a pipe against a stationary die, causing the outer wall to thin out and the inner wall to wrinkle, reducing internal diameter by up to 30 percent. A mandrel bender inserts a solid plug (mandrel) inside the pipe during the bend, supporting the walls to maintain 100 percent of the original inner diameter and exhaust gas velocity.

Is mild steel or stainless steel easier to bend at home?

Aluminized mild steel is significantly easier to bend and weld at home because it has a wider thermal working window and does not work-harden as aggressively as 304 stainless steel. Stainless steel requires precise temperature control and frequent annealing to prevent cracking.

Mastering custom exhaust fabrication at home takes patience, the right thermal preparation, and strict attention to structural integrity. Upgrade your garage capabilities today and start building high-flowing custom exhaust systems with confidence.
