The Professional Guide On How To Bend Lexan: Techniques For Precision Fabrication

Lexan, a brand name for polycarbonate sheet, is a thermoplastic that achieves a permanent bend when heated to its glass transition temperature, typically between 280 degrees and 320 degrees Fahrenheit. The process requires controlled, localized heat application followed by a cooling phase to lock in the desired geometry without compromising the material’s structural integrity or causing surface degradation.

Essential Preparation and Tool Requirements for Lexan Fabrication

Successful polycarbonate bending relies on managing the material's thermal expansion and sensitivity to stress concentrations. Unlike acrylic, which is prone to brittle cracking, Lexan is highly ductile, but it remains susceptible to moisture-induced bubbling if not properly conditioned. Before initiating any heat application, evaluate the thickness of your material, as sheets exceeding 0.25 inches require significantly longer soak times to ensure uniform heating throughout the cross-section.

• Essential Gear and Tools:

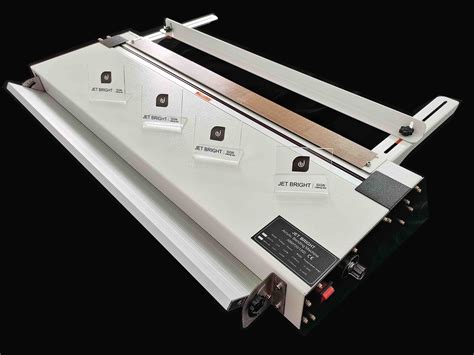

  • Industrial heat gun with adjustable temperature settings or a dedicated strip heater.
  • Digital infrared thermometer to monitor surface temperatures accurately.
  • Precision metal brake or bending jig with rounded edges to prevent localized stress fractures.
  • Non-marring clamps and straight-edge guides for maintaining consistent bend geometry.
  • Protective heat-resistant gloves and safety eyewear.
• Mandatory Prerequisites:


  • Moisture removal: If the Lexan sheet has been stored in a humid environment, bake it in a low-temperature oven at 250 degrees Fahrenheit for several hours to prevent "outgassing" or bubbles during heating.
  • Surface protection: Keep the protective masking on the sheet as long as possible to avoid scratching, but peel it back precisely 1 inch from the intended bend line to prevent the film from melting onto the plastic.
• Benchmarks:


  • Expected duration: 15 to 30 minutes for setup and conditioning, plus 5 to 10 minutes per bend.
  • Budgetary range: Low for DIY heat gun methods; medium for professional strip heating rigs.

Precision Workflow for Heating and Forming Polycarbonate

Step 1: Layout and Material Conditioning

Measure your bend line with a high-visibility marker that can be removed with isopropyl alcohol. Ensure the sheet is clean and free of oils or surface contaminants. If your sheet is thicker than 0.125 inches, place it in an oven at 250 degrees Fahrenheit for two hours to ensure the material is fully dried and tempered, which prevents internal pressure release during the bending phase.

Step 2: Controlled Heat Application

For a straight bend, position the heat gun or strip heater to focus heat directly along the bend line. Keep the heat source at least 3 to 4 inches away from the material surface to avoid localized burning or yellowing. Slowly sweep the heat source back and forth along the bend line to ensure uniform thermal distribution.

Pro-Tip: Do not focus heat on a single spot for more than three seconds. Constant movement is required to prevent heat-affected zones that lead to optical distortion.

Step 3: Determining the Bending Threshold

Monitor the material with an infrared thermometer. You are aiming for a surface temperature between 280 and 300 degrees Fahrenheit. The Lexan will become pliable like stiff rubber. If you attempt to bend the material before it reaches this range, you risk inducing permanent internal stress, which will lead to "crazing" (tiny surface cracks) over time.

Step 4: Forming and Cooling

Once the material reaches the target temperature, gently fold the sheet to your desired angle using a jig or a metal straight edge. Hold the piece in the exact position for at least 3 to 5 minutes. Polycarbonate has a high memory; if you release it too early, it will spring back toward its original flat shape.

Warning: Never use water or ice to speed up the cooling process. Rapid, uneven cooling introduces internal thermal stresses that will compromise the structural strength of the bend and potentially cause the material to shatter under load.

Comparative Parameters for Polycarbonate Bending Methods

Addressing Fabrication Failures and Material Defects

When working with polycarbonate, minor errors in technique often manifest as immediate surface flaws or delayed structural failures. Understanding these symptoms allows for quick adjustments to your workflow.

• Surface Bubbling and Blistering


  • Root Cause: Moisture trapped inside the plastic matrix is expanding into steam due to heat application.
  • Actionable Fix: The material must be pre-baked in a convection oven at 250 degrees Fahrenheit for a duration proportional to the thickness to drive out absorbed humidity before heating.
• Crazing or Micro-Fractures


  • Root Cause: Bending the material at too low a temperature or applying excessive mechanical force too quickly.
  • Actionable Fix: Increase the dwell time of the heat application and ensure the surface temperature reaches the 280-300 degree range before applying force.
• Yellowing or Discoloration


  • Root Cause: Overheating or holding the heat source too close to the surface, causing thermal degradation of the polymer.
  • Actionable Fix: Increase the distance between the heat source and the Lexan and increase the speed of the sweep motion during the heating process.

Frequently Asked Questions

Can I use a regular hair dryer to bend Lexan?

No, a standard hair dryer cannot reach the required 280-degree Fahrenheit threshold. You must use an industrial-grade heat gun or a specialized plastic strip heater to achieve the necessary temperature for uniform, stress-free bending.

Why does my Lexan sheet spring back after I bend it?

Spring-back occurs when the material has not been held in the desired position long enough to cool below its glass transition temperature. Ensure you hold the bend for at least 5 minutes after reaching the target shape to allow the polymer chains to lock into the new geometry.

Is there a difference between bending Lexan and bending Acrylic?

Yes, Lexan is significantly more ductile and resilient than acrylic. While acrylic is prone to snapping under stress, Lexan will withstand greater pressure but requires higher heat to become pliable. Always ensure you are working with the correct material, as their thermal requirements differ substantially.

How do I know if I have overheated the Lexan?

Overheating is indicated by visible yellowing, bubbling, or the emission of a strong chemical odor. If you observe any of these signs, immediately stop the heat application and discard the piece, as its chemical and mechanical properties have been permanently compromised.
