How To Bleed Surge Trailer Brakes: A Complete Step-by-Step Technical Guide

Bleeding surge trailer brakes involves purging trapped air from the hydraulic lines to ensure the inertial movement of the trailer actuator translates into consistent clamping force at the wheels. This process requires a sequential evacuation of fluid starting from the wheel furthest from the master cylinder, utilizing high-quality DOT 3 or DOT 4 fluid to maintain a firm, responsive braking system.

Pre-Bleeding Logistics and Essential Equipment Checklist

Before initiating a hydraulic purge, it is vital to understand the mechanical interface of a surge brake system. Unlike automotive brakes where a pedal provides the leverage, a surge system relies on a sliding actuator located at the trailer tongue. When the towing vehicle slows down, the momentum of the trailer pushes the actuator toward the vehicle, compressing a master cylinder. To bleed this system effectively, you must simulate this physical compression manually or use a pressurized bleeding device.

Preparing your workspace and gathering specific materials ensures the job remains clean and the hydraulic system remains free of contaminants. Brake fluid is hygroscopic, meaning it absorbs moisture from the air, which can lead to internal corrosion and a lowered boiling point. Therefore, always use a fresh, sealed container of fluid.

Essential Gear and Tool Requirements

• Wrenches: A 3/8-inch or 10mm boxed-end wrench (standard for most bleeder valves).
• Hydraulic Fluid: 1–2 quarts of DOT 3 or DOT 4 brake fluid (consult your actuator manufacturer’s manual).

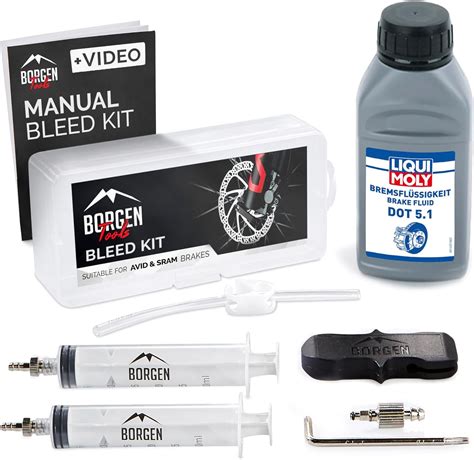

• Bleeding Kit: A clear plastic hose (1/4-inch ID) and a clean glass or plastic capture jar.
• Actuation Tool: A heavy-duty flat-head screwdriver or a small pry bar to manually cycle the actuator.
• Cleaning Supplies: Several cans of brake parts cleaner and lint-free shop towels.
• Safety Equipment: Nitrile gloves and ANSI-rated safety glasses (brake fluid is caustic to skin and eyes).
• Lifting Gear: A floor jack and heavy-duty jack stands rated for the trailer’s Gross Vehicle Weight Rating (GVWR).

Prerequisite Benchmarks

• Time Estimate: 60 to 90 minutes depending on the number of axles.
• Difficulty Rating: Intermediate; requires basic mechanical knowledge of hydraulic circuits.
• System Integrity Check: Inspect all brake lines for visible leaks, kinks, or severe corrosion before starting. If a line is compromised, bleeding will not fix the loss of pressure.

Executing the Surge Brake Bleeding Procedure

The objective of bleeding is to replace old, aerated, or contaminated fluid with fresh fluid without introducing new air pockets. Air is compressible, whereas hydraulic fluid is not; if air remains in the lines, the actuator will "bottom out" without applying sufficient pressure to the brake pads or shoes.

Step 1: Secure and Level the Trailer

Park the trailer on a flat, level concrete surface. Leveling the trailer is critical for surge systems to ensure the master cylinder reservoir is at its highest capacity and that air bubbles naturally migrate toward the bleeder valves or the reservoir.

1. Chock the trailer wheels that are not being lifted.
2. Use the floor jack to lift the trailer by the frame (never the axle tube) and secure it on jack stands.
3. Remove the wheels if necessary to gain better access to the bleeder valves, though this is often optional on trailers with high-clearance wheel wells.

Step 2: Access and Fill the Master Cylinder

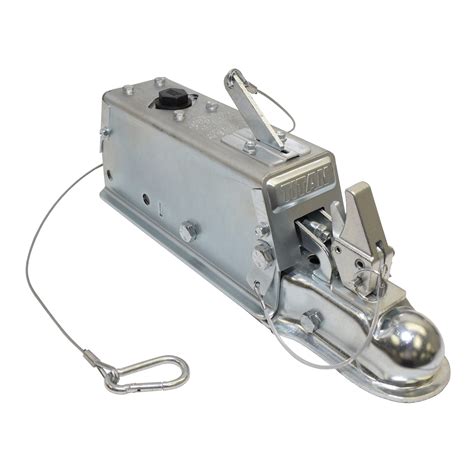

Locate the master cylinder, which is housed inside the surge actuator at the front of the trailer tongue.

1. Clean the area around the reservoir cap thoroughly before opening. Even a microscopic grain of sand can ruin the seals in a master cylinder.
2. Remove the cap and check the fluid level.
3. Fill the reservoir to within 1/8 inch of the top with fresh fluid.
4. Keep the cap loosely placed over the opening during the process to prevent fluid from geysering out when the actuator is released, but do not seal it airtight, as the system needs to breathe during the stroke.

Step 3: Sequence the Bleeding Order

Always begin with the wheel that has the longest run of hydraulic brake line. This is typically the rear passenger-side wheel on a tandem axle trailer.

1. Rear Passenger Side (Furthest from the tongue)
2. Rear Driver Side
3. Front Passenger Side
4. Front Driver Side (Closest to the tongue)

By following this sequence, you push the bulk of the air out of the main distribution lines first, preventing bubbles from migrating back into previously cleared sections.

Step 4: Manual Actuator Compression

Since you do not have a brake pedal, you must manually move the inner slide of the actuator. Most modern actuators (like those from Dexter, UFP, or Demco) have a hole or a slot underneath or on the side specifically designed for a pry bar.

1. Attach the clear hose to the bleeder valve of the first wheel in the sequence. Submerge the other end of the hose in a small amount of clean brake fluid in your capture jar.
2. Open the bleeder valve approximately half a turn.
3. Using your pry bar or screwdriver, push the master cylinder pushrod forward (toward the trailer) in a slow, steady stroke.
4. Pro-Tip: Do not pump the actuator rapidly. Rapid movement can emulsify the air and fluid, creating tiny bubbles that are nearly impossible to bleed out in one session.
5. While the actuator is compressed, have a partner close the bleeder valve.
6. Slowly release the actuator to its original position. This "pumping" action draws fresh fluid from the reservoir into the lines.

Warning: Never release the actuator while the bleeder valve is open and the hose is not submerged in fluid. Doing so will suck air back into the wheel cylinder or caliper, forcing you to restart the process.

Step 5: Visual Verification and Repeat

Continue the pump-close-release cycle for the first wheel until the fluid appearing in the clear hose is bright, clear, and devoid of any air bubbles.

1. Monitor the master cylinder reservoir every 3–5 pumps. If the reservoir runs dry, you will pump air into the entire system, necessitating a full restart.
2. Tighten the bleeder valve to the manufacturer’s torque specification (usually 70–100 inch-pounds).
3. Move to the next wheel in the sequence and repeat the process.

Step 6: Final Pressure Test

Once all wheels are bled, the actuator should feel significantly firmer.

1. Top off the master cylinder one last time to the "Full" mark.
2. Replace and tighten the reservoir cap.
3. Attempt to push the actuator manually. It should move a short distance and then meet a "hard" stop. If it feels "spongy" or moves through its entire stroke with little resistance, air remains in the system.

Technical Specifications and Fluid Compatibility

Choosing the correct materials and understanding the tolerances of your hydraulic system is essential for long-term safety and performance. The following table outlines the standard metrics for most common surge brake systems.

Common Hydraulic Failures and Technical Remedies

Even with a meticulous bleeding process, certain mechanical issues can prevent a successful result. Recognizing these failure modes early can save hours of frustration.

• Scenario: Fluid consistently contains air bubbles regardless of how much is bled.




  • Root Cause: A faulty master cylinder primary seal or a loose fitting on the suction side of the system is drawing air in during the return stroke.
  • Actionable Fix: Inspect the master cylinder for "weeping" fluid at the rear seal. If found, the master cylinder must be replaced. Also, check the tightness of the brake line flares at the actuator.

• Scenario: The bleeder valve is frozen or snapped off during the attempt to open it.




  • Root Cause: Galvanic corrosion between the steel bleeder and the aluminum or cast-iron caliper/drum, common in boat trailers exposed to salt water.
  • Actionable Fix: Apply a penetrating oil and use heat (propane torch) cautiously around the valve area. If it snaps, use a screw extractor or replace the entire wheel cylinder/caliper.

• Scenario: The actuator moves freely, but no fluid is reaching the rear wheels.




  • Root Cause: A collapsed rubber flex hose or a blocked "solenoid" valve (on trailers with disc brakes and reverse lockouts).
  • Actionable Fix: Test the solenoid by bypassing it or checking for electrical continuity. If a rubber hose is over five years old, it may have internal swelling that acts as a one-way check valve. Replace all flexible rubber lines with stainless steel braided lines for better pressure retention.

Frequently Asked Questions

Can I bleed surge brakes by myself without a partner?

Yes, but you will need a specialized tool such as a vacuum bleeder or a pressure bleeder (like a Motive Products tank). These tools either pull fluid through the bleeder valve using a vacuum pump or push it from the master cylinder using pressurized air, eliminating the need for someone to manually cycle the actuator tongue.

How often should I bleed and flush my trailer brakes?

For standard utility trailers, every two years is sufficient. However, for boat trailers submerged in water (especially salt water), you should perform a full fluid flush annually. Moisture intrusion is the leading cause of surge brake failure, and regular bleeding prevents the internal components from seizing.

Why is there a difference in bleeding disc brakes versus drum brakes on a trailer?

Disc brakes require significantly higher pressure to operate and often feature a reverse lockout solenoid that must be bypassed or powered during bleeding to allow fluid to reach the calipers. Drum brakes are more forgiving regarding small amounts of air but are more prone to mechanical shoe adjustment issues that can mimic the feeling of air in the lines.

Is it okay to use DOT 5 fluid in a surge brake system?

No, DOT 5 is a silicone-based fluid and is incompatible with the glycol-based DOT 3 and DOT 4 fluids used in almost all trailer actuators. Mixing them will cause the seals to swell and the fluid to turn into a gelatinous mass, requiring a complete system replacement.
