How To Brace A Sagging Wooden Gate: The Ultimate Structural Guide

Bracing a wooden gate requires installing a diagonal tension or compression member to transfer the dynamic load of the unsupported latch-side corner back to the hinge-side post. Executing this repair correctly requires understanding gravity loads, tension vectors, and precise fastener placement to prevent structural warping and eliminate gate drag.

Pre-Operation & Equipment Checklist

Fixing a sagging gate demands structural hardware and accurate measuring instruments to restore square alignment. Without the proper mechanical advantage, temporary fixes like wire twist-ties or generic corner brackets will fail under the cyclical wind and weight loads typical of outdoor perimeters.

• Essential Gear, Tools, and Materials:


  • Heavy-duty anti-sag gate kit (includes steel tension cable or tubular steel brace, turnbuckle, and mounting brackets)
  • Cordless drill/driver with pilot drill bits and appropriate driver bits
  • 4-foot and 2-foot spirit levels
  • Quick-grip bar clamps or pipe clamps
  • Standard socket wrench set or adjustable wrench
  • Wood preservative or exterior paint for touch-ups
• Mandatory Prerequisite Knowledge and Standards:


  • Understanding that a diagonal brace must always run upward from the bottom hinge side to the top latch side to place the brace in compression (or downward from the top hinge side for tension systems).
  • Verification that hinge posts are plumb and structurally sound; a shifting post will invalidate any gate brace.
• Estimated Budget and Duration Benchmarks:


  • Budget: $25 to $60 for high-grade steel hardware kits.
  • Duration: 45 to 60 minutes for a standard 4-to-6-foot wooden gate.

Step-by-Step Gate Bracing Workflow

Step 1: Realign and Clamp the Gate Square

Begin by releasing any current tension devices or removing old, failing braces. Lift the unsupported latch-side corner of the gate upward until the gate gap is uniform along the latch post, using a temporary prop or pry bar under the bottom rail. Check the top rail and vertical stiles with a spirit level to ensure the frame is completely square. Lock this position in place by running diagonal bar clamps temporarily across the frame, or have an assistant hold the corner steady while you prep the hardware.

Warning: Never install a brace on a gate that is still sagging. If you lock a brace into a crooked gate frame, you permanently warp the timber and create internal stress points that cause premature fastener shear.

Step 2: Position the Diagonal Brace

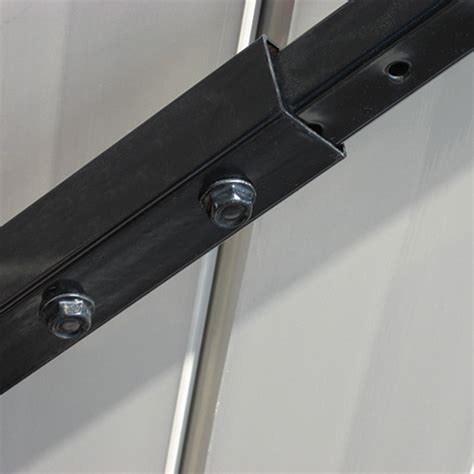

Take your steel cable kit or solid metal brace and lay it diagonally across the interior face of the gate. For a standard compression brace (such as a rigid tube), the bottom end of the brace must anchor near the lower hinge-side corner, while the top end terminates near the upper latch-side corner. For a cable tension kit, the anchor points reverse: the top bracket mounts near the upper hinge post, and the cable runs down to the lower latch corner, utilizing a central turnbuckle to pull the corner upward.

Pro-Tip: Measure twice and dry-fit all brackets before driving fasteners. The angle of the brace determines how efficiently the dead load is transferred back to the heavy-duty hinge post.

Step 3: Secure the Mounting Brackets

Mark the screw hole locations for the upper and lower mounting brackets using a pencil or a center punch. Drill pilot holes slightly smaller than your structural screws to prevent splitting the dimensional lumber of your gate frame. Secure the brackets using heavy-duty exterior-grade structural screws or lag bolts. Ensure every fastener is driven straight and flush with the bracket surface, avoiding over-torquing which can strip the wood fibers.

Step 4: Adjust Tension and Test Swing

If utilizing a turnbuckle-based cable system, use your wrench to slowly turn the central barrel, drawing the cable taut. Watch the latch-side corner of the gate as you tighten; you should see the corner visibly lift by a quarter-inch to compensate for future settling. Remove your temporary props and bar clamps. Swing the gate through its full operational arc several times to check for binding, latch alignment, and smooth clearance over the ground surface.

Gate Bracing Hardware Comparison

Common Gate Failures and Field Fixes

• Root Cause: Fasteners pulling out of dry, weathered gate stiles under constant dynamic load.


  • Actionable Fix: Remove the stripped screws, fill the enlarged holes with exterior wood epoxy or glued hardwood dowels, let cure, drill fresh pilot holes, and upgrade to thicker structural lag screws with wide washers.
• Root Cause: The hinge post itself is leaning, causing the latch-side to drop regardless of brace adjustment.


  • Actionable Fix: Check the hinge post with a level; if the post has shifted in the ground, you must excavate around the concrete footing, brace the post plumb, and pour a fresh collar of structural concrete.
• Root Cause: Cable tension loosening over time due to seasonal wood expansion and contraction.


  • Actionable Fix: Incorporate thread-locking compound or jam nuts onto the turnbuckle threads after achieving final tension, preventing vibration from backing off the adjustment barrel.

Frequently Asked Questions

Which direction should a gate brace run?

A compression brace must run diagonally upward from the bottom hinge side to the top latch side. Conversely, a cable tension brace runs from the top hinge side down to the bottom latch side. This geometry ensures the weight of the gate is physically pushed or pulled directly back into the anchored hinge post rather than twisting the frame.

Can I use a wooden 2x4 instead of a metal gate kit?

Yes, a custom-cut 2x4 wood brace is extremely effective if notched cleanly into the corners of the gate frame and fastened with structural screws. However, wood braces are susceptible to moisture absorption, rot, and seasonal warping, whereas galvanized steel kits offer long-term dimensional stability.

Why does my gate keep sagging even after installing a brace?

Persistent sagging usually indicates that your hinge post is flexing or rotating in the ground, or your hinges are loose and failing. A brace only supports the internal gate frame; if the mounting foundation is unstable, the entire assembly will continue to drop.

How tight should a cable gate brace be adjusted?

Tighten the turnbuckle until the cable is taut and the latch-side corner of the gate is lifted slightly above level to account for initial mechanical settling. Do not overtighten to the point where the vertical stiles begin to bow outward or pull the gate frame out of square.
