How To Build A Curved Staircase: The Comprehensive Architectural Installation Guide

Constructing a curved staircase requires strict adherence to international building codes, precision geometric layout, and advanced millwork techniques. Mastery of continuous handrail geometry, stringer lamination, and structural load distribution transforms an ambitious architectural vision into a structurally sound architectural centerpiece.

Architectural Planning, Advanced Geometry, and Tooling Requirements

Executing a curved staircase requires moving beyond standard linear construction methodologies into the realm of complex spatial geometry. Because a true curved staircase features a constant radius, every single tread must be custom-cut with a unique taper while maintaining a uniform walk line width. Before starting fabrication, local building officials must review shop drawings to ensure compliance with the International Residential Code (IRC), which mandates specific headroom clearances, maximum riser heights, and minimum tread depths.

• Essential Tools and Hardware: Heavy-duty radial arm saw, stationary band saw, industrial vacuum bag lamination system, digital angle finder, transit level, laser measure, structural carriage bolts, and specialized wood adhesives.
• Material Selection Specifications: Premium vertical grain hardwoods for visible treads, structural grade bending plywood or multiple layers of 1/8-inch hardboard for laminated stringers, and structural steel reinforcement plates where concealed support is required.
• Prerequisite Knowledge and Timeline: Advanced proficiency in architectural woodworking, trigonometry, and finish carpentry; estimated project timeline spans 60 to 120 labor hours depending on height and finish level.

Step-by-Step Fabrication and Installation Procedure

Step 1: Establishing the Full-Scale Floor Layout

Transfer the architectural blueprints into a full-scale layout directly on the subfloor or a large template sheet using a trammel point and chalk line. Locate the center point of the curve, mark the inner stringer radius, the outer stringer radius, and the critical walk line located exactly 12 inches from the inside handrail. Verify that the total rise divided by the number of risers results in individual riser heights that do not vary by more than 3/8 of an inch across the entire run.

Warning: Failure to map the precise center point and radius on the subfloor will result in cascading layout errors that render every individual tread unusable.

Step 2: Constructing Laminated Structural Stringers

Build the inner and outer stringers by laminating multiple thin layers of flexible plywood or hardwood veneers over a heavy-duty custom framing jig built to your exact layout radii. Apply high-strength structural wood adhesive uniformly across each layer and clamp them securely using pneumatic strap clamps or a vacuum press to eliminate voids. Allow the assembly to cure for a minimum of 24 hours under pressure before releasing the clamps and trimming the edges to final dimensions.

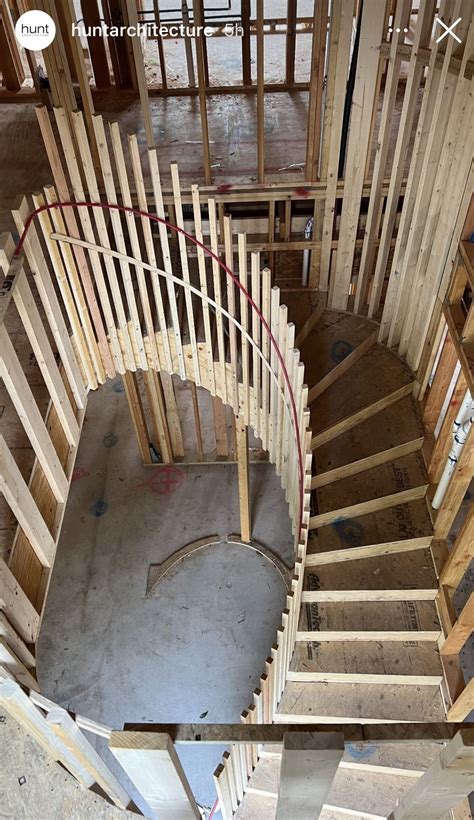

Step 3: Installing Hidden Structural Framing and Posts

Anchor the structural steel moment posts and concealed timber framing directly to the floor joists and header framing using heavy-gauge lag screws and structural adhesives. Ensure that the support framing for a curved staircase is engineered to handle torsional loads significantly higher than those of a standard straight stair, as the lateral forces pull outward on the curves. Plumb and square every structural column to guarantee the laminated stringers fit precisely without binding or twisting.

Step 4: Cutting and Fitting Treads and Risers

Cut each individual tread and riser from solid hardwood stock, utilizing a CNC router or a carefully guided bandsaw with paper templates derived from your floor layout. Ensure that the nosing overhang and tread depth along the walk line meet or exceed local code requirements, typically requiring a minimum 10-inch run and a maximum 7-3/4-inch rise. Dry-fit every single tread sequentially from the bottom up, scribing the edges to match the contour of the inner and outer stringers precisely.

Pro-Tip: Number every tread and riser on the underside during the dry-fit phase to streamline final gluing and fastening without confusion.

Step 5: Assembling the Continuous Handrail and Balusters

Fabricate the continuous curved handrail by laminating thin strips of matching hardwood over a dedicated bending form or by carving segments using a multi-axis CNC machine. Install the balusters plumb, spacing them strictly according to code limits where a 4-inch sphere cannot pass through any opening. Secure the handrail system firmly to structural wall anchors and heavy-duty newel posts to eliminate any deflection or sway under heavy structural loads.

Technical Specifications and Material Tolerances

Common Structural Failures and Field Fixes

• Stringer Spring-Back and Delamination:


  • Root Cause: Insufficient clamp pressure, low-temperature curing, or inadequate adhesive coverage during stringer lamination.
  • Actionable Fix: Cut away the compromised section, inject structural epoxy into the voids, and mechanically reinforce the joint with concealed threaded rods and heavy-duty nuts.
• Riser Squeaking and Vertical Movement:


  • Root Cause: Inadequate fastening between the tread underside and the stringer housing pockets, leading to friction under foot traffic.
  • Actionable Fix: Drive structural screws diagonally through the back of the risers into the treads from underneath, or inject expanding polyurethane structural adhesive into the joint gaps.
• Handrail Deflection and Loose Balusters:


  • Root Cause: Failure to anchor newel posts into primary structural floor framing, relying solely on subflooring.
  • Actionable Fix: Install concealed steel mounting brackets beneath the subfloor to tie the newel posts directly into the structural floor joists.

Frequently Asked Questions

What is the minimum radius allowed for a curved staircase?

While building codes do not specify an absolute minimum radius, standard industry practice dictates that the inner radius should not be less than twice the total width of the stairway. This ensures that the treads along the walk line maintain adequate depth and do not taper to an unusable point near the interior stringer.

How do you calculate the exact tread taper for a curved stair?

Tread tapers are calculated geometrically by radiating lines outward from the designated center point of the curve through the walk line intersections. Every tread possesses a unique angle and width, requiring individual pattern creation rather than mass production using a single template.

Are laminated stringers stronger than solid-cut stringers?

Yes, laminated stringers are significantly stronger and more dimensionally stable than solid-cut stringers for curved applications. Gluing multiple thin layers together eliminates natural wood grain weaknesses and prevents the wood from warping or splitting along the curve over time.

Can a DIY builder construct a curved staircase without professional assistance?

Building a curved staircase is an advanced construction project that requires specialized woodworking machinery, sophisticated geometric layout skills, and strict engineering compliance. While experienced advanced DIYers can tackle the project, consulting a structural engineer or professional stair builder is strongly recommended to guarantee safety and code approval.

Begin your architectural woodworking project today by drafting precise full-scale floor layouts and verifying local building codes to ensure a safe, structurally sound curved staircase installation.
