How To Build A Deck On A Flat Rubber Roof: A Professional Step-by-Step Installation Guide

Constructing a deck over a flat ethylene propylene diene monomer (EPDM) rubber roof requires a floating, non-penetrating assembly to protect the delicate waterproof membrane beneath. By utilizing weight-distribution systems, protective high-density polyethylene pads, and rot-resistant framing, you can transform unused architectural space into a stable outdoor living area without compromising roof integrity.

Pre-Operation & Roof Protection Checklist

Undertaking a rooftop deck installation requires rigorous preparation to protect your structural framing and waterproofing warranty. The primary engineering challenge is managing point loads without puncturing the EPDM membrane while allowing unhindered drainage toward roof scuppers or internal drains.

• Essential Equipment and Materials: Leveling shims, EPDM-compatible protective rubber crush pads, pressure-treated framing lumber (minimum Grade 2 or better), exterior-grade structural fasteners, a laser level, chalk lines, and a high-capacity drill driver.
• Mandatory Prerequisite Knowledge and Standards: Local building codes regarding dead loads versus live loads (typically rated for 40 to 60 pounds per square foot), structural engineering weight calculations, and manufacturer specifications for your specific roof membrane.
• Budget and Duration Benchmarks: Material costs generally range from fifteen to thirty-five dollars per square foot depending on decking species (such as Ipe, composite, or pressure-treated pine), with project completion averaging three to five days for a standard two-hundred-square-foot platform.

Step-by-Step Rooftop Deck Construction Workflow

Step 1: Structural Assessment and Weight Calculations

Before staging any material on the roof, you must verify with a structural engineer that the building framing can support the combined dead load of the deck components and the live load of human occupancy. Calculate the weight of the framing, joists, and decking material, ensuring it stays well within the maximum architectural load capacity of the roof joists. Inspect the EPDM membrane for existing tears, blisters, or failing seams, and perform a mandatory flood test or leak detection scan to establish a sound baseline.

Warning: Never attach a rooftop deck using mechanical fasteners that penetrate the rubber roof membrane, as this will immediately void roof warranties and cause interior water infiltration.

Step 2: Laying Protection Pads and Geotextile Fabric

Clean the entire EPDM surface thoroughly to remove any abrasive debris, gravel, or dirt that could puncture the membrane under sustained pressure. Roll out a heavy-duty geotextile protection fabric across the work zone to act as an abrasion barrier between the roof and the support system. Position high-density rubber or neoprene spacer pads directly over the fabric at predetermined intersection points where your joist supports or adjustable pedestals will rest.

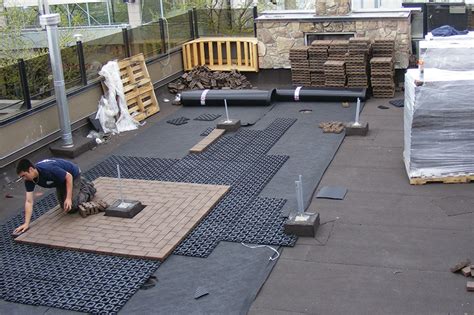

Step 3: Positioning Adjustable Pedestals or Sleepers

Set your adjustable pedestals or low-profile wood sleepers atop the protective rubber pads, maintaining a layout grid spaced according to your joist span ratings (typically every sixteen to twenty-four inches on center). Use a laser level to establish a uniform plane across all pedestals, compensating for the built-in slope of the flat roof (which usually drops a quarter-inch per foot toward drainage outlets).

Pro-Tip: Maintain a continuous slope underneath the framing structure to ensure water can travel freely to roof drains without pooling against wooden sleepers.

Step 4: Constructing the Floating Joist Grid

Lay pressure-treated or rot-resistant hardwood joists across the adjustable pedestals or sleepers, squaring the frame using the 3-4-5 triangulation method and measuring corner-to-corner diagonals until they are equal. Fasten the joists securely to the pedestal heads using manufacturer-approved mechanical clips or brackets designed for floating deck systems. Ensure all framing members remain elevated at least one to two inches above the rubber roof surface to promote maximum airflow and prevent moisture entrapment.

Step 5: Installing Decking Boards and Edge Trim

Begin laying your chosen decking boards—such as dense tropical hardwoods or capped composite boards—perpendicular to the underlying joist layout. Leave a consistent gap of one-quarter inch between boards to allow for thermal expansion and efficient drainage. Utilize hidden fastener systems or face-screw the boards using marine-grade stainless steel screws to prevent rust bleeding and wood degradation. Trim the perimeter cleanly, leaving a clear gap around roof penetrations, parapet walls, and scuppers to maintain accessible drainage paths.

Comparative Analysis of Rooftop Deck Support Systems

Common Rooftop Deck Installation Errors and Field Fixes

• Root Cause: Standing water pooling underneath wooden sleepers due to incorrect alignment or clogged drainage paths.


  • Actionable Fix: Lift the affected framing section, re-level the adjustable pedestals to maintain the underlying roof slope, and clear all debris from around roof scuppers.
• Root Cause: Punctures or abrasions discovered on the EPDM rubber membrane during construction staging.


  • Actionable Fix: Clean the damaged area with an EPDM-approved primer, apply a self-adhering uncured EPDM flashing patch or repair kit following manufacturer lap-cement guidelines, and roller-press the patch to eliminate air bubbles.
• Root Cause: Excessive lateral movement or racking of the floating deck frame during high wind events.


  • Actionable Fix: Install diagonal corner bracing within the joist grid to tie the structure together, and increase ballast weight using concrete paver inserts within perimeter framing bays.

Frequently Asked Questions

Can I build a deck directly on a rubber roof without pedestals?

Laying wood sleepers directly on a rubber roof without protective pads or sleepers is strictly discouraged. Wood in direct contact with a flat roof traps moisture against the EPDM membrane, leading to premature rot, mold growth, and accelerated membrane degradation.

How do I maintain drainage on a flat roof with a deck installed?

You must maintain open channels beneath the framing grid and keep a minimum clearance of two inches between the bottom of the joists and the roof surface. Regularly sweep away organic debris, leaves, and twigs from beneath the decking boards to keep roof drains and scuppers entirely clear.

What is the maximum allowable weight for a rooftop deck?

Most residential flat roofs are engineered to handle live loads between 40 and 60 pounds per square foot. You must consult a licensed structural engineer to calculate the dead load of your specific deck materials and verify that your building can support the total structural weight.

Can I anchor my rooftop deck to the parapet walls?

Anchoring a deck to parapet walls restricts the natural thermal expansion and contraction of the framing and can tear the roofing membrane during high winds or temperature swings. Floating deck systems rely on gravity and interlocking weight distribution to remain stable without structural wall penetrations.
