How To Check A Golf Cart Solenoid: A Step-by-Step Diagnostic Guide

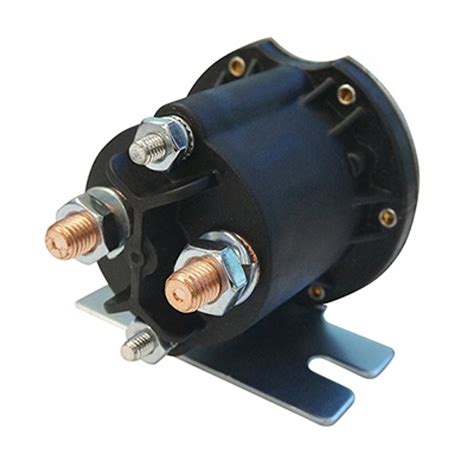

A golf cart solenoid acts as a heavy-duty electromechanical relay that controls the flow of high-amperage current from the battery pack to the motor controller or drive motor. Testing this component involves measuring coil resistance with a digital multimeter and checking for voltage drop across the main terminals during activation to determine if internal contacts have welded or burned out.

Pre-Operation & Equipment Checklist

Proper diagnosis of an electrical fault in a Club Car, EZ-GO, or Yamaha golf cart requires methodical preparation and strict adherence to safety protocols. Working around a 36-volt or 48-volt DC battery bank presents severe arc-flash and short-circuit hazards, making proper insulation and tool selection mandatory before touching any hardware.

• Essential Tools & Materials: Digital Multimeter (DMM) capable of measuring DC voltage and resistance (ohms), insulated hand tools (7/16-inch and 5/16-inch wrenches or sockets), safety glasses, rubber-insulated work gloves, and a jumper wire with insulated alligator clips.
• Prerequisite Knowledge & Standards: Familiarity with basic DC circuit continuity, the difference between series and Curtis/Sepex controller architectures, and the ability to safely disconnect the main negative battery cable to isolate the system.
• Budget & Duration Benchmarks: Estimated time to complete the full diagnostic procedure is 20 to 30 minutes. Diagnostic equipment replacement cost ranges from 30 to 75 dollars depending on whether the unit is a standard 36/48-volt continuous-duty solenoid or a heavy-duty aftermarket upgrade.

Step-by-Step Solenoid Testing Workflow

Step 1: Safety Isolation and Visual Inspection

Begin by switching the key switch to the off position, shifting the direction selector to neutral, and engaging the parking brake. Lift the rear body cowl or seat assembly to gain clear access to the battery compartment and the electrical panel where the solenoid is mounted.

1. Disconnect the main negative cable from the battery pack to eliminate the risk of accidental electrical short circuits while working with wrenches near the high-current terminals.
2. Inspect the exterior casing of the solenoid for physical anomalies, such as melting, cracking, corrosion on the mounting plate, or powdery white-green acid buildup on the terminal posts.
3. Check all small activation wires and large power cables to ensure they are torqued down securely and free from frayed strands or loose ring terminals.

Warning: Never bypass safety isolation steps. A direct short across a golf cart battery bank can instantly weld metallic tools to the frame, destroy expensive motor controllers, and cause severe thermal burns or chemical exposure.

Step 2: Testing Coil Resistance (Primary Circuit)

The activation coil inside the solenoid must maintain a specific internal resistance specification to draw the correct amount of current from the microswitch and key switch circuit.

1. Set your digital multimeter to the ohms (resistance) scale, or set it to the audible continuity mode.
2. Detach the small control wires from the small activation terminals (usually posts labeled number 1 and number 2, or positive and negative small posts).
3. Place the multimeter probes across the two small coil terminals and read the digital display.
4. Compare your reading to standard manufacturer specifications. For most standard 36-volt and 48-volt golf cart solenoids, the coil resistance should read between 70 and 110 ohms. An open circuit reading (infinite ohms or OL) indicates a broken internal copper winding, meaning the solenoid must be replaced.

Step 3: Performing the Activation Click Test

Determining whether the electromagnetic field is strong enough to physically pull the internal contact disc downward requires listening for and feeling the mechanical action.

1. Reconnect the main battery negative cable, ensuring the cart remains safely blocked, in neutral, and with the parking brake fully engaged.
2. Turn the key switch on, press the accelerator pedal gently down until you hear the microswitch click, and listen closely to the solenoid.
3. Place your fingertips lightly against the body of the solenoid to feel for a sharp, distinct mechanical click when the pedal is depressed.
4. If you hear and feel the click, the primary control circuit and coil are receiving power, but internal contacts may still be damaged. If you hear no click, trace upstream wiring back through the pedal microswitch, direction selector switch, and key switch.

Step 4: Measuring Input Versus Output Voltage Drop

This test isolates whether power is successfully passing through the heavy copper contact studs when the solenoid is energized.

1. Set your digital multimeter to measure DC voltage (scale above 50 volts for 36V or 48V carts).
2. Place the black meter probe on the main negative battery terminal or the negative large post of the solenoid, and touch the red probe to the battery-side large terminal (inflowing power from the battery pack). Note the base pack voltage reading.
3. Move the red probe to the controller-side large terminal (outflowing power to the motor controller or resistor coils).
4. With the meter probes securely in position, have an assistant press the accelerator pedal to engage the solenoid.
5. Read the voltage on the controller-side terminal. It should match the battery-side terminal voltage almost identically (allow for a minor drop of less than 0.5 volts). If the battery-side reads 48 volts and the controller-side drops to 0 volts or a significant intermediate voltage like 20 volts under load, the internal contact disc is pitted, burned, or welded, and the solenoid has failed internally.

Solenoid Specifications and Diagnostic Parameters Comparison

Common Site Failures & Field Fixes

• Root Cause: Welded Internal Contacts. Heavy electrical arcing over time fuses the internal copper disc against the contact studs, causing power to flow constantly to the motor regardless of accelerator pedal position.


  • Actionable Fix: Safely disconnect the battery pack immediately, verify continuity across the large terminals with the key off, and replace the solenoid along with inspecting the controller for secondary damage.
• Root Cause: Corroded or Loose Terminal Hardware. High ambient moisture and road debris create high-resistance corrosion barriers around lead-acid battery terminals and solenoid connection studs.


  • Actionable Fix: Remove all terminal nuts, clean ring terminals and studs with a wire brush and electrical contact cleaner, apply dielectric grease, and retighten to manufacturer torque specifications.
• Root Cause: Defective Resistor Coil on Resistor-Style Carts. Older resistor-speed carts utilize a ceramic ceramic-wound resistor across the large solenoid terminals to reduce initial current spikes; a broken resistor burns out solenoids prematurely.


  • Actionable Fix: Test the ceramic resistor for continuity with a multimeter, and replace any cracked or broken resistor alongside a new heavy-duty solenoid installation.

Frequently Asked Questions

How do I know if my golf cart solenoid is bad?

A bad solenoid typically manifests as a golf cart that refuses to click or move when the accelerator pedal is pressed, or conversely, a cart that surges forward immediately when the key is turned on because the contacts are welded shut. You can confirm the failure by measuring voltage drop across the large terminals while the pedal is engaged.

Can I test a golf cart solenoid with a screwdriver?

You can bridge the two large high-amperage terminals temporarily with an insulated, heavy-duty metallic tool to bypass the solenoid and test if the motor spins. However, this creates a massive electrical arc that pits the terminal posts and only tests the motor and controller, not the solenoid's internal switching mechanism.

What causes a golf cart solenoid to click rapidly or chatter?

Rapid clicking, often described as chattering, occurs when the battery pack voltage is too low to sustain the electromagnetic field once the coil pulls in, causing it to drop out and re-engage repeatedly. Charge or load-test your batteries before assuming the solenoid itself is at fault.

Are golf cart solenoids universal?

No, solenoids vary significantly based on voltage (36V versus 48V), activation circuit design (isolated coil versus grounded coil), and current handling capacity (standard duty versus heavy-duty aftermarket upgrades for upgraded controllers). Always match the exact part number and voltage rating of your specific cart model.
