How To Check A Thermocouple With A Multimeter: A Complete Technical Diagnostics Guide

Testing a thermocouple with a multimeter involves measuring structural electrical resistance and measuring the DC millivoltage generated via the Seebeck effect under thermal load. A functional residential gas thermocouple must generate between 25 and 30 millivolts DC in an unloaded open-circuit test and hold at least 12 to 15 millivolts DC under active system load. Resistance across the probe assembly must register below 1.0 ohm; any infinite resistance reading or insufficient voltage output under flame exposure confirms a degraded sensor requiring immediate replacement.

Diagnostic Equipment Setup & Pre-Testing Safety Protocols

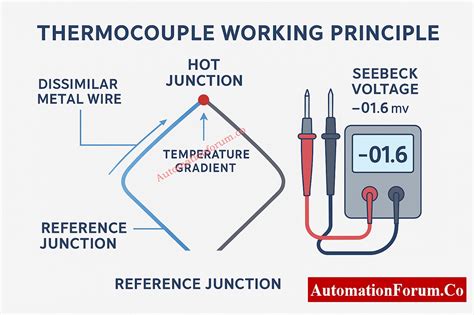

A thermocouple operates on thermoelectric principles: when two dissimilar metals joined at the sensing junction experience a temperature gradient, they generate a proportional micro-voltage (the Seebeck effect). In gas-fired furnaces, water heaters, boilers, and fireplaces, this low-voltage signal energizes an electromagnetic solenoid inside the main gas control valve. If the pilot flame extinguishes, the voltage drops, allowing the safety shut-off spring to instantly cut the gas flow and prevent hazardous gas accumulation.

Before performing electrical testing, you must establish a safe working environment and assemble the correct diagnostic tools. Testing gas control circuits carries inherent safety risks regarding flammable gas leaks and high-temperature surfaces.

Essential Gear, Standards, and Benchmarks

• Essential Diagnostic Equipment:


  • Digital Multimeter (DMM) capable of reading DC millivolts (mV DC) with a minimum resolution of 0.1 mV and continuity/resistance ($\Omega$) settings down to 0.1 ohm.
  • Multimeter test leads with insulated alligator clip attachments for hands-free voltage acquisition.
  • Thermocouple closed-circuit adapter harness (or "in-line testing adapter") to read real-time voltage while under gas valve solenoid load.
  • Controlled heat source: Handheld propane torch or the appliance’s active pilot burner assembly.
  • Adjustable open-end wrench (7/16-inch or 3/8-inch typical for thermocouple lead nuts).
  • Fine steel wool (0000 grade) or brass wire brush for cleaning oxidized terminals.
• Mandatory Technical Standards & Knowledge:


  • Understanding the difference between single thermocouples (25–30 mV output) and multi-junction thermopiles/powerpiles (500–750 mV output).
  • Adherence to NFPA 54 / ANSI Z223.1 National Fuel Gas Code guidelines for safe isolation of fuel sources during testing.
  • Basic knowledge of millivolt current draw and contact resistance principles.
• Target Diagnostic Benchmarks:


  • Cold Resistance Threshold: 0.2 to 1.0 ohm ($\Omega$).
  • Unloaded Open-Circuit Voltage Target: 25 to 30 mV DC.
  • Loaded Closed-Circuit Voltage Target: 12 to 15 mV DC.
  • Estimated Test Duration: 15 to 20 minutes.
  • Equipment Cost Benchmark: $20–$60 for basic test accessories.

Step-by-Step Thermocouple Diagnostic & Multimeter Testing Workflow

Step 1: Isolate the Thermocouple and Clean Diagnostic Contacts

1. Turn off the main gas supply valve to the appliance and switch the gas control valve knob to the "OFF" position.
2. Allow the pilot assembly and burner tip to cool down for at least 10 minutes to eliminate residual heat, which can distort cold-resistance readings.
3. Locate the thermocouple base connection where the thin copper lead screws into the bottom of the gas control valve body.
4. Using a small open-end wrench, loosen the brass retaining nut counterclockwise. Carefully pull the rounded lead tip out of the valve port.
5. Inspect the copper sheath and sensing tip for severe pitting, melted tip geometry, or carbon accumulation.
6. Clean the copper sheath, outer brass contact nut, and terminal knob at the base end using fine steel wool until the metal shows bright, un-oxidized copper or brass. Clean contacts are critical to preventing artificial electrical resistance during testing.

Warning: Always shut off the main gas valve and confirm the absence of gas odor before using open flames or disassembling heating components. Working around gas lines with loose fittings poses a severe fire hazard.

Step 2: Perform the Cold Continuity and Internal Resistance Test

1. Turn your digital multimeter selector dial to the lowest Resistance ($\Omega$) setting, or select Continuity mode.
2. Touch the meter leads together to verify lead resistance, then zero your meter if it supports relative zeroing (REL mode).
3. Attach the black alligator clip lead directly to the outer copper tubular sheath of the thermocouple assembly (ground side).
4. Touch the red multimeter lead tip precisely to the isolated brass contact knob located at the base end of the lead wire.
5. Read the display value on the digital multimeter.

Pro-Tip: A fully intact thermocouple circuit will display a resistance between 0.2 ohms and 0.5 ohms. If the meter displays "OL" (Open Loop) or a resistance exceeding 1.0 ohm, the internal dissimilar metal junction or center conductor wire is fractured, meaning the unit must be discarded.

Step 3: Conduct the Unloaded Open-Circuit Millivolt Heat Test

1. Switch the digital multimeter dial to the DC Millivolt setting ($mV,\text{DC}$). If your meter lacks a dedicated millivolt range, select standard DC Volts ($V,\text{DC}$); your reading will display as decimals (e.g., $0.025,\text{V} = 25,\text{mV}$).
2. Secure the black multimeter clip to the outer copper sheath about 2 inches away from the base connector.
3. Attach the red multimeter clip to the central brass terminal knob at the base of the lead wire.
4. Ignite your propane torch on a low setting, or turn the appliance gas back on, hold the gas valve button down, and light the pilot light manually.
5. Direct the inner blue core of the flame onto the top 3/8-inch to 1/2-inch of the thermocouple tip. Ensure the heat saturates the hot junction region.
6. Observe the multimeter display over a 60-second heating cycle. The millivoltage should rise rapidly, reaching stability within 30 to 45 seconds.
7. Record the peak open-circuit voltage reading. A healthy, standalone residential thermocouple will generate between 25 mV and 30 mV DC under open flame. If the peak voltage remains below 20 mV DC, the thermocouple elements have degraded thermally and can no longer reliably maintain safety circuit energization.

Warning: Do not heat the thermocouple sheath red-hot along its length. Apply heat strictly to the top tip junction. Overheating the tubular copper body can melt internal electrical insulation and destroy an otherwise functioning component.

Step 4: Execute the In-System Closed-Circuit Load Test

1. Allow the thermocouple tip to cool down below $100^\circ\text{F}$ until the open-circuit voltage drops back to 0.0 mV.
2. Thread a specialized millivolt closed-circuit adapter harness into the port on the gas control valve where the thermocouple originally connects.
3. Thread the thermocouple's base nut into the back side of the testing adapter, tightening it hand-tight plus a 1/4-turn with your wrench.
4. Set the multimeter to $mV,\text{DC}$.
5. Connect one meter lead to the exposed brass screw terminal on the adapter harness (which taps into the central conductor) and the other meter lead to a clean ground point on the copper sheath or gas valve body.
6. Ignite the pilot burner according to manufacturer instructions, depressing the manual gas valve knob to keep the flame lit.
7. Observe the millivolt reading on the multimeter while the thermocouple is actively powering the internal electromagnetic solenoid coil.
8. Wait 60 seconds for thermal stability. The reading under load must maintain a baseline of 12 mV to 15 mV DC.

Pro-Tip: If the open-circuit voltage test passed at 28 mV, but the closed-circuit test drops below 10 mV, either the electrical contact inside the valve port is contaminated, the solenoid coil is pulling excessive current, or the thermocouple has developed high internal resistance under electrical load.

Standard Electrical Benchmarks & Millivolt Output Specifications

Different gas appliance control systems utilize specific thermoelectric assemblies. Match your multimeter readings against the industrial metrics outlined in the baseline table below to determine structural component integrity.

Field Troubleshooting Matrix for Faulty Thermocouple Readings

Symptom: Multimeter Reads 0.0 mV DC Under Constant Flame Exposure

• Root Cause: Complete thermal junction severance at the probe tip, or internal short-circuit where the central constantan wire contacts the copper outer tube.
• Actionable Fix: Inspect for physical crimps, sharp bends, or burns along the copper sheath. If no physical damage is visible, replace the entire thermocouple assembly. Internal mechanical breaks cannot be repaired.

Symptom: Open-Circuit Voltage Passes (27 mV DC), But Pilot Light Extinguishes Immediately Upon Releasing the Valve Knob

• Root Cause: Excessive voltage drop under load caused by invisible thread oxidation, a failing valve magnet solenoid coil with high resistance, or drop-off below the minimum holding current threshold (10–12 mV DC).
• Actionable Fix: Perform a closed-circuit test using an adapter harness. Clean the female threads inside the gas valve connection port using an electrical contact cleaner spray. Retest under load. If the closed-circuit reading remains above 12 mV DC but the safety valve drops out anyway, replace the gas valve solenoid block.

Symptom: Millivolt Readings Fluctuate Erratically (e.g., Jumping Between 8 mV and 24 mV)

• Root Cause: Flame impingement failure. Drafts, carbon blockages in the pilot burner, or a clogged pilot orifice cause the pilot flame to wander away from the thermocouple tip.
• Actionable Fix: Clean the pilot orifice with compressed air or an orifice wire tool to produce a steady, cone-shaped, blue flame envelope that envelops the top 3/8 to 1/2 inch of the probe tip consistently.

Symptom: Cold Resistance Test Measures High Resistance (> 2.0 Ohms) or Displays Open Loop (OL)

• Root Cause: Structural corrosion between the internal conductor wire and the rear terminal button, or micro-fractures within the metallic wire alloy.
• Actionable Fix: Scrub the base terminal knob aggressively with 0000 steel wool and re-test. If resistance remains above 1.0 ohm, replace the thermocouple to prevent nuisance shutdowns.

Frequently Asked Questions

Can I test a gas thermocouple without removing it from the appliance?

Yes, you can test a thermocouple in place by disconnecting its base nut from the gas control valve while leaving the tip mounted in the pilot bracket. Alternatively, installing an in-line adapter harness between the lead nut and the gas valve allows you to measure both open-circuit and closed-circuit voltage without disturbing the mechanical mounting of the pilot assembly.

What exact setting should my digital multimeter be on for thermocouple testing?

For voltage tests, set your multimeter to DC Millivolts ($mV,\text{DC}$). If your meter lacks an explicit millivolt setting, dial it to low-range DC Volts ($2,\text{V},\text{DC}$ range). For structural integrity checks, set the dial to Resistance ($\Omega$) on its lowest scale ($200,\text{om}$) or use the audible continuity setting.

Why does my thermocouple output 28 mV DC in open-circuit tests, but my water heater or furnace still shuts off?

Open-circuit tests do not simulate operational load. A degraded thermocouple may produce proper voltage without a load, but its output can collapse under the current demand of the safety magnet solenoid. Always perform a closed-circuit test or verify that the pilot flame is fully enveloping the tip before replacing the gas valve.

What is the primary operational difference between a thermocouple and a thermopile?

A thermocouple contains a single thermoelectric junction that generates 25 to 30 mV DC, designed exclusively to hold open a safety shut-off valve. A thermopile contains dozens of internal thermocouples wired electrically in series, generating 500 to 750 mV DC, which is enough electrical energy to power thermostat circuits and gas valve solenoids without an external AC power supply.

Optimize Heating Safety with Precision HVAC Diagnostics

Performing regular electrical diagnostics on gas safety assemblies prevents unexpected heating outages and stops premature component replacement. If your multimeter tests confirm degraded resistance or millivolt output below established tolerances, replace the sensor with an OEM-spec component to ensure safe heating operations.
