How To Clean A Chainsaw Carburetor: A Master Technician's Guide To Peak Performance

Restoring a chainsaw carburetor involves a systematic disassembly, a thorough chemical cleaning of internal fuel circuits, and the replacement of hardened diaphragms to ensure precise air-fuel atomization. By removing varnish buildup caused by ethanol-blended fuels and verifying that the metering needle seats correctly, you can eliminate engine bogging, difficult starting, and erratic idling.

Essential Diagnostics and Toolkit for Carburetor Service

Before dismantling your chainsaw, it is imperative to distinguish between a dirty carburetor and other mechanical failures. A chainsaw that starts with a "prime" of fuel directly into the cylinder but dies shortly after is a primary candidate for carburetor service. This indicates that the ignition system is functional, but the fuel delivery system—specifically the carburetor's internal jets or the fuel pump diaphragm—is obstructed or compromised. Most modern chainsaws utilize diaphragm carburetors (predominantly from manufacturers like Walbro, Zama, or Tillotson) which are designed to operate at any angle, a necessity for forestry work.

Preparation requires a clean, well-lit workspace free of sawdust and debris. Introducing even a microscopic particle of wood dust into the carburetor during reassembly can immediately clog the fine mesh screen or the transition ports, rendering your cleaning efforts useless. You must also account for the chemical nature of this task; gasoline and aerosolized carburetor cleaners are highly flammable and corrosive to certain plastics and paints.

Required Equipment and Resource Benchmarks

• Essential Hand Tools: A set of Torx drivers (usually T20 or T25 for Stihl/Husqvarna), needle-nose pliers for fuel line manipulation, and a variety of small flat-head screwdrivers for adjustment needles.
• Cleaning Chemicals: Dedicated aerosol carburetor cleaner or an ultrasonic cleaner solution. Avoid using general-purpose degreasers or WD-40, as they leave residues that can interfere with fuel chemistry.
• Precision Instruments: A can of compressed air or a dedicated air compressor with a fine-tip blowgun for clearing internal passages.
• Mandatory Replacements: A carburetor rebuild kit (K-kit) or gasket/diaphragm kit (G-kit) matching your specific model number.
• Safety Gear: Nitrile gloves and wrap-around safety goggles to protect against high-pressure chemical spray-back.
• Duration: 45 to 90 minutes depending on the level of varnish accumulation.
• Estimated Budget: $15–$30 for cleaning supplies and a rebuild kit, significantly lower than the $60–$120 cost of a complete carburetor replacement.

Systematic Disassembly and Deep Cleaning Protocol

Cleaning a carburetor is a precision operation. The internal passages of a 2-stroke carburetor are often thinner than a human hair. Success depends on methodical attention to detail and ensuring every internal circuit—low speed, high speed, and idle—is free of obstruction.

Step 1: Accessing the Fuel System

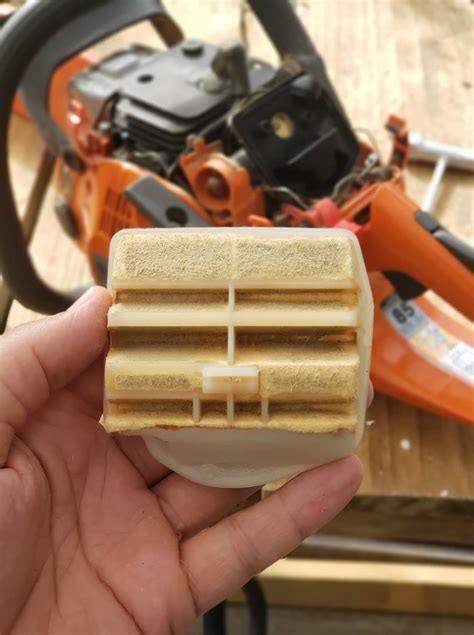

Begin by removing the top cylinder cover and the air filter housing. This exposes the carburetor body. Inspect the air filter; if it is saturated with fuel or excessively fouled with oil, it may be the primary cause of your performance issues. Before removing the carburetor, use compressed air to blow away all sawdust from the surrounding area. This prevents debris from falling into the intake manifold once the carburetor is pulled away from the engine block.

Step 2: Disconnection of Linkages and Lines

Carefully disconnect the throttle rod and choke linkage. These are typically held in place by plastic grommets or simple Z-bend metal wires. Note the orientation of these rods, as installing them backward is a common error during reassembly. Use your needle-nose pliers to pull the fuel supply line and, if equipped, the return line (primer bulb line) off the carburetor nipples.

Warning: Inspect the fuel lines for cracks or loss of elasticity. If the lines are brittle or "gummy" due to ethanol exposure, they must be replaced immediately. A pinhole leak in a fuel line will draw air into the system, causing a lean condition that can result in catastrophic engine seizure.

Step 3: Removing the Carburetor Body

Slide the carburetor off the mounting studs. Be extremely careful not to damage the intake boot (the rubber manifold connecting the carb to the cylinder). If there is a thin gasket between the carb and the boot, check its integrity. If it tears during removal, it must be replaced to prevent an air leak. Once the unit is on your bench, wipe the exterior clean with a lint-free cloth to ensure no external grime migrates inside during disassembly.

Step 4: Opening the Metering and Pump Chambers

Most chainsaw carburetors have two sides: the pump side and the metering side. Remove the single screw holding the pump cover (usually the side with the fuel inlet nipple) and the four screws holding the metering cover.

Inside the pump side, you will find a thin diaphragm and a gasket. This diaphragm acts as a fuel pump, driven by pulses from the engine crankcase. Inside the metering side, you will see a larger diaphragm with a metal center disc. This disc interacts with a small lever to control the flow of fuel into the chamber.

Pro-Tip: If the diaphragms feel stiff, crinkly, or resemble parchment paper, they are spent. A healthy diaphragm should be as supple as a thin sheet of silk. Stiff diaphragms cannot pulse or move the metering lever accurately, leading to "starving" the engine of fuel at high RPMs.

Step 5: Removing the Needle, Seat, and Screen

Carefully remove the screw holding the metering lever pin. Place your thumb over the lever while doing this, as there is a small, high-tension spring underneath that can easily fly across the room. Remove the lever, the pin, the spring, and the inlet needle valve.

Next, locate the small circular mesh screen embedded in the carburetor body. This is the final line of defense against debris. Use a fine needle to gently pry it out. You will often find a "mat" of fine sawdust or fuel varnish underneath this screen, which is a frequent cause of fuel starvation.

Step 6: Chemical Bath and Port Clearing

With the carburetor body stripped of all rubber and plastic parts, spray carburetor cleaner into every visible orifice. Focus on the High (H) and Low (L) needle holes (after removing the adjustment screws, noting their original positions).

1. Spray cleaner into the fuel inlet nipple and ensure it exits through the needle seat.
2. Spray into the idle transition ports located near the throttle butterfly valve.
3. Use compressed air to blow out every passage. The air should flow freely through the ports. If you feel resistance or see no cleaner exiting a corresponding port, the blockage remains.
4. If the carburetor is severely varnished, submerge the metal body in an ultrasonic cleaner for 20 minutes at 50 degrees Celsius.

Step 7: Reassembly and Pop-Off Verification

Reverse the disassembly process using the components from your rebuild kit. Install the new mesh screen by pressing it into place with the flat end of a pencil. When installing the needle and lever, ensure the lever height is flush with the surrounding carburetor floor (consult your specific Walbro or Zama manual for the exact height gauge, often around 1.5mm to 2.0mm).

When installing gaskets and diaphragms, the order is critical:

• On the Pump Side, the gasket typically goes against the carburetor body, followed by the diaphragm.
• On the Metering Side, the diaphragm typically goes against the carburetor body, followed by the gasket and then the metal cover.

Carburetor Component Specifications and Replacement Thresholds

Engine Performance Failures and Post-Cleaning Diagnostics

Even after a thorough cleaning, mechanical issues can persist if the reassembly or tuning is slightly off. Understanding the root cause of these post-service symptoms is vital for a successful repair.

• Scenario: The engine starts but dies immediately when the throttle is touched.




  • Root Cause: This is typically a blockage in the "acceleration" or "transition" ports, or the Low (L) adjustment screw is set too lean. It can also indicate the metering lever is set too low, preventing enough fuel from entering the chamber quickly.
  • Actionable Fix: Turn the L-screw counter-clockwise by 1/4 turn increments to richen the mixture. If symptoms persist, re-verify the metering lever height and ensure the transition ports behind the throttle plate are clear.

• Scenario: Fuel is leaking out of the air filter or the muffler.




  • Root Cause: The inlet needle is not seating correctly, or the metering lever spring is improperly installed. This causes the carburetor to "flood" as fuel flows uncontrollably into the venturi.
  • Actionable Fix: Disassemble the metering side and inspect the needle tip for debris. Ensure the spring is centered under the lever and that the lever is not pinned too high, which would hold the needle open.

• Scenario: The engine "races" at a very high idle and won't slow down.




  • Root Cause: This usually indicates an "air leak" rather than a fuel clog. Air is entering the engine from somewhere other than the carburetor throat, creating an ultra-lean, high-heat condition.
  • Actionable Fix: Check the tightness of the carburetor mounting bolts. Inspect the intake boot for cracks. Ensure the base gasket between the carburetor and the engine is creating a perfect seal.

• Scenario: The saw runs well for 5 minutes, then loses power and dies.




  • Root Cause: Tank venting issue or a partially clogged internal screen. As fuel is pulled out of the tank, a vacuum forms if the tank vent is clogged, eventually stopping fuel flow.
  • Actionable Fix: When the saw begins to die, carefully crack the fuel cap. If the saw returns to life, replace the fuel tank vent. If not, the internal mesh screen in the carb likely needs a more thorough cleaning.

Frequently Asked Questions

Do I really need to remove the carburetor to clean it?

Yes, topical cleaning with "spray-in" cleaners while the engine is running is largely ineffective for 2-stroke carburetors. The most critical clogs occur in the internal metering chambers and screens, which are inaccessible unless the unit is fully removed and disassembled.

Can I use pressurized water or brake cleaner to clean the parts?

Never use water, as it causes immediate corrosion of the internal alloy. Brake cleaner should also be avoided as it is often too harsh for the delicate plastic components within the carburetor and can cause the internal check valves (the small circular flaps) to curl and fail.

How do I know if I should clean my carb or just buy a new one?

If the internal metal body of the carburetor shows signs of heavy white corrosion (oxidation) or if the needle seat is physically pitted, the carburetor is non-serviceable and must be replaced. However, 90% of fuel-related issues can be solved with a $15 rebuild kit and a thorough cleaning.

Why does my chainsaw carburetor get dirty so often?

Modern pump gas contains ethanol, which is hygroscopic (attracts water). Over time, ethanol separates from the gasoline (phase separation) and creates a corrosive, jelly-like varnish that clogs small passages. Using ethanol-free fuel or a high-quality fuel stabilizer can prevent this buildup.

Revitalize Your Chainsaw Performance

Proper carburetor maintenance is the difference between a frustrating tool and a high-performance machine ready for the toughest timber. By following this technical protocol, you ensure your chainsaw operates with the precise fuel-to-air ratio required for longevity and power.
