The Comprehensive Guide On How To Combine Excel Files For Data Integration
Consolidating multiple Excel files into a single master workbook is achieved most efficiently using Power Query, which automates the extraction, transformation, and loading (ETL) of tabular data from source folders. This method ensures data integrity by dynamically updating results when new files are added to the source directory, eliminating the need for manual copy-pasting or complex VBA scripting.
Prerequisite Infrastructure and Data Standardization Requirements
Before attempting to merge large datasets, the structural consistency of your source files determines the success of the consolidation process. If headers, column counts, or data types vary significantly between workbooks, the final output will result in corruption or failed append operations. Ensure your environment meets these professional standards:
- Required Tools: Microsoft Excel 2016 or later (Office 365 recommended) with the Get & Transform (Power Query) add-in enabled.
- Data Hygiene Standards: All source files must be stored in a single designated directory; ideally, no other extraneous files should exist in this folder to prevent import errors.
- Schema Consistency: Every worksheet must contain identical headers in the same row position (usually row 1) and consistent data types across corresponding columns.
- Estimated Duration: 5 to 10 minutes for setup, depending on the complexity of the data transformation logic.
- Computational Threshold: While Power Query handles millions of rows, local hardware RAM remains the primary bottleneck for intensive operations; ensure at least 8GB of system memory for datasets exceeding 500,000 cells.
Executing the Data Consolidation Workflow via Power Query
Step 1: Initialize the Folder Connection
Open a new, blank Excel workbook to serve as your master repository. Navigate to the Data tab on the primary ribbon, select Get Data, choose From File, and click From Folder. Browse to the directory containing your source Excel files. Upon selection, a dialog box will appear displaying the file paths; click the Transform Data button instead of Load to open the Power Query Editor.
Step 2: Filtering and Sanitization
Within the Power Query Editor, verify the file list. If your source folder contains temporary files (often identified by a tilde prefix, e.g., ~$filename.xlsx), use the filter dropdown on the Name column to exclude these system-generated artifacts. This ensures the engine does not attempt to read locked or incomplete file headers.
Step 3: Extracting and Expanding Content
Locate the Content column, which contains binary data for each file. Click the icon displaying two downward-pointing arrows in the Content header. This triggers the Combine Files dialog. Select the specific sheet or table name you wish to extract from each workbook. Power Query will now generate a sample transformation; confirm that the header detection matches your expected output, then click OK.
Pro-Tip: Always use the Table format within your source files rather than raw ranges. This allows Power Query to dynamically adjust to the data range size, ensuring that if you add rows to a source file, they are automatically captured during the next refresh.
Step 4: Loading the Merged Dataset
After the transformation process completes, the editor will display the consolidated table. You may perform additional clean-up tasks here, such as changing data types (e.g., converting text-based dates to formal Date formats or strings to decimals). Once satisfied, click Close & Load in the top left corner to output the results directly into an Excel worksheet or a data model.
Warning: Avoid modifying the result table manually in the sheet. Any manual changes to the data will be overwritten upon the next refresh of the query connection. Always perform data cleaning within the Power Query Editor interface.

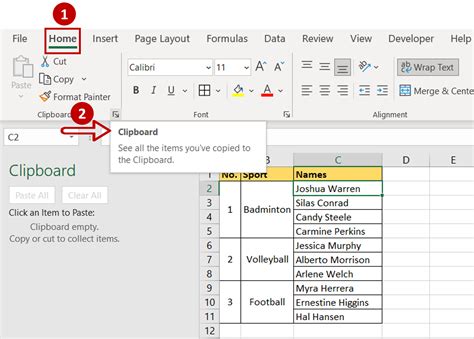

How To Merge Multiple Cells In Excel At Once Without Losing
Comparative Analysis of Consolidation Methodologies
| Method | Technical Proficiency | Scalability | Dynamic Update Capability | Best Use Case |
|---|---|---|---|---|
| Power Query | Moderate | High | Automatic | Consistent, repetitive reporting across many files. |
| VBA/Macro | High | High | Manual/Triggered | Highly complex custom logic or file-handling routines. |
| Copy & Paste | Low | Low | None | One-off, irregular, or small-scale ad-hoc tasks. |
| Power Pivot | Expert | Extreme | High | Relational modeling of multi-source datasets. |
Addressing Data Synchronization and File Conflicts
Even with automated processes, system-level interruptions can occur. Addressing these errors proactively ensures your master file remains a reliable source of truth.
- Root Cause: File Access Denial. Often occurs if one of the source files is currently open in another session or locked by a network security protocol. Actionable Fix: Close all source Excel files before running the refresh operation and ensure the folder permissions allow read access for the user account running the query.
- Root Cause: Header Mismatch. Power Query attempts to append data based on column names. If a source file has an extra space in a header or a renamed column, the data will fail to align, creating null values. Actionable Fix: Standardize all source file headers using a template file or apply a Rename operation within the Power Query transformation steps for all columns.
- Root Cause: Data Type Mismatch. Appending a column containing both currency and text strings forces a generic object type, which prevents mathematical calculations. Actionable Fix: Explicitly define column types in the Power Query Editor by selecting the column and clicking the Data Type icon to set it to Decimal, Currency, or Date.
Frequently Asked Questions
Can I combine Excel files if they have different column structures?
Yes, but you must manually align the columns within the Power Query Editor. You can rename columns to match the master schema or use conditional logic to handle missing data fields before the final append operation.
Will this process work if the Excel files are located on a cloud drive like SharePoint?
Absolutely. Instead of selecting From Folder, choose From File and then From SharePoint Folder. You will need to provide the site URL and authenticate, but the underlying consolidation steps remain identical to the local folder method.
Is there a limit to how many files I can combine?
Power Query is limited primarily by your machine's system memory and the file size limits of the Excel format (XLSX). For datasets exceeding 1,048,576 rows, you should load the output into the Data Model instead of the worksheet to avoid exceeding row capacity.
How do I refresh the data if I add new files later?
Once the query is established, you simply add new files to the source folder and click the Refresh button on the Data tab. The Power Query engine will automatically scan the folder, extract the new data, and update your master table.
Optimize Your Reporting Workflow Today
Mastering the automated consolidation of Excel files saves hours of manual labor and eliminates human error from your analytical workflows. Implement these Power Query strategies now to transform your data management into a scalable, high-performance reporting system.
