Master Excel Named Ranges: A Step-by-Step Guide To Defining And Managing Cell Names

To define a named range in Excel, select the target cell or range of cells, click into the Name Box located to the left of the Formula Bar, type a unique name containing no spaces, and press Enter. Alternatively, go to the Formulas tab on the Ribbon, select Define Name, specify your range name and scope, and click OK. Implementing defined names simplifies complex formula construction, improves spreadsheet legibility, and establishes robust data models using workbook or worksheet-level scope.

Architectural Planning: Scope, Syntax Rules, and Preparatory Checklist

Before building complex financial models or data-driven dashboards, defining named ranges is an essential prerequisite. Named ranges replace abstract, absolute cell coordinates like $C$15:$F$200 with intuitive, human-readable labels like Q4_Revenue_Forecast. This design choice dramatically reduces formula errors and makes your workbooks accessible to other stakeholders.

To ensure your workbook architecture remains clean and functional, you must adhere to strict internal structures and naming conventions. Excel enforces a rigid set of rules for range names. Violating these rules will result in validation errors or broken formulas.

Mandatory Excel Naming Standards

• First Character Rule: The first character of a named range must be a letter, an underscore (_), or a backslash (). It cannot be a number, a space, or a special character.
• Character Restrictions: Subsequent characters can include letters, numbers, periods, and underscores. You cannot use spaces, hyphens, or special symbols such as hyphens, ampersands, or exclamation points.
• Cell Coordinate Conflict Prevention: A name cannot mimic a standard cell coordinate. For example, you cannot name a range tax2024 if there is a possibility it conflicts with column TAX, row 2024. Names like A1, R1C1, or any valid coordinate sequence are strictly blocked by Excel.
• Length Limits: Named ranges have a maximum limit of 255 characters, though professional practice dictates keeping names under 30 characters for readability in formulas.
• Case Sensitivity: Excel is completely case-insensitive regarding named ranges. If you define a range as Total_Expenses, you cannot create another range named total_expenses in the same scope.

Structural Scope Planning: Workbook vs. Worksheet

You must choose the correct structural scope before defining a name.

• Workbook Scope (Global): A global named range is accessible from any sheet within the entire workbook. If you define Sales_Tax with workbook scope, entering the formula =Sales_Tax on Sheet3 will correctly pull the value from Sheet1.
• Worksheet Scope (Local): A local named range is restricted to a single worksheet. This allows you to have a range named Operating_Budget on both Sheet1 and Sheet2 without conflicts. To reference a local name from another sheet, you must prepend the sheet name, such as =Sheet1!Operating_Budget.

Pre-Operation Checklist

• Software Requirement: Microsoft Excel for Desktop (Office 365, Excel 2021, 2019, 2016, or 2013) or Excel for the Web.
• Data Verification: Ensure your target data contains no merged cells, as merged cells can cause unexpected range shifts when referenced in formulas.
• Estimated Setup Duration: 2 to 5 minutes depending on the selected method.
• Prerequisite Knowledge: Basic navigation of the Excel ribbon, cell selection techniques, and standard formula syntax.

Professional Workflow: Three Methods to Define a Named Range

Excel offers multiple pathways to define names depending on your workflow speed, the quantity of ranges you need to create, and whether you require advanced scope control. Below are the three most reliable, production-ready methods.

Method 1: The Name Box Method (Best for Speed)

The Name Box is the fastest tool for assigning global names to a single cell or a contiguous block of cells.

1. Highlight the target cell or drag your cursor to select the block of cells you want to name.
2. Navigate to the top-left corner of the grid, just to the left of the formula bar, where the cell coordinates are displayed. This is the Name Box.
3. Click directly inside the Name Box to highlight the existing coordinates.
4. Type your desired name, such as Product_Inventory, adhering to the naming rules.
5. Press the Enter key on your keyboard.

Warning: You must press Enter to commit the name. If you click away from the Name Box or press Escape before hitting Enter, Excel will discard your entry and revert the area to its default cell coordinates.

Method 2: The Define Name Dialog Method (Best for Scope Control)

When you require local worksheet scope or need to add explanatory comments to your named range, the ribbon-based Define Name dialog is the optimal path.

1. Select the specific cell range that requires a name.
2. Click on the Formulas tab located in the Excel Ribbon.
3. Locate the Defined Names group and click the Define Name button. This action launches the New Name dialog box.
4. In the Name text box, input your compliant range name.
5. Click the Scope drop-down menu. Select Workbook to make the name globally accessible, or select a specific sheet name to restrict its boundary to that worksheet.
6. Use the Comment text box to document the purpose of the range, which will appear as a tool-tip when writing formulas.
7. Verify the Refers to box shows the correct absolute cell coordinates, such as =Sheet1!$B$2:$B$50.
8. Click OK to save the range.

Pro-Tip: The Refers to box utilizes absolute references by default (indicated by the dollar signs). If you want your named range to act as a relative reference that shifts based on the formula's position, manually remove the dollar signs from the coordinates before clicking OK.

Method 3: The Create from Selection Method (Best for Bulk Data Headers)

If you have a large table with existing column or row headers, you can instantly generate dozens of named ranges in a single click using those headers as the source names.

1. Highlight the entire data table, including the row or column headers.
2. Click the Formulas tab on the Ribbon.
3. In the Defined Names group, click the Create from Selection button, or press the keyboard shortcut Ctrl + Shift + F3.
4. In the dialog box that appears, check the box corresponding to where your headers are located. If your headers are at the top of each column, check Top row. If they are on the left, check Left column.
5. Click OK. Excel automatically generates individual named ranges for each column or row using your headers.

Warning: Excel will automatically replace illegal characters in your headers with underscores. For example, a column header named "Unit Cost ($)" will automatically become the named range Unit_Cost____. Review your named ranges in the Name Manager afterward to ensure they are clean and usable.

Technical Specifications & Scope Properties

To maintain a healthy spreadsheet architecture, you must understand how different creation methods and properties function under the hood. The following table contrasts the key parameters of each Excel name creation method.

Troubleshooting Named Range Conflicts and Failures

Even seasoned Excel professionals encounter issues when managing named ranges in large, integrated workbooks. Here is how to diagnose and resolve the most common errors.

Issue 1: The #NAME? Error Appears in a Formula

• Root Cause: This occurs when Excel does not recognize the term you typed as a valid named range, often due to a spelling mistake, referring to a range scoped only to a different worksheet, or because the range was accidentally deleted.
• Actionable Fix: Open the Name Manager by pressing Ctrl + F3. Search the alphabetized list to verify that the name exists and is spelled exactly like your formula. If the name is scoped locally to Sheet1, and you are referencing it on Sheet2, rewrite your formula to include the sheet identifier, such as =SUM(Sheet1!My_Local_Range).

Issue 2: Broken Range Coordinates and #REF! Errors

• Root Cause: If cells or columns inside a defined range are deleted, or if the sheet containing the range is removed, the reference link breaks. The Name Manager will display =#REF! in the Refers To column.
• Actionable Fix: Press Ctrl + F3 to open the Name Manager. Scroll through the list and locate names displaying a Refers To path containing #REF!. Click the invalid entry, navigate down to the Refers To input box, highlight the broken reference, re-select the correct cells on your sheet, and click the green checkmark icon to save.

Issue 3: Newly Added Row Data is Omitted from Formulas

• Root Cause: Static named ranges do not automatically expand when you add new rows of data below your existing dataset. Your formula continues referencing the original, fixed boundary coordinates.

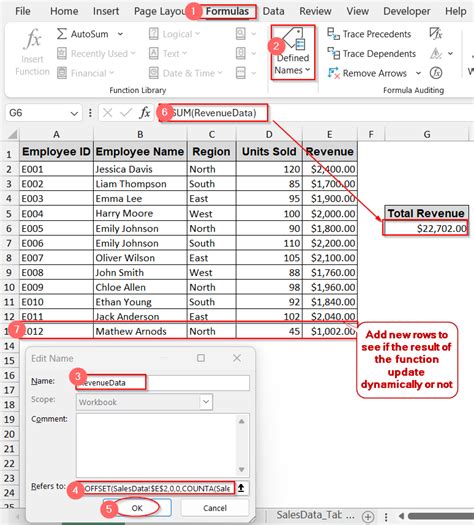

• Actionable Fix: Convert your static range into a dynamic table. Select your data range, press Ctrl + T, and hit Enter. Excel tables automatically expand to include new rows. Alternatively, you can use a dynamic formula within the Define Name dialog. In the Refers To box, define the range using an OFFSET and COUNTA formula to automatically count non-empty cells: =OFFSET(Sheet1!$A$1, 0, 0, COUNTA(Sheet1!$A:$A), 1).

Frequently Asked Questions

How do I edit or delete an existing named range in Excel?

To edit or delete named ranges, press Ctrl + F3 to open the Name Manager dialog box. Select the range name you want to modify from the list, then click Edit to change its name, scope, or comments, or click Delete to permanently remove it from the workbook.

Can I create a named range that points to non-contiguous cells?

Yes. Hold down the Ctrl key while clicking and highlighting different, separated cell groups on your sheet. Once you have selected all target areas, type your desired name into the Name Box and press Enter. Formulas like =SUM(My_NonContiguous_Range) will calculate all selected cells seamlessly.

Why does Excel display an error saying "The name entered is not valid"?

This error indicates a violation of Excel's naming rules. Ensure your range name starts with a letter, underscore, or backslash, does not contain spaces or hyphens, is not formatted to look like a cell address (like B50), and does not exceed the maximum character length of 255 characters.

How can I quickly view all the named ranges defined in my workbook?

Click the drop-down arrow on the right side of the Name Box to display a complete list of all global and sheet-specific named ranges in your current workbook. Selecting any name from this drop-down menu will immediately highlight those cells on your screen.
