How To Depressurize A Fuel System Safely Before Maintenance
Depressurizing an automotive fuel system requires releasing residual pressure trapped within the fuel rail and lines by disabling the fuel pump circuit and running the engine until it stalls. Neglecting this crucial prerequisite before servicing fuel injectors, filters, or pumps risks high-pressure atomized fuel spray, severe chemical burns, and catastrophic fire hazards.
Pre-Operation & Safety Preparation Checklist
Performing any invasive maintenance on an internal combustion engine's fuel supply system demands meticulous preparation to handle volatile hydrocarbons safely. Most modern electronic fuel injection (EFI) systems operate at pressures ranging from 40 to upwards of 60 pounds per square inch (psi), while direct injection (GDI) systems routinely spike past 2,000 psi.
- Essential Tools & Safety Gear: Class B chemical fire extinguisher, safety glasses, nitrile or heavy-duty solvent-resistant gloves, shop rags, a digital multimeter, and basic hand tools (ratchet and socket set).
- Prerequisite Standards & Knowledge: Work strictly in a well-ventilated area away from open flames, pilot lights, sparks, or operating electrical equipment. Ensure the engine is completely cool to the touch before opening any lines.
- Time & Cost Benchmarks: This preparatory task requires approximately 15 to 30 minutes to complete and costs nothing if standard shop tools are already available.
Step-by-Step Procedure to Relieve Fuel Pressure
Step 1: Locate and Access the Fuel Pump Fuse or Relay
Open the vehicle's hood or access panel to locate the power distribution center, commonly known as the fuse box or Under-Hood Fuse/Relay Box. Consult the fuse box diagram printed on the underside of the cover or reference the vehicle service manual to identify the specific fuse or relay controlling the fuel pump.
Pro-Tip: If the fuel pump fuse is difficult to access or located inside a complex interior junction box, pulling the electrical harness connector directly from the inertia switch or the fuel pump module plug underneath the rear seat acts as a reliable alternative method.
Step 2: Disable the Fuel Pump Circuit
Carefully extract the fuel pump fuse or pull the designated fuel pump relay using a fuse puller tool or needle-nose pliers. With the electrical circuit interrupted, the fuel pump can no longer deliver pressurized gasoline or diesel from the fuel tank to the engine bay during subsequent cranking sequences.
Warning: Never attempt to disconnect fuel lines while the ignition is turned on or immediately after driving the vehicle without performing this disabling step, as residual line pressure will remain fully charged.
Step 3: Crank and Stall the Engine
Return to the driver's seat, insert the ignition key, and crank the engine normally. Because the fuel pump is disabled, the engine will start using the remaining pressurized fuel trapped in the lines and rail, run for a few seconds, and then sputter and stall. Crank the engine for an additional three to five seconds after it stalls to ensure any final pockets of pressure are completely bled off.
Step 4: Cycle the Ignition Switch
Turn the ignition key back to the Off position. Next, turn the ignition key to the On or Accessory position (without engaging the starter motor) for two seconds, then turn it back off. Repeat this key-cycling process two to three times to drain any micro-pressures that may have settled back toward the fuel rail regulators.
Step 5: Disconnect the Battery Negative Terminal
Secure the vehicle by turning the ignition completely off and removing the key. Grab a wrench to loosen the retaining nut on the negative (-) battery terminal, and slide the cable clamp off the post, tucking it safely aside to prevent any accidental electrical arcing while working near open fuel components.

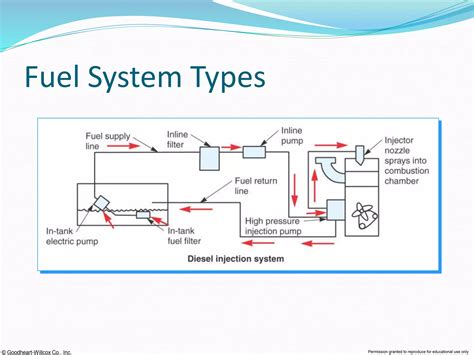

Fuel system.PPT
Fuel System Pressure Specifications and Characteristics
| Fuel Delivery Type | Operating Pressure Range | Residual Shutdown Pressure | Primary Depressurization Method |
|---|---|---|---|
| Port Fuel Injection (PFI) | 35 – 60 PSI | 30 – 45 PSI | Fuse Pull & Stall Engine |
| Throttle Body Injection (TBI) | 9 – 15 PSI | 8 – 12 PSI | Fuse Pull & Stall Engine |
| Gasoline Direct Injection (GDI) | 500 – 3,000+ PSI | Variable High Hold | Extended Stall & Specialized Bleed Tool |
| Diesel Common Rail | 4,000 – 30,000+ PSI | Gradual Bleed-Down | Mandatory Extended Cool-Down & Scan Tool |
Troubleshooting Residual Pressure Failures and Field Fixes
Even after executing standard depressurization protocols, technicians frequently encounter stubborn residual pressure or unexpected fuel leakage due to component wear. Recognizing these symptoms prevents dangerous fluid spills during repairs.
- Root Cause: A failing fuel pressure regulator check valve or leaky fuel injector is trapping high pressure indefinitely inside the rail despite a disabled pump.
- Action Place Fix: Wrap a heavy shop towel completely around the fuel line fitting to absorb residual spray, then slowly loosen the primary banjo bolt or quick-disconnect fitting only one full thread to bleed off the remaining trapped fluid safely.
- Root Cause: The vehicle continues to run indefinitely after pulling the fuse because the fuel pump circuit shares a shared power feed with the Engine Control Module (ECM).
- Action Place Fix: Consult the vehicle's electrical wiring diagram to locate the main fuel pump driver module or disconnect the fuel pump electrical harness directly at the fuel tank access hatch.
- Root Cause: A direct injection (GDI) system retains thousands of psi even after stalling, creating an extreme high-pressure hazard.
- Action Place Fix: Allow the vehicle to sit undisturbed for a minimum of two to three hours with the battery disconnected, allowing mechanical bleed-down through the high-pressure pump internals before touching high-pressure steel lines.
Frequently Asked Questions
Can I just wrap a rag around the fuel line without depressurizing?
No, wrapping a rag helps catch minor drips, but high-pressure systems exceeding 40 psi will easily blast atomized fuel past simple rags, creating an extreme skin-penetration hazard and a volatile vapor cloud. Always fully depressurize the system using the engine-stall method before opening any mechanical connections.
What happens if I forget to disconnect the battery after stalling the engine?
Leaving the battery connected while servicing fuel components risks accidental electrical sparks if a tool brushes against the alternator, starter terminals, or exposed sensor wiring. Always isolate the negative battery terminal to eliminate ignition sources near open fuel lines.
Why won't my car stall when I pull the fuel pump fuse?
Some vehicles store enough residual fuel pressure and volume in the fuel rail accumulator, or maintain power to the pump through an oil pressure safety switch circuit, allowing the engine to run longer than expected. If this occurs, crank the engine repeatedly for 10-second intervals until it refuses to start.
How do I know if the fuel system is completely depressurized?
The only definitive way to confirm zero pressure is by attaching a professional fuel pressure gauge equipped with a pressure relief bleed valve to the Schrader test port on the fuel rail. If fuel trickles out gently without force when opening a line slowly inside a shop towel, pressure is successfully relieved.
