How To Determine Radius Of A Curve: Precision Methods For Engineering And Construction
Determining the radius of a curve requires precise geometric measurement techniques, such as the chord-offset method or string-line coordinate calculation, to ensure structural safety, drainage efficiency, and regulatory compliance. By combining accurate field measurements with established mathematical formulas like $R = (C^2 / 8M) + (M / 2)$, field engineers and fabricators can achieve sub-millimeter accuracy on site.
Pre-Operation & Equipment Checklist
Executing accurate curve radius calculations in civil engineering, manufacturing, or landscaping demands rigorous preparation. Failing to account for equipment calibration or baseline tolerances introduces compounding errors that compromise subsequent fabrication or paving work.
- Essential gear, tools, and materials: Certified steel measuring tape, high-tensile mason's string, digital angle finder, magnetic plumb bob, heavy-duty marking crayon, and a scientific calculator or mobile computation application.
- Mandatory prerequisite knowledge and standards: Familiarity with basic trigonometry, arc-chord relationships, and local municipal design specifications for horizontal alignment and superelevation.
- Estimated budget and duration benchmarks: Field measurements for standard radii typically require zero material cost beyond standard layout tools and take between 15 to 45 minutes per curve depending on accessibility and arc length.
Step-by-Step Curve Radius Measurement Workflow
Step 1: Establish the Arc and Baseline Chords
Begin by inspecting the curved boundary, pipeline, or roadway edge to identify the points of curvature and tangency. Stretch a tight mason's string directly between the two endpoints of the arc, known as the long chord ($C$). Ensure the string remains completely taut and free of intermediate obstructions or wind-induced deflection.
Pro-Tip: For large-scale municipal or civil engineering curves, replace physical string lines with total station lasers or real-time kinematic GPS coordinates to eliminate sag errors across long spans.
Step 2: Measure the Mid-Ordinate Offset
Locate the exact midpoint of your long chord ($C$) by dividing its total measured length by two, and mark this center point on the ground or surface. Measure the perpendicular distance ($M$) from this midpoint on the chord straight to the deepest point of the curve's arc. This measurement represents the mid-ordinate (or rise) of the curve and must be recorded with maximum precision.
Warning: Even a millimeter of error in reading the mid-ordinate on tight curves will result in exponentially larger deviations when calculating the final radius and subsequent pipe or curb manufacturing.
Step 3: Apply the Chord-Offset Mathematical Formula
Input your recorded long chord length ($C$) and mid-ordinate height ($M$) into the standard geometric radius formula: $R = (C^2 / (8 \times M)) + (M / 2)$. Square the chord length, divide the product by eight times the mid-ordinate, and then add half of the mid-ordinate value to establish the definitive radius ($R$).
Step 4: Verify via the Three-Point Coordinate Method
Cross-check your initial calculation by selecting three distinct points along the curve at equal intervals. Measure the chord lengths between Point 1 and Point 2, and between Point 2 and Point 3, calculating the circumradius of the triangle formed by these points. Consistent values across multiple verification points confirm the accuracy of your baseline layout.
How To Calculate Radius In Autocad - Design Talk
Comparative Analysis of Curve Measurement Methods
| Measurement Method | Ideal Application Scope | Accuracy Level | Equipment Requirements | Primary Limitation |
|---|---|---|---|---|
| Chord-Offset Method | Curbs, driveways, small roadways | High ($\pm 2\text{ mm}$) | String line, tape measure | Impractical for obstructed arcs |
| Three-Point Coordinate | CAD verification, large civil works | Very High ($\pm 0.5\text{ mm}$) | Total station, laser scanner | Requires advanced surveying tools |
| Wheel Revolution Track | Irregular surfaces, long trails | Moderate ($\pm 10\text{ mm}$) | Measuring wheel, chalk | Prone to slippage on loose gravel |
| Radius Template Match | Manufacturing, metal fabrication | Variable | Physical metal sweep templates | Limited to pre-fabricated standard sizes |
Common Site Failures and Field Fixes
- Root Cause: String sag induced by excessive wind or long spans when using the chord-offset technique.
- Actionable Fix: Support long chords with intermediate staging poles or transition to optical total station offset measurements to eliminate gravitational sag entirely.
- Root Cause: Asymmetric curve geometry resulting in skewed mid-ordinate measurements off-center.
- Actionable Fix: Re-verify the absolute beginning and ending tangent points using an accurate transit or laser level before re-measuring the chord midpoint.
- Root Cause: Surface irregularities, debris, or thermal expansion skewing tape measure readings.
- Actionable Fix: Clear the measurement path thoroughly, use temperature-compensated steel tapes, and take an average of three successive readings.
Frequently Asked Questions
Can I calculate a curve radius if I only have a partial arc?
Yes. By measuring any chord along the partial arc and the perpendicular offset from the center of that chord to the arc, you can use the standard chord-offset formula to derive the complete radius. Ensure your chord length represents a genuine segment of the curve's span.
What is the most accurate method for determining large-radius highway curves?
For large civil infrastructure projects, total stations and GPS-based coordinate geometry methods provide far greater accuracy than manual string lines. These digital tools capture multiple coordinate points along the arc to compute a precise mathematical best-fit circle.

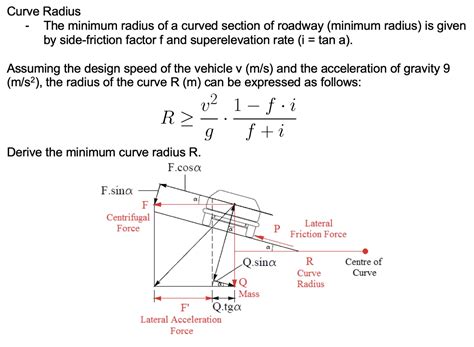

How does the degree of curve relate to the radius?
In highway and railway engineering, the degree of curve defines the central angle subtended by a 100-foot arc or chord. The radius is inversely proportional to the degree of curve; as the degree of curve increases, the radius decreases, resulting in a sharper turn.
Why is my calculated radius differing from the architectural blueprints?
Discrepancies usually stem from field construction tolerances, subgrade shifting, or measurement errors during the initial layout phase. Always verify whether the blueprints reference the radius to the face of the curb, centerline, or back of the curb before troubleshooting.
Master complex geometric layouts with confidence by utilizing professional-grade measuring instruments and validated calculation workflows tailored to your specific industry standards.
