How To Engage 4WD On A Toyota 4Runner: The Complete Off-Roading Guide

To engage 4WD on a Toyota 4Runner, shift the transfer case lever or turn the electronic dial from H2 to H4 at speeds below 62 mph (100 km/h) for part-time systems. For 4L (low range), you must bring the vehicle to a complete stop, shift the transmission into Neutral, and then move the transfer case to the 4L position to engage the reduction gears for maximum torque.

Essential Prerequisites for Operating Toyota 4WD Systems

Before attempting to engage the four-wheel-drive system on your Toyota 4Runner, it is critical to understand the specific mechanical configuration of your vehicle. Toyota utilizes different transfer case actuators depending on the trim level—specifically the SR5, TRD Off-Road, TRD Pro, and Limited models. Operating these systems incorrectly can lead to "binding" or drivetrain damage, particularly on high-traction surfaces.

Effective 4WD operation requires an understanding of the Automatic Disconnecting Differential (ADD) and the transfer case's role in distributing torque. Below is the foundational checklist for ensuring your vehicle is ready for off-road or inclement weather engagement.

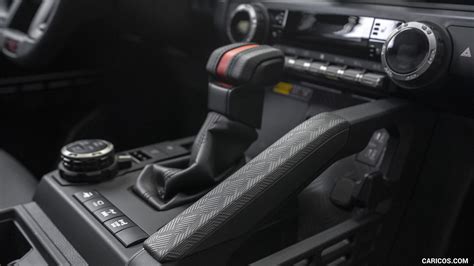

• System Identification: Determine if your 4Runner has a manual "J-shift" lever (common in TRD Off-Road and Pro models) or an electronic rotary dial (common in SR5 and Trail models). Limited models feature a full-time 4WD system with a Torsen center differential lock.
• Surface Verification: Only engage 4H or 4L on loose or slippery surfaces such as dirt, gravel, snow, or mud. Engaging 4WD on dry pavement creates driveline bind, as the front and rear axles cannot spin at different speeds during turns.
• Tire Consistency: Ensure all four tires are the same size and have relatively equal tread wear. Significant differences in tire diameter can confuse the wheel speed sensors and strain the transfer case.
• Lubrication Maintenance: Toyota recommends driving at least 10 miles per month in 4WD to keep the front actuator and transfer case components lubricated. If the system has not been engaged in months, the actuator may be slow to respond.

Operational Workflow for 4Runner 4WD Engagement

The process for engaging 4WD varies significantly between High Range (4H) and Low Range (4L). While 4H is designed for traction at higher speeds, 4L is a mechanical reduction gear meant for technical crawling and steep descents.

Step 1: Engaging 4H (4WD High Range)

High range is used for normal driving speeds on snow-covered roads or dirt trails. This connects the front driveshaft to the transfer case while maintaining a 1:1 gear ratio.

1. Check Your Speed: Ensure you are traveling at less than 62 mph (100 km/h). While the system is "shift-on-the-fly," attempting engagement at excessive speeds can cause unnecessary wear on the synchronization gears.
2. Straighten the Wheels: Ensure your front wheels are pointed straight. This reduces the mechanical resistance on the front differential as the ADD (Automatic Disconnecting Differential) slides into place.
3. Actuate the System:


   • Electronic Dial: Rotate the dial from H2 to H4.
   • Manual Lever: Pull the lever firmly back from the H2 position into the H4 position.
4. Monitor the Dash: Watch for the 4WD indicator light (a green icon showing four wheels and an axle). A blinking light means the system is attempting to synchronize. If it continues to blink, slightly accelerate or decelerate to help the gears align.

Pro-Tip: If the 4WD light refuses to stop blinking, try briefly taking your foot off the accelerator. This "unloads" the drivetrain and allows the solenoid or lever-actuated sleeve to slide onto the splines more easily.

Step 2: Engaging 4L (4WD Low Range)

Low range provides a gear reduction (usually 2.57:1 in the 5th Gen 4Runner), multiplying torque to the wheels. This is for speeds typically below 15-20 mph.

1. Stop the Vehicle: Unlike 4H, you cannot shift into 4L while moving. Bring the 4Runner to a complete halt on a flat surface if possible.
2. Shift to Neutral: Place your automatic transmission gear selector into "N" (Neutral). This is a mandatory step; the transfer case will not allow the reduction gears to engage if the transmission is in "Drive" or "Park" because there is residual pressure on the output shaft.
3. Actuate the Low Range:


   • Electronic Dial: Push the dial in and rotate it to 4L.
   • Manual Lever: Move the lever through the neutral gate and into the 4L position. This often requires a firm, decisive movement.
4. Verify Engagement: The 4WD light will remain on, and the "4LO" light will illuminate on the dash. You will also likely hear a beep or see the Traction Control (VSC) light turn off, as the vehicle automatically disables stability control in low range.

Warning: Never attempt to force the manual 4WD lever into 4L while the transmission is in gear. This will result in significant gear grinding and potential damage to the transfer case teeth.

Step 3: Utilizing Locking Differentials and A-TRAC

Once in 4L, many 4Runner models (specifically TRD grades) allow for further traction enhancements.

1. Rear Electronic Locking Differential: Press the "RR DIFF LOCK" button located on the overhead console. This mechanically locks the left and right rear wheels together. Only use this when you are stuck or about to enter a highly technical obstacle.
2. A-TRAC (Active Traction Control): Press the A-TRAC button. This system uses the ABS sensors to pinch the brake on a spinning wheel, forcing torque to the wheel with grip. It is exceptionally effective in 4L for rock crawling.

Toyota 4Runner Drivetrain Specification Comparison

Understanding the technical limitations of each mode is essential for vehicle longevity. The following table outlines the parameters for the most common 4Runner 4WD systems (Part-Time systems found on SR5 and TRD models).

Troubleshooting Common 4WD Engagement Failures

Even the robust Toyota 4WD system can encounter issues, particularly if it is underutilized. Here are the most frequent failure scenarios reported by 4Runner owners.

Scenario 1: The 4WD Light Blinks Infinitely and Won't Engage

• Root Cause: The front differential actuator (ADD) or the transfer case actuator is "stuck." This is often due to hardened grease or lack of use, preventing the shift fork from completing its travel.
• Actionable Fix: While driving slowly (under 10 mph) on a straight path, gently saw the steering wheel back and forth. This creates slight speed variances between the wheels and can help the splines align. If this fails, check the vacuum lines (on older models) or the electrical connector at the transfer case for corrosion.

Scenario 2: The Vehicle Makes a Loud "Clunk" When Shifting to 4L

• Root Cause: Shifting into 4L while the vehicle is slightly rolling or before the transmission has fully settled in Neutral.
• Actionable Fix: Ensure the vehicle is at a 0 mph dead stop. If the manual lever feels resistant, shift the transmission to Neutral, then quickly to Reverse, then back to Neutral before attempting the 4L shift again. This realigns the internal gear clusters.

Scenario 3: Difficulty Shifting Out of 4WD Back to 2WD

• Root Cause: Driveline "binding" or "wind-up." This happens if you drive in 4WD on a surface with too much traction, causing the gears to press tightly against each other.
• Actionable Fix: Drive the vehicle in reverse for 20-30 feet in a straight line. This releases the tension stored in the driveshafts and allows the actuator to pull the sleeve back into the 2WD position.

Scenario 4: Beeping Sound When Turning the 4WD Dial

• Root Cause: Incorrect shifting sequence. The vehicle is likely in "Drive" or "Reverse" while you are attempting to shift to 4L, or you are moving too fast for a 4H shift.
• Actionable Fix: Stop the vehicle, shift the transmission to Neutral, and then attempt the shift again. Ensure you are pushing the dial in if your model requires it for the 4L transition.

Frequently Asked Questions

Can I shift into 4WD High while driving on the highway?

Yes, you can shift into 4H at speeds up to 62 mph. However, you should only do this if the road surface is slippery (snow, ice, or heavy slush). Do not engage 4WD on dry highway pavement, as this can cause heat buildup and premature wear on the CV axles and transfer case.

Why does my 4Runner feel like it is "braking" when I turn in 4WD?

This is known as "crow-hopping" or driveline binding. Because the 4Runner’s part-time 4WD system locks the front and rear driveshafts to spin at the same speed, the wheels cannot differentiate during a turn. This is a sign that the surface has too much traction for 4WD; you should immediately shift back to 2WD to avoid damage.

What is the difference between the 4WD in a Limited and a TRD Off-Road?

The Limited 4Runner features a "Full-Time" 4WD system with a Torsen center differential, which allows for safe driving on dry pavement. The TRD Off-Road uses a "Part-Time" system that is manually locked; it provides superior off-road performance but cannot be used on dry pavement without causing mechanical strain.

How often should I use 4WD Low?

While you may not need the torque of 4L often, it is vital to engage it at least once every few months in a dirt parking lot or driveway to ensure the reduction gears and the actuator motor remain functional. This prevents the "frozen actuator" syndrome common in used 4Runners.

Master Your 4Runner's Off-Road Potential

Understanding the mechanical nuances of your Toyota 4Runner’s transfer case ensures that you can navigate challenging terrain without risking costly drivetrain repairs. Practice these shifting sequences in a controlled environment to build the muscle memory required for the trail.
