How To Etch A Knife With Ferric Chloride: A Professional Guide To Acid Etching
Etching a knife blade with ferric chloride involves a controlled chemical reaction that selectively dissolves surface metal to reveal damascus patterns, darken steel, or create high-contrast textures. Achieving a professional-grade finish requires precise surface preparation, accurate dilution ratios of the ferric chloride solution, and rigorous neutralization protocols to halt the oxidation process completely.
Pre-Operation Setup and Safety Requirements
Acid etching is an aggressive chemical process that demands strict adherence to laboratory-grade safety standards. Ferric chloride is corrosive to skin, eyes, and lungs, and it can permanently damage non-ferrous surfaces in your workspace. Before starting, ensure you have a dedicated, well-ventilated area that is free of metal debris that could contaminate the bath.
Essential Gear and Tools:
Ferric chloride solution (40% Baume concentration is industry standard).
Distilled water for dilution.
High-density polyethylene (HDPE) or glass containment vessel (must be deeper than the blade length).
Nitrile gloves (minimum 8 mil thickness) and chemical-resistant splash goggles.
99% Isopropyl alcohol or acetone for surface degreasing.
Baking soda or soda ash for the neutralization bath.
High-grit abrasive papers (800 to 2000 grit) or 0000 steel wool for finish work.
Magnetic pick-up tool or plastic tongs for blade handling.
Prerequisite Standards:
Blade must be fully hardened and tempered; etching should be the final step after primary edge grinding.
Surface finish must be consistent; deep scratches will act as focal points for the acid, creating uneven patterns.
Ambient temperature should be between 65 and 75 degrees Fahrenheit for predictable reaction rates.
Executing the Acid Etching Procedure
Step 1: Surface Preparation and Degreasing
The success of your etch is entirely dependent on the cleanliness of the blade. Any oil, fingerprint, or residual grinding lubricant will prevent the acid from making contact, leading to a splotchy, uneven finish. Clean the blade thoroughly with hot water and dish soap, then scrub it aggressively with acetone or denatured alcohol. Once degreased, do not touch the blade surface with bare skin.
Step 2: Preparing the Ferric Chloride Bath
While ferric chloride can be used at full strength, most knifemakers prefer a 3:1 or 4:1 ratio of distilled water to acid. Add the acid to the water—never the water to the acid—to prevent splashing. Pour the solution into your HDPE vessel. Ensure the volume is sufficient to completely submerge the blade without touching the bottom of the container, which can cause uneven patterns.
Step 3: Submersion and Reaction Monitoring
Submerge the blade slowly to avoid air bubbles, which can trap gas and cause un-etched spots. Agitate the solution slightly or carefully move the blade every few minutes to ensure fresh acid makes contact with the metal. Depending on the steel type—carbon steel, damascus, or high-alloy—the submersion time ranges from 5 to 20 minutes.
Warning: Never leave the room while the blade is in the acid. If the etch goes too deep, the steel surface may become porous or lose critical edge geometry.
Step 4: The Neutralization Process
Once the desired contrast or depth is achieved, remove the blade and immediately submerge it into a separate, secondary container filled with a mixture of water and a generous amount of baking soda. The base will neutralize the residual acid clinging to the blade. Keep the blade in the neutralization bath for at least five minutes, agitating it to reach into the plunge lines and tang.
Step 5: Post-Etch Refinement and Cleaning
Remove the blade from the baking soda bath and rinse it thoroughly under running water. You will notice a dark, smutty layer of oxidized metal on the surface. Gently buff this away using 0000 steel wool or high-grit sandpaper under a light stream of water. Apply a thin coat of mineral oil or a specialized blade wax immediately to prevent flash rust.

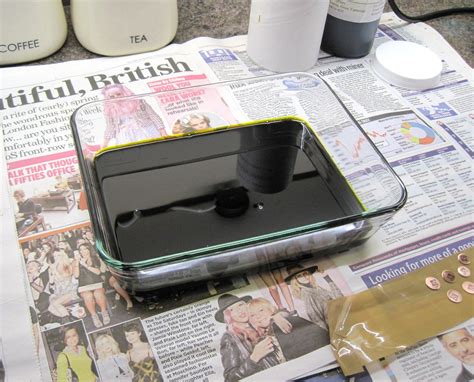

Etching with Ferric Chloride — Lyndsey Rieple
Technical Comparison of Etching Media and Outcomes
| Etchant Type | Primary Use Case | Aggression Level | Material Compatibility |
|---|---|---|---|
| Ferric Chloride | Damascus/Pattern Welded | High | Carbon Steels / Stainless |
| Muriatic Acid | Heavy Texture / Deep Relief | Extreme | Mild Steel / Iron |
| White Vinegar | Light Oxidation / Patina | Low | High Carbon Steel |
| Instant Coffee | Contrast Enhancement | Minimal | Damascus / Contrast Only |
Common Field Failures and Technical Remedies
Problem: Uneven Patches or Splotchy Finish
Root Cause: Inadequate degreasing or lingering grinding oils on the steel surface.
Actionable Fix: Strip the finish back with 400-grit abrasive, perform a more rigorous degreasing using fresh acetone, and ensure the blade is bone-dry before re-submerging.
Problem: Blade Surface Looks "Fuzzy" or Pitted
Root Cause: Over-etching due to excessive time in the bath or using an overly concentrated acid solution.
Actionable Fix: Polish the blade back to the desired finish using 800-grit sandpaper, then reduce the submersion time by 50% in the next cycle, monitoring closely.
Problem: Flash Rust Appearing Immediately After Rinsing
Root Cause: Failure to neutralize the acid thoroughly or using tap water with high mineral content that promotes oxidation.
Actionable Fix: Ensure the neutralization bath has enough baking soda to stay basic, and finish the final rinse with a splash of WD-40 or a water-displacing solvent.
Frequently Asked Questions
Can I reuse the ferric chloride solution after etching?
Yes, ferric chloride is reusable until it loses its potency. Store the solution in a sealed, labeled HDPE container in a cool, dark place. Over time, the solution will become "spent" as it gathers iron particles; you will notice the etch taking longer to achieve the same result.
Does acid etching ruin the edge of the knife?
If the knife is finished to a sharp edge before etching, the acid will bite into the edge, effectively dulling it. It is standard practice to leave the edge slightly thicker (0.010 to 0.015 inches) before etching, then perform your final sharpening stone passes after the etch is complete.
How do I dispose of used ferric chloride?
You must treat it as hazardous waste. Check your local municipal guidelines for chemical disposal; most areas require you to take it to a specialized hazardous waste collection facility. Never pour used acid down the drain or into the environment.
Will ferric chloride etch stainless steel?
Ferric chloride is generally ineffective on high-chromium stainless steels because the chromium creates a passive oxide layer that resists the acid. It works best on carbon steels and nickel-bearing steels commonly found in damascus billets.
Master Your Blade Finishing Techniques
Refining your etching process is a hallmark of professional knifemaking that distinguishes custom blades from mass-produced tools. Apply these technical standards to your next project to ensure consistent, high-contrast results that highlight the unique character of your steel.
