To figure out the gear ratio in a rear end, divide the number of teeth on the ring gear by the number of teeth on the pinion gear, or calculate the ratio externally by counting the precise number of driveshaft rotations relative to one full tire spin. Identifying this exact ratio is essential for restoring speedometer accuracy, optimizing engine RPM bands, and ensuring drivetrain compatibility during gear swaps.

Technical Preparation, Safety, and Equipment Checklist

Before performing mechanical diagnostic procedures on your vehicle’s drivetrain, you must prepare a controlled workspace. Determining your rear-end gear ratio can be accomplished via non-invasive digital/visual checks, semi-invasive manual rotation diagnostics, or invasive physical gear counting.

The safety and equipment requirements depend on the diagnostic depth you select.

Essential Diagnostic Tools and Safety Gear

Support & Elevation: Heavy-duty floor jack and two high-capacity jack stands rated for your vehicle's weight class. Wheel chocks for the front wheels are mandatory.
Measurement & Marking: High-visibility marking paint, chalk, or a wax grease pencil.
Mechanical Hand Tools: Half-inch or three-quarter-inch breaker bar, socket set (standard and metric), and a flathead screwdriver or pry bar.
Fluid Management (For Invasive Method): Fluid catch pan, gasket scraper, replacement differential gasket or high-temp RTV silicone sealant, and vehicle-specified gear oil (e.g., 75W-90, 80W-90, or synthetic 75W-140) along with any required friction modifiers for limited-slip differentials.
Personal Protective Equipment (PPE): ANSI-approved safety glasses and chemical-resistant nitrile gloves.

Prerequisite Knowledge & Specifications

Differential Mechanical Layout: Understand whether your vehicle is equipped with an "Open" differential or a "Limited-Slip/Locking" (LSD) differential. The external spin test relies entirely on this distinction.
Time Commitment: 15 minutes for tag/spin diagnostics; 60 to 90 minutes for internal physical counting (including clean-up and fluid replacement).
Estimated Cost: $0 for visual and manual tests; $30 to $80 for internal verification due to the cost of fresh gear oil and replacement gaskets.

Step-by-Step Methods to Determine Rear End Gear Ratio

Method 1: Decoding the OEM Axle Tag and Service Codes (Non-Invasive)

Before lifting the vehicle or handling tools, check the factory identification stamps. Manufacturers place identification codes directly on the axle housing or within the vehicle information placards.

Step 1: Locate the Metal Axle Tag

Locate the differential cover on the rear axle. Manufacturers typically bolt a small, embossed metal tag directly to one of the differential cover bolt holes. If the tag is covered in road grime, rust, or undercoating, spray it with brake cleaner and scrub it gently with a wire brush.

Step 2: Decipher the Stamped Code

Read the embossed characters from left to right.

Open Differentials: You will see a string of numbers where the gear ratio is explicitly printed. For example, a stamp reading "3 73" indicates a 3.73:1 gear ratio.
Limited-Slip Differentials: The ratio digits are separated by an "L" or have an "L" prefix. A stamp reading "3 L 73" indicates a 3.73:1 gear ratio equipped with a limited-slip unit. Similarly, a Ford axle might show "3L55" for a 3.55 traction-lock rear end.

Step 3: Check the Glove Box or Door Jamb Service Placard

If the axle tag is missing or illegible, look inside the driver-side door jamb or the glove box liner for the Service Parts Identification (SPID) or vehicle certification label. Look for "Axle" or "Trans/Axle" codes.

On General Motors vehicles, these are represented by three-character "RPO" codes beginning with "G" (e.g., GU6 represents a 3.42 ratio, while GT4 represents a 3.73 ratio).
On Ford vehicles, locate the "AXLE" code on the door jamb sticker (e.g., "19" indicates a 3.08 open axle, while "H9" indicates a 3.55 limited-slip axle).

Method 2: The Manual Rotation Spin Test (Semi-Invasive)

If your vehicle has aftermarket gears, or if the factory tags are missing, the manual spin test is the most accurate external diagnostic method. This test requires lifting the drive wheels and counting the rotations of the driveshaft relative to the tires.

Warning: Always place heavy-duty wheel chocks on both sides of the front tires. Fully engage the parking brake if working exclusively on the rear end, and ensure the transmission is shifted into Neutral so the driveshaft can spin freely.

[Open Differential] [Limited-Slip Differential] Lift ONLY ONE tire off the ground Lift BOTH tires off the ground Spin tire exactly 2 full rotations Spin tire exactly 1 full rotation \ / \ / Count driveshaft rotations

Step 1: Identify Your Differential Type

Determine if your rear end is an "Open" or "Limited-Slip/Posi" unit. Jack up the rear axle so both tires clear the ground. Spin one tire forward by hand while watching the opposite tire.

If the opposite tire spins in the opposite direction, you have an Open differential.
If the opposite tire spins in the same direction, you have a Limited-Slip or locked differential.

Step 2: Prepare the Markings

Using high-visibility chalk or a grease pencil, draw a precise vertical line on the clean underside of the driveshaft. Align this mark with a corresponding stationary reference mark on the differential pinion housing. Next, place a highly visible vertical reference line on the inside tire sidewall, aligning it with a stationary point on the leaf spring, shock absorber, or fender lip.

Step 3: Execute the Rotation Protocol for Open Differentials

Because an open differential splits torque through spider gears, spinning only one wheel while the other remains stationary doubles the rotational output of the differential side gears.

Lower the vehicle so that one rear tire is resting firmly on the ground, leaving the other rear tire elevated in the air.
Rotate the elevated tire exactly two (2) complete, highly precise rotations.
Count the exact number of times the driveshaft rotates during those two tire spins.
The final count of your driveshaft rotations is your gear ratio. If the driveshaft spins just over 3 and three-quarter times, you have a 3.73:1 ratio. If it spins just over 4 times, it is a 4.10:1 ratio.

Step 4: Execute the Rotation Protocol for Limited-Slip/Locked Differentials

Ensure both rear tires are elevated completely off the ground.
Rotate either tire exactly one (1) complete, highly precise rotation. Because both wheels turn together, there is no differential gear multiplying effect.
Count the exact number of times the driveshaft rotates during that single tire spin.
The final count of your driveshaft rotations is your gear ratio. If the driveshaft makes exactly three rotations plus a quarter turn, you have a 3.23:1 or 3.25:1 ratio.

Pro-Tip: If you find it difficult to estimate fractional driveshaft rotations (e.g., distinguishing between a 3.42 and a 3.55 ratio), scale up the test. Spin the tire 10 full rotations (for limited-slip) or 20 full rotations (for open), count the total driveshaft spins, and divide by 10. A driveshaft spin count of 37.3 over 10 tire rotations indicates a precise 3.73:1 gear ratio.

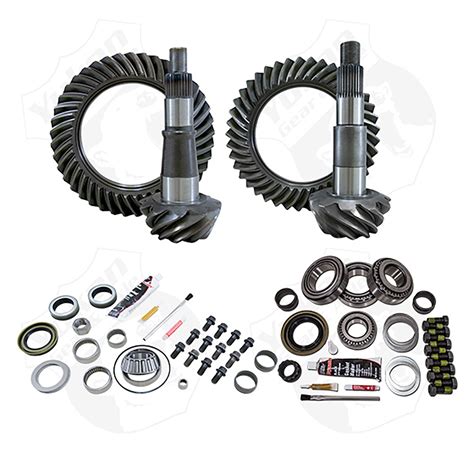

Method 3: Internal Gear Tooth Count (Invasive and Exact)

When building high-performance drivetrains or replacing broken components, relying on external approximations is not enough. To find your exact gear ratio, remove the differential cover and read the physical gear stamps or count the teeth.

Step 1: Drain the Gear Oil and Remove the Cover

Position a fluid drain pan beneath the rear differential. Using a socket wrench, loosen all the differential cover bolts. Leave the top two bolts threaded in by a few turns to prevent the cover from falling.

Insert a flathead screwdriver or gasket scraper into the lower seam and gently pry the cover away from the housing to break the seal. Allow the gear oil to drain completely into the pan, then remove the remaining bolts and the cover.

Step 2: Clean and Inspect the Ring Gear

Using a lint-free shop towel and brake cleaner, wipe away the remaining gear oil from the outer face of the large ring gear. Rotate the driveshaft by hand to inspect the teeth for wear, pitting, chip damage, or hairline fractures.

Step 3: Read the Stamped Engineering Numbers

Locate the outer edge or backside of the ring gear. Manufacturers stamp critical engineering data directly into the metal. Look for a sequence of numbers separated by a hyphen, slash, or space. Common examples include:

41-11: This indicates 41 teeth on the ring gear and 11 teeth on the pinion gear.
39/11: This indicates 39 teeth on the ring gear and 11 teeth on the pinion gear.
41 10: This indicates 41 teeth on the ring gear and 10 teeth on the pinion gear.

Step 4: Perform the Gear Ratio Math

To calculate the exact ratio, divide the ring gear tooth count by the pinion gear tooth count. Use this formula:

$$\text{Gear Ratio} = \frac{\text{Number of Ring Gear Teeth}}{\text{Number of Pinion Gear Teeth}}$$

Using the 41-11 stamp: 41 divided by 11 equals 3.7272, which rounds to a standard 3.73:1 gear ratio.
Using the 39/11 stamp: 39 divided by 11 equals 3.5454, which rounds to a standard 3.55:1 gear ratio.
Using the 41 10 stamp: 41 divided by 10 equals 4.10:0, representing a 4.10:1 gear ratio.

Step 5: Manual Counting Protocol (If Stamping is Missing)

If aftermarket wear or surface corrosion has obscured the stamped numbers, you can count the teeth manually:

Using a bright yellow or white paint pen, mark one tooth on the large ring gear as your starting point.
Slowly rotate the ring gear, counting every tooth until you return to your starting mark. Write down this number.
Locate the smaller pinion gear buried deep in the neck of the differential housing.
Mark one pinion tooth and rotate the gear assembly, counting each tooth on the pinion gear. Write down this number.
Divide the ring gear count by the pinion gear count to find your exact ratio.

Ford 9 inch Drop-In Rear End w/Trac Loc, Select Gear Ratio & Spline

Technical Specifications and Identification Comparison

The table below outlines the accuracy, requirements, and best-use scenarios for each of the three rear-end gear ratio determination methods.

Diagnostic Method	Accuracy Level	Required Tools	Vehicle Configuration	Primary Advantage	Common Failure Point
OEM Axle Tag / SPID Code	High (99% on unmodified vehicles)	None (Wire brush, brake cleaner, torch)	Vehicle must have factory original axle housing and internal gear set	Instant identification without lifting the vehicle	Tag is often missing, corroded, or incorrect due to previous gear swaps
Manual Rotation Spin Test	Moderate (Within 5% margin of error)	Floor jack, jack stands, chalk or paint pen	Works on all vehicles; must differentiate between Open and LSD setups	No disassembly required; verifies ratio on modified vehicles	Miscounting partial driveshaft spins or using open-diff rules on an LSD
Internal Gear Tooth Count	Absolute (100% Exact)	Socket set, drain pan, scraper, new gear oil, RTV, paint pen	Applicable to all differentials during servicing	Discovers wear, damage, and aftermarket gear brands	Requires proper clean-up, resealing, and correct fluid refilling

Troubleshooting Common Measurement Failures

Scenario 1: The opposite wheel spins randomly during the manual spin test

Root Cause: The vehicle is equipped with an older, worn clutch-pack limited-slip differential. The internal clutches are slipping, causing the differential to behave like a limited-slip under load but slip like an open differential under hand rotation.
Actionable Fix: Treat the assembly as an open differential. Lower one wheel flat on the ground to lock it in place, spin the elevated wheel exactly two full rotations, and count the driveshaft rotations to find your ratio.

Scenario 2: The driveshaft rotates, but the count yields an impossible decimal (e.g., 3.12 or 3.85)

Root Cause: This is usually caused by tire slippage or parallax error when viewing the driveshaft marks at an angle.
Actionable Fix: Reset your marks. To eliminate rounding errors, rotate the tire exactly 10 full rotations (for LSD) or 20 full rotations (for open). A 3.73 ratio will yield exactly 37.3 driveshaft rotations over 10 spins. If your count is still irregular, you may have a rare aftermarket gear set (such as a 3.90 or 4.30).

Scenario 3: The differential cover is removed, but there are no stamped numbers on the ring gear

Root Cause: Some budget-tier aftermarket gear manufacturers do not stamp part numbers or tooth ratios on their gear crowns, or severe gear wear has polished the markings away.
Actionable Fix: Use a yellow grease pencil to mark one tooth on the ring gear. Rotate the gear and hand-count every tooth. Repeat this process for the pinion gear. Divide the ring tooth count by the pinion tooth count to calculate the ratio.

Scenario 4: The differential cover leaks after performing the internal inspection

Root Cause: The old gasket material was not fully cleared from the mating surfaces, or the RTV silicone sealant was not allowed to cure properly before you refilled the differential with gear oil.
Actionable Fix: Drain the fluid again and remove the cover. Use a gasket scraper to clean both mating surfaces until they are bare, oil-free metal. Apply a continuous 1/4-inch bead of high-temp RTV silicone around the bolt holes. Reinstall the cover finger-tight, wait one hour, torque the bolts to factory specification (typically 15-25 lb-ft), and wait a full 24 hours before adding gear oil.

Frequently Asked Questions

What is the most common rear end gear ratio for everyday vehicles?

Most half-ton trucks, SUVs, and rear-wheel-drive passenger vehicles use gear ratios ranging from 3.08:1 to 3.73:1. Lower numerical ratios (like 3.08:1 or 3.23:1) are designed to improve highway fuel economy by keeping engine RPMs low. Higher numerical ratios (like 3.73:1, 4.10:1, or 4.56:1) are designed to improve towing capacity, off-the-line acceleration, and off-road performance.

How does changing my rear end gear ratio affect my speedometer?

Your vehicle's speed sensors calculate road speed by measuring the rotational speed of the transmission output shaft or driveshaft. If you install shorter gears (a higher numerical ratio) without recalibrating the engine control module (ECM) or replacing the speedometer drive gear, your speedometer will read faster than your actual road speed. Conversely, installing taller gears (a lower numerical ratio) will cause the speedometer to read slower than your actual speed.

Why is the difference between open and limited-slip differentials so important for the spin test?

An open differential allows the left and right tires to rotate at different speeds. When you lift only one tire of an open differential and spin it, the internal spider gears spin on their shafts, doubling the speed of the rotating tire while the driveshaft turns at its normal rate. This requires you to spin the tire two full rotations to get an accurate driveshaft reading. In a limited-slip differential, the internal clutches lock the axles together, making a single rotation of both wheels equal to a single rotation of the differential carrier.

Can I determine my gear ratio by checking my vehicle’s VIN online?

Yes, a VIN lookup can sometimes identify your factory-installed axle ratio, especially on modern trucks and performance cars. However, this method only works if the vehicle still has its original axle housing and internal gears. If a previous owner swapped the gear set or the entire rear-end housing, only a physical spin test or an internal gear count will reveal the true, current ratio.
