How To Ground A Turntable: The Definitive Technical Guide To Eliminating Phono Hum

Grounding a turntable requires establishing a low-resistance electrical path between the record player's chassis and the phono preamplifier's grounding terminal to equalize electrical potential and eliminate 60Hz hum. By properly securing a dedicated ground wire—typically a 18-22 AWG copper lead with spade connectors—users can isolate sensitive millivolt-level phono signals from electromagnetic interference and ground loop noise.

Pre-Installation Assessment and Equipment Requirements

Before initiating the grounding process, it is critical to understand the electrical environment of a high-fidelity audio system. Turntables are unique in the audio world because they generate an extremely low-voltage signal. A Moving Magnet (MM) cartridge typically outputs between 3mV and 6mV, while Moving Coil (MC) cartridges can output as little as 0.2mV. At these levels, any stray electromagnetic interference (EMI) or radio frequency interference (RFI) is amplified significantly by the phono stage, resulting in the characteristic low-frequency "hum" or "buzz."

Grounding serves two primary purposes: safety and signal integrity. In a turntable setup, the "signal ground" and "chassis ground" must be managed to prevent a ground loop, which occurs when there are multiple paths to the earth ground, creating a circulating current that introduces noise. To prepare for this procedure, ensure your workspace is clean and you have access to the rear panels of both your turntable and your amplification source.

Essential Gear and Material Checklist:

• Grounding Wire: Ideally a multi-stranded copper wire, 18 to 22 AWG. If your turntable did not come with one, a dedicated phono ground cable with pre-terminated spade lugs is recommended.
• Spade Connectors: Standard 1/4-inch or 3/16-inch fork terminals are required for a secure, high-surface-area connection to the binding posts.
• Tools: A precision Phillips-head screwdriver, a small adjustable wrench (for knurled nuts), and wire strippers if you are fabricating a custom lead.
• Cleaning Agents: Isopropyl alcohol (99%) and a microfiber cloth to ensure the contact points are free of oxidation and factory oils.
• Multimeter (Optional but Recommended): To test continuity and ensure a low-resistance path (less than 1 Ohm) between the tonearm and the ground terminal.

Duration and Difficulty:

• Estimated Time: 15–30 minutes.
• Difficulty Level: Beginner-Intermediate.
• Technical Standard: Compliance with standard Hi-Fi signal-to-noise ratio (SNR) benchmarks, aiming for a noise floor below -60dB.

Comprehensive Walkthrough for Grounding Your Analog System

The process of grounding varies slightly depending on whether your turntable utilizes an integrated ground wire, a dedicated grounding terminal, or an internal grounding scheme. Follow these steps to ensure a noise-free playback environment.

Step 1: Identify the Turntable Grounding Configuration

Examine the rear of your turntable near the RCA output jacks. You will likely encounter one of three configurations. The most common is a thin, third wire exiting the plinth alongside the left and right RCA cables. The second configuration is a dedicated screw terminal, often labeled "GND" or "Signal Ground." The third, common in modern entry-level or "plug-and-play" models, is an internal ground where the grounding path is routed through the outer shield of the RCA cables themselves.

If your turntable has a dedicated terminal but no wire, you must provide your own. If it has an integrated wire, ensure the spade lug at the end is not bent or corroded.

Warning: Never attempt to ground a turntable by connecting the signal ground wire to the "third prong" (safety earth) of an AC power outlet. This can create a lethal safety hazard and will almost certainly introduce massive ground loop interference.

Step 2: Prepare the Connection Terminals

Before making the connection, power down all equipment. Use a microfiber cloth dampened with isopropyl alcohol to clean the grounding post on your phono preamp or integrated amplifier. These posts are often made of gold-plated brass or nickel, and skin oils can increase contact resistance over time. If you are using a custom wire, strip approximately 1/4 inch of insulation and crimp your spade connector firmly. A direct wire-to-post connection is possible but is prone to fraying and intermittent signal loss.

Step 3: Secure the Wire to the Phono Preamp or Amplifier

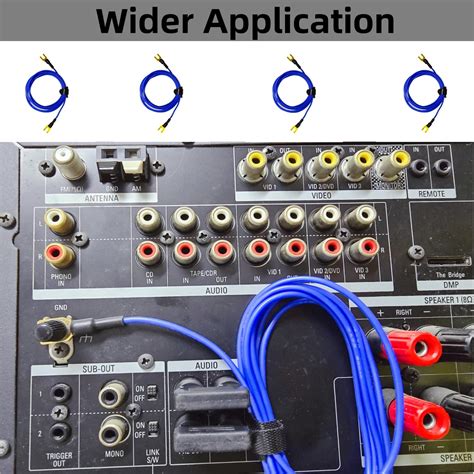

Locate the grounding terminal on your receiving device. This is typically a knurled nut located near the "Phono" inputs. Loosen the nut counter-clockwise until there is enough clearance to slide the spade lug behind the washer.

1. Slide the U-shaped spade connector onto the post.
2. Ensure the connector is centered and making full contact with the metal chassis or the washer.
3. Tighten the knurled nut firmly by hand. Do not over-tighten with pliers, as this can strip the threads or crack the internal solder joint on the circuit board.
4. If your amplifier lacks a dedicated "GND" terminal, identify a chassis screw on the metal frame of the amplifier. Loosen it slightly, tuck the ground wire underneath, and retighten.

Pro-Tip: If you are using a separate phono stage before your main amplifier, always ground the turntable to the phono stage first. In some high-gain environments, you may also need a second ground wire running from the phono stage to the main power amplifier to ensure a common potential across the entire signal chain.

Step 4: Routing for Interference Mitigation

The physical placement of the ground wire matters. Avoid wrapping the ground wire tightly around AC power cords, as the electromagnetic field from the 120V/240V lines can induce hum directly into the ground path. Run the ground wire parallel to your RCA signal cables, ideally using cable ties to keep the bundle neat but not overly compressed. If your RCA cables are unshielded, consider upgrading to shielded "phono-specific" cables which provide an additional layer of protection against RFI.

Step 5: Verification and Continuity Testing

Once connected, turn on your amplifier and select the "Phono" input. Gradually increase the volume without playing a record. You should hear a faint "hiss" (white noise) from the high-gain circuitry, but the heavy 60Hz/50Hz "drone" should be absent. If the hum persists, use a multimeter set to the Ohms (resistance) setting. Touch one probe to the metal part of the turntable's tonearm and the other to the metal chassis of your amplifier. The reading should be very low, typically under 2 Ohms. A high reading indicates a poor connection or a break in the internal wiring of the turntable.

Technical Specifications and Component Compatibility

The following table outlines the standard requirements for grounding components to achieve optimal signal-to-noise ratios in a vinyl playback system.

Resolving Persistent Audio Distortion and Ground Loops

Even with a ground wire attached, environmental factors or hardware defects can cause unwanted noise. Use these troubleshooting scenarios to diagnose and fix the issue.

Scenario 1: The hum persists or intensifies after connecting the ground wire.

• Root Cause: This is a classic "Ground Loop." It occurs when both the turntable and the amplifier are grounded to the AC mains through their power cords, and the additional ground wire creates a circular path for current.
• Actionable Fix: Try disconnecting the ground wire. If the hum disappears, your system was already grounded through the RCA shields or the AC mains. Alternatively, ensure all audio components are plugged into the same high-quality power strip or power conditioner to keep them on the same circuit phase.

Scenario 2: Hum only occurs when you touch the tonearm or headshell.

• Root Cause: This indicates a "floating" ground or a break in the internal tonearm grounding wire. The human body acts as an antenna for EMI, and when you touch the arm, you are injecting that noise into the circuit.
• Actionable Fix: Inspect the small wires at the back of the phono cartridge. Ensure the black (or green) wire is securely attached to the cartridge pins. If the problem is inside the tonearm tube, professional rewiring may be required.

Scenario 3: Intermittent crackling or "pop" sounds during playback.

• Root Cause: Static electricity buildup on the record surface or a loose ground connection. In dry environments, the friction of the stylus on vinyl generates significant static.
• Actionable Fix: Verify that the grounding wire is not loose at either end. Use an anti-static carbon fiber brush on your records before play. If the turntable has a metal sub-platter, ensure the spindle is making contact with a grounded bearing housing.

Scenario 4: High-pitched whining or RFI (Radio Station Bleed).

• Root Cause: The ground wire or RCA cables are acting as an antenna for high-frequency signals, common near cell towers or Wi-Fi routers.
• Actionable Fix: Replace unshielded RCA cables with double-shielded versions. Install a ferrite bead (clamp-on choke) onto the ground wire and RCA cables near the amplifier input to filter out high-frequency noise.

Frequently Asked Questions

What should I do if my amplifier does not have a dedicated grounding screw?

If your amplifier lacks a labeled GND post, you can use any metal screw on the amplifier's chassis that makes contact with the main frame. Look for a screw on the rear panel, loosen it slightly, wrap the ground wire around it, and tighten. Avoid screws that are painted or anodized, as the coating may act as an insulator.

Can I use a standard piece of speaker wire as a grounding cable?

Yes, a standard copper speaker wire will function as a ground wire. However, because speaker wire is usually a larger gauge (12-16 AWG), it may be difficult to fit into small grounding terminals. Ensure you use a single lead (one side of the pair) and terminate it with a proper spade lug for the best results.

Does a USB turntable need to be grounded?

Most USB turntables feature internal preamps and are grounded through the USB cable's shielding or the internal circuit board. If you are using the USB output to a computer, additional grounding is rarely needed. However, if you switch the "Line/Phono" toggle to "Phono" and use the RCA outputs, you may still need to use a ground wire if one is provided.

Why is the hum louder when using a Moving Coil (MC) cartridge?

Moving Coil cartridges have a much lower output voltage than Moving Magnet (MM) cartridges, requiring significantly more gain from the phono preamp. Because the amplifier is boosting the signal by 60dB or more, any tiny amount of ground noise or interference is amplified much more aggressively, making proper grounding and shielding critical for MC setups.

Enhance Your Analog Listening Experience

Achieving a dead-silent background is the hallmark of a well-calibrated vinyl playback system. By following these professional grounding protocols, you ensure that every nuance of your record collection is preserved without the distraction of electrical interference.
