How To Identify Agatized Dinosaur Bone: The Complete Technical Guide
Agatized dinosaur bone—commercially known as dinosaur gembone—is a rare fossilized material where original cellular structures are completely replaced by microcrystalline quartz like agate, jasper, or chalcedony. Identifying authentic specimens requires a precise evaluation of cellular matrix patterns, Mohs hardness ratings, fracture mechanics, and optical translucency under specialized lighting conditions.
Pre-Exploration Preparation and Analytical Toolkit
Before examining suspected fossil fragments in the field or laboratory, assembling the correct diagnostic equipment is essential to prevent misidentifying common rocks or modern bone. The fossilization process, known technically as permineralization or silicification, transforms organic bone into stone over millions of years while typically preserving the delicate Haversian canals and cellular architecture.
- Essential Diagnostic Tools: 10x to 20x jeweler's loupe, Mohs hardness test kit (or a quartz crystal and steel file), high-intensity LED pocket flashlight, digital caliper, and specific gravity testing apparatus.
- Prerequisite Knowledge: Familiarity with sedimentary geology, cryptocrystalline quartz mineralogy, and the macroscopic anatomy of trabecular (spongy) and cortical (compact) vertebrate bone.
- Time and Budget Benchmarks: Visual and tactile field inspection takes approximately 5 to 10 minutes per specimen, while definitive laboratory verification costs vary from zero for home-testing methods to several hundred dollars for thin-section petrographic analysis.
Step-by-Step Diagnostic Workflow for Silicified Bone
Step 1: Visual Inspection for Cellular Matrix and Bone Structure

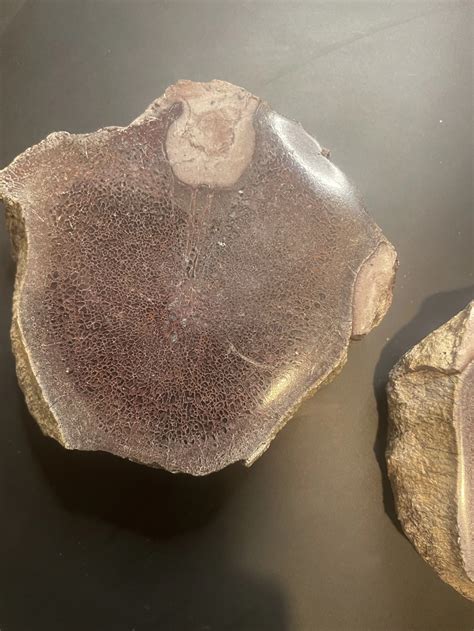

Examine the exterior and broken faces of the specimen using a 10x or 20x loupe to find diagnostic biological architecture. True dinosaur bone does not look like ordinary banded agate; it displays a distinctive honeycomb or web-like cellular pattern that corresponds to ancient trabecular bone spaces now filled with chalcedony.
Look closely for empty or mineral-filled chambers known as cell spaces, surrounded by thicker cell walls. If you see linear bone grain resembling petrified wood instead of rounded, polygonal, or irregular bone cells, the specimen is likely plant material rather than dinosaur bone.
Pro-Tip: Wetting the surface of the stone with water or mineral oil temporarily fills microscopic surface fractures, dramatically improving contrast and making hidden cellular cell walls stand out clearly.
Step 2: Evaluating Mohs Hardness and Matrix Composition
Perform a scratch test on an inconspicuous area of the specimen to determine its mineral hardness, keeping in mind that genuine agatized bone is composed of quartz. Use a piece of quartz, which has a Mohs hardness of 7, to test the surface.
- Attempt to scratch the matrix with a standard steel pocket knife (Hardness ~5.5). Authentic agatized bone will easily scratch the steel, as quartz is harder.
- Attempt to scratch the specimen with a known piece of quartz or window glass (Hardness ~5.5 to 6.5). Agatized bone will typically scratch glass and resist being scratched by quartz.
- If the material can be easily scratched by a copper coin or a fingernail, it is calcite, gypsum, or weathered limestone, not agatized bone.
Warning: Never perform hardness tests on the primary display face or polished cabochon surfaces of high-grade gembone, as permanent scratches will diminish the aesthetic and financial value of the specimen.
Step 3: Translucency and Light Transmission Testing
Take the specimen into a dark room or shield it with your hands, then press a high-intensity LED flashlight directly against the thinnest edge of the stone.
Because chalcedony, agate, and jasper are varieties of microcrystalline quartz, high-grade agatized dinosaur bone will often exhibit varying degrees of light transmission, glowing like stained glass. Observe whether the internal cellular network remains visible as dark silhouettes against the glowing quartz background. Opaque specimens may still be genuine dinosaur bone filled with jasper or common opacified chert, but translucent specimens indicate higher gemstone-quality mineral replacement.
Step 4: Specific Gravity and Density Verification
Calculate or estimate the density of the specimen to differentiate quartz-replaced fossils from modern bone or heavy metal-rich mineral concretions.
- Weigh the dry specimen on a precise digital scale and record the mass in grams.
- Suspend the specimen in a container of water using a thin filament to measure water displacement, determining the volume in cubic centimeters.
- Divide the dry weight by the displacement volume to find the specific gravity. Pure quartz has a specific gravity of approximately 2.65, meaning genuine agatized bone will cluster tightly around 2.55 to 2.70 depending on iron oxide and mineral impurities.
Dinosaur Gem Bone - Agatized Dinosaur Bone — Utah Dump Digger
Comparative Mineral Matrix Properties
| Diagnostic Parameter | Agatized Dinosaur Bone | Petrified Wood | Common Banded Agate | Modern Bone |
|---|---|---|---|---|
| Primary Mineral | Microcrystalline Quartz ($SiO_2$) | Microcrystalline Quartz ($SiO_2$) | Microcrystalline Quartz ($SiO_2$) | Hydroxyapatite ($Ca_5(PO_4)_3(OH)$) |
| Mohs Hardness | 6.5 – 7.0 | 6.5 – 7.0 | 7.0 | 3.0 – 5.0 |
| Cellular Structure | Honeycomb, polygonal bone cells | Linear grain, growth rings, tubes | Concentric bands, no cells | Porous bone architecture, burns |
| Specific Gravity | 2.55 – 2.70 | 2.50 – 2.65 | 2.60 – 2.65 | 1.90 – 2.20 |
| Fracture Type | Conchoidal to sub-conchoidal | Splintery to conchoidal | Conchoidal | Fibrous, irregular |
Common Identification Pitfalls and Field Fixes
- Root Cause: Mistaking banded sedimentary chert or Liesegang rings for dinosaur bone cellular structures.
- Actionable Fix: Look for the characteristic three-dimensional hollow or filled chambers of trabecular bone. Liesegang rings show abstract concentric mineral banding without any underlying structural cell walls.
- Root Cause: Confusing petrified wood with dinosaur bone due to superficial color similarities.
- Actionable Fix: Magnify the grain direction under a 20x loupe. Wood displays unidirectional tubular vessels and growth rings, whereas bone exhibits multidimensional, web-like cellular matrices.
- Root Cause: Inconclusive identification on heavily weathered or surface-patinated specimens.
- Actionable Fix: Grind a tiny, hidden window using a diamond lapidary bit or make a fresh break to expose unweathered internal quartz replacement.
- Root Cause: Assuming lightweight modern bone is a fossil because it was found buried in the same stratum.
- Actionable Fix: Perform a burn test on an invisible microscopic filing; modern bone will char, smell organic, and turn black, while agatized bone is entirely inert to heat.
Frequently Asked Questions
What colors can agatized dinosaur bone be?
Agatized dinosaur bone displays a remarkable spectrum of colors driven by trace mineral impurities introduced during the permineralization process. Iron oxides produce reds, yellows, and browns; manganese creates purples and blacks; and chromium or nickel can yield greens.
Is all dinosaur bone agatized?
No, fossilization occurs through various pathways depending on the chemical environment of the burial site. While silicification (agatization) produces gemstone-quality material, other dinosaur bones are fossilized via pyritization, calcification, or replacement by ironstone and sandstone.
Where is the best place to find agatized dinosaur bone?
The premier source for high-grade dinosaur gembone is the Morrison Formation of the Western United States, spanning states like Colorado, Utah, Wyoming, and Montana. This Late Jurassic geologic layer provides the exact silica-rich groundwater conditions required for complete quartz replacement.
Can I cut and polish agatized dinosaur bone myself?
Yes, because agatized bone has a Mohs hardness of 7, it can be cut with diamond saws and polished using standard lapidary equipment. Lapidary artists frequently slab and cabochon high-grade gembone for use in custom jewelry and high-end display pieces.
Master the Art of Fossil Identification Today
Enhance your geological expertise and build a world-class collection by carefully applying these proven diagnostic techniques to verify your next field discovery. Explore our advanced guides on lapidary preparation and regional fossil hunting strategies to take your rockhounding skills to the next level.
