Mastering Boost Gauge Installation: A Comprehensive Technical Guide For Performance Tuning

To install a boost gauge, you must establish a reliable pressure reference by tapping into the intake manifold vacuum line using a T-fitting, then route either a mechanical nylon tube or an electrical sensor wire through the firewall to a cabin-mounted display. Precise calibration requires an airtight seal at all junctions and a dedicated 12V ignition-switched power source to ensure the gauge accurately reflects the manifold absolute pressure in real-time.

Mechanical Assessment and Tooling for Boost Monitoring

Before beginning the installation, you must determine whether your vehicle utilizes a mechanical or electrical boost gauge. Mechanical gauges use a physical nylon or copper line to carry pressurized air directly to the back of the gauge, while electrical gauges use a remote-mounted Manifold Absolute Pressure (MAP) sensor that converts air pressure into an electrical signal sent via a wiring harness. The choice of gauge dictates the complexity of the firewall passage and the specific components required for the build.

Essential Gear and Material Checklist

• Primary Hardware: Boost gauge (52mm or 60mm standard), mounting pod (A-pillar, steering column, or vent mount), and a vehicle-specific or universal T-fitting.
• Mechanical Components: High-temperature silicone vacuum hose (3mm or 4mm ID), nylon tubing kit, and brass compression fittings or "ferrules."
• Electrical Supplies: 18-22 gauge automotive primary wire, "Add-a-circuit" fuse taps, heat-shrink tubing, and crimp connectors or a soldering iron with rosin-core solder.
• Precision Tools: Digital multimeter for identifying ignition-switched circuits, wire strippers/crimpers, a sharp utility knife, and a small flashlight.
• Sealants and Fasteners: Small nylon zip ties (rated for high heat), PTFE thread seal tape (for brass fittings), and rubber grommets for firewall protection.

Prerequisite Benchmarks

• Estimated Duration: 2 to 4 hours depending on cabin accessibility and wiring complexity.
• Technical Threshold: Intermediate. Requires basic knowledge of 12V DC electrical systems and the ability to identify vacuum sources within an engine bay.
• Safety Standards: Disconnect the negative battery terminal before any electrical work to prevent short circuits or SRS (Airbag) deployment in the A-pillar.

Precision Installation Workflow: From Vacuum Source to Cabin Display

The installation process is divided into three distinct phases: the mechanical tap, the firewall transition, and the electrical integration. Success depends on the integrity of the vacuum source and the cleanliness of the wiring.

Step 1: Identifying and Tapping the Vacuum Source

The goal is to find a hose that experiences both vacuum (at idle) and boost (under load). The most reliable source is typically the line connecting the intake manifold to the fuel pressure regulator (FPR) or a dedicated "boost port" on the plenum.

1. Locate a small-diameter vacuum line after the throttle body but before the cylinder head.
2. Using a sharp utility knife, make a clean, perpendicular cut in the center of a straight section of this hose.
3. Insert the T-fitting. Ensure the "legs" of the T are sized correctly for the factory hose to prevent leaks.
4. Secure all three ends of the T-fitting with small zip ties.

Warning: Do not tap into the brake booster line or the evaporative emission (EVAP) purge lines. Tapping the brake booster can lead to pedal firmness issues, and EVAP lines may introduce fuel vapors into your gauge or sensor, leading to premature failure.

Step 2: Routing Through the Firewall

Once the T-fitting is installed, you must transition the signal (air or wire) into the cabin.

1. For mechanical gauges, connect the nylon tubing to the T-fitting. For electrical gauges, mount the electronic sender unit on the firewall using a bracket, keeping it away from extreme heat sources like the exhaust manifold or turbocharger.
2. Locate an existing rubber grommet in the firewall. Common locations are near the steering column or the main wiring loom.
3. If no grommet is available, you may need to drill a small hole.
4. Insert a protective rubber grommet into the hole to prevent the metal edges from slicing through your vacuum line or wires over time due to engine vibration.
5. Pull the line or harness through into the footwell, ensuring there is enough slack to prevent tension but not so much that it interferes with the pedal assembly.

Pro-Tip: Use a coat hanger or a specialized "wire puller" tool to fish the lines through tight firewall gaps. Lubricating the line with a tiny amount of silicone spray can also ease the passage through tight rubber grommets.

Step 3: Mounting the Gauge and Interior Integration

The gauge must be positioned for high visibility without obstructing the driver’s view of the road or the primary instrument cluster.

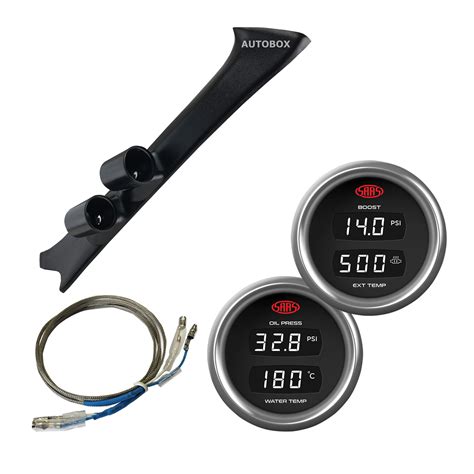

1. Install your chosen mounting solution (e.g., a dual A-pillar pod or a center-dash pod).
2. Feed the vacuum line or wiring harness up to the mounting location.
3. If using a mechanical gauge, attach the line to the rear of the gauge using the provided brass compression nut and ferrule. Tighten it firmly, but avoid over-torqueing, which can crush the nylon line and restrict airflow.
4. If using an electrical gauge, click the wiring harness into the port on the back of the gauge housing.

Step 4: Mastering the Electrical Circuitry

Most modern boost gauges require four distinct electrical connections to function correctly and match the vehicle's interior aesthetics.

1. Constant 12V (Red/Yellow): This provides memory for gauges with peak-hold or color-changing features. Connect this to a fuse that always has power, such as the hazard lights or clock.
2. Switched 12V/Ignition (Red/White): This triggers the gauge to turn on when the key is in the "ON" position. Use a multimeter to find a fuse that is only "hot" when the ignition is engaged, such as the wiper motor or radio.
3. Ground (Black): This completes the circuit. Attach this to a clean, unpainted metal bolt on the vehicle chassis.
4. Illumination/Dimmer (Orange/Green): This allows the gauge to dim when you turn on your headlights. Tap into the factory headlight switch or the illumination circuit of the head unit.

Warning: Always use "Add-a-circuit" fuse taps rather than stripping factory wires. This preserves the integrity of the vehicle's wiring harness and provides a dedicated fuse for the gauge, preventing a gauge short from disabling critical vehicle systems.

Step 5: Final Calibration and Leak Verification

Before finalizing the dashboard assembly, perform a system check to ensure accuracy and safety.

1. Reconnect the negative battery terminal.
2. Turn the ignition to the "ON" position. The gauge should perform a startup ceremony (if digital) or rest exactly at "0" (if mechanical).
3. Start the engine. At idle, the gauge should read between -18 and -22 inHg (inches of Mercury), depending on your engine's health and camshaft profile.
4. Check all engine bay connections with a mixture of soapy water. If bubbles form at the T-fitting or sensor, a leak is present and must be sealed.
5. Test drive the vehicle and observe the boost levels under load. Verify that the peak boost matches the manufacturer's specifications for your specific tune or engine configuration.

Comparative Analysis of Boost Gauge Technologies and Sizing Standards

Choosing between mechanical and electrical gauges involves weighing the trade-offs between response speed, installation difficulty, and aesthetics. The following table highlights the technical differences to assist in your selection process.

Common Installation Pitfalls and Diagnostic Resolutions

Even seasoned tuners encounter issues during a boost gauge install. These scenarios represent the most common field failures and their professional remedies.

• Scenario: The needle flutters rapidly or makes a buzzing sound under load.




  • Root Cause: Rapid pressure pulses from the intake manifold are vibrating the internal mechanism of a mechanical gauge.
  • Actionable Fix: Install a "restrictor pill" or a small inline plastic orifice in the vacuum line near the gauge. This dampens the pulses without slowing the actual pressure reading.

• Scenario: The gauge displays 0 PSI or stays at the bottom of the vacuum scale during boost.




  • Root Cause: A disconnected vacuum line or a "kinked" nylon tube that has folded over itself, blocking all airflow.
  • Actionable Fix: Inspect the length of the line from the T-fitting to the gauge. Replace any sections of nylon tubing that show white stress marks or sharp bends with high-pressure silicone hose.

• Scenario: The gauge light flickers or the gauge resets whenever the turn signals are used.




  • Root Cause: A weak or "dirty" ground connection, or tapping into a shared circuit with a high inductive load.
  • Actionable Fix: Relocate the ground wire to a dedicated chassis ground point. Ensure the metal surface is sanded down to bare steel to ensure maximum conductivity.

• Scenario: The gauge reads significantly lower boost than what the car is programmed for.




  • Root Cause: A "boost leak" at the T-fitting or a faulty electronic MAP sensor.
  • Actionable Fix: Use a hand-held vacuum pump/pressure tester to apply a known amount of pressure directly to the gauge. If the gauge matches the pump, the leak is located in the engine bay connections or the manifold itself.

Frequently Asked Questions

Where is the best place to tap for a boost reading?

The most accurate reading comes from the intake manifold plenum, specifically a port located after the throttle body. This ensures you are measuring the actual pressure entering the cylinders, including the vacuum generated during deceleration.

Can I install a boost gauge on a diesel engine?

Yes, but the behavior is different. Diesel engines do not have a throttle plate in the same way gasoline engines do, so they do not generate significant vacuum at idle. Your gauge will typically sit at 0 until the turbocharger begins to spool.

What is the difference between "inHg" and "PSI"?

Boost gauges use "inHg" (inches of Mercury) to measure vacuum and "PSI" (pounds per square inch) to measure positive pressure. Most automotive gauges are "compound" gauges that display both on a single dial to provide a full picture of engine load.

Should I use a fuse for the power wire?

Absolutely. Every electrical accessory added to a vehicle should be fused. If the gauge's internal circuitry shorts out, a 2A or 5A fuse will blow, preventing the wire from melting or causing an electrical fire under the dashboard.

Why does my mechanical gauge have a tiny bit of oil in the line?

In older or high-mileage turbocharged cars, "blow-by" gases can carry a fine mist of oil into the intake manifold. Over time, this can enter the vacuum line. Installing a small inline air-filter can protect the gauge internals from contamination.

Optimize Your Vehicle Performance

Properly monitoring your manifold pressure is the first step toward safe and reliable power gains. Once your gauge is calibrated, you can confidently proceed with ECU remapping or manual boost controller adjustments to maximize your engine's potential.
