How To Install A Chimney Liner: The Definitive Technical Guide For Professional Results

To successfully install a chimney liner, you must size a stainless steel conduit to match the appliance's BTU output, insulate the pipe to meet UL 1777 safety standards, and securely anchor the system from the crown to the appliance breech. This process ensures the structural integrity of the masonry while facilitating a controlled draft that prevents the accumulation of combustible creosote and hazardous carbon monoxide.

Essential Pre-Installation Inspection and Material Requirements

Before beginning the installation, you must determine the condition of the existing flue and the specific requirements of the heating appliance. A chimney liner is not a "one size fits all" component; it is a precision-engineered vent system. Most modern installations require a 316-grade stainless steel flexible liner for wood-burning applications or a 304-grade for category I gas appliances. However, 316Ti (titanium-stabilized) is the industry gold standard for its superior resistance to intergranular corrosion and high-temperature cycling.

The scope of this project typically requires 4 to 8 hours depending on the height of the structure and the number of offsets (bends) in the chimney. Failure to properly insulate a liner can result in "cold hearth syndrome," where gases cool too quickly, leading to massive creosote buildup and potential chimney fires.

Comprehensive Equipment and Material Checklist

• Core Components: UL 1777 listed stainless steel flexible liner, T-junction with removable snout, top plate, storm collar, and a high-wind chimney cap.
• Insulation Materials: 1/4-inch or 1/2-inch ceramic fiber insulation blanket, foil tape, spray adhesive, and stainless steel wire mesh or "armor" sleeve.
• Mechanical Tools: Heavy-duty tin snips, power drill with hex drivers, pop rivet gun (with stainless steel rivets), angle grinder, and a reciprocating saw.
• Safety Gear: OSHA-compliant fall protection (harness and roof anchors), N95 or P100 respirator, heavy-duty leather gloves, and eye protection.
• Foundational Knowledge: Familiarity with NFPA 211 (Standard for Chimneys, Fireplaces, Vents, and Solid Fuel-Burning Appliances) and local building codes regarding "zero clearance" to combustibles.

Step-by-Step Chimney Liner Installation Workflow

Step 1: Accurate Flue Sizing and Preparation

The most critical technical failure in chimney relining is improper sizing. For wood stoves, the liner diameter must match the appliance outlet (usually 6 inches). For open fireplaces, the cross-sectional area of the liner must be at least 1/10th or 1/12th of the fireplace opening area to ensure a proper draw.

1. Measure the total height of the chimney from the crown to the point where the liner connects to the appliance. Add 1 foot to this measurement to account for trimming and the top plate connection.
2. Perform a thorough cleaning. Use a power sweeping system to remove all Stage 3 (glazed) creosote. If creosote remains behind the new liner, it can ignite and cause a "concealed" fire that is nearly impossible to extinguish.
3. Inspect the flue for obstructions, such as protruding bricks or mortar joints. Use a "dummy" weighted object or a piece of the chosen liner to test the path before committing to the full install.

Warning: Never downsize a liner more than the maximum allowable percentage specified by the appliance manufacturer. Restricted venting leads to back-puffing and lethal carbon monoxide leakage.

Step 2: Insulating the Stainless Steel Liner

To achieve a "zero-clearance" safety rating and maintain high flue gas temperatures, the liner must be wrapped in ceramic fiber insulation. This prevents the exterior of the masonry chimney from exceeding 160°F above ambient temperature.

1. Lay the liner on a clean, flat surface. Apply a high-tack spray adhesive to the exterior of the pipe.
2. Unroll the ceramic blanket and wrap it tightly around the liner. Overlap the vertical seam by at least 1 inch.
3. Secure the seam with UL-rated foil tape every 12 inches.
4. Slide a stainless steel wire mesh (or "socks") over the entire insulated assembly. Use hose clamps at the top and bottom to tighten the mesh. This mesh protects the insulation from tearing as it is pulled through the abrasive masonry flue.

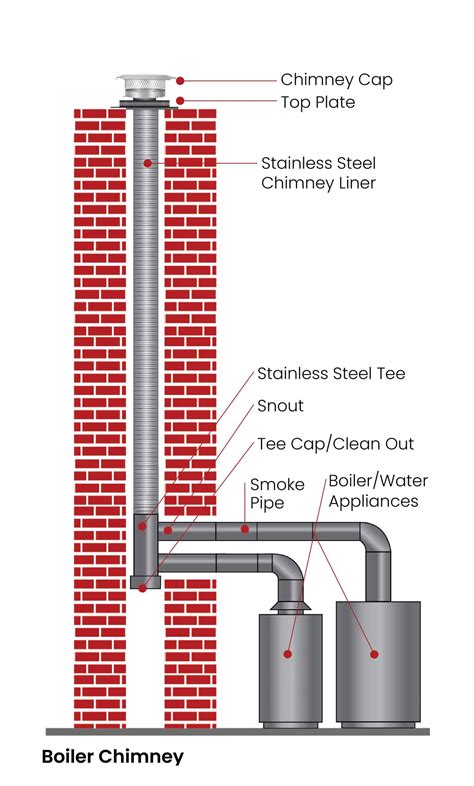

Step 3: Assembling the Bottom Termination (T-Junction)

If you are venting a wood stove or furnace through a side breech, you must use a T-junction. If you are venting into a fireplace, you will typically use a fireplace pull-cone and a direct-connect adapter.

1. Attach the T-junction body to the bottom of the liner. Use at least three stainless steel pop rivets or self-tapping screws to ensure the connection cannot vibrate loose.
2. Seal the connection point with high-temperature furnace cement or 600°F RTV silicone.
3. Ensure the "snout" (the horizontal part of the T) is long enough to pass through the thimble and into the room for appliance connection.

Pro-Tip: If the chimney has a tight 90-degree turn at the bottom, consider a "short-body" T-junction or a "stretch" liner section to facilitate the bend without kinking the steel.

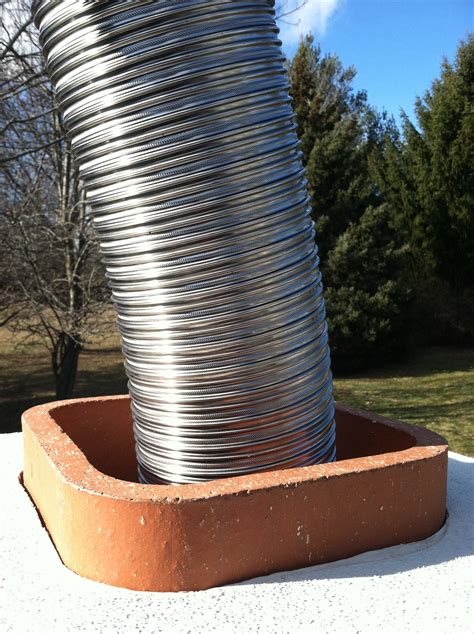

Step 4: Positioning and Pulling the Liner

This step requires two people: one on the roof to guide the liner and one at the bottom (firebox or breech) to pull and align.

1. Attach a pulling cone to the bottom of the T-junction or the liner end. Secure a heavy-duty rope to the cone.
2. The person on the roof slowly feeds the liner into the flue. The person at the bottom pulls the rope in synchronization.
3. Maintain constant communication via radio. If resistance is met, do not force the liner. Rotate it slightly to bypass brick edges or mortar snags.
4. Once the T-junction reaches the breech, the bottom installer must guide the snout through the wall thimble.

Step 5: Securing the Top Plate and Crown

The top of the installation must be airtight to prevent moisture from entering the chimney cavity and to stop "cold air sinks" from chilling the liner.

1. Apply a thick bead of high-temperature silicone or masonry caulk around the top of the chimney clay tile or the masonry crown.
2. Slide the stainless steel top plate over the liner. Press it firmly into the sealant.
3. Tighten the integrated clamp on the top plate to secure the liner’s weight.
4. Trim the excess liner protruding above the top plate, usually leaving 2–4 inches for the chimney cap.

Step 6: Final Termination and Appliance Connection

1. Install the storm collar over the liner, sitting just above the top plate clamp. Seal the top edge of the collar with silicone.
2. Attach the chimney cap. A high-wind or "vacuum" cap is recommended if the house is in a coastal or mountainous area.
3. At the bottom, connect the appliance smoke pipe to the T-snout. Secure all joints with three screws per joint and seal with furnace cement.
4. Perform a "smoke test" by lighting a small amount of newspaper in the appliance to verify that the draft is established and there are no leaks at the connection points.

Metallurgical Properties and Sizing Specifications for Flue Liners

Selecting the correct alloy and thickness is the difference between a liner that lasts 50 years and one that fails in five. Use the following table to match your fuel type and environmental conditions to the correct material specs.

Navigating Mechanical Obstructions and Installation Failures

Even with perfect planning, field conditions often present challenges. Addressing these issues immediately ensures the system remains code-compliant and safe.

• Obstruction: Liner Snags on Displaced Brick


  • Root Cause: Older chimneys often have "shoveling" bricks that have migrated inward due to freeze-thaw cycles.
  • Actionable Fix: Use a "rebar lead." Attach a 4-foot piece of rebar to the pulling rope. The weight and rigidity of the rebar help center the liner and guide it past the ledge. If it still fails, you may need to use an ovalized liner or carefully remove the obstructing brick from the exterior.
• Failure: Insulation Tears During Descent


  • Root Cause: Rough flue tiles or tight offsets catching on the ceramic blanket.
  • Actionable Fix: Always use a stainless steel armor mesh over the insulation. If a tear occurs, you must pull the liner back out and repair the void with foil tape and a patch of blanket. A gap in insulation creates a "hot spot" on the masonry.
• Issue: Inadequate Draft Post-Installation


  • Root Cause: Oversizing the liner or failing to insulate, causing the gases to lose buoyancy.
  • Actionable Fix: Ensure the liner is insulated to the top. If the draft is still weak, install a draft-inducing chimney cap or check for "competing vents" (like a powerful range hood) that might be depressurizing the house.

Frequently Asked Questions

Do I really need to insulate my chimney liner?

Yes, insulation is mandatory for most solid-fuel applications to meet UL 1777 standards. It maintains high internal flue temperatures which prevent creosote condensation and ensures a strong, consistent draft while protecting the surrounding home from heat transfer.

What is the difference between 316L and 316Ti stainless steel?

While both are highly resistant to corrosion, 316Ti contains titanium, which prevents "sensitization" (the loss of chromium at the grain boundaries) during high-heat events. This makes 316Ti significantly more durable for wood-burning stoves that may experience occasional over-firing.

Can I install a 6-inch liner in a 6-inch square clay flue?

Technically, a 6-inch round liner will not fit in a 6-inch square flue because the diagonal measurement of the liner and its insulation will exceed the interior dimensions of the square tile. You must either use a smaller liner (if the appliance allows), remove the clay tiles, or use an ovalized liner.

How do I maintain a stainless steel liner once it is installed?

Maintenance involves an annual inspection and cleaning with a poly-bristle brush. Never use a steel-wire brush on a stainless steel liner, as it can scratch the surface and introduce carbon steel particles that lead to premature rusting and "pitting" of the alloy.

Ensure Your Chimney Meets Modern Safety Standards

Properly relining your chimney is a vital investment in your property’s safety and heating efficiency. If you encounter structural masonry damage or complex offsets during your installation, consult a certified chimney sweep to ensure your vent system is fully compliant with NFPA 211 standards.
