Master Drapery Grommet Installation: Precise Spacing, Cutting, And Hardware Setup Guide

Installing drapery grommets requires structural header reinforcement, accurate center-to-center spacing calculations, and exact hole cutting to achieve fluid, professional S-curve folds. By enforcing the mandatory even-number grommet rule and maintaining a minimum 0.5-inch clearance over your curtain rod diameter, you eliminate fabric sagging, binding, and improper side-margin returns. This guide details every technical step, material specification, and field troubleshooting technique required to execute flawless custom window treatments.

Pre-Procedure Planning & Technical Tooling Inventory

Achieving professional drapery pleating demands structural preparation before cutting into your fabric. Grommets impose localized physical stress on curtain headers; without proper internal stiffening, fabric distorts, ripples, and sags around the hardware. Selecting hardware that matches both your drape weight and curtain rod diameter ensures operational durability and smooth sliding.

(No code blocks used in adherence to formatting rules)

Essential Hardware & Tooling Checklist

• Grommet Hardware: Two-piece snap-together plastic grommets or heavy-duty metal grommets (prongs or washer-style) with a minimum internal diameter 0.5 inches larger than the drapery rod.
• Header Reinforcement: Non-woven buckram or heavy fusible drapery stiffener (3.5-inch or 4-inch width).
• Cutting Tools: Heavy-duty fabric shears, a rotary cutter with a self-healing mat, and sharp curved embroidery scissors for precision trimming.
• Marking & Measurement: Clear acrylic grid ruler, flexible tape measure, fabric chalk wheel or disappearing ink textile marker, and the plastic template included with your grommets.
• Setting Gear (For Metal Hardware): Metal grommet hole cutter die, anvil, and setter punch matched to grommet size, along with a rubber mallet (or a mechanical desktop grommet press).
• Fabric Preparation Equipment: Variable-temperature steam iron, pressing cloth, and temporary fabric basting tape or pins.

Mandatory Technical Standards

• The Even-Number Rule: Every curtain panel must contain an even number of grommets (6, 8, 10, 12, etc.). An even count guarantees that both vertical side edges of the drape fold backward toward the wall, creating a clean side return and preventing the raw fabric edges from turning out toward the room.
• Rod Clearance Ratio: The inside diameter (ID) of the grommet must exceed the outside diameter (OD) of the curtain rod by at least 0.5 inches (12.7 mm). For standard 1-inch to 1.25-inch decorative rods, utilize 1-9/16-inch (40 mm) ID grommets.
• Header Support Metric: Never install grommets directly through unreinforced fabric. Heavy-duty buckram must span the full width of the top hem to transfer the weight of the fabric uniformly across the rod.

Project Duration & Budget Benchmarks

• Skill Level: Intermediate Sewing / Technical DIY
• Time Commitment: 45 to 75 minutes per drapery panel (excluding initial fabric hem stitching).
• Material Cost Range: $12 to $45 per panel depending on hardware composition (ABS plastic vs. solid brass/stainless steel).

Step-by-Step Drapery Grommet Installation Workflow

Step 1: Calculate Exact Grommet Quantity and Spacing Math

Accurate spacing prevents uneven pleat depth and structural bunching. Grommet centerpoints should sit between 6 inches and 8 inches apart.

1. Measure the Finished Panel Width: Lay your hemmed drapery panel completely flat on a wide cutting table. Measure the exact width ($W$) from the left outer finished edge to the right outer finished edge in inches.
2. Determine End-Grommet Margins: The center of the first and last grommets should be positioned between 2.0 and 3.0 inches from the vertical outer edges. A standard 2.5-inch margin ($M$) prevents the grommet flange from overlapping the side hem.
3. Calculate Center-to-Center Span: Subtract the two side margins from the total panel width to establish the remaining distance ($D$) between the first and last grommet centers: $$\text{Span } (D) = W - (2 \times M)$$
4. Select Even Grommet Count: Divide the distance $D$ by 7 (the optimal average spacing in inches). Round the resulting number to the nearest even integer ($N$).
5. Determine Final Spacing Metric: Divide the distance $D$ by the number of gaps ($N - 1$) to find the precise center-to-center distance ($S$): $$\text{Spacing } (S) = \frac{D}{N - 1}$$

Pro-Tip: For a standard 50-inch finished width panel with 2.5-inch margins: $50 - 5 = 45$ inches span. Dividing 45 by 7 gives 6.42. Round to 8 grommets ($N = 8$, giving 7 gaps). $45 \div 7 = 6.43$ inches center-to-center spacing.

Worked Example: Finished Panel Width (W): 50 inches Side Margin (M): 2.5 inches Span (D): 50 - (2 x 2.5) = 45 inches Selected Grommet Count (N): 8 (even number) Number of Spaces (N - 1): 7 Center-to-Center Spacing (S): 45 / 7 = 6.43 inches

Step 2: Construct the Reinforced Header Hem

The top header must hold the mechanical weight of the grommets without collapsing under friction when slid across the curtain rod.

1. Cut a length of 4-inch wide non-woven fusible buckram equal to the finished panel width.
2. Fold the top edge of the fabric down by 0.5 inches toward the wrong side (backside) of the fabric and press with a steam iron.
3. Insert the buckram strip directly beneath the 0.5-inch fold, positioning it flat against the wrong side of the fabric.
4. Double-fold the header fabric down by 4 inches, completely enclosing the buckram strip inside a double-layer 4-inch hem.
5. Fuse the buckram into place using a hot steam iron and pressing cloth, applying firm downward pressure for 10 to 15 seconds per section.
6. Machine stitch the bottom edge of the 4-inch header hem 1/8 inch from the lower fold line using a color-matched high-tenacity polyester thread.

Warning: Skipping the buckram stiffener or using a single-layer hem will cause light-to-medium weight fabrics to tear out around the grommet flanges within months of active use.

Step 3: Layout and Mark Precise Hole Centerpoints

1. Lay the reinforced drapery panel face up on a clean, flat cutting surface.
2. Measure down from the top finished edge of the header to locate the horizontal baseline for your grommet centers. For a 4-inch header using 1-9/16-inch grommets, set the horizontal center line 2 inches down from the top edge.
3. Draw a subtle horizontal reference line along the entire panel width using tailor’s chalk and an acrylic ruler.
4. Mark the center of the first grommet along this line at your calculated margin distance (e.g., 2.5 inches from the left edge).
5. Working left to right, use your calculated center-to-center spacing distance (e.g., 6.43 inches) to mark each subsequent grommet centerpoint along the horizontal line.
6. Center the plastic grommet template inner circle over your crosshair marks. Trace the internal cutting circle onto the fabric using your chalk wheel.

Step 4: Execute Clean Fabric Hole Cuts

Precision cutting prevents loose threads from slipping past the grommet flange.

1. Insert a cutting mat directly beneath the marked header section to protect your work surface.
2. Pinch the center of the traced circle and make a small initial slit using sharp embroidery scissors or a seam ripper.
3. Insert the tip of your shears into the slit and cut cleanly along the inside edge of your drawn line.
4. Maintain smooth, continuous shear strokes. Avoid jagged cuts, as fraying fibers can weaken the mechanical grip of snap grommets.
5. Apply a thin line of liquid seam sealant (Fray Check) along the raw cut edge of the fabric hole. Allow 3 to 5 minutes to dry fully.

Pro-Tip: If using a heavy-duty rotary punch tool or metal hole cutter die, strike the tool firmly with a heavy wooden or rubber mallet in a single stroke over a end-grain wood block or plastic cutting pad. Multiple light taps produce fuzzy, misaligned edges.

Step 5: Install and Lock the Grommet Hardware

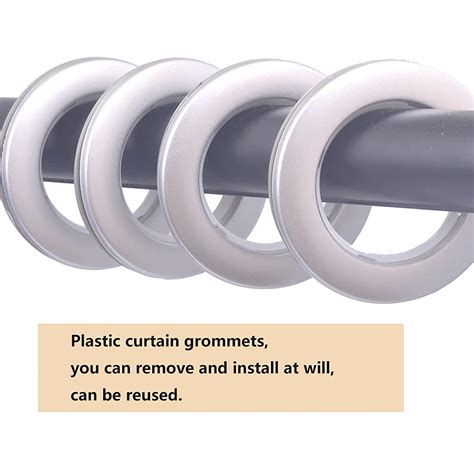

Method A: Snap-Together Plastic Grommets (DIY Standard)

1. Place the raised front half (male grommet piece with the raised center rim) underneath the cut hole, pushing the rim up through the front of the fabric.
2. Verify that the fabric edge fits neatly around the outer collar without puckering or stretching.
3. Place the flat back half (female grommet piece) directly over the raised rim on the right side of the fabric.
4. Apply firm downward pressure with the palms of your hands until you hear a sharp, distinct snap around the full circumference.

Method B: Two-Piece Metal Grommets (Setting Tool / Press)

1. Insert the tall barrel flange (eyelet) up through the hole from the front side of the curtain.
2. Position the flat metal washer (smooth side facing up or teeth facing down toward fabric) over the protruding barrel on the reverse side.
3. Set the metal base anvil underneath the bottom eyelet face.
4. Insert the tapered setting punch into the top center of the barrel.
5. Strike the punch vertically with a rubber mallet to flare and curl the metal barrel over the washer, clamping the fabric tight.

Technical Specifications & Compatibility Matrix

Selecting hardware demands matching fabric weight, header stiffener structure, and curtain rod dimensions. The following matrix details engineering parameters for common decorative installations.

Architectural Drapery Defects & Professional Fixes

Scenario 1: Fabric Puckers and Ripples around Installed Grommets

• Root Cause: The cut fabric hole was scaled too small, forcing the grommet collar to push excess material outward during assembly; or buckram stiffener was omitted.
• Actionable Fix: Remove the snap grommet using a flathead screwdriver wrapped in tape to gently pry open the locking notch. Trim 1/16 inch of fabric around the hole perimeter using curved scissors. If buckram is missing, open the top header seam, slide fusible buckram behind the hole, refuse, re-cut the hole, and snap the hardware closed.

Scenario 2: Outer Drapery Edges Flare Outward Toward the Room

• Root Cause: An odd number of grommets was installed, or the initial side margins were calculated incorrectly, forcing the outer vertical hem to turn forward rather than backward toward the wall.
• Actionable Fix: If fabric allowance remains, unpick the side hems, widen or narrow the panel width slightly, and recalculate to ensure an even grommet count. Alternatively, attach a clear drapery return hook to the back of the outermost grommet and anchor it to a wall-mounted eyelet to hold the fold back toward the casing.

Scenario 3: Heavy Drag or Binding When Sliding Draperies Across Rod Joints

• Root Cause: Inadequate clearance between the rod outer diameter and the grommet inner diameter, or hardware catches on telescoping rod transition points.
• Actionable Fix: Verify that the grommet ID is at least 0.5 inches larger than the maximum outer rod diameter. Apply clear silicone spray or microcrystalline wax to the top surface of the rod. Install a plastic telescoping rod slide tape over internal rod transitions to create a smooth ramp over the metal lip.

Scenario 4: Plastic Snap Grommets Pop Open During Active Use

• Root Cause: Fabric thickness exceeds the maximum stack height of the internal locking snap ridge.
• Actionable Fix: Pry the grommet open. Using a rotary tool or heavy shears, carefully trim away internal layers of the folded drapery hem only inside the grommet ring footprint to reduce fabric thickness. Re-snap the grommet over the reduced layer stack. If the fabric remains too thick, convert to two-piece deep-barrel metal grommets.

Frequently Asked Questions

How many grommets do I need for a standard 50-inch drapery panel?

A standard 50-inch wide finished drapery panel typically requires 8 grommets. Using 8 grommets creates 7 equal spaces of approximately 6.4 inches between centers, which generates rich, balanced S-curve folds while adhering to the mandatory even-number rule.

What is the standard distance between curtain grommets?

The industry standard distance between the centerpoints of curtain grommets is 6 to 8 inches (15 to 20 cm). Spacing closer than 5 inches creates tight, crowded pleats, while spacing greater than 8 inches causes flat, shallow folds that sag between mounting points.

Why must curtain panels always have an even number of grommets?

An even number of grommets ensures that both outer edges of the curtain panel turn backward toward the wall and window frame. This creates a clean side return, hides the outer hem edges from room view, and prevents light leaks along the side boundaries of the window casing.

Can you install drapery grommets without sewing machine stitches?

Yes, you can construct a no-sew grommet header by using double-sided heavy-duty fusible iron-on adhesive tape (such as Stitch Witchery) to form the top 4-inch double-fold hem with fusible buckram inside. Once the hem is iron-bonded, cut the holes and snap the grommets into place following standard measuring procedures.

How much larger should a grommet be than the curtain rod?

The internal diameter of a drapery grommet should be at least 0.5 inches (12.7 mm) larger than the outside diameter of the curtain rod. For example, use a grommet with a 1.56-inch (1-9/16 inch) internal diameter for curtain rods measuring 1 inch to 1.25 inches in diameter to ensure effortless gliding.

Elevate Your Custom Drapery Projects

Precision measurement and proper structural reinforcement are the foundations of professional window treatments. By mastering these grommet layout calculations and hardware setting techniques, you can achieve tailor-made draperies that slide effortlessly and hold perfect architectural folds.

For challenging installations involving heavy thermal lining, oversized architectural windows, or custom motorized rods, consult with an accredited interior textile fabrication specialist to source industrial-grade hardware and custom header materials.
