How To Install Valve Seals: The Complete Master Guide For Cylinder Head Rebuilding

Replacing worn valve stem seals requires precise mechanical execution to stop oil consumption and blue exhaust smoke. By maintaining strict component organization, using the correct spring compression tools, and setting proper stem-to-seal clearances, you can restore optimal engine compression and emissions control.

Pre-Operation & Equipment Checklist

Executing a professional valve seal replacement demands meticulous preparation, organization, and adherence to factory service manual specifications. Whether you are servicing the cylinder head with the engine in the chassis using compressed air or on a workbench with a dedicated spring compressor, having the right tooling ensures precision and safety.

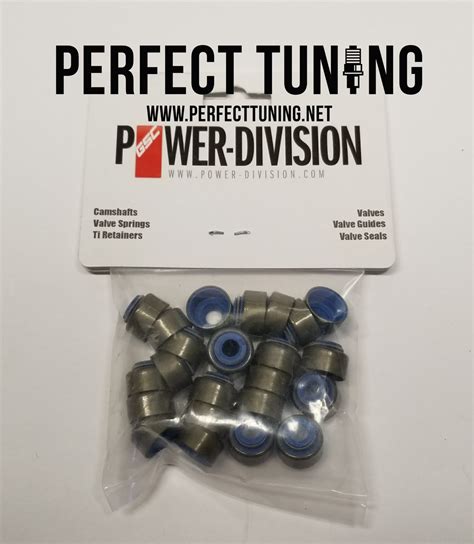

• Essential Gear, Tools, and Materials: Overhead valve spring compressor tool, compressed air adapter (if doing an in-chassis swap) or benchtop spring compressor, magnetic pickup tool, needle-nose pliers or specialized seal removal pliers, deep sockets or a dedicated valve seal driver set, assembly lube or clean engine oil, high-grade degreaser, and new OE-spec valve stem seals (positive-locating, umbrella, or O-ring style depending on application).
• Mandatory Prerequisite Knowledge and Standards: Familiarity with top dead center (TDC) timing, valve spring installed heights, keeper retention mechanics, and the difference between intake and exhaust seal compositions (such as Viton versus polyacrylate).
• Estimated Budget and Duration Benchmarks: Budget between fifty to one hundred and fifty dollars for specialized tools and replacement seals. Allocate four to eight hours of uninterrupted labor for a standard 8-valve to 16-valve cylinder head, or up to twelve hours for complex overhead cam multi-valve configurations.

Step-by-Step Valve Seal Replacement Workflow

Step 1: Cylinder Head Disassembly and Component Organization

Begin by securing the cylinder head in a clean, well-lit workstation or ensuring the vehicle is safely chocked and disabled if working in-chassis. Remove the valve cover, timing components, and rocker arms or camshafts as specified by your engine manual. As you remove each valve spring retainer, keepers (collets), springs, and valves, place them in a numbered organizer tray.

Warning: Never mix up internal valve train components. Valves, springs, and keepers develop a specific wear pattern and must return to their exact original locations during reassembly.

Step 2: Extraction of Old Valve Stem Seals

With the valve springs removed, expose the top of the valve guide where the old seal sits. Using specialized valve seal pliers, grip the base of the old rubber or Viton seal firmly and pull straight up with a slight twisting motion to pop it free from the valve guide boss. Avoid prying against the aluminum or cast-iron guide boss with screwdrivers, as gouging or cracking the guide will cause oil leaks and require machine shop repair. Discard all old seals immediately.

Step 3: Inspection of Valve Guides and Stems

Thoroughly clean the exposed valve stems and guide bosses with solvent and lint-free rags. Inspect the valve stems for scoring, pitting, or excessive wear using a micrometer, comparing measurements against factory service limits. Check the side-to-side wobble of the valve inside the guide; excessive clearance will destroy even brand-new valve seals prematurely. Clean the valve tip and ensure the keeper grooves are free of burrs or carbon buildup.

Step 4: Installation of New Valve Seals

Dip the new valve seals and the valve stems in clean engine oil or assembly lube. If your kit includes protective plastic sleeves that slip over the valve stem keeper grooves, install them temporarily to protect the inner lip of the new seal from being sliced by sharp edges. Slide the new seal down the valve stem until it rests squarely on top of the valve guide. Using an appropriately sized deep socket or a dedicated valve seal driver, tap the top of the seal gently with a small mallet until you feel and hear it seat fully onto the guide boss. Remove the protective plastic sleeve.

Pro-Tip: Always verify whether your intake and exhaust seals are identical. Many engines use different color-coded seals or distinct materials for intake and exhaust valves due to varying thermal and vacuum loads.

Step 5: Spring Reassembly and Keeper Seating

Reinstall the valve, lower spring seat (if applicable), valve spring, and retainer in their correct original locations. Position the overhead valve spring compressor, aligning the jaws or adapter over the retainer and the bottom of the cylinder head or spring base. Compress the spring carefully until the top of the valve stem is fully exposed above the retainer. Place a small dab of heavy grease on the inside of the keepers to hold them temporarily in position against the valve stem groove. Slowly decompress the spring while guiding the retainer up so that it captures the tapered keepers securely.

Warning: Wear safety glasses during spring compression. High-tension valve springs store immense energy and can eject keepers violently if the compressor slips.

Step 6: Post-Installation Valve Seating Verification

Once all springs and keepers are reinstalled, take a brass drift punch and tap the top of each valve stem lightly with a hammer. This physical shock helps settle the keepers and retainers into their locked positions. If a keeper is improperly seated, it will dislodge during this tap test, preventing catastrophic failure upon initial engine startup. Recheck all installed heights and ensure no foreign debris remains inside the cylinder head.

Technical Comparison of Valve Seal Types

Troubleshooting Common Installation Errors

• Symptom: Persistent blue smoke from the exhaust immediately upon cold startup.


  • Root Cause: A valve seal was torn during installation over the sharp keeper grooves, or the seal was not driven completely down onto the guide boss.
  • Actionable Fix: Remove the affected spring using an on-car tool, inspect the seal, and replace it using a protective sleeve to prevent lip damage.
• Symptom: Audible tapping or loss of compression on a specific cylinder after reassembly.


  • Root Cause: A valve keeper fell out of position during spring decompression, causing the valve to drop slightly or remain unseated.
  • Actionable Fix: Recompress the spring, verify keeper engagement in the valve stem groove, and ensure the valve moves freely without binding.
• Symptom: Rapid wear of the inner seal lip resulting in oil consumption returning within a few thousand miles.


  • Root Cause: Excessive valve guide wear causing side-load vibration that tears the new seal lip against the reciprocating stem.
  • Actionable Fix: Measure guide-to-stem clearance; if clearance exceeds factory limits, replace or knurl the valve guides before installing another set of seals.

Frequently Asked Questions

Can I replace valve seals without removing the cylinder head?

Yes, you can replace valve seals with the cylinder head on the engine by feeding compressed air into the spark plug hole to hold the valves closed while you compress the springs. Alternatively, you can feed a length of clean nylon rope into the cylinder through the spark plug hole and rotate the crankshaft to compress the rope against the valves.

Do I need to replace the valve springs when I change the seals?

While it is not strictly mandatory if the springs meet factory tension and free-length specifications, replacing high-mileage valve springs is strongly recommended. Weak or fatigued springs cause valve float at high RPM, which rapidly damages valve seats and accelerates guide wear.

Why do my new valve seals keep popping off the valve guide?

Seals typically dislodge if the valve guide machining is out of spec, or if the wrong inner diameter seal was installed. Ensure the guide outer diameter matches the positive-locating seal's inner steel shell interference fit precisely before installation.

How do I know if my engine has positive-locating seals or umbrella seals?

Positive-locating seals lock securely onto the outside diameter of the valve guide boss and feature an integrated tension spring around the rubber lip. Umbrella seals simply ride up and down on the valve stem like a small shield above the guide without attaching to the guide itself.

Should I lubricate the inside of the valve seal before installation?

Yes, applying a light film of clean engine oil or assembly lube to the inner rubber lip prevents dry friction and tearing when sliding the seal over the valve stem during the installation process.
