How To Insulate A Cup: Expert Methods For Maximum Thermal Retention

Insulating a cup effectively involves creating a thermal barrier that minimizes conductive, convective, and radiative heat transfer through the vessel walls. By selecting materials with low thermal conductivity, such as closed-cell foam, wool, or vacuum-sealed layers, you can maintain beverage temperatures for significantly longer periods while preventing exterior condensation.

Pre-Operation Preparation and Material Selection

Effective insulation relies on the principles of thermodynamics. Heat moves from a high-temperature area to a low-temperature area until equilibrium is reached. To keep a hot drink hot or a cold drink cold, you must disrupt this transfer. Before starting, assess your cup material; stainless steel conducts heat faster than ceramic or glass, necessitating a more robust insulating sleeve or external layer.

• Essential Materials: Reflective Mylar film (space blanket material), high-density closed-cell polyethylene foam, felt or wool fabric (for natural thermal regulation), high-temperature silicone adhesive, and heavy-duty contact cement.
• Required Tools: Precision utility knife, metal ruler, measuring tape, masking tape for positioning, and a heat gun or hair dryer for curing adhesives.
• Prerequisite Knowledge: Understand that air gaps (dead air) are superior insulators to solid materials. A vacuum is the ultimate insulator, but atmospheric pressure makes true vacuum construction difficult for DIY enthusiasts.
• Benchmarks: A successful insulation project should extend thermal retention by at least 60 to 90 minutes compared to an uninsulated vessel, depending on environmental ambient temperature.

Step-by-Step Thermal Barrier Implementation

Step 1: Vessel Surface Preparation and Measurement

Before applying any insulation, ensure the cup surface is clean and free of oils. Wipe the exterior with isopropyl alcohol to facilitate maximum adhesive bonding. Measure the circumference of the cup at the widest point and the height from the base to the bottom of the rim. Record these dimensions precisely, as inaccurate cuts will leave gaps in the thermal seal, which act as "thermal bridges" that allow rapid heat exchange.

Step 2: Applying the Reflective Radiant Barrier

Radiation is a significant source of heat loss. Use a thin layer of Mylar or aluminum-based adhesive film as your primary base layer. Wrap the material around the cup, ensuring a 0.5-inch overlap to seal the seam. The reflective side must face outward for cold retention and inward for heat retention.

Pro-Tip: Ensure the reflective film does not touch the handle mountings if applicable, as metal attachments often act as conduits for heat to escape directly from the interior liquid to the outside air.

Step 3: Installing the Conduction-Resistant Middle Layer

This layer addresses conductive heat loss. Cut your closed-cell foam to match the dimensions of your cup. Wrap the foam over the reflective layer, keeping the tension tight but not so compressed that it loses its thickness; thickness is the primary factor in conductive resistance. Secure the foam with contact cement, applying it in thin, even streaks.

Warning: Do not use water-based glues for the exterior layer, as they often fail under the condensation load produced by cold beverages or the humidity fluctuations near hot steam.

Step 4: Finalizing the Aesthetic and Moisture-Proof Outer Shell

The outer layer provides the tactile grip and protects the inner insulation from moisture damage. Wool or heavy canvas is ideal for hot drinks, while a hydrophobic synthetic fabric works best for cold drinks. Wrap the outer material around the foam, ensuring the seams are offset from the seams of the foam layer. This "staggered seam" technique prevents a single line of weakness through the insulation stack.

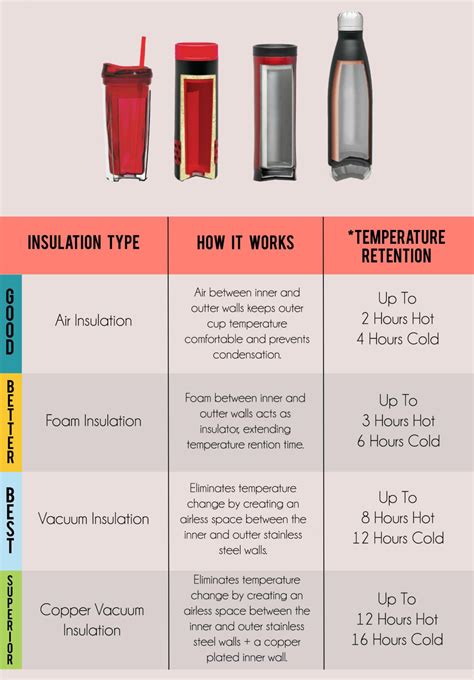

Thermal Properties of Common Insulating Materials

Common Site Failures and Field Fixes

• Failure: Excessive Condensation Leaks. If liquid beads on the outside of your insulated cup, your exterior seal is compromised or the vapor barrier is insufficient. Fix: Re-seal all seams with silicone sealant to create an airtight wrap, preventing moist air from reaching the cold surface of the cup.
• Failure: Thermal Bridging at the Rim. The rim remains hot to the touch, indicating rapid heat loss. Fix: Apply a secondary, high-density silicone or cork ring around the top edge to provide a "thermal break" where the drink meets the rim.
• Failure: Adhesive Delamination. Heat from the drink causes the adhesive to soften and slide. Fix: Switch to a high-heat contact cement rated for at least 200 degrees Fahrenheit, or use physical fasteners like elastic bands or Velcro straps to provide mechanical tension.

Frequently Asked Questions

Why does a vacuum cup work better than foam insulation?

A vacuum-insulated cup removes the molecules of air that transfer heat through conduction and convection. By eliminating the medium, heat cannot easily travel across the gap, whereas foam insulation still allows microscopic heat movement through the solid material itself.

Can I use bubble wrap to insulate my cup?

Bubble wrap is an effective temporary insulator because it traps air in small pockets. However, it is not durable, and the pockets often pop under pressure, leading to significant drops in thermal performance over time.

Does the color of the outer insulation affect temperature?

Yes, for radiant heat. A light-colored or white outer layer will reflect sunlight and absorb less heat in outdoor, sunny conditions, which is beneficial for keeping cold drinks cold. For indoor use, color has minimal impact compared to material thickness.

How do I maintain an insulated cup after DIY modification?

Avoid high-heat dishwashing, which can degrade adhesives and foam structure. Clean the exterior with a damp cloth and mild detergent, and store the cup in a dry environment to prevent the degradation of natural materials like wool or cardboard.

Achieve your desired beverage temperature precision by applying these engineering-grade insulation techniques to your daily carry. Upgrade your hydration game today by selecting high-performance thermal materials that fit your specific lifestyle needs.
