Engineered Connections: How To Join Bamboo Poles For Structures
Mastering bamboo joinery requires a precise combination of mechanical fastening and structural tensioning to compensate for the material's anisotropic nature. By utilizing a mix of bolting, fish-mouthing, and internal reinforcement, builders can create rigid, long-lasting load-bearing connections that satisfy the requirements of high-performance architectural bamboo standards.
Pre-Construction Logistics and Material Specifications

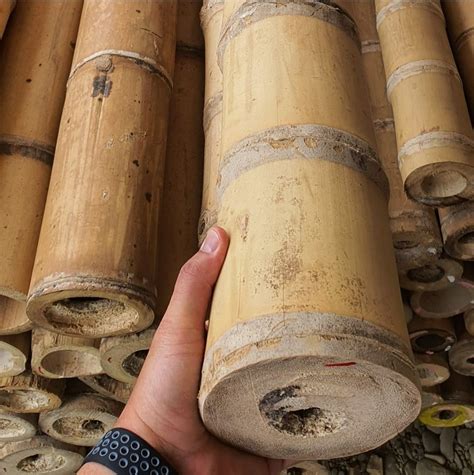

Structural bamboo joinery demands careful selection of species—specifically Guadua, Dendrocalamus, or Phyllostachys—based on their wall thickness, culm diameter, and maturity. Because bamboo is a hollow, tapered cylinder, connections must avoid crushing the fibers while maintaining enough friction to prevent rotational slip. Proper preparation involves curing poles to a moisture content below 15 percent to prevent shrinkage-related loosening after assembly.
- Essential Equipment and Tools:
- Power drill with specialized auger bits (for clean-cut holes that prevent splitting).
- High-tensile steel threaded rods (M12 or M16) or galvanized carriage bolts.
- Epoxy resin or high-strength construction adhesive for internal void filling.
- Japanese-style pull saws or precision hand saws for accurate fish-mouth cutting.
- Steel washers and heavy-duty nuts for tensioning.
- Measuring tools: Calipers, protractors, and chalk lines for alignment.
- Mandatory Prerequisite Knowledge: Understanding of the bamboo culm’s node geometry and the necessity of preventing longitudinal splitting by applying whipping (lashing) or capping.
Structural Assembly and Connection Methodologies
Step 1: Geometry and Culm Profiling
Achieving a tight fit is the primary barrier to structural integrity. Use a contour gauge or a specialized fish-mouth template to mark the radius of the secondary bamboo pole onto the primary pole. Cut the secondary pole with a concave profile so the end perfectly matches the curvature of the primary pole. This maximizes the surface contact area, which is vital for transferring axial loads effectively.
Pro-Tip: Always cut the fish-mouth profile exactly at a node if possible. Nodes provide significantly higher shear strength and prevent the pole from collapsing when under compression from a bolt or rod.
Step 2: Internal Strengthening and Void Filling
Because bamboo is hollow, a bolt tightened through a single diameter will crush the culm walls. To prevent this, you must fill the hollow section at the connection point. Inject a structural grout, sand-cement mortar, or epoxy-fiberglass mixture into the culm cavity. Allow this to cure completely before drilling through the connection point. This transforms the hollow tube into a solid cylinder at the load-bearing junction, allowing for high-torque fastening.
Step 3: Drilling and Mechanical Fastening
Once the filler is cured, align the poles in their final structural position. Drill a single, perfectly perpendicular hole through the intersection of the two poles. Insert a high-tensile threaded rod through the assembly. Place oversized steel washers on both ends before tightening the nuts. These washers must distribute the clamping force over a wide area of the culm surface to avoid localized fiber crushing.
Warning: Do not overtighten hardware during the initial installation if the bamboo is not fully cured. Bamboo loses moisture over time; if it shrinks after you have tightened the bolts, the connection will lose tension and fail. Retighten all bolts after six months of service.
Step 4: Reinforcing with Lashing and Whipping
For additional lateral stability and to prevent the bamboo from splitting along its natural grain, wrap the joint with structural cordage or wire. Start the lashing at least 10 centimeters from the joint and continue toward the center. This creates a hoop stress constraint that prevents the bamboo from cracking when it experiences bending moments. Use nylon, polypropylene, or treated natural rope, ensuring the wrap is applied with consistent tension.
Advances in Connection Techniques for Raw Bamboo Structures—A Review
Technical Parameters of Joinery Systems
| Joining Method | Best Use Case | Load Capacity | Complexity Level |
|---|---|---|---|
| Bolting (with Grout) | Primary load-bearing joints | High (Structural) | Advanced |
| Fish-mouthing | Trusses and secondary frames | Moderate | Moderate |
| Lashing/Whipping | Temporary or light structures | Low to Moderate | Low |
| Steel Capping | Column-to-foundation joints | High (Point Loads) | Very High |
Addressing Field Failures and Structural Compromises
- Root Cause: Longitudinal Splitting: Often occurs when a bolt is installed too close to the end of a pole or without proper internal bracing.
- Actionable Fix: Implement a "stopper" wrap of steel wire or high-tensile cordage around the bamboo circumference before drilling. Ensure all through-bolts are accompanied by internal mortar filling.
- Root Cause: Connection Loosening: Occurs as the bamboo dries and shrinks, resulting in a gap between the hardware and the pole.
- Actionable Fix: Utilize spring-loaded washers or perform a scheduled maintenance cycle to re-torque all connections six and twelve months after the initial build.
- Root Cause: Rot and Fungus at Joint: Water pooling inside the hollow cavity at a joint leads to premature fiber decay.
- Actionable Fix: Seal all open-ended culms with bitumen, specialized end-grain sealant, or bamboo caps to prevent moisture ingress. Ensure the design allows for gravity-based drainage away from joints.
Frequently Asked Questions
Can I join bamboo without using metal bolts?
Yes, traditional lashings using natural fibers like rattan, coir, or palm fibers are common in historical construction. However, these methods require constant maintenance to retighten and possess lower load capacities compared to modern bolted, grouted-core joints.
How do I prevent bamboo from splitting when drilling?
To prevent splitting, use a high-speed drill with a sharp, fine-toothed bit, and apply a piece of masking tape over the drilling site before you start. Always drill from the outside in, and if possible, drill through a node rather than the internode section.
What is the maximum load a single bolted bamboo joint can support?
The load capacity depends on the bamboo diameter, wall thickness, and species, but a properly grouted and bolted joint in mature Guadua can typically support several hundred kilograms of axial force. Always consult a structural engineer for calculations regarding live and dead loads in your specific structure.
Is it necessary to seal the ends of the bamboo poles?
Yes, sealing the ends is critical for structural longevity. Open ends act as chimneys for moisture and provide entry points for insects and rot, which will degrade the bamboo's internal fibers and severely weaken your connections within two to three years.
