How To Make A Screen Door: Custom Wooden Screen Door Fabrication Guide

Building a custom wooden screen door requires precise jamb measurements, rigid lap-joint frame construction, and proper screen tensioning techniques to prevent structural sagging. By maintaining a uniform 1/8-inch perimeter clearance and routing a dedicated 1/8-inch wide by 1/4-inch deep spline channel, woodworkers can achieve professional-grade stability and seasonal weather resistance. This comprehensive guide details exact milling profiles, joinery protocols, protective finishing schedules, and hardware installation for long-lasting exterior performance.

Architectural Planning and Material Selection

Fabricating a durable exterior screen door demands proper material selection, exact clearance calculations, and basic power tool setup. Unlike interior passage doors, screen doors endure constant seasonal exposure, humidity swings, and physical stress from spring-loaded hinges. Choosing stable, straight-grained lumber and high-tensile mesh ensures your assembly resists warping, racking, and mesh detachment over years of service.

Essential Equipment, Materials, and Benchmarks

• Required Tools & Machinery: Miter saw, table saw equipped with a dado stack (or router with a 1/8-inch straight carbide bit), screen spline rolling tool (dual-wheel type), minimum four 48-inch bar or pipe clamps, hand chisel, drill/driver set, block plane, and a sharp utility knife.
• Material Checklist:


  • Lumber: 5/4x4 or 1x4 nominal select lumber (Western Red Cedar, Spanish Cedar, White Oak, or Douglas Fir).
  • Screening: Heavy-duty fiberglass or vinyl-coated polyester pet mesh (minimum 18x14 mesh weave).
  • Screen Retainer: 0.140-inch diameter serrated vinyl screen spline.
  • Adhesives & Fasteners: Type III waterproof polyurethane or cross-linking PVA exterior wood glue, 1.25-inch exterior-grade stainless steel pocket/face screws.
  • Hardware & Finish: Three 3.5-inch exterior spring hinges, surface latch assembly, marine-grade spar urethane or exterior oil-based sealer.

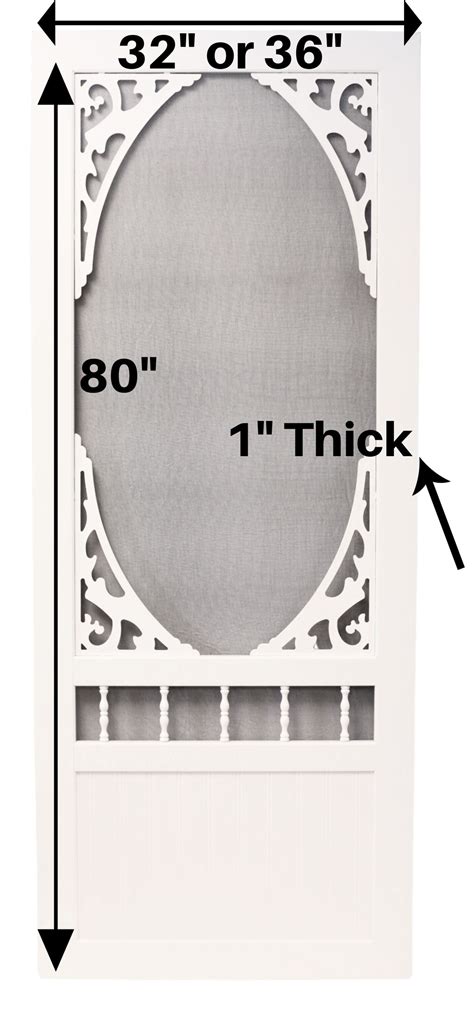

• Prerequisite Knowledge & Tolerances: Standard residential exterior door frames measure either 36 inches by 80 inches or 32 inches by 80 inches. Always measure the existing finished door jamb in three locations (top, middle, bottom) and subtract 1/4 inch total width (1/8-inch clearance per side) and 3/8 inch total height (1/8-inch top clearance, 1/4-inch bottom threshold clearance).
• Project Scope: Estimated material cost ranges from $80 to $160 depending on lumber species. Total labor duration is approximately 4 to 6 active working hours spread across 2 days to account for adhesive curing and finish drying schedules.

Step-by-Step Screen Door Fabrication Workflow

Step 1: Measuring the Rough Opening and Milling Frame Components

Begin by measuring the inside width of your exterior door frame at the top, middle, and bottom jamb positions. Record the smallest dimension. Measure the frame height on both left and right sides from the header down to the sill, recording the smallest dimension.

Deduct 1/4 inch from your total width measurement to establish a 1/8-inch perimeter gap on both vertical sides. Deduct 3/8 inch from your total height measurement to establish 1/8-inch top clearance and 1/4-inch bottom clearance above the threshold sill.

Break down your rough lumber into core frame components: two long vertical stiles, one top rail, one middle rail (lock rail), and one bottom rail. Rip your vertical stiles and top rail to a uniform width of 3.5 inches. Rip the middle rail to 3.5 inches. Rip the bottom rail to 5.5 inches; this extra width balances the door visually and provides structural weight at the base. Cross-cut all pieces to length using a sharp miter saw blade to ensure square end cuts.

Pro-Tip: Joint one edge and plane all lumber to a flat, uniform thickness (typically 3/4 inch for standard 1x lumber or 1 inch for 5/4 stock) prior to cutting final dimensions. A twisted or cupped stile will prevent the completed door from sealing flat against the exterior door stop.

Step 2: Cutting Half-Lap Joinery for Frame Integrity

Half-lap joints provide maximum gluing surface area and superior resistance to racking compared to simple pocket-screw butt joints.

1. Install a dado blade set on your table saw to a width of 13/16 inch (or work in multiple passes with a standard blade).
2. Set the blade height to precisely half the thickness of your lumber (e.g., exactly 0.375 inches for 0.75-inch thick material). Test this depth on scrap wood.
3. Cut a 3.5-inch long half-lap recess across the interior face on both ends of the top rail and middle rail.
4. Cut a 5.5-inch long half-lap recess across the interior face on both ends of the bottom rail.
5. Cut matching half-lap recesses into the top, middle, and bottom mating locations on the vertical stiles.
6. Clean out any remaining tool marks or high spots in the lap joints using a sharp 1-inch wood chisel until mating surfaces sit completely flush.

Warning: Double-check board orientation before cutting joinery. Left and right stiles must be mirror images so that all half-lap recesses face the interior side of the frame.

Step 3: Routing the Continuous Screen Spline Channel

Before assembling the frame, cut a continuous channel on the interior back face of all stiles and rails to accommodate the screen mesh and vinyl spline.

1. Mount a 1/8-inch (0.125-inch) straight carbide bit in your router table or plunge router.
2. Set the router fence so the channel is cut 1/2 inch inward from the inner architectural edge of the frame components.
3. Adjust the bit height or plunging depth to exactly 1/4 inch (0.250 inch).
4. Pass the interior edges of all stiles and rails through the router. For internal window openings (above and below the middle rail), run the channel continuously through the joint areas so that the groove connects seamlessly once assembled.

Step 4: Assembling, Gluing, and Squaring the Frame

1. Lay out all components on a clean, flat workbench. Dry-fit the half-lap joints to verify flush face contact and proper overall height and width dimensions.
2. Apply an even layer of Type III waterproof exterior wood glue to all mating surfaces of the half-lap joints.
3. Press the joints together and secure each corner with four 1.25-inch exterior-grade stainless steel or brass screws driven from the interior face. Counter-sink screw heads slightly below the surface so they can be filled or concealed.
4. Apply pipe or bar clamps across the width and length of the door.
5. Measure diagonally from top-left corner to bottom-right corner, then top-right to bottom-left. Adjust bar clamps diagonally across the longer measurement until both diagonal dimensions are identical within 1/16 of an inch, confirming the frame is square.
6. Allow glue to cure under clamp tension for at least 2 to 4 hours.

Pro-Tip: Place scrap wood pads under clamp jaws to avoid crushing soft wood fibers like Cedar or White Pine under high clamping force.

Step 5: Surface Preparation and Weatherproofing Finish

1. Remove clamps and scrape away any dried glue squeeze-out with a flush chisel.
2. Sand all flat frame faces using an orbital sander with 80-grit paper to align half-lap joints perfectly flat, followed by 120-grit, and finish with 180-grit for overall surface smoothness.
3. Lightly break (soften) all sharp outer edges using 120-grit sandpaper wrapped around a sanding block, or run a 1/16-inch roundover bit along the exterior perimeter to ensure coating adhesion.
4. Apply three light, even coats of high-grade marine spar urethane or exterior oil sealer. Sand lightly with 220-grit paper between coats. Ensure sealer reaches inside the 1/8-inch spline grooves to protect raw wood from trapped moisture. Allow final coat to cure for 24 hours.

Step 6: Screening Protocol and Mesh Tensioning

1. Lay the finished, dry frame flat on your workbench with the spline channels facing upward.
2. Roll out your fiberglass or pet-resistant screen mesh over the frame opening, leaving a 2-inch excess overhang past the channels on all sides. Secure one end temporarily with painter's tape to maintain straight alignment along the grain.
3. Using the convex (thin-edge) wheel of your screen rolling tool, gently press the screen mesh down into the 1/8-inch channel along the top rail.
4. Insert the 0.140-inch vinyl spline into the groove over the screen mesh. Roll over it using the concave (grooved-edge) wheel of your rolling tool to lock the mesh firmly into place.
5. Move to the bottom rail, pulling the mesh moderately taut toward you before rolling the spline into place. Repeat the process for both vertical side stiles.
6. Trim away excess screening around the outer edge of the spline groove by running a fresh utility knife blade at a 45-degree angle against the outer wall of the channel.

Warning: Do not apply extreme lateral pull to the screen mesh while rolling the side stiles. Over-tensioning the mesh across the width will pull vertical stiles inward, creating a narrow center frame known as "hourglassing."

Step 7: Hardware Installation and Final Hanging

1. Position three 3.5-inch heavy-duty exterior spring hinges along the hinge stile: locate the top hinge 5 inches down from the top edge, the bottom hinge 10 inches up from the bottom edge, and the middle hinge centered between them.
2. Mortise the hinge leaves flush into the edge of the door stile using a chisel, or surface-mount self-closing screen door hinges according to manufacturer specifications.
3. Set the screen door into the exterior door opening, supporting the bottom edge with 1/4-inch temporary wood shims. Use 1/8-inch shims along the hinge side to establish proper operating clearance.
4. Secure the hinge leaves to the exterior casing trim using 1.25-inch stainless steel wood screws.
5. Install a surface-mounted screen door latch assembly or hook-and-eye catch at 36 inches from the bottom threshold. Mount a pneumatic door closer at the top or center rail to prevent wind damage.

Material Specifications and Technical Performance Standards

Field Troubleshooting and Structural Adjustments

• Frame Hourglassing (Vertical Stiles Bowing Inward):


  • Root Cause: Excess lateral tension applied to screen mesh during rolling, pulling vertical stiles together at the center.
  • Actionable Fix: Slice and pull out the vertical spline strips. Insert a temporary wood spacer brace (matching exact top-rail width) across the center rail section. Re-roll the spline into the side channels using minimal outward hand tension, then remove the spacer.
• Door Corner Sagging or Dragging on Threshold:


  • Root Cause: Glue failure within corner joints, insufficient hinge support, or frame racking from weight over time.
  • Actionable Fix: Install a metal turnbuckle screen door brace diagonally across the interior face of the door, running from the upper hinge corner down to the lower latch corner. Rotate the center turnbuckle barrel to apply tension until the latch edge lifts clear of the threshold.
• Screen Mesh Slipping Out of Channel:


  • Root Cause: Using an undersized spline diameter (e.g., 0.125-inch spline in a wide or oversized 1/8-inch groove) or failing to compress spline past the channel shoulder.
  • Actionable Fix: Remove existing spline. Re-roll mesh using an oversized 0.150-inch or 0.160-inch serrated vinyl spline to establish a tighter mechanical friction lock inside the routed slot.
• Frame Binding Against Casing During High-Humidity Months:


  • Root Cause: Inadequate initial perimeter clearance (less than 1/8 inch) or raw unsealed end-grain absorbing atmospheric moisture.
  • Actionable Fix: Unhang the door and locate binding contact points indicated by scuffed finish. Pass a hand block plane over high spots to restore 1/8-inch clearance. Seal raw wood with two coats of exterior spar varnish before re-hanging.

Frequently Asked Questions

What is the best wood species for making a long-lasting screen door?

Western Red Cedar, Spanish Cedar, and White Oak offer the best balance of natural decay resistance, dimensional stability, and strength. If painted, clear vertical-grain Douglas Fir or Radiata Pine are excellent choices, provided all edges and end grains receive thorough application of exterior primer and marine paint.

How wide should screen door stiles and rails be?

Standard, structurally sound proportions call for 3.5-inch wide side stiles, a 3.5-inch wide top rail, a 3.5-inch wide middle lock rail, and a wider 5.5-inch to 6-inch bottom rail. This added bottom width protects against kicking and stabilizes the overall frame weight distribution.

Can I build a wooden screen door using pocket holes instead of lap joints?

While pocket hole joinery is faster, it offers less gluing surface area than half-lap or mortise-and-tenon joints. If using pocket holes, always use stainless steel pocket screws, waterproof exterior glue, and install a diagonal turnbuckle brace or decorative wooden corner brackets to prevent long-term frame sag.

How deep and wide should the screen spline groove be routed?

The ideal screen spline channel measures 1/8 inch (0.125 inch) wide by 1/4 inch (0.250 inch) deep. This dimension accommodates standard 0.140-inch serrated vinyl spline alongside standard fiberglass or pet-grade screening material without splitting the wooden frame edges.
