Strategic Frameworks For How To Manage AVD At Scale
Effectively scaling Azure Virtual Desktop (AVD) requires the automation of image management, persistent profile synchronization, and rigorous host pool elasticity based on real-time utilization telemetry. Organizations must leverage Azure Policy, MSIX App Attach, and automated scaling scripts to minimize administrative overhead while ensuring consistent session performance for thousands of concurrent users.
Foundations for Large-Scale Azure Virtual Desktop Infrastructure
Managing AVD at scale transitions from manual configuration to infrastructure-as-code and automated lifecycle management. The primary objective is to maintain a standardized user experience across thousands of virtual machines while minimizing the cloud consumption footprint during off-peak hours. Before scaling, architects must establish a governance framework that integrates Azure Resource Manager templates or Bicep files to ensure deployment repeatability.
- Essential Management Tools: Azure Virtual Desktop Insights, Microsoft Endpoint Manager (Intune), Azure Automanage, and FSLogix Profile Containers.
- Mandatory Prerequisite Knowledge: Proficiency in PowerShell/Azure CLI for automation, understanding of Azure Storage account throughput limits, and mastery of Active Directory or Entra ID Domain Services integration.
- Infrastructure Benchmarks: Target a 1:20 host-to-user ratio for knowledge workers and 1:10 for power users; monitor latency thresholds below 150ms for optimal protocol performance.
- Estimated Timeline: Initial architecture audit and baseline configuration typically require four to six weeks of dedicated engineering effort.
Procedural Workflow for Managing Distributed AVD Environments
Step 1: Implement Centralized Image Lifecycle Management
Instead of manual updates, move to a Shared Image Gallery or Azure Compute Gallery. Create a golden image that includes essential drivers, security agents, and baseline applications. Use automation to version these images regularly. When a security patch or software update is required, update the golden image, create a new version, and trigger a rolling update across your host pools to ensure all session hosts remain compliant with organizational standards.
Pro-Tip: Always maintain at least two versions of your image in the Azure Compute Gallery—the current production stable release and the previous "known good" release—to facilitate rapid rollbacks during deployment failures.
Step 2: Optimize User Profiles with FSLogix
Managing user data at scale is the most significant performance bottleneck in VDI. Deploy FSLogix Profile Containers to redirect user profiles to Azure Files or Azure NetApp Files. Use Cloud Cache to provide high availability for profile data, preventing session disruptions if a storage backend becomes temporarily unreachable. Configure storage capacity and IOPS based on the specific needs of your high-concurrency clusters to avoid performance degradation.
Step 3: Configure Elastic Scaling Automation

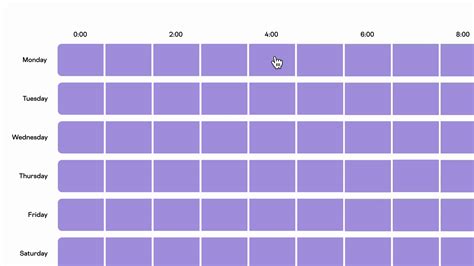

Manually powering on or off session hosts leads to massive cost overruns. Utilize the built-in Azure Virtual Desktop scaling plans, which allow you to define ramp-up, peak, ramp-down, and off-peak schedules. Set capacity thresholds based on session count or percentage of host capacity. Ensure the scaling plan is integrated with Autoscale to automatically shut down idle VMs outside of business hours while keeping a "buffer" pool of hosts warm to accommodate sudden spikes in login traffic.
Step 4: Streamline Application Delivery via MSIX App Attach
Decouple applications from the core operating system image to reduce image size and complexity. MSIX App Attach enables the dynamic mounting of application packages to session hosts upon user login. This reduces the need to re-image hosts when software updates occur. By storing these packages on high-performance Azure File shares, you ensure that applications launch near-instantaneously, regardless of which host the user is assigned to.
How to configure Scheduled Agent Updates in AVD?
Technical Parameters for High-Density Host Pool Configurations
The following table outlines the comparative performance and management requirements for different scaling configurations within AVD environments.
| Deployment Strategy | Scaling Mechanism | Management Complexity | Performance Impact | Recommended Use Case |
|---|---|---|---|---|
| Pooled Host Pools | Automated Scaling Plan | Low | Balanced/High | General Office Workers |
| Personal Desktops | Manual/API Driven | Moderate | High | Developers & Power Users |
| MSIX App Attach | VHD/VHDX Mounting | High | Optimized Startup | High-App Count Environments |
| Azure NetApp Files | Performance Tiering | Moderate | Ultra-Low Latency | Large-Scale Enterprise |
Addressing Operational Bottlenecks and Failures
- Root Cause: High Login Latency. Often caused by storage IOPS throttling during "logon storms" (e.g., 8:00 AM).
- Actionable Fix: Implement FSLogix Cloud Cache and ensure storage account accounts are utilizing Premium Tier SSDs to handle high concurrent IO requests.
- Root Cause: Session Host Fragmentation. Occurs when automated scaling plans leave orphan VMs running or fail to drain sessions.
- Actionable Fix: Audit session host drain mode settings and ensure that the "Logoff user on drain mode" policy is correctly enforced via Group Policy or Intune.
- Root Cause: Profile Corruption. Frequently stems from network timeouts or ungraceful session terminations.
- Actionable Fix: Configure FSLogix "Keep-Alive" intervals and verify that antivirus exclusion policies strictly follow Microsoft’s recommended lists for VDI environments to prevent folder locking.
Frequently Asked Questions
How do I handle sudden spikes in user demand in AVD?
Configure your scaling plan to include a "minimum host" percentage during peak hours and enable "Autoscale" to trigger new host deployments based on real-time CPU or session count metrics. This ensures the environment scales horizontally before existing users experience performance degradation.
Is it necessary to use Azure NetApp Files for AVD scaling?
Azure NetApp Files is recommended for environments exceeding 500 concurrent users or those requiring sub-millisecond latency for FSLogix profile loading. For smaller or medium-sized environments, Azure Files Premium tier is generally sufficient and more cost-effective.
How does MSIX App Attach improve scalability?
It significantly reduces the "image sprawl" problem by keeping your OS base image lean. By mounting apps only for the users who need them, you reduce the time required for host re-imaging and simplify the compliance process across the fleet.
What is the most effective way to monitor AVD performance at scale?
Enable the "Azure Virtual Desktop Insights" workbook within the Azure portal. It provides out-of-the-box telemetry on connection success rates, host performance, and session duration, allowing you to proactively identify bottlenecks before they affect the end-user experience.
