How To Measure For A Granite Countertop: The Professional Guide To Precision Templating

Measuring for a granite countertop requires calculating the total surface area by multiplying the length by the depth of the cabinets plus a standard 1.5-inch overhang, then dividing the total square inches by 144 to determine the square footage. Accurate measurements must account for wall irregularities, sink centerlines, and backsplash dimensions to ensure the stone slab is cut to within a 1/16th-inch tolerance. Proper execution prevents costly fabrication errors and ensures the structural integrity of the stone over the cabinetry.

Essential Equipment and Site Readiness Protocols

Before a single measurement is recorded, the site must be prepared to industry standards. Granite is an inflexible material with significant weight, averaging 18 to 20 pounds per square foot for 3cm thickness. Therefore, the foundation—your cabinetry—must be the primary focus of your initial assessment. Measuring over existing countertops is possible for a preliminary quote, but for final fabrication, the most accurate results come from measuring the cabinets directly.

Mandatory Tool Inventory

• Steel Tape Measure: Use a high-quality 25-foot steel tape. Avoid fabric tapes which can stretch and yield inaccurate results.
• Laser Distance Meter: Highly recommended for long spans to eliminate the "sag" often found in physical tapes over 10 feet.
• Four-Foot Carpenter’s Level: Essential for verifying that the cabinet plane is flat across all spans.
• Framing Square: Used to check the corners of walls for "squareness" (90-degree angles).
• Graph Paper and Pencil: A clean, scaled sketch is mandatory for recording data without confusion.
• Digital Camera: To document the current layout, appliance locations, and potential obstructions for the fabricator.

Prerequisite Standards

• Cabinet Installation: All base cabinets must be permanently installed, leveled, and secured to the wall studs. Any movement after measuring will render the granite slab useless.
• Appliance Specifications: You must have the "Manufacturer’s Specification Sheets" for the sink, cooktop, slide-in range, and dishwasher.
• Leveling Thresholds: If cabinets are out of level by more than 1/8 inch over a 10-foot span, they must be shimmed or reset before the stone is measured.

The Systematic Workflow for Countertop Measurement

The measurement process is divided into logical phases to ensure no architectural detail is overlooked. Follow these steps sequentially to build a comprehensive data set for your fabricator.

Step 1: Conceptualize and Sketch the Layout

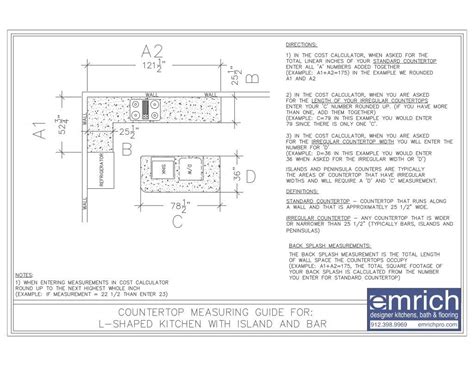

Create a bird's-eye view drawing of your kitchen or bathroom. Use graph paper where one square equals three or six inches. Label every wall, window, and appliance location. Even if your drawing is not perfectly to scale, it must clearly indicate where one section of the countertop ends and another begins. Use letters (Section A, Section B, etc.) to identify different runs of cabinetry.

Step 2: Measure the Length of the Cabinet Runs

Measure the length of the cabinets along the back wall where they meet the drywall. Then, measure the front edge of the cabinets. If the wall is bowed, these two numbers will differ. Record both.

• For Straight Runs: Measure from the wall to the end of the cabinet.
• For Corner Units: Measure from the corner of the wall out to the end of the cabinet run in both directions.

Warning: Do not assume your walls are perfectly straight or that your corners are exactly 90 degrees. Always measure the diagonal distance of a corner to verify if it is "out of square."

Step 3: Determine the Depth and Calculate Overhang

Standard kitchen base cabinets are 24 inches deep. However, a countertop must overhang the cabinet box to protect the doors and drawers from spills and to provide an aesthetically pleasing finish.

1. Measure the depth of the cabinet box from the wall to the front of the face frame.
2. Apply the Standard Overhang: Add 1.5 inches to your cabinet depth measurement. A standard 24-inch cabinet will require a 25.5-inch deep countertop.
3. Island and Peninsulas: If you intend to have a seating area, you must calculate a larger overhang. For comfortable knee room, an overhang of 10 to 12 inches is standard. Anything over 10 inches typically requires structural corbels or steel brackets for support.

Step 4: Account for Finished Ends and Edge Profiles

If a countertop ends in "open space" (not against a wall or appliance), you must add an extra 1.5 inches of length to cover the side of the cabinet.

• Wall-to-Wall: Measure the exact distance and subtract 1/8 inch to allow the stone to be dropped in without scratching the drywall.
• Wall-to-Open End: Add 1.5 inches to the cabinet length.
• Open-to-Open (Island): Add 3 inches total (1.5 inches for each side) to the length and depth of the cabinet box.

Step 5: Locate the Sink and Major Appliances

The sink is the most critical cutout in any granite project.

1. Find the center of the sink cabinet by measuring the width of the cabinet and dividing by two.
2. Mark this centerline on your sketch.
3. Measure the distance from the nearest wall to this centerline.
4. Note the sink type: Undermount (mounted below the stone), Drop-in (sits on top), or Farmhouse/Apron Front (requires specific cabinet modifications).

Step 6: Define Backsplash Requirements

Decide if you are using a matching granite backsplash or a tile backsplash.

• Standard Granite Backsplash: Usually 4 inches high. Record the total linear length of the walls that will receive this treatment.
• Full-Height Backsplash: Measure from the top of the countertop surface to the bottom of the upper cabinets. Measure in at least three places for every section, as upper cabinets are rarely perfectly level. Use the smallest measurement to ensure the stone fits.

Step 7: Final Square Footage Calculation

To get your total area for pricing:

1. Multiply the Length (inches) x Depth (inches) for each section.
2. Add all sections together to get Total Square Inches.
3. Divide by 144 to convert to Square Feet.
4. Add 10% for waste and seam considerations.

Pro-Tip: If you have a 36-inch corner "Lazy Susan" cabinet, treat it as a square in your calculations (36" x 36") rather than trying to calculate the diagonal, as the fabricator will likely cut it from a square block.

Technical Specifications and Material Standards

The following table outlines the industry-standard dimensions for granite installations in residential settings. Use these metrics to validate your measurements.

Resolving Common Measuring and Site Failures

Even seasoned professionals encounter architectural anomalies. Recognizing these early prevents project delays and wasted material.

• The Bowed Wall Scenario




  • Root Cause: Drywall or studs are warped, creating a gap in the center of a long run while the ends touch the wall.
  • Actionable Fix: Use a long straightedge (like a level) against the wall to find the deepest point of the bow. Your countertop depth must be calculated from the "deepest" point of the wall. The fabricator will "scribe" the back of the stone—grinding it to follow the wall's curve—for a flush fit.

• The Out-of-Square Corner




  • Root Cause: The corner where two walls meet is at 92 degrees instead of 90.
  • Actionable Fix: Use the 3-4-5 rule. Measure 3 feet from the corner on one wall and 4 feet on the other. The diagonal between those points should be exactly 5 feet. If it is not, the stone must be cut at a custom angle to prevent a massive gap at one end of the cabinet run.

• Inadequate Sink Clearance




  • Root Cause: Choosing a sink that is too large for the cabinet base, leaving no room for the faucet or the "rails" (the thin strips of granite).
  • Actionable Fix: Ensure the sink bowl is at least 3 inches smaller than the interior width of the cabinet. Check that there is at least 2.5 inches of clearance behind the sink for faucet hole drilling without hitting the backsplash or the wall.

Frequently Asked Questions

Can I measure for granite while my old countertops are still installed?

Yes, you can measure over existing tops for a preliminary estimate, but a final "template" should be made by a professional after the old tops are removed. This allows the fabricator to see the actual cabinet structure and identify any leveling issues that were hidden by the old material.

How do I decide where the seams should go?

Seams should be placed in areas of high structural support, such as where two cabinet side-walls meet. Avoid placing seams over dishwashers (where there is no support) or through the middle of a sink cutout, as these are the weakest points of the slab.

What is the difference between 2cm and 3cm granite measurements?

While the surface measurements remain the same, 2cm granite often requires a "sub-top" of plywood for strength and a "laminated edge" to make it look thicker. 3cm granite is thick enough to sit directly on the cabinets, which simplifies the vertical measurement of your backsplash and appliance heights.

How much overhang do I need for a slide-in range?

Most slide-in ranges are designed to sit flush with the 1.5-inch overhang of the countertop. However, you must check the specific range's manual. Some require the stone to "notch" around the back of the appliance to create a continuous look.

Precision Fabrication and Installation

Once your measurements are finalized and verified against the physical site conditions, the data is transitioned to a CNC machine or manual bridge saw for cutting. Accuracy at the measuring stage ensures that the installation is a seamless process rather than a site-correction headache.
