How To Measure A Roof For Metal Roofing: A Professional Guide To Precision And Material Estimation
Accurate roof measurement for metal panel installation requires calculating the total square footage plus a waste factor for complex geometry, utilizing ground-level measurements or pitch-corrected roof plane analysis. Proper estimation ensures exact panel lengths, minimizes overlapping waste, and accounts for critical flashings, ridges, and valley trim to prevent supply shortages mid-project.
Pre-Operation Requirements and Essential Field Gear
Measuring a roof for metal is a distinct task from estimating asphalt shingles because metal panels are typically manufactured to specific lengths. Unlike shingles, which can be trimmed with minimal waste, metal panel systems rely on precise measurements of individual roof planes. Before climbing or utilizing aerial estimation tools, ensure your setup meets safety and accuracy standards.
- Essential Measuring Tools: A high-quality 100-foot fiberglass measuring tape, a laser distance measurer (for ridge-to-eave spans), a digital angle finder (pitch gauge), and a sturdy clipboard with graph paper.
- Safety Equipment: OSHA-compliant fall protection harnesses, soft-soled shoes with high traction, and a chalk line for marking reference points.
- Prerequisite Knowledge: Familiarity with calculating roof pitch (rise over run), identifying roof geometry (hips, valleys, gables, and dormers), and understanding metal panel overlap requirements.
- Project Benchmarks: A typical residential roof assessment requires 60 to 90 minutes of on-roof time. Budget for 10% to 15% extra material to account for waste on hip-roofs, or 5% to 8% for simple gable roofs.
Systematic Roof Measurement Workflow
Measuring for metal requires a plane-by-plane approach. Do not attempt to calculate the roof as a single flat area; treat each rectangular or triangular section as a distinct inventory item.
Step 1: Calculate the Roof Pitch

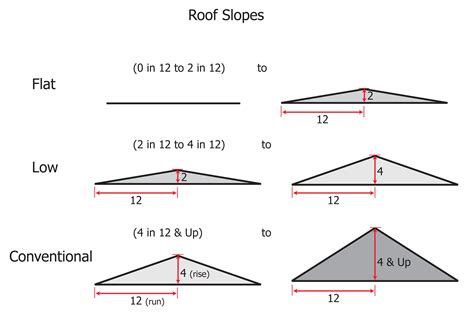

Before measuring the length and width, you must determine the slope. The pitch determines the actual surface area of the roof. Place a 12-inch level on the roof surface. Measure the distance from the end of the level down to the roof surface (the "rise"). This measurement over 12 inches provides the pitch (e.g., a 4-inch rise equals a 4/12 pitch).
Pro-Tip: Use the Pythagorean theorem (A squared plus B squared equals C squared) if you cannot physically measure the slope. If you have the floor plan dimensions and the wall height, you can determine the exact roof plane length mathematically.
Step 2: Segment the Roof into Geometric Planes
Break the roof down into simple shapes. A gable roof consists of two rectangles. A hip roof consists of rectangles and triangles. Measure the length of the eave (the bottom edge) and the length of the slope (the distance from the eave to the ridge).
Warning: Metal panels must be measured from eave to ridge, not the rafter length. Always double-check your ridge measurement to ensure the panels will meet at the peak without leaving an exposed gap that requires oversized ridge caps.
Step 3: Account for Overlaps and Trims
Metal roofing requires specific flashing, including ridge caps, valley flashings, rake trim, and eave drip edge. Measure the total linear footage of every intersection. If your roof has valleys, ensure you add the length of the valley flashing plus a 10% buffer for trimming waste.
Step 4: Calculate Total Panel Quantity
Multiply the eave length by the slope length for each plane. Once you have the square footage of every plane, add them together. Convert this to "squares" (one square equals 100 square feet) by dividing your total by 100. Always round up to the nearest full panel length.
How To Install Gutters On A Metal Roof Complete Step-by-Step Guide ...
Material Estimation and Technical Thresholds
The following table outlines the conversion factors and material considerations necessary for accurate metal roofing orders.
| Component Category | Measurement Unit | Calculation Method | Adjustment/Waste Factor |
|---|---|---|---|
| Main Roof Surface | Squares (100 sq ft) | (Length x Slope) / 100 | Add 10-15% |
| Ridge/Hip Caps | Linear Feet | Total length of all ridges | Add 5% for laps |
| Valley Flashing | Linear Feet | Total length of all valleys | Add 10% for cuts |
| Rake/Gable Trim | Linear Feet | Total perimeter of gable ends | Add 5% for overlap |
| Eave Drip Edge | Linear Feet | Total length of all eaves | 1:1 ratio |
Common Field Failures and Professional Remedies
Measuring errors are the leading cause of project delays and increased costs in metal roofing installations. Address these common failures immediately to avoid site downtime.
- Failure: Incorrect Pitch Calculation. If the pitch is underestimated, the panels will arrive too short to reach the ridge, creating a massive water infiltration risk.
- Actionable Fix: Always verify pitch at two different locations on the roof. If the roof has sagged over time, use the measurement from the most structurally sound section.
- Failure: Neglecting Panel Overlap. Metal panels overlap by an inch or more, which reduces the effective coverage width of each panel.
- Actionable Fix: Consult the manufacturer’s technical data sheet for the specific "effective width" of the panel profile. Calculate the number of panels required by dividing the total roof width by the effective width, not the nominal width.
- Failure: Underestimating Trim Requirements. Running short on ridge cap or rake trim forces an emergency site stop while waiting for a secondary shipment.
- Actionable Fix: Always measure the entire perimeter and add an extra 10% of linear footage for trim. It is significantly cheaper to return unopened trim than to pay for expedited shipping for a single piece.
Frequently Asked Questions
Do I need to remove the old shingles before measuring?
It is not mandatory to remove shingles to measure, but it is highly recommended to do so for an accurate assessment. Removing the old layer reveals potential structural rot or damaged decking that must be replaced before the metal installation, which will change your substrate requirements.
How do I measure a roof if it is too steep to walk on?
Use a digital laser distance measurer from the ground or hire a drone estimation service. High-quality aerial imagery can provide 99% accuracy on roof plane measurements without the physical risk of walking on steep-slope roofs.
What is a "waste factor" and why does it matter?
The waste factor accounts for the material lost during cutting, trimming at valleys, and overlapping panels. For complex roofs with many hips and valleys, a 15% waste factor is standard to ensure you do not run out of material during the installation process.
Should I measure the overhangs in my total square footage?
Yes, you must include the overhangs (eaves and rakes) in your measurements. Metal panels must extend beyond the roof deck to allow for proper drainage into the gutters, so include this length in your total eave-to-ridge calculation.
