How To Nail Tongue And Groove: A Professional Guide To Precision Installation
Installing tongue and groove (T&G) requires precise fastener placement in the tongue shoulder to ensure the boards remain secure while allowing for natural seasonal wood movement. By using finish nails driven at a 45-degree angle—known as blind nailing—installers achieve a fastener-free surface finish that maintains structural integrity and professional aesthetic standards.
Pre-Installation Requirements and Tooling Strategy
Proper T&G installation begins long before the first fastener is driven. Tongue and groove materials are living components; they expand and contract based on relative humidity. Failure to account for the acclimatization phase and the mechanical properties of your specific wood species will lead to cupping, buckling, or unsightly gaps.
- Essential Equipment: Pneumatic finish nailer (16 or 18 gauge), compressor with regulated air supply, rubber mallet, tapping block, pry bar, miter saw, and a moisture meter.
- Mandatory Standards: Boards must acclimate in the installation environment for at least 72 hours. Ensure the room maintains a consistent humidity range between 30 and 50 percent to prevent excessive movement after installation.
- Material Prep: Inspect each board for bow or crown. Always orient the crown side upward to ensure it is pulled flat against the subfloor during the fastening process.
- Benchmarks: Estimate approximately 15 to 20 fasteners per square foot of flooring or wall coverage, depending on joist spacing and board width.
Precision Execution: The Blind Nailing Procedure
Achieving a professional result requires a repeatable workflow that minimizes surface damage and maximizes board grip. The following steps outline the standard industry approach for blind nailing.
Step 1: Establishing the Starting Row
Begin by installing the first board with the groove side facing the wall. Use a spacer block to maintain a 1/4-inch to 1/2-inch expansion gap around the entire perimeter. Because the first row cannot be blind-nailed, drive finish nails through the face of the board as close to the wall as possible; these will eventually be covered by your baseboard or trim.
Step 2: The Blind Nailing Technique
For all subsequent rows, insert the tongue of the new board into the groove of the previous board. Use a tapping block and mallet to ensure a tight, seamless fit. Once the joint is closed, angle your nailer at exactly 45 degrees. Drive the fastener into the shoulder of the tongue, where it meets the face of the board.
Pro-Tip: Adjust your air compressor pressure to ensure the nail head is perfectly flush with the wood. If the nail head sits proud, it will prevent the next board from seating correctly; if it is driven too deep, it may split the thin wood of the tongue.
Step 3: Fastener Spacing and Pattern
Consistent fastener spacing is critical for structural stability. Maintain a distance of 8 to 10 inches between nails on standard-width planks. For wider boards (6 inches or more), reduce spacing to 6 to 8 inches to prevent cupping. Always ensure at least one fastener is placed within 2 inches of the board ends to prevent curling.
Step 4: Closing the Gap
If you encounter a bowed board that refuses to sit flush, use a pry bar carefully against the wall or a neighboring fixed point to pull the board tight. Once pressure is applied, drive the nail into the tongue shoulder to lock it in place before releasing the tension.
Step 5: Finishing the Final Row
The final board will require face-nailing because there is insufficient room for the nailer head. Rip the board to fit the remaining width, including the expansion gap, and secure it by nailing through the top surface. Use a color-matched wood filler to hide these exposed nail heads.

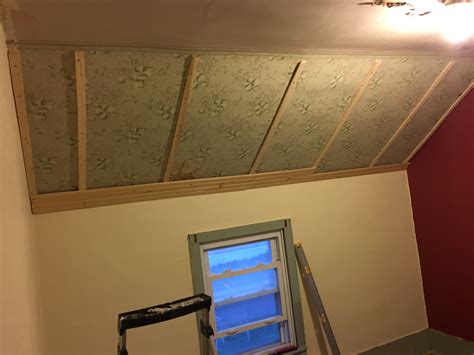

Installing Shiplap and Tongue and Groove: The Ultimate guide — Kentucky ...
Comparative Analysis of Fastening Methods
Choosing the right fastener depends on the wood density and application type. Refer to the table below for standard technical specifications.
| Fastener Type | Gauge Size | Application Environment | Holding Power |
|---|---|---|---|
| Finish Nail | 15 Gauge | Hardwood Flooring | High |
| Finish Nail | 16 Gauge | Interior Wall Paneling | Medium-High |
| Brad Nail | 18 Gauge | Softwood Ceiling T&G | Moderate |
| Cleat (L-Head) | 16 Gauge | High-Traffic Hardwood | Superior |
Field Fixes for Common Installation Failures
Even experienced installers encounter complications. Addressing these issues immediately during the process saves hours of rework.
- Root Cause: Split Tongues. Often caused by excessive air pressure or a nail driven too close to the end of the board.
- Actionable Fix: Reduce compressor pressure and pre-drill pilot holes if the wood is brittle or prone to splintering.
- Root Cause: Gaps Between Boards. Caused by debris inside the groove or incorrect tapping technique.
- Actionable Fix: Use a dental pick or thin blade to clear sawdust from the groove before mating. If the board is warped, use a strap clamp to hold it tight until the nails are set.
- Root Cause: Squeaking Joints. Caused by movement between the tongue and groove, often due to improper spacing or loose fasteners.
- Actionable Fix: Ensure nails are angled precisely at 45 degrees to "hook" the board into the subfloor. If a squeak persists, use construction adhesive on the subfloor contact points for subsequent rows.
Frequently Asked Questions
Is it necessary to use glue in addition to nails for tongue and groove?
While nails provide the primary holding power, using a thin bead of wood glue inside the groove for floating floor installations or decorative paneling can increase joint rigidity. However, for traditional flooring, allow the wood to move naturally by relying strictly on mechanical fasteners.
Can I use an 18-gauge brad nailer for flooring?
It is not recommended for high-traffic flooring, as 18-gauge brads lack the tensile strength required to hold boards down against seasonal expansion forces. Use at least a 16-gauge finish nailer or a specialized flooring nailer for optimal longevity.
What is the purpose of the 45-degree angle?
The 45-degree angle allows the fastener to penetrate the tongue and the subfloor simultaneously while disappearing completely once the next board is installed. This creates a hidden joint that is structurally sound and aesthetically clean.
Should I nail into the subfloor or just the previous board?
You must nail through the tongue shoulder into the subfloor. Nailing only into the previous board (side-nailing) provides insufficient shear strength and will lead to loose floorboards over time.
Master Your Craftsmanship
Professional-grade results in tongue and groove installation are defined by the invisible details of your fastener work. Implement these techniques on your next project to ensure a lifetime of structural reliability and flawless visual appeal.
