Mastering Waterslide Decal Printing: The Complete Technical Guide

Printing high-definition waterslide decals requires matching paper chemistry to your printer type, adjusting media weight settings to ensure proper ink or toner adhesion, and sealing inkjet prints with a poly-acrylic barrier. Following precise thermal cure times, water temperature windows, and squeegee evacuation techniques guarantees a permanent, seamless bond on glass, ceramic, wood, and metal substrates.

Pre-Print Setup and Material Specifications

Creating durable, professional-grade decals demands precise environmental controls, chemical compatible sealants, and exact media selection. Waterslide decal paper consists of a heavy paper backing coated with a water-soluble dextrin layer, topped by a thin poly-acrylic or polyvinyl resin film that receives the image. Inkjet inks remain water-soluble after drying and will dissolve upon immersion unless sealed, whereas laser toners use heat-fused plastic polymers that require distinct handling.

Essential Materials Checklist

• Decal Paper Stock: Inkjet-compatible or Laser-compatible waterslide paper (Clear film for light surfaces; White-backed film for dark/black substrates).
• Fixative Sealer (Inkjet Only): Solvent-based acrylic clear spray coat (e.g., acrylic gloss lacquer or enamel clear coat).
• Printing Hardware: Standard desktop inkjet printer using pigment/dye inks OR a dedicated laser printer supporting heavy stock (150–220 GSM).
• Trimming Tools: Ultra-sharp #11 precision scalpel, rotary cutter, or stainless steel craft shears.
• Hydro-Activation Station: Clean glass or plastic basin filled with distilled water maintained at 70°F to 85°F (21°C to 29°C).
• Application Tools: Soft-bristle synthetic brush, flexible rubber squeegee or micro-foam roller, and lint-free microfiber towels.
• Chemical Modifiers: Decal setting solution (distilled water with mild wetting agent) and decal softener (dilute acetic acid solution for irregular 3D contours).

Standard Operating Benchmarks

• Setup & Print Duration: 15–20 minutes.
• Cure & Flash-Off Time: 2–3 hours (Inkjet sealing cycle).
• Process Budget: $15–$35 for initial film stock and acrylic clear coats.
• Environment: Relative humidity between 40%–50% at 68°F–75°F (20°C–24°C) to prevent paper curling and static discharge.

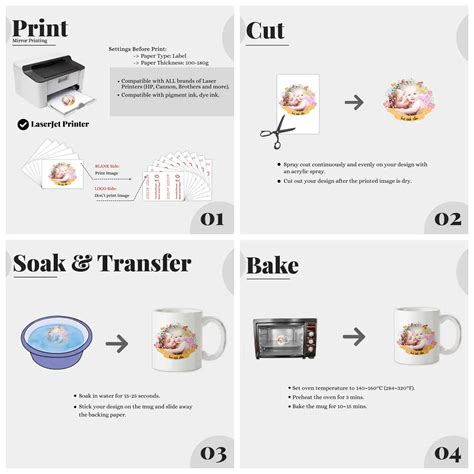

Step-by-Step Waterslide Decal Production Workflow

Step 1: Image Formatting and Driver Configuration

Design graphics at a minimum spatial resolution of 300 Dots Per Inch (DPI) to avoid pixelation during printing. If transferring graphics to the interior of transparent glass or acrylic, mirror the image horizontally in your design software prior to printing.

Access printer driver preferences and modify the paper type setting to "Heavyweight Photo Paper," "Labels," or "Cardstock" (typically 120–200 GSM). This setting instructs the printer to decrease paper feed velocity, increasing ink density output for inkjets or elevating fuser roller temperatures for laser printers to lock the toner into the resin layer.

Set output quality to "Maximum DPI" or "Best." Disable draft or speed-oriented print modes to prevent micro-banding across solid vector fills. Load individual sheets into the manual bypass feed tray to avoid misfeeds caused by thick paper backing.

Pro-Tip: Always print a test pattern on standard 20 lb bond paper to verify physical scaling and color alignment against your target substrate before feeding specialized decal film.

Step 2: Inkjet Sealant Application and Flash-Off

Laser-printed decals skip this step because fused toner is naturally waterproof. For inkjet-printed decals, place the freshly printed sheet flat in a well-ventilated, dust-free spray booth after allowing the ink to air-dry for at least 20 minutes.

Shake a solvent-based clear acrylic aerosol spray for 60 seconds. Hold the can 8 to 10 inches away from the decal sheet and apply a light, sweeping pass horizontally, overlapping each pass by 50%. Allow a flash-off period of 15 minutes for solvents to evaporate.

Apply a second coat using vertical sweeping motions, followed by a third light coat after another 15-minute interval. Let the sealed sheet fully cure for a minimum of 2 hours at room temperature.

Warning: Spraying a single heavy coat of acrylic clear coat will cause the solvent to penetrate the ink layer, dissolving fine lines and creating heavy color bleeding across the graphic.

Step 3: Precision Edge Trimming

Using a clean cutting mat and a fresh #11 scalpel blade, cut around the perimeter of the printed artwork.

For clear waterslide paper, maintain a smooth 1 mm to 2 mm perimeter margin around the graphic. Avoid sharp 90-degree internal corners; round all outer corners to a minimum 2 mm radius to prevent stress concentration points where the film could lift or tear during transfer. For white-backed decal paper, trim precisely along the artwork border to eliminate visible white borders unless a white border is part of the design.

Step 4: Substrate Preparation and Hydro-Activation

Clean the target surface (glass, ceramic, painted wood, metal, or cured resin) using a lint-free cloth saturated with 70% Isopropyl Alcohol (IPA) to eliminate grease, oils, and particulate matter. Allow the substrate to dry completely.

Fill the activation basin with clean water at 75°F–85°F (24°C–29°C). Submerge a single trimmed decal sheet into the water bath, holding it flat with tweezers. Within 15 to 30 seconds, the paper will curl as the backing absorbs water, then uncurl as the water-soluble dextrose layer dissolves.

Check for activation by gently pinching the edge between your thumb and forefinger; when the thin resin film slides smoothly over the backing paper without resistance, the decal is ready for application. Do not leave decals submerged longer than 60 seconds, or the adhesive backing will dilute and lose strength.

Pro-Tip: Pre-wet the target substrate surface with a brush dipped in clean water or a commercial decal setting solution. This creates a thin liquid bearing layer that lets you slide and position the decal without trapping air or tearing the film.

Step 5: Transfer, Alignment, and Air Evacuation

Remove the activated decal assembly from the water bath, holding it by the paper backing. Position the edge of the backing paper directly adjacent to your target area on the substrate.

Press the exposed edge of the decal film down onto the wet substrate surface with a damp finger. Slowly pull the paper backing out from underneath the film, sliding it away while holding the decal stationary on the object.

Once the film is resting on the object, spray a light mist of decal setting liquid over the surface. Use a soft rubber squeegee, damp sponge, or micro-fiber applicator working from the geometric center of the graphic outward to the edges. Apply light, even pressure to push out all water droplets and micro-air bubbles trapped beneath the resin layer.

Step 6: Thermal Curing and Protective Topcoating

Allow the applied decal to dry at ambient room temperature for 12 to 24 hours to ensure all residual water beneath the film evaporates completely.

For heat-resistant substrates like unglazed ceramics, porcelain, or glass, accelerate bonding and increase scratch resistance through thermal curing. Place the dry, decaled item in a cold oven, heat it to 230°F (110°C), and maintain this temperature for 15 to 20 minutes. Turn off the oven and allow the item to cool down inside to prevent thermal shock fractures.

For non-bakeable objects (wood, plastic, electronics), seal the dried decal with an overall clear topcoat—such as polyurethane, lacquer, or epoxy resin—to lock the film edges into the substrate profile and match the gloss level of the surrounding area.

Waterslide Media Compatibility and Performance Matrix

Technical Troubleshooting and Defect Remediation

Defect 1: Ink Bleeding or Liquefying Upon Immersion

• Root Cause: Inadequate acrylic clear coat coverage on inkjet prints, incomplete acrylic curing time, or trimming too close to printed ink lines without leaving a sealed border margin, allowing water to wick into the paper layer.
• Actionable Fix: Apply 3 uniform coats of solvent-based acrylic spray, maintaining a 15-minute flash-off time between passes. Allow the clear coat to cure for a full 2 hours before trimming. Always cut with a 1 mm to 2 mm clear margin around printed graphics to maintain the acrylic barrier seal.

Defect 2: Film Fragmentation, Brittle Snapping, or Tearing

• Root Cause: Excessive acrylic clear coat application rendering the decal film stiff, soaking in cold water (below 65°F / 18°C), or leaving the sheet in the water bath beyond 60 seconds, which strips the protective release layer.
• Actionable Fix: Reduce spray application to thin, sweeping passes. Warm the water bath to 75°F–85°F (24°C–29°C). Apply a commercial decal softening solution (e.g., dilute acetic acid formulation) to the wet decal film to increase elasticity prior to manipulating it over complex substrate curves.

Defect 3: Silvering (Visible Trapped Air Pockets Appearing as Metallic Sheen)

• Root Cause: Applying high-gloss decal film over a rough, matte, or heavily textured substrate surface. Air gets trapped in the microscopic surface valleys under the decal membrane.
• Actionable Fix: Apply a gloss clear coat to the target object surface to create a flat, glass-smooth base before decal application. Squeegee thoroughly from center to edge using a setting solution, then coat the cured decal with a final gloss or matte topcoat to balance surface light reflections.

Defect 4: Laser Toner Flaking or Peeling Off the Decal Base

• Root Cause: Low fuser temperature setting on the laser printer. Standard paper print profiles feed sheets too quickly, preventing the printer from melting toner particles completely into the high-density decal film.
• Actionable Fix: Open printer preferences and change the media type to "Labels," "Thick Stock," or "Cardstock (150–200 GSM)." This slows down the paper feed rate, increasing the heat and pressure applied by the fuser assembly to bond the toner resin permanently to the sheet.

Frequently Asked Questions

Can you print waterslide decals using a standard home printer?

Yes, standard home desktop inkjet and laser printers can both print high-quality waterslide decals. However, you must buy waterslide paper specifically made for your printer type (inkjet or laser), and inkjet prints must be sealed with an acrylic clear coat before water exposure.

Do laser-printed waterslide decals need to be clear coated before dipping?

No, laser toner consists of plastic resin that fuses directly into the decal sheet under high fuser heat, making it water-insoluble. However, applying a light coat of clear lacquer can improve durability and scratch resistance if the decal will be handled frequently.

How do you make printed waterslide decals safe for dark or black surfaces?

Use white-backed waterslide decal paper for dark surfaces. Printers do not print white ink (they leave those areas blank), so clear decal paper allows dark backgrounds to show through the translucent dyes. White decal paper provides an opaque white base that keeps your colors vibrant on dark substrates.

Are waterslide decals dishwasher safe after application?

Standard waterslide decals are not dishwasher safe on their own. To make decals on ceramics or glass resistant to heat and water jets, heat-cure the item in an oven at 230°F (110°C) for 15–20 minutes and seal it with an FDA-compliant, heat-resistant topcoat.

Optimize Your Decal Manufacturing Precision

Mastering high-yield waterslide decal application relies on using accurate paper stock, executing precise chemical sealing, and following strict thermal management. Implement these technical parameters in your production workflow to produce high-resolution, durable transfers on any hard substrate.
