How To Program A Transmission Control Module: A Professional Guide To TCM Flashing

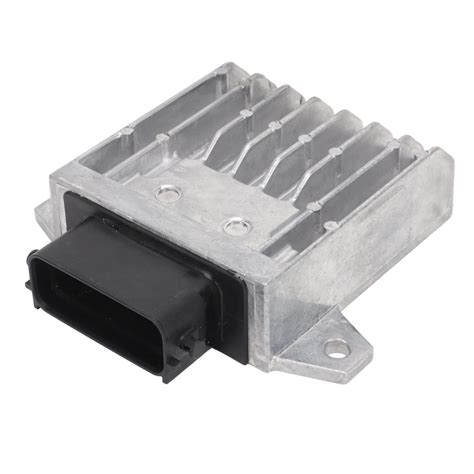

Programming a Transmission Control Module (TCM) requires flashing the correct OEM calibration files onto the module's EEPROM using an SAE J2534 Pass-Thru device or OEM proprietary tool. To ensure a successful write and prevent module damage, the vehicle's electrical system must be sustained between 13.0V and 13.5V using a clean, ripple-free power programming supply. Completing this procedure successfully avoids shift-quality degradation, diagnostic trouble codes, and complete vehicle-in-motion failures.

Pre-Operation Requirements and Equipment Checklist

Before beginning a transmission control module programming event, you must establish a stable programming environment. Modern automotive controller area networks (CAN-bus) are highly sensitive to voltage drops and electromagnetic interference. Programming a TCM involves erasing the existing memory sector before writing the new operating system and calibration file. Any disruption in power, connection, or bus communication during this critical write phase will permanently damage the module, rendering it unresponsive.

You must choose between programming a brand-new blank module (commonly required after a physical replacement) or reprogramming an existing module to resolve software shift bugs, update shift strategies, or marry a used module to a different vehicle.

Required Tools, Materials, and Professional Benchmarks

• SAE J2534 Pass-Thru Device: A validated interface device (such as a Drew Technologies CarDAQ-Plus3, Snap-on Pass-Thru Pro, or Bosch Mastertech II) to broker communication between the PC and the vehicle OBD-II port.
• Clean Programming Power Supply: A dedicated diagnostic battery maintainer capable of delivering a constant 55 to 100 Amps at a selectable 13.0V to 13.8V. Standard battery chargers are unacceptable due to AC ripple voltage, which corrupts data transfer.
• OEM Software Subscription: Access to the vehicle manufacturer's programming portal (such as GM Techline Connect/SPS2, Ford FDRS, Chrysler wiTECH 2.0, or Toyota Techstream).
• Windows Laptop: A computer meeting OEM software specifications, featuring a fully charged battery, connected directly to mains power, and configured to disable sleep/screen-saver modes.
• Hardwired Internet Connection: An Ethernet cable connection to the router is highly recommended; Wi-Fi connections are susceptible to drops that can corrupt the download-and-flash sequence.
• Prerequisite Knowledge: Working knowledge of controller network protocols (CAN-FD, High-Speed CAN, and K-Line) and diagnostic trouble code (DTC) interpretation.
• Estimated Budget: $150 to $2,500 depending on J2534 hardware ownership, plus $40 to $150 for a short-term 72-hour OEM software subscription.
• Estimated Duration: 45 minutes to 2 hours, depending on software download speeds and module initialization steps.

Step-by-Step Transmission Control Module Flashing Protocol

Step 1: Connect a Clean Battery Power Maintainer

The absolute first step in any module programming event is safeguarding the vehicle's electrical system against voltage fluctuations. When the ignition switch is cycled to the "ON" position without the engine running, the vehicle draws significant current for glow plugs, cooling fans, and daytime running lights.

First, locate the vehicle battery or the dedicated under-hood jump-start terminals. Connect the positive clamp of the programming power supply to the positive terminal, and the negative clamp to a solid, unpainted chassis ground or the negative battery post. Set the power supply to "Program Mode" or "Flash Mode" and set the target output voltage to 13.4V. Verify the unit is delivering a clean, steady voltage by reading the display meter. Never attempt to program a vehicle with a standard battery charger or jump pack, as their output contains voltage spikes and AC noise that will interrupt CAN-bus communication.

Warning: If the system voltage drops below 12.0V during the flash process, the TCM microcontroller will cease operations mid-write. This causes a partial write state, permanently corrupting the internal flash memory and requiring physical replacement of the module.

Step 2: Establish the J2534 Pass-Thru Connection

With the vehicle electrical system stabilized, prepare the hardware interface. Shut down all background programs on the programming laptop, including antivirus software, system updates, and third-party messaging tools.

Connect the USB cable from the J2534 device directly to a high-speed USB port on the laptop. Connect the OBD-II 16-pin connector of the J2534 device directly to the vehicle's diagnostic port located under the driver's side dashboard. Ensure all cable connections are secure and run in a manner that prevents them from being kicked or disconnected during the procedure. Turn the vehicle's ignition key to the "RUN" position (Engine Off, Key On). If the vehicle features a push-button start, hold the start button down for 5 to 10 seconds without pressing the brake pedal until the instrument cluster illuminates fully and the vehicle enters diagnostic mode.

Pro-Tip: Always choose a hardwired USB cable configuration over Bluetooth or Wi-Fi when connecting your J2534 device to the PC. Wireless signals are vulnerable to sudden electromagnetic interference from shop lighting, air compressors, and other diagnostic equipment.

Step 3: Access the OEM Calibration Software and Identify the VIN

Launch the manufacturer's diagnostic and programming application on your laptop. Log in with your validated credentials and select the correct J2534 device from the application's hardware configuration menu.

Initiate a vehicle identification sequence. The software will query the vehicle's Powertrain Control Module (PCM) and Engine Control Module (ECM) via the CAN-bus to retrieve the 17-digit Vehicle Identification Number (VIN). Check the decoded VIN displayed in the software against the physical VIN tag located on the driver's side dashboard and the door jamb safety certification label. If the VIN does not match, or if you are working on a used module that contains a mismatched donor VIN, you must manually input the target vehicle's correct VIN to pull the correct calibration files.

Step 4: Select the TCM Programming Procedure

Within the OEM software suite, navigate to the module programming or reprogramming section (often labeled as "SPS2" for General Motors, "Module Programming" in Ford FDRS, or "Flash Application" in Chrysler wiTECH).

Select "Transmission Control Module" or "TCM" from the populated list of modules. The software will query the existing TCM to read its current hardware part number, operating system version, and calibration software IDs. It will then cross-reference these identifiers with the OEM master database to determine if a newer calibration file is available. Select the appropriate programming type: choose "Replace and Program" if you have installed a physical new module, or "Reprogram" if you are updating an existing unit with corrected factory software.

Step 5: Execute the Calibration Flashing Sequence

Confirm your selection and initiate the download of the calibration files from the OEM server to your PC. Once the download is complete, the software will prompt you to begin the programming sequence.

Click "Next" or "Program" to begin the write procedure. During this phase, you will observe the instrument cluster warning lamps flashing, the traction control light illuminating, and communication fault messages displaying on the multi-information display. This is a normal consequence of the CAN-bus entering a dedicated programming state where other modules temporarily lose communication with the TCM.

Do not touch the vehicle's steering wheel, doors, windows, switches, or the laptop keys while the progress bar is filling. The flashing process typically takes between 5 and 15 minutes to complete.

Step 6: Clear Diagnostic Trouble Codes and Initialize the Relearn

Once the software displays a "Programming Successful" message, turn the vehicle's ignition key to the "OFF" position for at least 30 seconds to allow the TCM's internal EEPROM to complete its non-volatile memory storage and power-down sequence. Turn the ignition back to the "RUN" position (Engine Off).

Access the diagnostic portion of your OEM software and execute a full-vehicle DTC clear. Because the CAN-bus communication was suspended during the flash, every other module on the network will have stored "U-codes" (Loss of Communication codes). Clearing all modules is mandatory to restore normal vehicle operation.

Next, you must perform the transmission adaptive learning or solenoid characterization procedure. Modern transmissions (such as the GM/Ford 10-speed or Chrysler 9-speed) require the input of specific solenoid characterization codes or a software "Fast Learn" command to calibrate the clutch pack clearances and solenoid flow rates.

Start the engine and run it until the transmission fluid reaches its specified operating temperature (typically between 130°F and 175°F). Navigate to the TCM special functions menu, select "Transmission Adaptive Learn" or "Solenoid Characterization", and follow the on-screen prompts. This may involve holding your foot on the brake while shifting the transmission through a sequence of gears.

OEM Software and Hardware Compatibility Specifications

Diagnosing TCM Programming Failures and Recovery Protocols

Programming transmission control modules occasionally presents unexpected system halts, failure codes, and connection losses. Understanding how to diagnose these states prevents diagnostic errors and avoids replacing modules unnecessarily.

• Failure Scenario 1: Flashing halts at 50% with a "Communication Lost" (Error Code 0x7F / 0x11) or "Security Access Denied" message.




  • Root Cause: This issue is typically caused by high bus traffic or electromagnetic interference. Aftermarket accessories, such as plug-in OBD-II tracking devices, aftermarket remote starters, non-OEM stereo systems, and high-intensity discharge headlight ballasts, can inject noise onto the CAN-bus, interrupting the critical programming sequence.
  • Actionable Fix: Turn off the ignition, disconnect the battery maintainer, and remove the fuses for any aftermarket accessories. Re-establish the J2534 connection, reconnect the battery maintainer, and select the "Module Recovery" or "Dead Module Programming" utility in your OEM software to restart the write sequence from the bootloader stage.

• Failure Scenario 2: The programming software completes successfully, but the vehicle displays "No Crank, No Start" and the gear indicator is blank or shows a flashing "P".




  • Root Cause: The TCM operating system was written successfully, but the vehicle's immobilizer or anti-theft system has not cleared the security handshake, or the TCM has not been initialized with the correct VIN to match the vehicle's Immobilizer/Body Control Module (BCM).
  • Actionable Fix: Access the Immobilizer/Anti-Theft section of the OEM software. Perform a "VTD (Vehicle Theft Deterrent) Relearn" or "Parameter Reset" to synchronize the security handshakes between the Engine Control Module, Body Control Module, and the newly flashed Transmission Control Module.

• Failure Scenario 3: Harsh shifting, slipping, or erratic engagement during the initial post-programming road test.




  • Root Cause: The adaptive shift strategy registers have been cleared of their historical wear values, and the newly programmed TCM is trying to operate with factory-nominal clutch application pressures. In some cases, the solenoid strategy code was not transferred during the programming sequence.
  • Actionable Fix: Connect your diagnostic scanner and verify that the Solenoid Strategy or Solenoid Characterization ID matches the physical tag stamped on the transmission case. If matched, perform the factory-specified dynamic road adaptation, which involves executing several light-throttle upshifts and coast-down downshifts to allow the TCM to self-learn the clutch fill times.

Frequently Asked Questions

Can I program a transmission control module with a standard OBD-II code reader?

No. Standard OBD-II handheld scanners are only capable of reading and clearing Diagnostic Trouble Codes (DTCs) and viewing live sensor parameter data. Flashing a TCM requires an SAE J2534 pass-through device or manufacturer-specific interface capable of executing hex-write commands on the vehicle's network, paired with dedicated software to flash the operating system and calibration files.

Why is it necessary to input the Solenoid Characterization Code after programming a TCM?

Modern transmission solenoids are manufactured to incredibly tight tolerances, but tiny microscopic variances in flow rates still exist. Manufacturers test each solenoid at the factory and stamp a unique classification code on the transmission housing; inputting this code into the newly programmed TCM allows the module to adjust its pulse-width modulation (PWM) output to match the precise flow characteristics of your specific transmission.

Can I install and program a used TCM sourced from a salvage yard?

It depends on the vehicle manufacturer. For some vehicles, such as older Ford or GM models, you can program a used TCM by overwriting the donor VIN and calibration files using an OEM tool. However, on newer vehicles featuring advanced security gateways and anti-theft systems (such as Mercedes-Benz, BMW, and newer Chrysler/Stellantis vehicles), the TCM is permanently locked to the original vehicle's VIN and security key during initial programming, making used module swaps impossible without specialized EEPROM desoldering or virginization services.

What is the difference between "Flashing" and "Relearning"?

Flashing is the physical process of erasing and writing the core operating system and calibration tables onto the TCM's non-volatile EEPROM chip. Relearning is a post-programming diagnostic procedure where the TCM adapts its shift timing and fluid pressure delivery to compensate for the physical wear on internal clutch packs, seals, and solenoids inside the transmission.
