How To Read A Construction Drawing Like A Professional Estimator
Mastering how to read a construction drawing requires a systematic understanding of architectural scales, industry-standard symbols, and cross-referencing multi-disciplinary plan sets. By decoding line types, deciphering elevation markers, and cross-checking schedules, field personnel and estimators can prevent costly RFIs and execution errors.
Essential Prerequisites for Blueprint Navigation
Before analyzing structural plans, MEP layouts, or civil grading sheets, you must assemble the correct physical and digital toolkit while establishing a baseline understanding of architectural drawing conventions. Modern construction sites rely heavily on hybrid workflows where digital PDF readers complement hard-copy bond prints, requiring proficiency in both environments.
- Essential Gear & Tools: Architectural and engineering triangular scale rulers, mechanical pencils, highlighters for scope separation, a digital takeoff tablet or dual-monitor workstation, and a rolling measure for scaling paper prints.
- Mandatory Reference Standards: Familiarity with National CAD Standard (NCS) conventions, American Institute of Architects (AIA) sheet organization protocols, and local building code occupancy and structural requirements.
- Project Benchmark Metrics: Standard working scales range from 1/8-inch equals 1-foot for architectural floor plans to 1-inch equals 20-feet for civil site plans; review times typically scale at 2 hours per 100 plan sheets for comprehensive trade coordination.
Step-by-Step Blueprint Analysis Workflow
Step 1: Analyze the Title Block and General Notes
Begin every plan review session in the bottom-right corner at the title block. This repository of metadata provides the project name, client, architectural firm, sheet index, current revision number, and date. Immediately cross-reference the sheet index with the physical set to ensure no pages are missing. Next, read the general notes, which dictate governing codes, soil bearing capacities, and material specifications that override conflicting visual data.
Pro-Tip: Always check the revision date in the title block first. Working off an outdated drawing revision is the leading cause of tear-outs and rework on commercial jobsites.
Step 2: Decode Line Types and Architectural Symbols
Construction drawings communicate physical geometry through a strict hierarchy of line weights and linetypes. Solid thick lines represent structural cuts and outlines, hidden dashed lines denote elements concealed above or below the cut plane, and centerlines indicate symmetry or column grids. Familiarize yourself with standard graphic symbols: door swings dictate clearance requirements, window tags reference frame schedules, and fixture callouts point to specific MEP specifications.

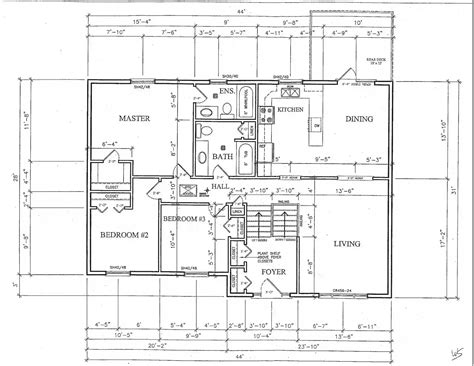

Step 3: Interpret Grid Systems and Dimensional Datasets
Large commercial structures rely on alphanumeric column grid lines to establish precise spatial coordinates. Vertical numbers and horizontal letters create an invisible Cartesian plane where every structural column, wall intersection, and mechanical penetration can be located. Always measure from structural grid lines rather than finished partition faces, as drywall and plaster thickness can vary during construction execution.
Step 4: Cross-Reference Elevations, Sections, and Details
Floor plans provide a top-down horizontal slice of a building, but they cannot convey vertical heights or internal wall assemblies. Locate section cut markers, which appear as circled letters with directional arrows pointing to specific detail pages. Turn immediately to the referenced detail sheet to understand foundation depths, roof parapet construction, waterproofing layers, and material fastening schedules.
Warning: Never scale a construction drawing by hand if the notation reads "DO NOT SCALE DRAWING." Rely strictly on the written numerical dimensions provided by the architect or engineer.
Step 5: Coordinate Multi-Disciplinary Plan Sets
A successful construction project requires synthesizing architectural, structural, mechanical, electrical, and plumbing sheets into a cohesive whole. Overlay structural framing plans with architectural reflected ceiling plans to ensure ductwork, light fixtures, and structural steel beams do not occupy the same physical space. Use door, window, and finish schedules to verify that the quantities and performance metrics match the spatial layouts shown on the floor plans.
How to read structural steel drawing by Tejjy Inc - Issuu
Construction Drawing Type Comparison Matrix
| Drawing Type | Primary Focus | Common Scale Range | Key Information Conveyed |
|---|---|---|---|
| Civil (C Series) | Site grading, utilities, property lines | 1 inch = 20 feet to 1 inch = 100 feet | Topography, storm drainage, property boundaries, paving |
| Architectural (A Series) | Spatial layout, finishes, code compliance | 1/8 inch = 1 foot to 1/4 inch = 1 foot | Wall partitions, door swings, room finishes, ADA clearances |
| Structural (S Series) | Load-bearing systems, foundations, framing | 1/4 inch = 1 foot to 3/4 inch = 1 foot | Concrete reinforcement, steel beam sizes, footing depths |
| Mechanical (M Series) | HVAC, ductwork, piping, ventilation | 1/8 inch = 1 foot to 1/4 inch = 1 foot | Air handler locations, supply/return runs, diffuser types |
| Electrical (E Series) | Power, lighting, low-voltage systems | 1/8 inch = 1 foot to 1/4 inch = 1 foot | Panel boards, fixture layouts, switch locations, conduit paths |
Common Drawing Discrepancies and Field Fixes
- Root Cause: Conflicting data between architectural floor plans and structural framing layouts regarding wall placements.
- Actionable Fix: Issue a formal Request for Information (RFI) to the design team immediately, referencing the specific sheet numbers and grid lines before framing commences.
- Root Cause: Scaling errors resulting from printing digital PDFs at reduced or non-standard paper sizes.
- Actionable Fix: Always verify the graphic scale bar on the printed sheet using an actual ruler to confirm the drawing was plotted at 100 percent scale.
- Root Cause: Missing or ambiguous door hardware schedules that prevent accurate hardware procurement.
- Actionable Fix: Cross-reference the floor plan door tags with the hardware set numbers in the specification manual rather than relying solely on the architectural sheet notes.
- Root Cause: MEP trade clash where plumbing lines intersect with structural steel web penetrations.
- Actionable Fix: Request a coordinated 3D BIM model overlay or run a clash-detection report to establish spatial priority before rough-in installation.
Frequently Asked Questions
What is the difference between an architectural scale and an engineering scale?
An architectural scale divides inches into fractions of a foot, such as 1/4 inch equals 1 foot, which is ideal for building interiors and floor plans. An engineering scale uses decimals, such as 1 inch equals 10 or 50 feet, making it suitable for large civil site plans and topographic mapping.
How do I find a specific detail on a crowded construction drawing?
Look for detail callout bubbles, which feature a top number indicating the specific detail drawing and a bottom number indicating the sheet where that detail is located. If the bottom number is blank, the detail is typically found on the same sheet.
Why do some lines appear darker than others on blueprints?
Line weight hierarchy directs the human eye to the most critical information. Heavy, thick lines outline major structural cuts or perimeter walls, medium lines represent visible edges and objects, and faint or dashed lines show hidden elements, centerlines, or dimension extensions.
What should I do if the dimensions on a drawing do not add up?
Stop work immediately and do not attempt to force the installation. Calculate the total string dimensions and compare them to the overall dimension given; if a discrepancy exists, submit an RFI to the architect for clarification to avoid field misalignments.
Are digital construction drawings legally binding over paper sets?
Contract documents dictate the order of precedence, but modern projects typically rely on the master digital PDF set housed in cloud-based project management platforms as the current source of truth, provided it matches the latest issued-for-construction revision logs.
