How To Read Engine Codes Without A Reader: The Complete Manual

When a Check Engine Light illuminates your dashboard, you do not necessarily need an expensive OBD-II scan tool to diagnose the underlying fault. By utilizing factory diagnostic modes, manual key cycles, or jumper wire bridge techniques, you can retrieve standardized Diagnostic Trouble Codes (DTCs) directly from your vehicle's engine control module.

Pre-Operation & Initial Setup Requirements

Retrieving diagnostic trouble codes without a dedicated electronic scanner requires an understanding of your vehicle's electronic architecture, onboard diagnostic generation, and electrical safety standards. OBD-I systems (generally pre-1996) and select legacy OBD-II platforms rely on flash codes or dashboard indicator integration, while modern multiplexed networks require extreme caution to avoid damaging sensitive computer modules.

• Essential Gear & Tools:


  • A short length of insulated 14-gauge primary automotive wire or a stainless steel paperclip (for jumper wire methods).
  • A digital multimeter (capable of measuring DC voltage and continuity).
  • A paper and pen to manually record flash sequences.
  • Factory service manual or quick-reference lookup chart for specific diagnostic trouble code definitions.
• Mandatory Prerequisite Knowledge & Standards:


  • Familiarity with the location of the Data Link Connector (DLC) under the driver-side dashboard or the engine bay diagnostic block.
  • Understanding of standard SAE diagnostic trouble code structures (P0, P1, C0, B0 prefixes).
  • Verification that the vehicle battery is charged above 12.4 volts to prevent low-voltage ECU erratic behavior during diagnostic mode initiation.
• Estimated Budget & Duration Benchmarks:


  • Duration: 15 to 30 minutes.
  • Financial Cost: 0 to 5 dollars (for jumper wire supplies, if not already owned).

Step-by-Step Diagnostic Retrieval Workflow

Step 1: Locate the Diagnostic Port or Access Port

Locate your vehicle's diagnostic interface depending on the model year. For vehicles equipped with OBD-I (pre-1996), look for a specialized diagnostic connector under the hood or beneath the dashboard near the steering column, often featuring a multi-pin layout unique to manufacturers such as Ford, General Motors, or Chrysler. For vehicles using the key-dance or odometer-flash method, no physical port access is required, as the vehicle outputs data directly to the instrument cluster.

Warning: Never use a jumper wire on an unknown terminal cavity without verifying pinout diagrams. Bridging power and ground circuits can permanently fry the engine control module.

Step 2: Initiate Diagnostic Mode via Jumper or Key Cycle

For older domestic and import vehicles, bridge the specified diagnostic terminals using your jumper wire or paperclip while the ignition switch is in the OFF position. For instance, on many 1980s and 1990s General Motors vehicles, you must bridge terminals A and B on the 12-pin ALDL (Assembly Line Diagnostic Link) connector. Once the terminals are bridged, turn the ignition key to the ON position (engine off) without starting the vehicle to activate diagnostic readout mode.

Pro-Tip: For certain modern vehicles like older Jeep, Dodge, and Chrysler models, you can bypass manual wiring entirely by cycling the ignition key from OFF to ON three times consecutively within five seconds, ending in the ON position, which causes the odometer LCD screen to display active alphanumeric fault codes.

Step 3: Observe and Count Check Engine Light Flashes

Watch the Check Engine Light or Service Engine Soon light on your instrument cluster as it enters flash mode. The malfunction indicator lamp will communicate diagnostic trouble codes numerically through a series of flashes and pauses. A standard code consists of two digits for older systems or four digits for later iterations, structured with a pause between the first digit set and the second digit set.

Step 4: Interpret the Flash Sequence Pattern

Master the standard flash timing conventions to accurately decode your trouble code. Code transmission typically begins with a start sequence, such as Code 12 (one flash, a brief pause, two flashes), which repeats three times to indicate the diagnostic system is operational and waiting to transmit stored faults. Subsequent codes will flash similarly, separated by longer pauses. For example, three flashes, a short pause, and four flashes represent Code 34. Once all stored codes have flashed, the system will cycle back to the starting code.

Common Diagnostic Retrieval Failures & Field Fixes

• Root Cause: The Check Engine Light remains solid or fails to flash when diagnostic terminals are bridged.


  • Actionable Fix: Verify that the jumper wire is making solid metal-to-metal contact inside the correct terminal cavities. Ensure the vehicle ignition is switched to the ON position and check the ECU battery power and ground fuses under the hood.
• Root Cause: Inability to distinguish between the pause separating code digits and the pause separating distinct trouble codes.


  • Actionable Fix: Record the flash sequences using a video camera on your smartphone. Play back the footage at normal or reduced speed to accurately time the brief intervals between digits and the extended intervals between separate fault codes.
• Root Cause: The diagnostic system continuously repeats the initial entry code (such as Code 12) without displaying any actual system fault codes.


  • Actionable Fix: This indicates zero active or stored diagnostic trouble codes in the engine control module memory. If the dashboard light remains illuminated despite this, the fault may reside in a non-powertrain module or stem from a persistent intermittent electrical ground issue.
• Root Cause: The vehicle instrument cluster displays an obscure manufacturer-specific numeric code that does not match standard diagnostic tables.


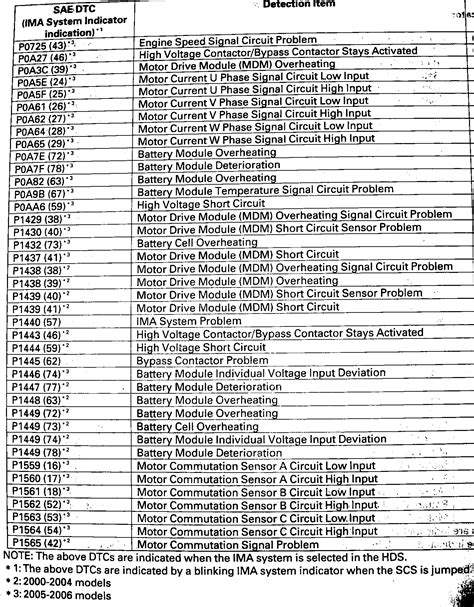

  • Actionable Fix: Cross-reference the retrieved numerical code with a vintage factory service manual specific to your exact model year, make, and engine displacement, as generic online databases often omit legacy proprietary flash codes.

Frequently Asked Questions

Can I read modern OBD-II codes without a scanner on all cars?

No. The manual key-dance or odometer flash method is largely restricted to select domestic manufacturers like Chrysler, Dodge, Jeep, and specific older import models. Most modern vehicles utilizing Controller Area Network (CAN) bus protocols require a digital electronic scan tool to query the computer modules.

What does a repeating Code 12 mean during manual flash diagnosis?

Code 12 (one flash, pause, two flashes) is the standard initialization sequence used by many engine computers to indicate that the diagnostic self-test mode has successfully begun. It is not an engine fault code, and the computer will repeat it three times before displaying any actual stored diagnostic trouble codes.

Is it safe to use a paperclip to bridge diagnostic terminal ports?

Yes, provided you correctly identify the specific cavities corresponding to the diagnostic data output and ground circuits. Inserting a paperclip into incorrect terminal slots, such as a fused 12-volt power supply or airbag circuit, can cause electrical shorts, blow critical fuses, or deploy restraint systems.

How do I clear engine codes after fixing the problem without a reader?

You can clear stored powertrain diagnostic trouble codes without a scanner by disconnecting the negative vehicle battery terminal for a minimum of 15 to 20 minutes, allowing the keep-alive memory (KAM) capacitors inside the engine control module to fully discharge and reset the system.
