How To Remove An OTF Blade: A Comprehensive Technical Maintenance Guide

Removing an out-of-the-front (OTF) knife blade requires a precise understanding of high-tension spring mechanisms, proprietary fastener layouts, and safe chassis handling. By following standardized bench practices and utilizing the correct micro-tooling, you can successfully disassemble double-action or single-action OTF pocket knives without stripping screws or compromising internal coil longevity.

Pre-Operation & Equipment Checklist

Proper disassembly of a precision-engineered OTF knife demands a controlled environment, specialized instrumentation, and a clear awareness of mechanical tolerances. Because micro-mechanics, miniature ball bearings, and high-tension springs are easily lost or damaged, establishing a dedicated workspace is critical.

• Essential gear, tools, and materials: T6 and T8 Torx drivers (preferably bit drivers with torque control), precision tweezers, a magnetic parts tray, 99% isopropyl alcohol, compressed air, and a high-grade fluorinated grease or synthetic knife oil.
• Mandatory prerequisite knowledge and safety standards: Eye protection is strictly required due to stored spring energy. You must also verify whether your specific knife uses proprietary fasteners (such as Microtech tri-wing or proprietary pivot screws) that demand specialized bits.
• Estimated budget and duration benchmarks: If you already own precision bits, the project costs under ten dollars for cleaning supplies and lubricants, requiring approximately 30 to 45 minutes of uninterrupted focus.

Step-by-Step OTF Blade Extraction Workflow

Step 1: Secure and Discharge the Spring Tension

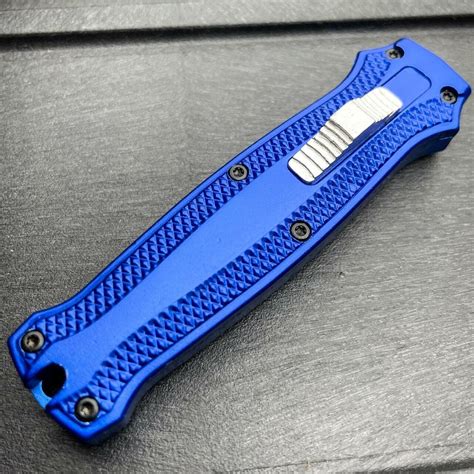

Before turning a single screw, ensure the knife is in the retracted (closed) position to minimize the potential energy stored within the internal dual-spring drive system. Place the knife flat on a clean workbench and verify that the switch or sliding button is fully seated in the locked-down state.

Warning: Never attempt to disassemble an OTF knife while the blade is in the deployed (open) position, as the compressed internal drive springs will violently release, launching internal carriages and potentially causing injury.

Step 2: Extract the Chassis Fasteners and Retaining Screws

Using the correct high-tolerance T6 or T8 Torx driver, systematically remove all body screws from the handle scale. Keep track of screw placement, as body screws in precision knives often vary in length between the spine, the clip side, and the pivot area. Place every removed component directly into your magnetic parts tray to prevent rolling or loss.

Step 3: Separate the Handle Scales and Expose the Drive Train

Gently lift the top handle scale straight up to avoid catching internal posts or pins. You will now see the internal chassis, which typically consists of a sliding carriage (or blade carrier), dual tension springs resting in guide channels, and a locking gate or ramp system.

Pro-Tip: Take a high-resolution photograph of the internal mechanism right after removing the scale to serve as an accurate visual reference during reassembly.

Step 4: Disengage and Remove the Springs

Carefully use non-marring precision tweezers to lift the rear anchor points of the tension springs off their respective posts on the blade carriage. Allow the springs to gently uncoil or relax within their tracks before lifting them completely out of the handle channel. Avoid bending or kinking these springs, as any deformation will permanently ruin the snappy deployment action of the OTF mechanism.

Step 5: Extract the Blade from the Carriage Slider

With the spring tension completely neutralized, slide the blade forward out of the front chassis opening, or lift it upward depending on whether your specific model utilizes a drop-in carriage slot or a transverse pin lock. Inspect the blade tang, the sliding notch where the carriage engages the blade, and the internal alignment pins for any signs of structural wear, burrs, or excessive debris accumulation.

OTF Mechanical Architecture and Fastener Standards

Understanding the differences in fastener sizing, spring configurations, and locking mechanisms across various OTF manufacturing standards ensures you select the correct tools and replacement components for your specific model.

Common Mechanical Failures and Field Fixes

Even with careful handling, OTF knives are prone to specific operational glitches that stem from pocket lint accumulation, wear, or improper reassembly.

• Failure to Retract: The root cause is usually heavy pocket lint obstructing the internal sliding carriage or a misaligned spring resting outside its designated guide channel. To fix this, completely strip the knife down, clean all internal tracks with 99% isopropyl alcohol, dry thoroughly with compressed air, and apply a micro-droplet of synthetic lubricant before re-securing the springs.
• Blade Rattle During Deployment: This occurs when the internal locking gate wears down or the carriage pins develop excessive play within the blade tang slot. The fix requires inspecting the blade tang interface for impact deformation; if wear is severe, replacement of the carriage or blade is necessary.
• Stripped Torx Fasteners: This happens when using worn-out bits or applying incorrect torque levels during reassembly. The fix involves using a quality hollow-ground or high-precision bit set, and if a screw is already stripped, carefully extracting it with a specialized micro-screw extractor or cutting a slot for a flathead screwdriver.

Frequently Asked Questions

Do I need to void my warranty to remove an OTF blade?

Yes, disassembling most production OTF knives directly violates the manufacturer warranty policy. Always check the brand guidelines before taking apart high-end custom or production automatic knives.

Can I stretch the springs to make the knife deploy harder?

No, stretching the 17-7 stainless steel tension springs will fatigue the metal, permanently ruin the spring rate, and often cause immediate failure or sluggish action. Replace worn springs with exact factory-spec replacements instead.

What kind of lubricant should I use inside an OTF mechanism?

You should use a dry film lubricant or a very light, high-purity synthetic oil or fluorinated grease. Heavy oils or thick household greases attract pocket lint and dust, which quickly gums up the delicate dual-spring mechanism.

Why is my blade misaligned after reassembly?

Blade misalignment usually happens when the dual tension springs are seated unevenly, putting unequal lateral pressure on the carriage slider. Disassemble the unit, verify that both springs match in tension and placement, and ensure the handle scales are torqued down evenly in a cross-pattern.

Maintain Your Precision Gear with Confidence

Mastering the internal mechanics of your automatic knife ensures reliable, lightning-fast deployment for years of dependable service. Take your time, keep your workspace meticulously organized, and always prioritize component safety during every maintenance cycle.
