How To Remove Powder Coating: Complete Industrial & DIY Stripping Guide

Removing cured powder coating requires breaking the cross-linked polymer bonds of epoxy, polyester, or polyurethane resins through chemical solvation, thermal pyrolysis, or mechanical media ablation. Choosing the optimal method depends on substrate tolerance, coating composition, and available processing equipment, ranging from chemical immersion in benzyl alcohol or caustic solutions to media blasting with 60–80 mesh aluminum oxide. Executing precise exposure times and thermal thresholds ensures complete coating removal without compromising the structural integrity or surface profile of the underlying metal.

Pre-Operation Setup & Material Diagnostics

Before applying any stripping agent or mechanical force, you must evaluate both the substrate material and the specific resin composition of the cured finish. Thermosetting powder coatings cross-link during the thermal curing process, transforming into an insoluble, heat-resistant polymer network that resists standard paint thinners and light solvents. Attempting removal without matching the process to the metal alloy can cause irreversible substrate warping, hydrogen embrittlement, or surface pitting.

Technical & Material Requirements

• Essential PPE & Safety Equipment: NIOSH-approved dual-cartridge organic vapor/P100 respirator, heavy-duty butyl rubber gloves (for chemical solvents) or neoprene gloves (for caustics), full-face shield, splash-proof apron, and blast suit with fresh-air feed.
• Chemical & Mechanical Tooling: Benzyl alcohol-based chemical strippers, industrial caustic soda (sodium hydroxide) dip tanks, 60–80 mesh aluminum oxide or garnet media, pressure-blast cabinet operating at 80–100 PSI, or a pyrolytic burn-off oven.
• Substrate Inspection Tools: Surface profile gauge, digital infrared thermometer, and surface pH test strips.
• Prerequisite Knowledge Standards: Familiarity with SSPC (Society for Protective Coatings) surface preparation standards (specifically SSPC-SP 10/NACE No. 2 Near-White Metal Blast Cleaning) and local VOC/hazardous waste disposal regulations.
• Budget & Time Benchmarks: Chemical batch stripping costs $50–$200 per component, taking 1 to 4 hours of dwell time. Media blasting costs $75–$150 per hour with a processing time of 30 to 90 minutes per part. Industrial thermal burn-off requires specialized facilities, operating on 4 to 8-hour heat cycles.

Methodical Powder Coating Removal Workflows

Select one of the three primary execution paths below based on your shop environment, part geometry, and substrate material.

Step 1: Substrate & Coating Identification

Begin by determining whether the substrate is ferrous metal (cast iron, carbon steel) or non-ferrous metal (aluminum, magnesium, copper alloys). Ferrous metals can tolerate high-temperature thermal stripping and aggressive mechanical media. Non-ferrous alloys, particularly thin-gauge 6061 or 7075 aluminum, will warp under high heat and suffer deep pitting under aggressive blasting media.

Test the coating thickness with a magnetic or eddy-current mil gauge. Heavy film builds exceeding 6 mils (150 microns) often benefit from a combination of chemical softening followed by light mechanical blasting.

Warning: Never use thermal burn-off or strong caustic solutions on magnesium substrates. Caustics severely etch magnesium, while elevated temperatures (above 800°F / 427°C) pose a severe fire hazard with magnesium alloys.

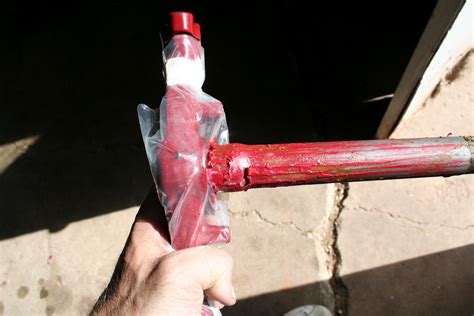

Step 2: Chemical Stripping Execution

Chemical removal relies on small-molecule solvents penetrating the polymer matrix, causing the film to swell, soften, and lose adhesion to the substrate.

1. Chemical Selection: Select a industrial-grade benzyl alcohol formulation containing acid activators (such as formic acid) for general applications. For steel parts, hot-tank immersion using sodium hydroxide (caustic soda) heated to 160°F–180°F (71°C–82°C) offers rapid cross-link breakdown. Avoid methylene chloride due to stringent OSHA workplace exposure limits and health hazards.
2. Application / Immersion: For liquid chemical gels, apply an even, heavy layer of 1/8-inch thickness using a chemical-resistant brush. Cover the part with high-density polyethylene film to prevent volatile solvent evaporation. For immersion tanks, submerge the component fully, ensuring no air pockets remain in hollow cavities.
3. Dwell Time Management: Allow the chemical agent to react for 30 to 120 minutes. Inspect the surface periodically; the coating will wrinkle, blister, and lift away from the metal margin.
4. Scraping & Mechanical Aid: Use a non-marring polypropylene scraper to lift the gelled powder coat. For intricate geometry, scrub with a stiff nylon or stainless steel wire brush.

Pro-Tip: If using an unheated benzyl alcohol stripper, elevating the ambient room temperature to 75°F–85°F (24°C–29°C) cuts the chemical dwell time nearly in half by accelerating the solvent penetration rate into the cross-linked resin matrix.

Step 3: Mechanical Media Blasting Execution

Ablation strips the coating through direct kinetic impact. This process is ideal for thick steel fabrications, cast iron manifolds, and structural parts where surface profiling is required for immediate recoating.

1. Media Selection: Load the blast system with 60 to 80 mesh aluminum oxide or crushed glass for standard steel stripping. For delicate aluminum rims or sheet metal, use plastic media (Type III composition) or walnut shells to prevent baseline erosion.
2. Equipment Calibration: Set your compressor discharge pressure between 80 and 90 PSI at the nozzle for hard abrasives, or lower it to 35 to 50 PSI for soft media on non-ferrous substrates.
3. Nozzle Technique: Hold the blast nozzle at a 45-degree angle to the surface at a distance of 8 to 12 inches. Maintaining a 45-degree angle allows the abrasive particles to wedge beneath the coating film, peeling it back rather than crushing it directly into the substrate surface.
4. Coverage Pass: Move the nozzle in steady, overlapping linear passes. Avoid dwelling on a single spot for more than two seconds to prevent localized thermal expansion and surface distortion.

Step 4: Thermal Pyrolysis (Burn-Off Oven) Execution

Thermal stripping subjects the powder coat to high temperatures within a controlled oxygen environment, converting the organic polymer binders into gaseous byproducts and dry ash.

1. Pre-Cleaning: Remove all rubber seals, plastic inserts, brass fittings, and liquid lubricants from the component.
2. Oven Programming: Place the part inside a dedicated industrial pyrolytic burn-off oven equipped with an afterburner system. Set the primary chamber temperature between 750°F and 800°F (399°C to 427°C).
3. Pyrolysis Cycle: Run the cycle for 2 to 4 hours depending on mass load. The afterburner must operate at 1400°F–1500°F (760°C–815°C) to incinerate volatile organic emissions, complying with environmental air standards.
4. Cooling & Ash Removal: Allow the oven to cool slowly to below 200°F (93°C) before opening chamber doors to prevent thermal shock in the metal structure. Remove the remaining inorganic filler ash by washing with a high-pressure water rinse or performing a quick light-blast pass.

Step 5: Post-Stripping Neutralization & Surface Profiling

Residual chemicals or loose carbon ash will compromise the adhesion of subsequent paint or powder coats.

1. Rinsing: Wash chemically treated parts with a high-pressure (2500+ PSI) hot water washer.
2. Chemical Neutralization: If an acidic stripper was used, rinse the part with a 2% sodium bicarbonate (baking soda) bath to raise surface pH to neutral (6.5–7.5). If a caustic dip was used, perform an acid wash (such as a 5% phosphoric acid rinse) to prevent residual alkali flash rusting.
3. Drying & Flash Rust Inhibition: Dry the component using compressed air. Apply a water-soluble flash rust inhibitor if carbon steel will remain uncoated for longer than two hours.
4. Anchor Profile Verification: Verify the bare metal surface profile using a surface replica tape gauge. Ensure an anchor profile of 1.5 to 2.5 mils (38 to 64 microns) for optimal re-application of thermoset coatings.

Technical Parameters of Removal Methods

Evaluating efficiency, substrate safety, and operational trade-offs helps select the right stripping method for specific manufacturing or restoration projects.

Troubleshooting Common Coating Stripping Failures

Mechanical Warping of Thin-Gauge Sheet Metal

• Root Cause: Using aggressive high-impact abrasives (such as steel grit or coarse aluminum oxide) at nozzle pressures above 80 PSI generates localized frictional heat and mechanical stress, causing thin panels to bow or warp.
• Actionable Fix: Switch to plastic blast media or crushed glass at 35–45 PSI. Maintain a maximum nozzle angle of 45 degrees relative to the substrate and increase nozzle distance to at least 12 inches from the part. Alternatively, transition to a chemical gel stripper to eliminate mechanical impact.

Surface Sludge Formation and Poor Chemical Rinsing

• Root Cause: The chemical stripper partially solubilized the resin matrix, but the solvent evaporated before full removal, allowing dissolved polymers to re-deposit as a sticky residue.
• Actionable Fix: Apply a fresh, light coat of liquid chemical stripper directly over the residue to re-solubilize the polymer binder. Scrub with a stiff nylon brush, then immediately wash with a heated high-pressure water sprayer (160°F / 71°C minimum) before the solvent dries.

Rapid Substrate Flash Rusting Post-Stripping

• Root Cause: Removing protective coatings exposes fresh ferrous metal to atmospheric moisture and ambient oxygen. Residual acid or alkali ions from chemical strippers accelerate corrosion, forming iron oxide within minutes.
• Actionable Fix: Thoroughly neutralize the part after chemical washing. Add an industrial flash rust inhibitor (such as a dilute sodium nitrite solution) to the final rinse stage. Dry parts rapidly using dry, oil-free compressed air or a heated drying oven.

Loss of Aluminum Temper (Softening) After Heat Burn-Off

• Root Cause: Exposing heat-treated aluminum alloys (such as 6061-T6) to temperatures exceeding 400°F (204°C) alters their microstructural precipitate phase, reducing tensile strength and structural stiffness.
• Actionable Fix: Avoid thermal burn-off ovens for heat-treated aluminum components. Use benzyl alcohol chemical tanks or plastic media blasting instead. If thermal treatment is unavoidable, send the aluminum parts through a certified metallurgical heat-treatment process to re-temper the metal back to T6 specifications.

Frequently Asked Questions

Does acetone remove cured powder coating?

Acetone will soften un-cured powder, but it cannot dissolve fully cured thermoset powder coatings. Cured powder coatings feature cross-linked polymer chains that resist standard ketone and ester solvents. Removing cured coatings requires specialized chemical strippers, thermal pyrolysis, or abrasive media blasting.

Will standard automotive paint stripper remove powder coat?

Consumer-grade paint strippers rarely contain the chemical strength needed to break down industrial powder coating cross-linking. Modern methylene-chloride-free retail strippers react too slowly on thermoset epoxies. Removing powder coat effectively requires industrial benzyl alcohol preparations with acid activators or hot-tank sodium hydroxide formulations.

Does sandblasting damage metal during powder coat removal?

Coarse abrasives operated at high nozzle pressures can profile, pit, or erode soft metals such as aluminum or brass. Using appropriate media—such as 60-80 mesh aluminum oxide for steel or plastic media and walnut shells for aluminum—removes the powder coating safely without destroying the underlying metal dimensions.

How do I know if the powder coat is completely removed?

A fully stripped substrate exposes a uniform, bare metal surface free of glossy spots, discoloration, or flexible film remnants. You can verify total coating removal by performing a surface profile inspection using press-film replica tape or testing surface conductivity across the component.
