Comprehensive Guide To Permanent Basement Wall Crack Repair And Structural Waterproofing

Successfully repairing a crack in a basement wall requires identifying whether the fracture is structural or non-structural before choosing between high-strength epoxy resins for reinforcement or expansive polyurethane foams for water-stop applications. The primary technical benchmark for a professional-grade repair involves achieving a full-depth penetration of the injection resin from the interior face to the exterior soil-side interface to ensure a monolithic seal against hydrostatic pressure.

Structural Diagnosis, Material Procurement, and Site Preparation

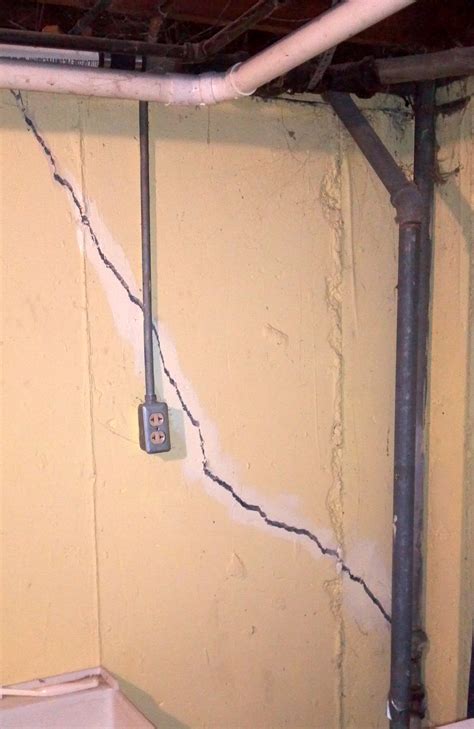

Before beginning any repair, you must distinguish between drying shrinkage cracks and structural settling. Vertical or diagonal cracks (under 1/8 inch) are typically caused by concrete shrinkage as it cures or minor settling and are ideal candidates for DIY injection. However, horizontal cracks or "stair-step" cracks in masonry blocks often indicate significant lateral soil pressure or foundation failure and may require carbon fiber reinforcement or steel piering alongside resin injection.

Essential Equipment and Materials Checklist

• Injection Resin Kits: Low-viscosity epoxy (for structural bonding) or hydrophobic polyurethane (for active water leaks).
• Surface Sealant: Two-part fast-cure epoxy paste or hydraulic cement for surface capping.
• Injection Ports: Plastic surface-mounted ports (T-ports) or mechanical packers for high-pressure applications.
• Preparation Tools: Wire brushes, 4-pound crack hammer, masonry chisels, shop vacuum with HEPA filtration, and a scrub brush.
• Safety Gear: ANSI-rated safety goggles, chemical-resistant nitrile gloves, and an N95 respirator to avoid inhaling concrete dust.
• Cleaning Agents: Denatured alcohol or acetone to remove oils from the concrete surface.
• Estimated Duration: 4 to 6 hours for a single 8-foot crack, with 24 hours of curing time.
• Budget Benchmarks: $150 – $450 for high-quality DIY injection kits; $800 – $2,500 for professional intervention.

Systematic Low-Pressure Resin Injection Workflow

Following a disciplined protocol ensures the repair survives seasonal freeze-thaw cycles and varying water tables. The most common failure point in basement repairs is inadequate surface cleaning, which prevents the surface sealer from holding under the pressure of the injection.

Step 1: Substrate Cleaning and Crack Internalization

The concrete surface surrounding the crack must be stripped of all paint, efflorescence (white salty deposits), and loose debris. Use a stiff wire brush to scrub a two-inch path on either side of the crack. If the crack is very tight, do not "V-groove" it unless you are using hydraulic cement; for resin injection, keeping the crack narrow helps maintain the capillary action needed to pull the resin through the wall. Use a shop vacuum to pull dust out of the crack rather than blowing it in with compressed air, which can wedge debris deeper.

Warning: Never use muriatic acid to clean the crack if you intend to use epoxy, as the acid residue can interfere with the chemical bond of the resin.

Step 2: Strategic Injection Port Placement

Injection ports serve as the entry points for the resin. Space the ports every 8 to 12 inches along the length of the crack. A common rule of thumb is to space ports the thickness of the wall apart (e.g., if the wall is 8 inches thick, space ports every 8 inches).

1. Start the first port at the lowest point of the crack.
2. Apply a small amount of the two-part epoxy paste to the base of the port, ensuring you do not clog the center hole.
3. Press the port firmly over the crack.
4. Work your way upward, ensuring the ports are aligned precisely with the center of the fracture.

Step 3: Application of the Surface Sealant (The Cap)

The surface sealant keeps the injection resin from leaking out of the front of the crack during the pressurized injection phase. Mix the two-part epoxy paste according to the manufacturer’s instructions until a uniform color is achieved. Apply a 1/8-inch thick layer of the paste over the entire crack, covering the flanges of the injection ports. Feather the edges of the paste approximately one inch onto the clean concrete on both sides.

Pro-Tip: Once the cap is applied, wait at least 30 to 60 minutes (depending on the product's cure rate) before beginning the injection. The cap must be hard enough that it cannot be indented with a fingernail.

Step 4: The Injection Process (Bottom-to-Top Rule)

Always begin injecting at the lowest port. This allows the resin to displace air and water as it rises, preventing voids and "honeycombing" within the repair.

1. Attach the mixing nozzle of your resin cartridge to the lowest port.
2. Squeeze the trigger with steady, low pressure.
3. Continue injecting into the first port until the resin begins to flow out of the port directly above it.
4. Cap the first port with the included plug and move the nozzle to the next port.
5. Repeat this process until you reach the top of the crack.

If you are using polyurethane foam, the material will expand significantly upon contact with moisture. If you are using epoxy, the process is slower as the material must seep into the microscopic pores of the concrete.

Step 5: Post-Injection Monitoring and Finishing

Once the entire crack is filled, allow the materials to cure for 24 to 48 hours. If the repair is in a finished area of the basement, you can remove the ports and the surface cap. Use a hammer to strike the ports from the side; they should snap off cleanly. The epoxy cap can be ground down with a masonry wheel or left in place if the wall is to be covered by framing or insulation.

Material Performance and Selection Specifications

Choosing the correct chemical agent is the difference between a temporary patch and a permanent structural fix. Use the following table to match your specific crack profile with the industry-standard material.

Common Failure Scenarios and Field Rectifications

Even with precise application, environmental variables can impact the success of a basement wall repair. Recognizing these issues early allows for mid-process correction.

• Resin Blowout (Cap Failure)


  • Root Cause: Injecting with too much pressure or failing to allow the surface cap to fully cure.
  • Actionable Fix: Stop injecting immediately. Use a fast-setting epoxy putty to "bandage" the leak. Wait 15 minutes for the patch to harden before resuming injection at a lower pressure.
• Incomplete Penetration (Resin Not Reaching Next Port)


  • Root Cause: Internal blockage within the crack or resin viscosity that is too high for a hairline fracture.
  • Actionable Fix: If the resin refuses to travel to the next port, move the nozzle up one port and try injecting there. If resistance remains, you may need to drill a 45-degree angle hole to intercept the crack mid-wall and install a mechanical packer.
• Rapid Polyurethane Expansion


  • Root Cause: Excessive water inside the crack causing the foam to react too violently and push out of the ports before full depth is reached.
  • Actionable Fix: Use a "dual-stage" injection. Inject a small amount of foam to react with the bulk water, wait 5 minutes, then perform a secondary injection to fill the remaining voids with denser material.

Frequently Asked Questions

Should I use epoxy or polyurethane to fix my basement crack?

Use epoxy if the crack is structural or if the wall is bowing, as epoxy restores the original strength of the concrete. Use polyurethane if the crack is actively leaking or if you expect the house to continue shifting slightly, as the foam remains flexible and maintains a seal during movement.

Can I repair a basement crack from the outside?

While exterior repair is possible by excavating the foundation, it is significantly more expensive and labor-intensive. Interior injection is the industry standard because the injection pressure forces the resin through the entire thickness of the wall, creating an exterior-side seal without the need for digging.

How do I know if a crack is structural?

Structural cracks are generally wider than 1/8 inch, run horizontally across the wall, or show signs of "displacement" where one side of the crack is further out than the other. If you see stair-step cracking in a block wall or if the crack is wider at the top than the bottom, consult a structural engineer.

Will hydraulic cement stop a basement leak permanently?

Hydraulic cement is often a temporary fix because it does not bond chemically with the concrete and is brittle. As the foundation expands and contracts with the seasons, the bond will break, and water will eventually find its way around the patch. Resin injection is the only permanent solution.

Foundation Integrity and Long-Term Maintenance

Securing your foundation through professional injection methods prevents costly structural degradation and protects your home's resale value. If you encounter significant wall deflection or recurring moisture issues after a repair, contact a licensed foundation specialist to evaluate your property's drainage and lateral load requirements.
