How To Replace Your Subaru Key Fob Battery: A Complete Technical Guide
Replacing a Subaru key fob battery is a straightforward maintenance task that requires no specialized diagnostic equipment, typically taking less than five minutes to complete. The process involves identifying the correct CR2032 or CR1620 lithium coin cell battery, safely disengaging the plastic housing, and ensuring the internal contacts remain free of debris to prevent signal transmission failure.
Preparation Requirements and Tooling Standards
Before attempting to open the key fob casing, ensure your workspace is clean, well-lit, and free of static-prone surfaces. Using incorrect tools, such as heavy-duty screwdrivers or metal pry bars, can easily mar the plastic housing or damage the delicate internal printed circuit board (PCB). Professional automotive technicians recommend using non-conductive plastic prying tools or, at minimum, a flat-head jeweler’s screwdriver wrapped in a thin microfiber cloth to protect the finish.
- Essential Gear and Materials:
- Replacement Battery: CR2032 (most common for push-button start systems) or CR1620 (found in select older remote entry models). Consult your owner’s manual or check the markings on the old battery before purchasing a replacement.
- Prying Tool: Flat-head jeweler’s screwdriver (1.4mm to 2.0mm) or a plastic trim removal tool.
- Cleaning Material: A small microfiber cloth or a cotton swab dampened with 90% isopropyl alcohol for cleaning internal battery terminals.
- Environment: A flat, stable workbench or table surface.
- Estimated Time: 3 to 7 minutes.
- Cost Benchmark: $3.00 to $8.00 depending on the battery brand and quantity.
Procedural Workflow for Subaru Intelligent Fob Disassembly
Modern Subaru vehicles utilize two primary types of key fobs: the integrated mechanical key/remote combo and the proximity smart key (push-button start). While the external physical appearance varies across model years (such as Outback, Forester, Crosstrek, and Ascent), the internal mechanical release mechanisms remain consistent.
Step 1: Removing the Emergency Mechanical Key
Every Subaru smart fob contains a hidden mechanical key blade used for manual entry if the battery fully depletes. Locate the small release lever or button on the back or side of the fob casing. Slide this lever while simultaneously pulling the silver key ring or the end of the fob to slide the metal key blade out. This exposes the seam necessary for splitting the housing.
Step 2: Accessing the Internal Battery Compartment
With the mechanical key removed, locate the small notch in the seam between the two plastic housing halves. Insert your flat-head screwdriver or plastic pry tool into this notch. Gently twist the tool to pop the two halves of the fob apart. If the shell feels resistant, do not use excessive force; move the tool slightly along the seam to release the retention clips one by one.
Step 3: Removing the Exhausted Coin Cell

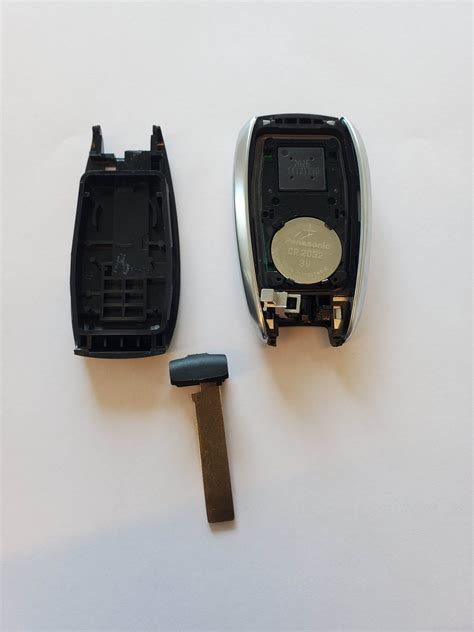

Once the housing is open, the battery will be visible inside the rear half of the casing, usually held in place by a circular plastic bracket or thin metal contact prongs. Use your fingernail or the tip of the jeweler’s screwdriver to gently pry the battery out of its socket. Be careful not to bend the metal contact leads, as these are critical for maintaining a steady voltage flow.
Step 4: Installing the New Battery and Sealing the Fob
Place the new battery into the cavity with the positive side (marked with a plus sign) facing up, matching the orientation of the original battery. Ensure the battery is seated flat and fully underneath any retaining clips. Align the two halves of the key fob casing and press them firmly together until you hear the plastic tabs click into place. Reinsert the emergency mechanical key to complete the assembly.

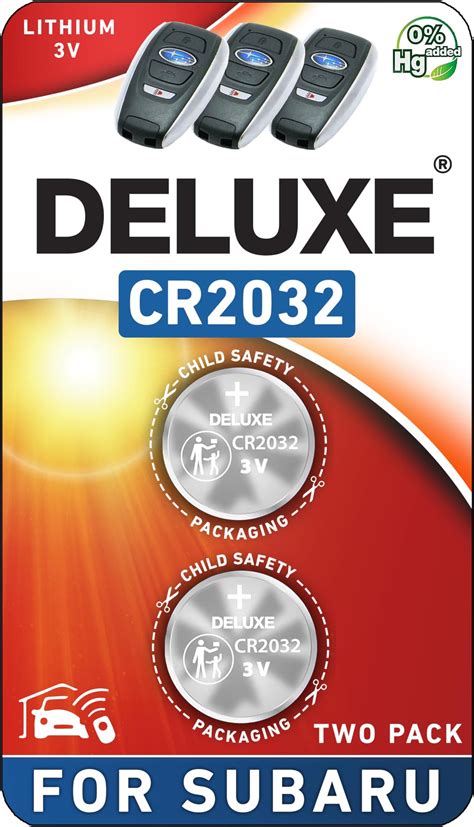

Amazon.com: Key Fob Replacement Batteries for Subaru (Outback Forester ...
Battery Specifications and Compatibility Matrix
Choosing the correct battery chemistry is critical for long-term reliability. Lithium manganese dioxide (Li/MnO2) batteries, typically labeled with the CR prefix, are standard due to their high energy density and stable discharge profile. Avoid using lower-cost alkaline equivalents, as they cannot provide the voltage consistency required for reliable signal transmission during remote engine start or proximity unlocking.
| Battery Type | Nominal Voltage | Typical Capacity | Common Subaru Model Application |
|---|---|---|---|
| CR2032 | 3.0V | 225 mAh | Newer Push-Button Start (2015-Present) |
| CR1620 | 3.0V | 80 mAh | Legacy/Older Integrated Remote Heads |
| CR2025 | 3.0V | 165 mAh | Select Pre-2015 Remote Keyless Entry |
| CR1220 | 3.0V | 35 mAh | Compact Remote Keyless Entry Units |
Post-Procedure Troubleshooting and Field Fixes
Even after a successful battery swap, users may occasionally encounter issues where the vehicle fails to recognize the remote. These issues are rarely related to the battery itself and are usually caused by oxidation or misalignment.
- Symptom: Key Fob Is Unresponsive After Battery Replacement
- Root Cause: The battery was installed upside down, or the metal contact prongs have been flattened and are not making contact with the battery surface.
- Actionable Fix: Reopen the fob and verify the positive (+) side is facing upward. If the prongs appear flattened, use a tiny screwdriver to slightly bend them upward to increase tension against the battery.
- Symptom: Range Issues or Intermittent "Key Not Detected" Warnings
- Root Cause: Residue from skin oils or chemical contaminants on the surface of the new battery or the internal terminals.
- Actionable Fix: Wipe the contact points and the face of the new battery with a clean, lint-free cloth dampened with isopropyl alcohol to ensure a clean electrical connection.
- Symptom: Fob Case Does Not Close Securely
- Root Cause: A misaligned rubber keypad gasket or a broken retention clip caused by excessive force during the opening process.
- Actionable Fix: Remove the battery and inspect the internal rubber gasket to ensure it is seated in its track. If a clip is broken, use a small piece of clear adhesive tape to secure the seam, or consider purchasing a replacement aftermarket fob shell.
Frequently Asked Questions
Do I need to reprogram my Subaru key fob after replacing the battery?
In the vast majority of cases, no reprogramming is required. The smart key or remote transmitter retains its rolling security code in non-volatile memory, meaning it will sync with your vehicle immediately upon pressing the unlock button.
How often should I proactively replace my Subaru key battery?
Under normal operating conditions, a Subaru key fob battery should last between two to three years. If you notice a reduction in the distance at which you can lock or unlock your car, it is a primary indicator that the internal voltage is dropping.
Can I use a different brand of CR2032 battery?
Yes, as long as the battery is the standard CR2032 size, any reputable manufacturer will function correctly. Stick to name-brand batteries like Duracell, Energizer, or Panasonic, as they provide more consistent voltage levels compared to generic, unbranded alternatives.
What happens if I accidentally touch the internal circuit board?
While it is best to avoid touching the PCB, small amounts of finger oils are generally harmless. However, if the fob becomes unresponsive, use a soft cotton swab and a minimal amount of high-purity isopropyl alcohol to gently clean the surface of the contacts.
Maintain Your Subaru’s Reliable Entry System
Ensuring your key fob battery is fresh prevents the inconvenience of being locked out of your vehicle during inclement weather or while on the road. If you continue to experience connectivity issues after replacing the battery and cleaning the terminals, consult your local Subaru service department for a professional diagnostic check to rule out a malfunctioning key fob antenna or internal circuit failure.
