How To Run Electricity From Pole To Mobile Home: Complete NEC-Compliant Installation Guide

Connecting utility power from a service pole to a mobile home requires installing a dedicated meter main disconnect pedestal within 30 feet of the structure, excavating a code-compliant trench, and routing a 4-wire feeder assembly into the main breaker panel. Adhering strictly to NEC Article 550 mandates complete isolation of the floating neutral from the equipment ground conductor at the interior panel, paired with dual copper-bonded ground rods at the main disconnect. Executing this installation safely demands precise wire sizing, approved underground conduits, local utility authorization, and mandatory municipal electrical inspections.

Pre-Installation Planning & Technical Equipment Checklist

Running permanent power to a manufactured or mobile home involves rigid adherence to National Electrical Code (NEC) standards, utility company specifications, and local building codes. Before opening trenches or handling equipment, you must establish whether your utility drop will be overhead or underground, confirm your home's total calculated electrical load (typically 100-amp or 200-amp service), and acquire the necessary municipal permits.

Installing mobile home power is not a standard residential branch-circuit project. Manufactured homes are constructed on structural steel frames, making them susceptible to stray currents if grounding systems are mismanaged. The utility company owns and controls the power lines up to the service drop or transformer, while the property owner is responsible for the meter base, disconnect enclosure, underground trenching, feeder cables, and distribution panelboard.

Required Materials, Tools, and Benchmark Specifications

• Essential Equipment & Tools: Trenching machine or heavy-duty square shovel, conduit pipe cutter, PVC cement and primer, electrical wire pull lubricant, fish tape (100+ feet), torque wrench calibrated in inch-pounds, digital multimeter rated CAT III/IV, insulated screwdriver set, heavy-duty wire strippers, dynamic cable cutters, and personal protective equipment (PPE including 1,000V rated voltage gloves).
• Mandatory Hardware & Materials: Underground Feeder (USE-2 or Mobile Home Feeder MHF cable assembly), Schedule 80 PVC conduit (for exposed vertical risers), Schedule 40 PVC conduit (for underground runs), 8-foot x 5/8-inch copper-clad ground rods (2 qty), acorn ground clamps, 200-amp or 100-amp outdoor-rated NEMA 3R rainproof meter/main disconnect combination pedestal, 4-wire feeder breaker, and warning tape.
• Prerequisite Standards & Codes: NEC Article 550 (Mobile Homes and Parks), NEC Article 300 (Wiring Methods), NEC Table 300.5 (Underground Installation Requirements), and NEC 250 (Grounding and Bonding).
• Budget & Duration Benchmarks: Typical DIY material cost ranges between $1,200 and $2,500 depending on copper versus aluminum conductor choices and total trench distance. Time commitment requires 12 to 20 labor hours across 2 to 3 days, excluding waiting periods for municipal inspections and final utility hookup.

Step-by-Step Electrical Service Installation Workflow

Step 1: Secure Permits, Utility Site Approval, and Utility Location

Before conducting any excavation or purchasing conductors, contact your local building safety department to pull the required electrical permits. Simultaneously, submit a service application to your local electric distribution cooperative or utility provider. The utility company will determine the exact drop point on the utility pole, specify the transformer location, and assign meter placement guidelines.

Call 811 (or your regional underground utility locating service) at least 72 hours prior to breaking ground. Technicians will flag existing gas, water, fiber-optic, and existing electrical lines across your property to prevent catastrophic strikes during trench excavation.

Warning: Striking buried high-voltage lines or primary gas mains can result in fatal electrocution, massive property destruction, and severe municipal fines. Never begin mechanical trenching until all public utilities have cleared and marked the site.

Step 2: Set the Service Disconnect Pole or Ground Pedestal

NEC 550.32 explicitly dictates that the main electrical service equipment (meter enclosure and service disconnect) must be located within sight of, but not more than 30 feet from, any exterior wall of the mobile home. In almost all jurisdictions, code strictly prohibits mounting the meter socket and main disconnect switch directly onto the mobile home structure itself unless specific engineered structural provisions are met.

1. Dig a hole minimum 36 inches deep to mount a pressure-treated 6x6-inch timber pole (minimum 10 feet long) or install an engineered steel meter pedestal unit set in concrete.
2. Mount the NEMA 3R outdoor rainproof meter socket and disconnect panel combo to the pole using stainless steel hardware at a height where the center of the meter glass sits between 4 to 5.5 feet above finished grade.
3. Drive two 8-foot-long, 5/8-inch copper-bonded ground rods vertically into the earth near the base of the pole. Space the ground rods a minimum of 6 feet apart (8 feet is preferred for lower ground resistance).
4. Run a continuous, un-spliced #6 AWG bare copper grounding electrode conductor from the neutral/ground bus inside the main disconnect panel to both ground rods, securing them with direct-burial ground clamps (acorn clamps).

Pro-Tip: Drive ground rods at a slight angle (up to 45 degrees) or dig a trench if solid bedrock prevents driving them straight down. NEC allows horizontal burial in a trench at least 30 inches deep if vertical driving is physically impossible due to solid rock formations.

Step 3: Excavate the Conduit Trench to Code Specifications

The connection between the main disconnect pole and the mobile home panelboard requires physical protection and appropriate burial depth as dictated by NEC Table 300.5.

1. Mark a direct line from the disconnect pole to the entry point beneath the mobile home skirting. Keep the route clear of heavy vehicular traffic areas where possible.
2. Trench to a minimum depth of 18 inches if using rigid PVC conduit (Schedule 40/80) along the entire run, or 24 inches depth if opting for direct-burial Mobile Home Feeder (MHF) cable.
3. Grade the bottom of the trench so it is smooth and free of sharp rocks, shale, or construction debris that could puncture underground conduit or cable jacketing.

Warning: Any portion of the conduit that emerges from underground and is exposed to potential physical damage above grade MUST be constructed using Schedule 80 PVC, Rigid Metal Conduit (RMC), or Intermediate Metal Conduit (IMC). Schedule 40 PVC is prohibited for exposed vertical risers where physical impact can occur.

Step 4: Assemble Conduit and Pull the 4-Wire Feeder Conductor

Mobile homes require a 4-conductor feeder system containing two hot leg wires (120V each to ground, 240V across), one fully insulated neutral conductor, and one equipment grounding conductor.

1. Install continuous Schedule 40 PVC conduit along the trench bottom, transitioning to Schedule 80 PVC via sweep elbows (90-degree long-radius sweeps) at both vertical risers (the pole end and the mobile home entry point).
2. Apply PVC primer and cement to every solvent-weld joint, twisting the pipe standard quarter-turns to ensure watertight seals across all couplings.
3. Attach expansion fittings on vertical conduit risers emerging from the soil. Ground settlement and winter frost heave will pull meter boxes off poles or rip breaker panels out if expansion joints are omitted.
4. Attach a pulling rope to a fish tape, pull it through the conduit run, and connect it to your 4-wire MHF or USE-2 feeder cable using a cable grip.
5. Apply generous amounts of UL-listed electrical wire pulling lubricant along the cable, pulling the cable smoothly through the conduit without exceeding maximum wire tension limits.

Step 5: Wire the Panelboards and Enforce Ground-Neutral Separation

The most critical safety phase in mobile home electrical wiring is the strict separation of the neutral circuit from the chassis and equipment ground inside the distribution panelboard located within the mobile home.

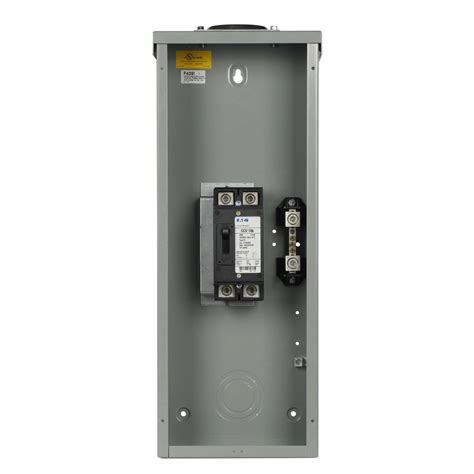

1. Inside the main outdoor disconnect (pole end): Connect the two incoming line hot leads from the utility meter to the main breaker lugs. Connect the two load hot feeder wires to the load side of the main breaker. Connect both the feeder neutral wire and feeder ground wire to the main neutral/ground bonding bus bar.
2. Inside the mobile home interior distribution panelboard: Locate the main neutral bus bar. Remove the main bonding jumper or green bonding screw that connects the neutral bar to the metal panel cabinet frame.
3. Terminate the isolated feeder neutral cable onto the floating neutral bus bar.
4. Terminate the green/bare equipment ground feeder wire onto a dedicated ground bus bar that is bolted directly to the metal panel frame and structural chassis.
5. Terminate the two hot feeder conductors onto the main lugs of the panelboard. Torque all lug screws using an inch-pound torque wrench to the exact manufacturer specifications printed on the panel label (typically 120–250 in-lbs).

Pro-Tip: Failing to remove the bonding jumper in the interior mobile home subpanel creates parallel paths for neutral return current. This energizes the metal frame of the mobile home, creating a lethal shock hazard for anyone touching the exterior metal siding or metal steps while grounded.

Step 6: Final Inspection, Utility Service Drop, and System Commissioning

1. Leave the underground trench open until the local electrical authority performs an underground inspection (rough-in inspection).
2. Once the inspector approves the trench depth, conduit composition, conductor gauge, and grounding rod setup, sign off on the permit.
3. Backfill the trench. Add 6 inches of clean fill dirt over the conduit, pack lightly, then lay bright yellow "Caution: Buried Electrical Line" warning tape along the length of the trench before backfilling the remaining topsoil.
4. Request the utility provider to perform their final service connection, install the electric meter glass, and energize the service transformer.
5. Use a digital multimeter to test voltage at the main disconnect and interior subpanel: check for ~120V from each hot leg to neutral, ~120V from each hot leg to ground, ~240V between hot legs, and 0V between neutral and ground.

Electrical Sizing, Cable Specifications, and Conduit Metrics

The selection of conductor materials and cross-sectional sizing directly impacts system safety, voltage drop, and thermal operation. The table below outlines mandatory technical parameters for standard 100-Amp and 200-Amp mobile home electrical hookups in compliance with the National Electrical Code.

Common Field Failures and Technical Corrections

Ground-Fault Tripping and Energized Mobile Home Siding

• Root Cause: The neutral-to-ground bonding screw or strap was left installed inside the mobile home's interior subpanel, causing return neutral current to travel along the chassis and equipment grounding conductor.
• Actionable Fix: Turn off the outdoor main disconnect switch immediately. Open the interior mobile home breaker panel, locate the green bonding screw or strap located on the neutral bus assembly, and completely remove it. Verify with a megohmmeter or multimeter that there is infinite resistance (no continuity) between the neutral bar and the steel cabinet frame when feeder wires are disconnected.

Excessive Voltage Drop causing Appliance Burnout

• Root Cause: Running an undersized feeder cable over a distance exceeding 100 feet from the utility pole to the mobile home, causing line voltage to dip below 110V under heavy inductive loads (central AC startup).
• Actionable Fix: Calculate voltage drop using the formula: $V_{drop} = \frac{2 \times L \times R \times I}{1000}$. If the run length exceeds 100 feet, upscale your aluminum wire from 4/0 AWG to 250 kcmil or 300 kcmil conductors for a 200-amp load to maintain total voltage drop below the 3% NEC recommendation.

Crushed or Sheared Conduit at Grade Elevation

• Root Cause: Soil settlement or winter frost heave pressing down on rigid conduit without expansion joints, causing the PVC pipe to shear off at the base of the meter main panel.
• Actionable Fix: Dig out the damaged elbow section and replace it using Schedule 80 PVC fittings. Insert a vertical, slide-capable PVC expansion coupling (expansion fitting) on the riser tube between the underground trench elbow and the outdoor disconnect box to absorb 4 to 6 inches of seasonal thermal ground movement.

Moisture Ingress in Feeder Cable Splices

• Root Cause: Direct-burial MHF cables were spliced underground using standard non-waterproof wire nuts or electrical tape, causing corrosion, phase-to-ground shorts, and subterranean arc faults.
• Actionable Fix: Avoid underground splices entirely whenever possible by pulling a continuous, uncut cable run. If a splice is unavoidable due to site damage, install a heavy-duty, dual-rated direct-burial splice kit featuring mechanical pressure sleeves wrapped in heat-shrink tubing lined with thick inner adhesive tape approved for subterranean use.

Frequently Asked Questions

Can I mount the electric meter directly onto my mobile home?

No, the National Electrical Code under Article 550.32 mandates that mobile home service equipment must not be mounted directly on or in the mobile home unless structural engineering designs specifically permit it and local authorities give explicit approval. Mounting service equipment on a separate pole or ground pedestal within 30 feet prevents structural strain on the home and ensures disconnect access during transport or emergency detachment.

What size wire do I need for a 200-amp mobile home service?

For a 200-amp mobile home power service using Quadruplex Mobile Home Feeder (MHF) aluminum cable, you must use 4/0-4/0-4/0-2/0 aluminum conductors (4/0 AWG for the two hot legs and neutral, with a 2/0 AWG ground). If using copper conductors, select 2/0 AWG for hot and neutral legs paired with a #4 AWG copper equipment ground conductor.

How deep must I bury the electrical wire between the pole and mobile home?

Underground trench depth depends on your wiring method according to NEC Table 300.5. Standard rigid PVC conduit (Schedule 40 or Schedule 80) requires a minimum burial depth of 18 inches from finished grade to the top of the pipe. Direct-burial Mobile Home Feeder (MHF) cable without continuous conduit encasement must be buried to a minimum depth of 24 inches.

Why does a mobile home require a 4-wire feeder instead of a 3-wire feeder?

Mobile homes require a 4-wire system (two hots, one neutral, one independent ground) because the metal frame and aluminum siding pose a severe shock risk. A 4-wire feed keeps neutral load-return currents completely separated from the structural chassis. A legacy 3-wire system bonds ground and neutral at the home, which exposes inhabitants to dangerous stray currents if the neutral connection ever weakens or breaks.
