How To Search Underground Water: A Technical Hydrogeological Guide To Groundwater Location

Locating underground water requires a systematic approach combining remote hydrogeological mapping, surface botanical and topographic evaluation, and subsurface geophysical testing such as Electrical Resistivity Tomography (ERT). By identifying saturated permeable strata, fault zones, and confined aquifers, property owners and drillers can precisely determine optimal borehole locations and depth profiles before drilling. Utilizing these scientific methodologies minimizes dry-hole risks, ensuring sustainable yields exceeding standard domestic (5 gallons per minute) or agricultural benchmarks.

Hydrogeological Site Assessment & Pre-Survey Planning Checklist

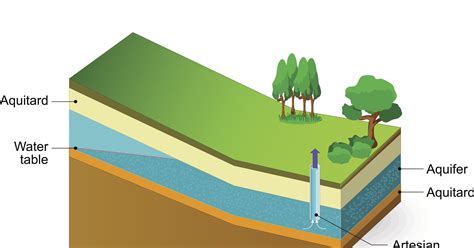

Before executing any physical exploration or drilling, a thorough desktop study and preliminary site assessment are mandatory. Groundwater does not flow in arbitrary underground rivers; instead, it accumulates within permeable geological formations called aquifers, dictated by local lithology, structural fault lines, and recharge dynamics. Historical well records, topographic contours, and regional hydrogeological maps published by geological surveys (such as the USGS or state geological bureaus) form the foundation of effective site selection.

Evaluating seasonal groundwater fluctuations is equally vital. A site assessed exclusively during a wet season may reveal a temporary perched aquifer that completely dries up during summer droughts. Planning must target permanent regional aquifers situated below the local water table's historical minimum depth.

• Essential Field Gear & Geophysical Tools:


  • Multi-electrode Direct Current (DC) Electrical Resistivity Meter with continuous digital data logging
  • Stainless steel potential and current electrodes with insulated copper cabling
  • Dual-frequency handheld GPS unit (sub-meter horizontal accuracy) for spatial mapping
  • Electric water level sounder/dip meter (minimum 300-foot/90-meter cable with probe)
  • Optical hand level or clinometer for terrain slope and catchment area analysis
  • Soil sampling auger for immediate surface vadose zone examination
• Prerequisite Standards & Hydrogeological Data:


  • ASTM D6431: Standard Guide for Using the Direct Current Resistivity Method for Subsurface Investigation
  • Regional hydrogeological quadrangle maps (1:24,000 scale preferred)
  • Local well completion reports (driller's logs) within a 2-mile radius to establish baseline depth and static water levels
  • Local municipal or environmental regulatory permits for groundwater exploratory testing
• Budget & Execution Benchmarks:


  • Desk Study & Historical Data Review: $300 – $800 (1 to 2 business days)
  • Field Geophysical Survey (ERT/VES): $1,500 – $4,500 per property (1 to 3 days field execution)
  • Exploratory Pilot Hole Drilling: $35 – $90 per linear foot, depending on geological hardness (granite vs. alluvium)

Step-by-Step Geophysical and Surface Exploration Workflow

Step 1: Conduct Desktop Hydrogeological Mapping and Fracture Trace Analysis

Commence the search by obtaining high-resolution topographic maps, digital elevation models (DEMs), and historical aerial photographs of the target property. Perform a fracture trace analysis by identifying linear surface features—known as lineaments—such as straight stream segments, aligned vegetation patterns, and sudden terrain depressions. These lineaments frequently correspond to underlying bedrock fractures, fault zones, or joint systems where secondary porosity is high, creating prime pathways for groundwater accumulation.

Identify the surrounding drainage basin and recharge zone. Underground water naturally migrates from high-elevation recharge areas toward low-elevation discharge zones. Prioritize low-lying alluvial valleys, draw lines, and structural sags over high, exposed ridges.

Pro-Tip: Intersections of two or more bedrock lineaments represent high-yield target points. Drilling directly into a fracture intersection in hard crystalline rock (e.g., granite or basalt) can yield 5 to 10 times more water than drilling just 20 feet away into un-fractured matrix rock.

Step 2: Survey Botanical and Topographic Surface Indicators

Conduct a ground-truth walkover across the property to map biological and physical markers of shallow groundwater. Look specifically for phreatophytes—deep-rooted plants that depend directly on a permanent groundwater supply. Species such as Willows (Salix), Cottonwoods (Populus), Saltcedar (Tamarix), Mesquite (Prosopis), and dense stands of Horsetail (Equisetum) indicate a static water table within 10 to 30 feet of the surface.

Examine the ground surface for perennial springs, seeps, or localized damp soil patches during prolonged dry periods. Pay close attention to micro-topography: alluvial fans at the base of hill slopes and natural depression contours aggregate runoff and feed underlying unconfined aquifers.

Warning: Do not rely exclusively on surface vegetation in karst (limestone) terrain. In soluble limestone formations, surface water quickly drops through vertical sinkholes into deep subterranean conduits, leaving shallow root zones completely dry despite lush surface appearances.

Step 3: Execute Vertical Electrical Sounding (VES) and Electrical Resistivity Tomography (ERT)

Deploy geophysical ground-testing equipment to map subsurface layering without excavation. Set up a direct-current electrical resistivity system using either a Wenner array (for high signal strength at shallow depths) or a Schlumberger array (for deep vertical profiling). Place stainless steel electrodes into the ground in a straight line, connecting them via multi-conductor cables to the central resistivity meter.

Inject a controlled direct electrical current ($I$) into the outer electrodes and measure the resulting voltage drop ($\Delta V$) across the inner potential electrodes. Gradually increase the spacing between current electrodes to project the electrical current deeper into the earth, measuring apparent resistivity ($\rho_a$) at incrementally deeper strata.

Pro-Tip: To ensure accurate readings, maintain low electrode contact resistance (under 5 kΩ). In dry, sandy, or rocky surface soil, pour a small amount of saltwater solution around each electrode stake to enhance electrical coupling with the ground before taking measurements.

Step 4: Process Resistivity Data and Generate Subsurface Inversion Models

Export raw field resistivity data into hydrogeological inversion software (such as RES2DINV or EarthImager). The software converts apparent resistivity data into an inverted 2D cross-sectional pseudosection of the subsurface, plotting true resistivity (measured in Ohm-meters, $\Omega\cdot\text{m}$) against depth.

Interpret the geophysical pseudosection by referencing known geological material resistivity ranges:

• Low Resistivity (1 to 30 $\Omega\cdot\text{m}$): Clay, shale, or saline/brackish water (impermeable aquitards or poor water quality).
• Moderate Resistivity (50 to 250 $\Omega\cdot\text{m}$): Freshwater-saturated sand, gravel, or highly fractured water-bearing bedrock (optimal freshwater aquifer target).
• High Resistivity (1,000 to 10,000+ $\Omega\cdot\text{m}$): Dense, dry, un-fractured crystalline bedrock, dry sand, or solid limestone (dry zones).

Identify target zones where moderate resistivity anomaly profiles extend continuously below the seasonal static water table.

Step 5: Perform Exploratory Test Drilling and Yield Verification

Mark the designated target location derived from the inversion model and bring in a mobile drilling rig. Drill a small-diameter (4 to 6 inch) exploratory test borehole. During drilling, collect lithological cuttings every 5 feet to confirm the subsurface geology matches the geophysical model.

Once the bit penetrates the saturated water-bearing target zone, stop drilling and install a temporary perforated casing. Perform an airlift yield test or insert a submersible pump to execute a 4-to-24-hour pumping test. Measure three critical metrics:

1. Static Water Level (SWL): The natural equilibrium depth of water before pumping.
2. Pumping Water Level (PWL) & Drawdown: The level to which water drops during continuous pumping at a fixed rate.
3. Specific Capacity: Yield per unit of drawdown (e.g., Gallons Per Minute per foot of drawdown, GPM/ft).

Warning: Never complete a permanent production well without running a continuous multi-hour pumping test. High initial water flow from borehole storage during the first 15 minutes can mask a low-yielding aquifer that exhausts rapidly under sustained domestic or agricultural demand.

Geophysical Resistivity Profiles & Aquifer Hydrogeologic Specifications

The table below outlines the electrical resistivity signatures, storage capabilities, depth benchmarks, and drilling feasibility across primary subsurface earth structures.

Subsurface Survey Anomalies & Field Error Correction

False Positive Conductive Readings (Clay-Water Confusion)

• Root Cause: Highly conductive clay beds (such as montmorillonite or bentonite) display low electrical resistivity profiles (5 to 20 $\Omega\cdot\text{m}$) that closely mimic water-saturated sands or gravels. Drilling into these low-resistivity zones results in dry holes or extremely tight formations that yield no recoverable water.
• Actionable Fix: Perform an Induced Polarization (IP) survey in tandem with Electrical Resistivity Tomography (ERT). Measure chargeability (decay of voltage over time). Clay exhibits high chargeability values (greater than 20 ms) due to membrane polarization, whereas clean, freshwater-saturated gravel exhibits very low chargeability (under 5 ms).

Highly Resistive Topsoil Masking Deep Aquifers

• Root Cause: Extremely dry, coarse surface soil, boulders, or asphalt cap layers create extreme contact resistance at the surface electrodes. The high voltage drop at the surface prevents sufficient current injection into deeper hydrogeological layers, yielding noisy, uninterpretable depth profiles.
• Actionable Fix: Transition from standard stake electrodes to flat metal plate electrodes submerged in small salt-water trenches. Alternatively, switch the geophysical method to Very Low Frequency Electromagnetic (VLF-EM) profiling, which induces subsurface current via airborne radio signals without requiring physical galvanic contact with the ground.

Seasonal Water Table Drop Causing Post-Drilling Well Exhaustion

• Root Cause: Locating water during dynamic wet-season recharges often leads to tapping shallow, unconfined "perched" aquifers above impermeable clay lenses. When the summer dry period arrives, these perched water tables collapse, causing the well to run completely dry.
• Actionable Fix: Cross-reference local water table hydrographs from state monitoring wells across multi-year drought cycles. Ensure the target borehole is drilled through the perched aquifer and seated deep into the permanent regional unconfined or confined aquifer system, casing off shallow seasonal layers.

Interference from Cultural Infrastructure (Electrical Noise)

• Root Cause: Metal utility pipelines, buried electrical cables, grounded wire fences, and cathodic protection systems bleed stray direct current into the ground. This cultural noise corrupts the voltage readings on resistivity instruments, creating artificial pseudosection anomalies.
• Actionable Fix: Align survey electrode arrays completely perpendicular to linear metallic infrastructure (such as pipelines or fences). Maintain a minimum lateral clearance distance equal to at least twice the maximum electrode spacing ($A$-spacing) planned for the profile depth.

Frequently Asked Questions

Can water dowsing or divining rods accurately locate underground water?

No scientific evidence supports the validity of water dowsing or divining rods. Controlled double-blind testing conducted by hydrogeologists worldwide consistently demonstrates that dowsing yields accuracy rates no better than random guessing. Groundwater location requires quantitative geophysical methods such as Electrical Resistivity Tomography, fracture-trace mapping, and hydrogeological borehole logging.

What is the most accurate scientific method to search for underground water?

Electrical Resistivity Tomography (ERT) combined with structural lineament analysis is the most accurate non-invasive technique for locating groundwater. ERT creates detailed cross-sectional maps of subsurface electrical properties, enabling geophysicists to differentiate between dry bedrock, impermeable clay, and water-bearing saturated sand or gravel prior to drilling.

How deep do you usually have to drill to find clean groundwater?

Groundwater depth varies widely based on local geology, ranging from shallow alluvial wells at 30 to 50 feet (9 to 15 meters) to deep bedrock wells exceeding 300 to 600 feet (90 to 180 meters). In most rural residential areas, high-quality, naturally filtered groundwater is tapped within confined rock aquifers located between 100 and 300 feet below the surface.

How do I know if the underground water source is safe to drink before drilling?

While field geophysics identifies the volume and depth of an aquifer, water quality can only be fully verified after drilling an exploratory test hole. Prior to drilling, regional water quality maps and historic logs of nearby wells offer strong indications of dissolved solids, iron, fluoride, or arsenic levels. Once drilled, sample water must be sent to a certified environmental testing laboratory for complete microbiological and chemical analysis (EPA standards).

What is the minimum water yield required for a domestic residential well?

A standard single-family residential property typically requires a continuous minimum production yield of 3 to 5 gallons per minute (GPM). However, for properties with lower recovery yields (1 to 2 GPM), a sustainable domestic system can still be established by installing a large intermediate storage holding tank (500 to 1,500 gallons) paired with a booster pump setup.

Optimize Your Underground Water Search with Professional Hydrogeological Expertise

Accurately locating underground water requires replacing guesswork with scientifically validated geophysical surveys, structural lineament analysis, and hydrogeological testing. Utilizing high-resolution electrical resistivity modeling drastically reduces dry-hole expenses, ensuring your borehole taps into a high-yielding, long-term aquifer setup.
