The Professional Guide To Setting Up A Bass Guitar For Optimal Playability
Achieving a professional bass setup requires a systematic approach to neck relief, string height, and intonation to ensure structural integrity and precise tonal accuracy. By following the standard mechanical sequence of truss rod adjustment, bridge saddle height calibration, and harmonic compensation, you can eliminate fret buzz while minimizing left-hand fatigue.
Pre-Operation Checklist and Necessary Precision Tools
A successful setup transforms a poorly playing instrument into a high-performance tool. Before starting, ensure the bass is tuned to your intended pitch, as the tension of the strings dictates the geometry of the neck. Work in a stable environment with adequate lighting and a padded surface to protect the headstock and finish.
- Essential Tools: A set of hex keys (Allen wrenches) matching your bridge and truss rod size, a high-quality steel machinist’s ruler (calibrated in 64ths of an inch or 0.5mm increments), a set of feeler gauges, a digital tuner with high sensitivity (strobe mode preferred), and a dedicated bass screwdriver set.
- Preparation Standards: Ensure your instrument is strung with fresh strings, as old, dead strings cannot be properly intonated. Allow the bass to acclimate to the room temperature for at least an hour before beginning, as rapid humidity or temperature shifts can cause the wood to expand or contract.
- Budget and Duration: Budget approximately 60 to 90 minutes for a complete, methodical setup. This is a manual task requiring patience; rushing the adjustment process, particularly with the truss rod, can lead to mechanical damage.
The Systematic Bass Setup Workflow
Step 1: Establishing Correct Neck Relief
Neck relief refers to the slight concave curvature of the neck. Without this, strings will strike the frets near the nut. Hold the E-string down at the first fret and the last fret simultaneously. Observe the gap between the bottom of the string and the top of the 7th or 8th fret. A standard relief measurement is between 0.010 and 0.015 inches. If the gap is too large, tighten the truss rod by turning it clockwise in 1/8th turn increments. If the string is resting on the frets, loosen the truss rod counter-clockwise.
Warning: Never force a truss rod that feels extremely tight. If you meet significant resistance, stop and consult a professional luthier to avoid snapping the rod or damaging the neck wood.
Step 2: Calibrating Bridge Saddle Height
Once the neck relief is stable, adjust the action at the bridge. Using your machinist’s ruler, measure the distance from the top of the 12th fret to the bottom of each string. A common factory standard is 5/64 inches (2.0mm) for the E-string, tapering down to 4/64 inches (1.6mm) for the G-string. Adjust the individual bridge saddles using your hex wrench. As you raise or lower each saddle, ensure you retune the string, as height changes impact tension and pitch.

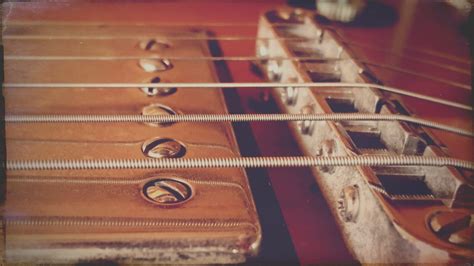

Step 3: Adjusting Pickup Height
Pickups that are too close to the strings can cause magnetic pull, which interferes with sustain and creates "wolf tones" or distorted harmonic artifacts. Depress the lowest string at the highest fret and measure the distance between the top of the pole piece and the bottom of the string. A standard starting point is 3/32 inches (2.4mm) on the bass side and 2/32 inches (1.6mm) on the treble side. Adjust the screws on the pickup mounting tabs until these clearances are achieved.
Step 4: Fine-Tuning Intonation
Intonation ensures that notes played high up the neck remain in tune with the open strings. Play the open string, then play the 12th fret harmonic and compare it to the fretted note at the 12th fret. If the fretted note is sharp, the saddle must be moved further back (away from the nut) to increase string length. If the fretted note is flat, move the saddle forward (toward the nut). Repeat this for every string until the tuner indicates the open note and 12th fret fretted note are identical.
Bass Guitar Pedalboard Setup at Laura Black blog
Technical Specifications and Measurement Benchmarks
| Parameter | Standard Target Measurement | Adjustment Tool |
|---|---|---|
| Neck Relief (at 8th Fret) | 0.010 - 0.015 Inches | Truss Rod Hex Key |
| String Action (at 12th Fret) | 1.6mm - 2.0mm | Bridge Saddle Key |
| Pickup Height (Bass Side) | 2.4mm | Phillips/Flathead Driver |
| Pickup Height (Treble Side) | 1.6mm | Phillips/Flathead Driver |
Common Mechanical Failures and Remedial Actions
- Persistent Fret Buzz: If buzzing occurs only on the lower frets, the neck is likely too straight or "back-bowed." Loosen the truss rod slightly to introduce more relief. If buzz occurs only on upper frets, the action is likely too low; raise the bridge saddles.
- Strings Not Staying in Tune: This is often caused by nut slots that are too tight, causing the string to bind. Use a small amount of graphite or nut lubricant in the slots to allow the string to slide smoothly during tuning and aggressive playing.
- Dead Spots on the Neck: A common issue in bolt-on basses where the neck-to-pocket coupling is imperfect. Ensure the neck plate screws are tightened firmly to the body, but do not overtighten to the point of stripping the wood threads.
- Intonation Cannot Be Set: If you reach the physical limit of the saddle screw and the intonation is still off, check the string gauge. Extremely heavy gauge strings may require more travel space than the bridge allows. Consider switching to a balanced tension set of a lighter gauge.
Frequently Asked Questions
How often should I perform a full bass setup?
A full setup should be performed at least twice a year, specifically during seasonal transitions when humidity levels shift significantly. Additionally, you should always perform a setup whenever you switch to a different string gauge or brand, as the change in tension will alter the neck geometry.
Can I damage my bass by adjusting the truss rod?
Yes, if handled improperly. Always turn the truss rod in very small increments—never more than a quarter-turn at once—and let the wood settle for a few minutes before checking the measurement again. Never force the rod if it feels seized.
Does string gauge affect my setup?
String gauge drastically affects the tension applied to the neck. Moving to a heavier gauge will pull the neck forward, requiring more truss rod tension, while lighter strings will pull the neck backward, requiring less. Always adjust your setup to accommodate the specific tension profile of your chosen string set.
Is it necessary to remove the strings to adjust the truss rod?
It depends on the location of the adjustment nut. If the nut is at the headstock, no removal is necessary. If the nut is at the neck heel, you may need to loosen the strings significantly or partially unbolt the neck to access the adjustment point, depending on the bass model.
Master the mechanics of your instrument to unlock its full sonic potential and playability. If you encounter recurring issues that cannot be resolved through standard adjustment, contact our certified luthier team to schedule a professional precision calibration.
