How To Sew An Elastic Waistband: The Professional Guide To Stretch Finishes

Sewing an elastic waistband requires precise mathematics, correct tension management, and secure fastening techniques to prevent rolling, twisting, or sagging over time. This comprehensive technical guide details the industry-standard methodology for installing a flat, durable, and comfortable encased elastic band in skirts, trousers, and shorts.

Essential Preparation and Tooling Specifications

Achieving a professional-grade finish on a stretch waistband demands specific machinery, notions, and preparatory calculations. Skipping these foundational steps often leads to uneven gathering, broken stitches, or premature elastic degradation.

• Essential Tools and Materials: Sewing machine with a heavy-duty ballpoint or stretch needle (size 80/12 or 90/14), polyester all-purpose thread, woven or knit fabric garment casing, 1-inch to 2-inch wide non-roll braided or knitted elastic, safety pins or a bodkin, fabric shears, and a soft tape measure.
• Prerequisite Standards: The garment main body must have its side seams fully sewn and pressed, leaving the upper waist raw edge completely open and accessible for casing construction.
• Time and Budget Benchmarks: Estimated completion time is 30 to 45 minutes for intermediate sewists. The cost of materials is minimal, typically ranging from two to five dollars for the elastic and thread.

Step-by-Step Elastic Waistband Execution

Step 1: Calculating Exact Elastic Length

Wrap the elastic band snugly—yet comfortably—around your natural waistline, overlapping the cut ends by exactly one inch, and record this measurement. Alternatively, subtract 10 percent from the total finished garment waist circumference to account for stretch tension, then add a 1-inch overlap seam allowance. Cut the elastic to this precise length using sharp shears to prevent fraying edges.

Pro-Tip: Always test the elastic tension against your body before cutting. If the elastic is too tight, it will dig into the skin; if it is too loose, the garment will slide down during movement.

Step 2: Creating the Casing

Fold the raw upper edge of the garment wrong sides together by one-quarter inch and press with a hot iron to set the fold. Next, fold the edge down again toward the inside of the garment, creating a tunnel (casing) that is slightly wider than your elastic band—typically 1.25 inches wide for a 1-inch elastic. Press the folded casing flat and pin it securely in place every two inches.

Step 3: Stitching the Casing Tunnel

Stitch close to the inner folded edge of the casing using a straight stitch set to a 2.5mm to 3.0mm stitch length, working along the entire circumference of the waistband. Leave a 2-inch opening unstitched at the back or side seam to serve as the insertion port for the elastic. Backstitch securely at both the start and stop points of this opening to prevent seam unraveling.

Warning: Do not stitch all the way around the casing in a complete circle on your first pass, or you will block the entry point required to feed the elastic through the tunnel.

Step 4: Threading and Securing the Elastic

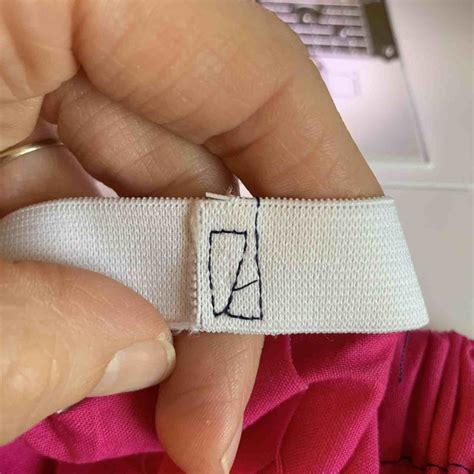

Attach a large safety pin or a specialized bodkin to one end of the cut elastic band. Guide the safety pin through the 2-inch casing opening and work it carefully through the entire tunnel, taking care to keep the elastic flat and preventing it from twisting inside the fabric channel. Pull both raw ends of the elastic out of the opening. Overlap the two ends by exactly one inch and stitch them securely together using a multi-step zigzag stitch or a tight box-cross stitch pattern for maximum tensile strength.

Step 5: Closing the Casing and Distributing Gathers

Stretch the waistband firmly several times to allow the internal elastic to distribute evenly throughout the fabric casing. Place the garment back under the presser foot and sew the remaining 2-inch opening shut with a straight stitch, matching the original stitching line. Finally, stretch the waistband to its maximum limit once more and sew a vertical anchor stitch through the ditch of the side seams to prevent the elastic from rolling or twisting inside the finished casing.

Elastic Waistband Material and Method Selection Matrix

Common Assembly Failures and Field Fixes

• Twisted Internal Elastic:


  • Root Cause: The elastic flipped over inside the fabric tunnel during the threading process because it was not guided with sufficient flatness control.
  • Actionable Fix: Use a seam ripper to open the casing closure stitches, insert two safety pins to anchor the top and bottom edges of the elastic flat, and pull it back out to straighten before restitching.
• Uneven Gathering:


  • Root Cause: The fabric casing was not stretched evenly across the elastic length prior to anchoring, or lack of side-seam anchor stitches allowed the elastic to shift.
  • Actionable Fix: Stretch the waistband to capacity and sew vertical anchoring stitches directly down the center of each side seam through both fabric and elastic layers.
• Waistband Rolling During Wear:


  • Root Cause: The elastic width is too narrow for the casing tunnel, or standard braided elastic was used instead of non-roll athletic elastic.
  • Actionable Fix: Topstitch horizontally through the absolute center of the encased elastic band all the way around the garment circumference to permanently fuse the fabric and elastic layers together.

Frequently Asked Questions

How do I prevent my elastic waistband from twisting inside the casing?

To stop an elastic waistband from twisting, sew vertical stabilization lines—known as stitch-in-the-ditch lines—through the outside of the casing directly at the left and right side seams. This locks the internal elastic in place while still allowing the fabric to stretch. Additionally, using a wider, non-roll woven or knitted elastic significantly reduces the likelihood of internal rotation.

Should I cut my elastic smaller than my waist measurement?

Yes, standard sewing formulas dictate cutting the elastic 10 percent shorter than your actual waist measurement to provide adequate tension for garment support. However, always test the elastic against your body first, as different elastic brands possess varying stretch recovery percentages and stiffness ratings.

What is the difference between braided, knitted, and woven elastic?

Braided elastic narrows when stretched and loses tension when pierced by needles, making it best for lightweight casings. Knitted elastic does not narrow when stretched and is soft against the skin, making it ideal for direct-skin garment applications. Woven elastic is the stiffest and strongest variety, perfect for heavy fabrics, structured trousers, and heavy-duty utility wear.

How do I fix an elastic waistband that is too tight?

If the enclosed elastic is too tight, use a seam ripper to open a 2-inch section of the casing seam. Pull the stitched elastic ends out, clip the thread holding the overlap together, insert a small bridge piece of matching elastic to lengthen the band, and securely zigzag stitch the ends back together before closing the casing opening.

Mastering how to sew an elastic waistband elevates the professional quality of your handmade garments, ensuring both long-term structural integrity and all-day wearing comfort. Practice these precise tension and anchoring techniques on a scrap fabric test sample before applying them to your final garment project.
