How To Stretch A Chain Link Fence: The Professional Step-by-Step Guide

Stretching a chain link fence requires a mechanical pulling tool, such as a one-ton come-along winch, attached to a temporary tension bar to pull the steel fabric taut across the line posts. The objective is to eliminate vertical sag by pulling the mesh until it deflects no more than two inches under moderate manual pressure before permanently securing it to the terminal post with a tension bar and heavy-duty tension bands. Ensuring your line and terminal posts are fully cured in concrete is critical to preventing structural bowing during this high-tension process.

Pre-Tensioning Preparation and Site Assessment

Before applying any mechanical force to your chain link fabric, you must verify the structural integrity of your post framework. Applying a mechanical pull to posts set in uncured concrete or posts with insufficient wall thickness will cause the posts to bend, lean, or pull completely out of the ground.

Concrete footings must cure for a minimum of 72 hours—ideally five to seven days if using standard 3,000 PSI concrete—before you subject them to the lateral stresses of fence stretching. For heavy commercial installations using 9-gauge fabric, structural truss rods and diagonal brace rails must be pre-installed on all terminal, corner, and gate posts to distribute the tension load evenly down to the concrete bases.

Essential Gear, Tools, and Project Benchmarks

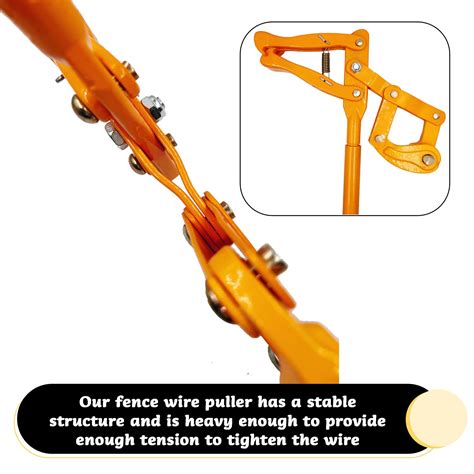

• Mechanical Pulling Tools: 1-ton or 2-ton cable come-along winch, or a specialized chain fence puller.
• Stretching Accessories: A steel fence stretcher bar (pull bar) and a stretcher bar helper (a tackle hook assembly that grabs the bar at multiple points to distribute pulling force).
• Permanent Hardware: Standard steel tension bars (one per terminal post), tension bands (spaced every 12 inches of post height), and 5/16-inch by 1-1/4-inch carriage bolts with nuts.
• Hand Tools and Safety Equipment: Fence pliers, high-tensile tie wires (9-gauge or 11-gauge aluminum), socket wrench set, heavy-duty leather work gloves, and impact-resistant safety glasses.
• Prerequisite Standards: Post spacing must not exceed 10 feet on center. Terminal posts must be at least 2-3/8 inches in outer diameter (OD), while line posts must be at least 1-7/8 inches OD.
• Project Benchmarks: Budget ranges from $50 to $150 for tool rentals or purchases. Expect a project duration of 1 to 2 hours per 50-foot run of fencing when executed by a two-person team.

Step-by-Step Chain Link Fabric Stretching Execution

Step 1: Unrolling and Splicing the Fabric

Lay the roll of chain link fabric flat on the ground along the outside of your fence line, starting at the first terminal post. Ensure the top of the fabric rests closest to the posts. Pay close attention to the selvage (the edge treatment of the wire). Most residential and commercial installations use Knuckle-Knuckle (KK) selvage, where the wire ends are looped back, but security installations may feature Twist-Twist or Barb (TT) selvage with sharp, cut ends.

If your fence run is longer than a single roll of fabric (typically 50 feet), you must splice two rolls together. To do this, unweave a single wire picket from the end of one roll by twisting it out from the top and bottom. Align the ends of the two rolls on the ground, then spin the removed picket down through the overlapping diamonds of both rolls. This interweaves the two sections into a single, seamless sheet of fabric. Use your fence pliers to knuckle or twist the top and bottom loops closed to match the rest of the roll.

Step 2: Anchoring the Starting Terminal Post

Slide a permanent steel tension bar vertically through the first row of diamonds at the beginning of the fabric run. Position the tension bands, which should already be loosely slid onto your terminal post, over the vertical tension bar.

Insert 5/16-inch carriage bolts through the ears of each tension band, ensuring the rounded bolt heads face the outside of the fence to prevent unauthorized disassembly or snagging. Thread the nuts onto the inside and tighten them firmly with a socket wrench. The fabric is now securely anchored to the starting end of your fence run.

Step 3: Setting Up the Tension Bar and Come-Along Rig

Walk to the ending terminal post of the current run. To stretch the fabric properly, you must hook your pulling equipment to a temporary tension bar inserted into the fabric. Place this temporary tension bar approximately 3 to 5 feet back from the ending terminal post. This distance is vital because it leaves a gap for the come-along winch and stretcher bar helper to compress and stretch the fabric past the post, allowing room to insert the permanent tension bar.

Attach the stretcher bar helper hooks to the temporary tension bar. Wrap a heavy-duty nylon tow strap or a chain around the base of the terminal post to serve as a secure anchor point. Hook the stationary, ratcheting body of the come-along winch to this anchor strap, and extend the cable hook of the come-along to attach it directly to the center loop of the stretcher bar helper.

Step 4: Applying Mechanical Tension Systematically

Slowly operate the lever handle of the come-along winch to reel in the cable and apply tension to the chain link fabric. As the cable tightens, walk the length of the fence run. Lift the fabric off the ground and shake it slightly. This action prevents the wire diamonds from catching on grass, dirt, or the tops of the line posts, ensuring the tension is distributed evenly across the entire length of the run.

Pro-Tip: Monitor the tension of the fabric by squeezing the diamonds together near the center of the run. Correct tension is reached when you can compress the parallel wires of a single diamond no more than 1/4 inch with your fingers, and the overall fabric deflects only 1 to 2 inches when you push against it with moderate hand pressure. If you hear the come-along cable groaning or see the terminal post start to flex or lean inward, immediately stop cranking to prevent post failure.

Step 5: Inserting the Permanent Tension Bar and Removing Excess Mesh

With the fabric held under full mechanical tension by the come-along, slide a permanent steel tension bar down through the vertical row of diamonds that aligns directly with the ending terminal post.

If the fabric extends beyond the terminal post, you must remove the excess material. Locate the picket that sits just past the permanent tension bar, untwist its top and bottom loops with your pliers, and spin the picket upward and out of the mesh. This will cleanly disconnect the excess fabric roll from the tensioned portion of the fence.

Step 6: Securing the Terminus and Releasing Tension

Pull the newly inserted permanent tension bar into the tension bands on the ending terminal post. You may need to use a fence pliers handle or a flat pry bar to leverage the tension bar into the band slots because the fabric is under load. Insert carriage bolts through the bands and tighten the nuts completely.

Warning: Never release the come-along winch suddenly or stand directly in line with the high-tension cable. The sudden discharge of stored kinetic energy can cause the winch handle to spin violently or snap the cable, resulting in severe blunt-force or laceration injuries.

Slowly engage the release lever on your come-along winch to back off the tension one notch at a time until the cable slackens completely. Once the load has transferred entirely to the permanent tension bar and post bands, unhook the come-along, remove the temporary tension bar, and take off the anchor strap.

Step 7: Fastening the Fabric to Line Posts and Rails

With the fabric fully tensioned and anchored at both ends, secure it to the intermediate line posts and top rails so it does not sag or rattle. Use heavy-duty 9-gauge aluminum tie wires for this step.

Space the line post ties every 12 inches vertically along each line post. Wrap the tie wire tightly around the post, catch a diamond of the fabric, and twist the ends together tightly using your fence pliers. Space the top rail ties every 24 inches horizontally along the top rail. If your installation includes a bottom tension wire, use a hog ring gun to clamp the bottom diamonds of the fabric to the tension wire every 24 inches to prevent animals from pushing under the fence.

Tensioning Specifications and Material Thresholds

Selecting the correct tensioning method and hardware is dependent on the gauge of the fabric and the structural class of the posts. Refer to the table below to ensure your setup meets standard engineering tolerances for residential and commercial fencing.

Field Troubleshoot: Common Stretching Failures & Fixes

Terminal Post Leaning or Bowing Inward

• Root Cause: The mechanical tension was applied before the concrete footings were fully cured, or the terminal post lacks a diagonal brace rail, causing the high lateral force to pull the post out of vertical alignment.
• Actionable Fix: Immediately release the tension on the come-along winch. If the concrete has cracked or shifted, dig out the footing, set a new Schedule 40 steel terminal post, pour high-strength 4,000 PSI concrete, and allow it to cure for a full 7 days. Install a diagonal brace rail (truss pipe) and a truss rod assembly with a turnbuckle from the terminal post to the first line post before re-tensioning.

Fabric Sagging in the Center of the Run (Belly Sag)

• Root Cause: The fabric was not lifted and shaken during the tensioning process, causing the wire diamonds to hook onto the top rail or line post caps, which results in uneven tension distribution.
• Actionable Fix: Back off the come-along tension until the fabric is slightly loose. Walk the run and physically lift the fabric off the top rail, ensuring it hangs freely. Re-apply the tension with the come-along, verifying that the fabric slides smoothly across the line posts. Install a 7-gauge bottom tension wire to anchor the lower edge of the fabric.

Diagonal Wrinkling or Fabric Bunching

• Root Cause: The temporary tension bar was inserted at an angle, or the come-along was hooked at an off-center angle, pulling the top of the fabric tighter than the bottom.
• Actionable Fix: Release the tension. Re-insert your temporary tension bar, ensuring it is perfectly plumb and parallel to the terminal post. Adjust your come-along winch alignment so that the pull cable runs completely horizontal and parallel to the ground, pulling from the exact vertical center of the stretcher bar helper.

Frequently Asked Questions

How tight should a chain link fence be stretched?

A chain link fence should be stretched until the fabric is taut and does not sag, but still retains enough flexibility to absorb minor impacts. When you press firmly against the center of a fence span with your hand, the fabric should deflect no more than 1 to 2 inches and should spring back immediately. Over-stretching must be avoided as it can bend the terminal posts and cause the wire diamonds to warp or snap under temperature-induced contraction.

Can I stretch a chain link fence without a come-along winch?

For short runs of 20 feet or less, you can use a manual 2x4 wood lever system or a block-and-tackle pulley system to pull the fabric taut. For runs exceeding 20 feet, or when working with heavy-duty 9-gauge commercial wire, a mechanical come-along winch is required to safely generate the thousands of pounds of pulling force needed to remove the slack from the steel mesh.

Why is my chain link fence bowing at the bottom after installation?

Bowing at the bottom occurs when there is no bottom support to keep the fabric anchored, allowing people, pets, or wind to push the mesh outward. To resolve this, thread a 7-gauge coil spring tension wire through the bottom row of fabric diamonds along the entire length of the fence, tension it with a turnbuckle, and secure it to the fabric using hog rings spaced every 24 inches.

Should I use a top rail or a top tension wire when stretching?

A solid top rail is highly recommended because it provides continuous horizontal resistance against the inward pulling forces generated during the stretching process. If you choose to use a top tension wire instead of a top rail for aesthetic or budget reasons, you must install heavy-duty brace rails and truss rods on all terminal posts to prevent them from bending inward when the wire is tensioned.

Secure Your Boundary with Professional Precision

Ensure your next fence installation stands straight and sag-free for decades by utilizing heavy-duty commercial-grade hardware and proper tensioning techniques. By applying these structural standards and systematic steps, your perimeter fence will maintain its structural integrity and neat appearance against the elements.
