How To Tell If A Catalytic Converter Is Clogged: Advanced Technical Diagnostic Guide

Identifying a clogged catalytic converter requires evaluating engine performance symptoms and performing targeted backpressure, vacuum, and thermal tests. A healthy converter maintains exhaust backpressure below 0.5 PSI at idle (under 1.25 PSI at 2,500 RPM) and displays an outlet temperature at least 100°F (55°C) hotter than its inlet. Excessive exhaust restriction leads to severe power loss, sluggish acceleration, glowing ceramic substrates, and diagnostic trouble codes such as P0420 or P0430.

Pre-Diagnostic Setup & Essential Tooling

Accurately diagnosing an exhaust flow restriction demands precision instruments capable of isolating engine pumping losses from fuel or ignition system faults. Before initiating testing, ensure the engine's mechanical timing, ignition spark, and fuel delivery systems operate within OEM spec, as an underperforming engine can mimic exhaust restriction symptoms.

• Essential Diagnostic Tools & Equipment:




  • Exhaust backpressure test gauge kit (0–15 PSI range with standard M18 x 1.5 oxygen sensor adapter fittings).
  • Infrared non-contact pyrometer (laser thermometer) with a measurement ceiling of at least 1,200°F (650°C).
  • Analog intake manifold vacuum gauge (0–30 in-Hg calibration range).
  • Professional-grade OBD-II scanner supporting live sensor plotting (graphing downstream O2 sensor voltages and long-term fuel trims).
  • Oxygen sensor socket (22mm / 7/8-inch offset drive) and penetrating fluid.
  • Heat-resistant protective gloves, ANSI-approved safety eyewear, and wheel chocks.

• Prerequisite Knowledge & Safety Standards:




  • Familiarity with standard engine vacuum readings at sea level (typically 17–22 in-Hg at idle).

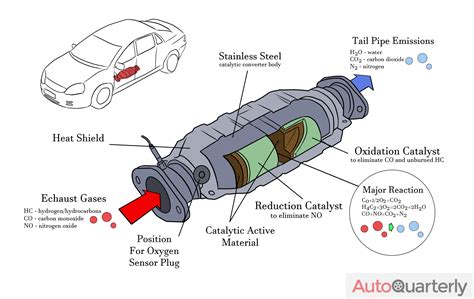

  • Understanding of catalytic converter internal chemistry (reduction and oxidation reactions converting CO, HC, and NOx to CO2, H2O, and N2).
  • Awareness of high thermal hazards: operating catalytic converters reach temperatures between 800°F and 1,600°F (425°C to 870°C). Never touch active exhaust components.
  • Exhaust gas safety protocols: execute all engine-running procedures in a properly ventilated bay or with an active shop exhaust extraction line.

• Estimated Diagnostic Benchmarks:




  • Time Required: 45 to 90 minutes for full multi-point diagnostic testing.
  • Required Equipment Cost: $40 to $150 for basic diagnostic tooling (vacuum gauge, pyrometer, backpressure fitting).

Step-by-Step Exhaust Restriction Diagnostic Workflow

Step 1: Initial Symptom Verification & OBD-II Fault Code Scan

Begin by executing a vehicle system scan using an OBD-II diagnostic tool to read stored, pending, and permanent Diagnostic Trouble Codes (DTCs). Focus on exhaust flow, catalyst efficiency, and engine performance indicators.

1. Connect the OBD-II scanner to the vehicle's Data Link Connector (DLC) under the driver's side dashboard.
2. Read and record all active trouble codes. Look specifically for P0420 (Catalyst System Efficiency Below Threshold - Bank 1), P0430 (Bank 2), P0101 (Mass Air Flow circuit range/performance due to reduced airflow), or general random misfire codes (P0300 through P0308).
3. Start the engine and evaluate physical driver symptoms:


   • Severe sluggishness during load: The vehicle starts normally and idles smoothly, but bogs down, stumbles, or fails to exceed 30–45 MPH under heavy throttle application.
   • Exhaust sound changes: A muffled, high-pitched choking or hissing sound emanating from the engine bay or underbody, caused by exhaust gases attempting to escape around manifold gaskets or slip joints.
   • Poor fuel economy: Significant dropping of miles-per-gallon due to excessive backpressure inhibiting proper cylinder scavenging.

Warning: If the catalytic converter casing glows cherry red, or if you smell strong sulfur ("rotten egg") odors combined with extreme floorboard heat, turn off the engine immediately. Red-hot glowing indicates unburnt fuel burning directly inside a severely restricted or failing converter honeycomb, creating an extreme fire hazard.

Step 2: Intake Manifold Vacuum Drop Test

Testing intake manifold vacuum under sustained engine speeds provides a fast, non-invasive indicator of exhaust system flow restrictions without unbolting exhaust hardware.

1. Locate a direct plenum vacuum source on the intake manifold (such as the brake booster line or an auxiliary vacuum port).
2. Connect the analog vacuum gauge securely to the port using appropriate rubber adapters to prevent air leaks.
3. Start the engine and record the baseline vacuum reading at idle. A healthy engine at sea level typically produces a steady reading between 17 and 22 in-Hg.
4. Smoothly increase and hold engine speed at 2,500 RPM while observing the gauge needle:


   • Healthy System: The vacuum gauge needle drops momentarily when the throttle opens, quickly recovers, and stabilizes at or near the idle reading (typically 18–21 in-Hg).
   • Clogged Converter System: The vacuum needle initially drops, attempts to recover, but then continuously drifts downward toward 10 in-Hg or lower as exhaust backpressure stacks up in the exhaust manifold and chokes engine breathing.

Step 3: Infrared Pyrometer Thermal Delta Inspection

A operational catalytic converter is an exothermic reactor. It must process unburnt hydrocarbons and carbon monoxide, generating heat in the process. Consequently, the outlet pipe of a functional converter is hotter than the inlet pipe.

1. Start the engine and drive the vehicle for 10–15 minutes under light-to-moderate load to bring the catalytic converter up to full light-off operating temperature (minimum 600°F / 315°C).
2. Safely elevate the vehicle on a vehicle lift or jack stands. Secure with wheel chocks.
3. Aim an infrared pyrometer directly at the exhaust pipe upstream (inlet) of the catalytic converter, roughly 1 to 2 inches away from the catalyst body weld seam. Record the temperature.
4. Aim the pyrometer directly at the exhaust pipe downstream (outlet) of the catalytic converter, approximately 1 to 2 inches behind the rear weld seam. Record the temperature.
5. Calculate the thermal delta (Outlet Temperature minus Inlet Temperature):


   • Healthy Converter: The outlet pipe reading is at least 100°F to 200°F (55°C to 110°C) hotter than the inlet pipe, proving chemical oxidation is occurring.
   • Clogged / Melted Converter: The outlet pipe reading is equal to, or lower than, the inlet pipe reading (e.g., inlet is 600°F, but outlet is 450°F). This indicates that internal flow is choked, or the ceramic matrix has melted into a solid block, blocking exhaust flow and heat transfer.

Pro-Tip: Ensure you aim the pyrometer at raw, unpainted metal surfaces. Stainless steel heat shields will reflect ambient temperatures and produce false readings. Target the bare exhaust pipe right where it enters and exits the converter housing.

Step 4: Upstream Oxygen Sensor Port Backpressure Measurement

The direct exhaust backpressure test provides definitive quantitative proof of a physical restriction. This test isolates the exact location of the blockage.

1. Spray penetrating fluid onto the threads of the upstream (Bank 1, Sensor 1) oxygen sensor. Allow it to soak for 10 minutes.
2. Using a 22mm offset oxygen sensor socket, carefully unthread and remove the upstream O2 sensor from the exhaust manifold or downpipe.
3. Thread the adapter fitting of your exhaust backpressure test gauge into the empty O2 sensor port (standard M18 x 1.5 thread pitch). Torque hand-tight plus 1/4 turn to ensure a gas-tight seal.
4. Route the hose and gauge clear of hot engine components and moving belts.
5. Start the engine and observe the backpressure gauge under two distinct operating conditions:


   • Idle Speed (600–800 RPM): Read the pressure.
   • Sustained Engine Speed (2,500 RPM): Hold the throttle steady and read the pressure.
6. Evaluate the quantitative readings:


   • Healthy Reading: Pressure reads between 0.0 and 0.5 PSI at idle, and stays below 1.25 PSI at 2,500 RPM.
   • Restricted / Clogged Reading: Pressure exceeds 1.25 PSI at idle or spikes above 2.0 to 5.0+ PSI at 2,500 RPM. Any reading exceeding 1.5 PSI under steady load confirms a severe downstream exhaust restriction.

Step 5: Downstream System Isolation & Tap Test

If high backpressure is confirmed in Step 4, you must verify whether the blockage is inside the catalytic converter itself or further downstream in the resonator/muffler assembly.

1. Re-install the upstream O2 sensor and remove the downstream (Sensor 2) O2 sensor located after the catalytic converter.
2. Install the backpressure gauge into the downstream sensor port and repeat the 2,500 RPM pressure test.


   • If backpressure drops back down to normal (<1.0 PSI), the restriction lies inside the catalytic converter (upstream of the test point).
   • If backpressure remains excessively high (>1.5 PSI), the restriction lies further down the line inside the muffler, resonator, or collapsed tailpipe line.
3. Perform a physical internal structure check ("Tap Test"): Lightly tap the catalytic converter body with a rubber mallet.


   • A solid, dead thud indicates the internal ceramic brick is intact.
   • A loud, metallic rattling or maraca-like sound indicates the ceramic honeycomb matrix has shattered into loose debris, which migrates downstream and plugs the exit cone.

Catalytic Converter Diagnostic Metrics & Benchmark Values

Root-Cause Analysis & Failure Prevention

A catalytic converter rarely fails on its own; it is typically collateral damage caused by an unaddressed engine upstream fault. Replacing a clogged converter without fixing the root cause will result in premature failure of the replacement unit within weeks.

• Melted Ceramic Substrate Matrix




  • Root Cause: Raw, unburnt fuel entering the exhaust stream due to persistent ignition misfires (worn spark plugs, bad ignition coils), stuck-open fuel injectors, or an excessively rich fuel mixture. Fuel ignites inside the converter, pushing internal temperatures past the substrate melting point of 2,600°F (1,425°C).
  • Actionable Fix: Diagnose and resolve misfire codes (P0300 series) immediately. Replace damaged spark plugs, worn ignition wires, and faulty injectors. Replace the melted catalytic converter assembly.

• Engine Oil or Coolant Contamination (Poisoning)




  • Root Cause: Internal engine seal failures, such as blown head gaskets, leaking intake manifolds, worn valve stem seals, or damaged piston rings. Burning coolant (silicates) or engine oil (phosphorus/zinc) coats the catalytic cell walls with non-reactive ash deposits, clogging micro-passages and preventing exhaust flow.
  • Actionable Fix: Perform a cylinder leak-down test and cooling system pressure test. Replace head gaskets, valve stem seals, or engine rings as necessary. Flush exhaust pipe systems and replace contaminated converters.

• Internal Matrix Shattering / Mechanical Collapse




  • Root Cause: Severe thermal shock (driving through deep cold water puddles when the converter is hot) or direct physical impacts from road debris, speed bumps, or off-road grounding. The fragile cordierite ceramic honeycomb structure cracks, breaks apart, and blocks the exit funnel.
  • Actionable Fix: Inspect underbody mounting brackets, exhaust hangers, and heat shields. Install a heavy-duty direct-fit replacement converter, ensuring proper clearance and secure flex-joint isolation.

• Carbon Soot Accumulation from Short-Trip Driving




  • Root Cause: Repeated short trips in cold climates where the converter never reaches its minimum light-off operating temperature (600°F / 315°C), leading to heavy carbon black soot buildup within the narrow micro-channels.
  • Actionable Fix: Execute an extended highway drive (30–45 minutes at 65 MPH) to allow the catalytic converter to perform passive self-regeneration by burning off light carbon deposits.

Frequently Asked Questions

Can I clean a clogged catalytic converter without removing it?

Chemical pour-in-tank exhaust cleaners can strip mild carbon and fuel residue from oxygen sensors and light surface soot inside the catalyst. However, if the converter's internal ceramic substrate has physically melted, fused shut, or structurally collapsed into fragments, chemical cleaners will not restore flow; mechanical replacement is required.

Can a clogged catalytic converter cause an engine to crank but not start?

Yes, a completely blocked catalytic converter can prevent an engine from starting. If exhaust gases cannot escape the cylinders during the exhaust stroke, residual pressure remains in the combustion chamber, preventing a fresh intake charge of air and fuel from entering, effectively choking the engine out.

What does a clogged catalytic converter smell like?

A failing or clogged converter frequently produces a strong, pungent sulfur or rotten egg smell. This occurs when the catalyst fails to process hydrogen sulfide (H2S) in the exhaust gases into odorless sulfur dioxide (SO2), or when rich fuel conditions overheat the internal metals.

Will a clogged catalytic converter always set off a Check Engine Light?

Not always immediately. While efficiency failures routinely trigger a P0420 or P0430 code via downstream oxygen sensor monitoring, pure mechanical blockages without catalyst chemical degradation can restrict exhaust flow and destroy engine performance before the ECM sets a specific catalyst efficiency fault code.

What is the difference between a bad catalytic converter and a clogged catalytic converter?

A "bad" converter may simply lose its chemical efficiency due to age or mild contamination, setting a P0420 code while allowing exhaust gas to pass freely without affecting engine power. A "clogged" converter is a physical flow blockage that restricts exhaust gas exit, creating backpressure that degrades acceleration and engine operation.

Professional Exhaust Diagnostic Support

Accurately pinpointing exhaust system restrictions prevents unnecessary component replacement and protects engine durability. If your backpressure and thermal testing reveal direct internal converter restriction, source OEM-compliant, direct-fit replacement assemblies designed to restore original exhaust flow specifications.
