How To Tell If An Engine Is Seized: Step-by-Step Diagnostic Guide

To determine if an engine is seized, attempt to manually rotate the crankshaft pulley bolt using a breaker bar and socket. If the crankshaft refuses to turn 360 degrees in either direction with moderate manual force, or if starting attempts produce only a single loud metallic click accompanied by a massive voltage drop, the engine is likely mechanically locked due to oil starvation, hydrolock, or internal component fusion.

Identifying a seized engine early can mean the difference between a minor top-end repair and a complete, highly expensive engine replacement. Mechanical seizure occurs when the internal moving parts of an engine—typically the pistons, connecting rods, or crankshaft bearings—become physically locked together, preventing any rotation. This diagnostic guide details the exact mechanical and electrical procedures required to confirm if an engine is seized, ruling out peripheral electrical failures or frozen belt accessories.

Pre-Diagnostic Checklist & Safety Protocols

Before diving into hands-on mechanical diagnostics, you must establish a safe working environment and gather the specific diagnostic equipment required to safely manipulate the engine's rotating assembly. Forcing a locked engine to turn using improper tools can snap vital fasteners or permanently damage the crankshaft.

Diagnostic Parameters & Resource Requirements

• Estimated Time: 1 to 2 hours depending on engine bay accessibility.
• Skill Level: Intermediate. Requires basic knowledge of hand tools and electrical diagnostic meters.
• Safety Hazards: Hot engine components, battery short-circuits, high-torque tool slippage, and pressurized fluids. Always wear impact-resistant safety glasses and heavy-duty nitrile gloves.

Essential Equipment & Materials

• Hand Tools: A 1/2-inch drive breaker bar (minimum 18 to 24 inches in length) and a socket set containing the correct size for your crankshaft harmonic balancer bolt (typically 19mm to 24mm).
• Electrical Instruments: A digital multimeter (DMM) with DC voltage capabilities.
• Diagnostic Aids: A high-quality flexible LED borescope camera and penetrating oil (such as Kano Kroil or PB Blaster).
• Safety Gear: Heavy-duty jack stands, wheel chocks, and safety glasses.

Step-by-Step Diagnostic Workflow to Confirm a Locked Engine

This diagnostic workflow is structured to systematically rule out simple failure points—such as a depleted battery or a locked alternator—before concluding that the engine block itself is mechanically ruined.

Step 1: Perform a Starter Draw and Electrical Health Test

A common mistake is misdiagnosing a dead battery, a bad starter solenoid, or corroded battery terminals as a seized engine. When you turn the ignition key to the start position, a functional starter motor attempts to spin the flywheel. If the engine is physically seized, the starter motor will engage but will be unable to turn the flywheel, resulting in an extreme electrical draw.

1. Measure the resting battery voltage using your digital multimeter. A fully charged automotive battery must read at least 12.6 volts.
2. Connect the multimeter leads to the battery terminals, then have an assistant attempt to crank the engine while you observe the live voltage reading.
3. Analyze the voltage drop. If the battery voltage drops precipitously from 12.6V down to below 9V instantly while producing a single, heavy "clunk" sound from the starter, this indicates the starter motor is pulling maximum amperage but is physically blocked from rotating.
4. Examine the main battery cables. If the negative ground or positive cable becomes hot to the touch during a brief starting attempt, this is a primary indicator of extreme starter motor resistance, commonly caused by a locked engine rotating assembly.

Warning: Do not crank the starter for more than 3 to 5 seconds during this test. Attempting to run a starter motor against a seized engine will quickly overheat the starter windings, melting the insulation and destroying the starter motor itself.

Step 2: Conduct a Visual Lubricant and Fluid Analysis

Engines seize primarily due to thermal fusion caused by a lack of lubrication or severe cooling system failure. Checking the state of your engine fluids provides immediate clues regarding the physical condition inside the crankcase.

1. Pull the engine oil dipstick and inspect the level and consistency of the lubricant. If the dipstick is completely dry, the engine has likely run out of oil, leading to bearing destruction and thermal seizure of the connecting rods to the crankshaft journals.
2. Examine the oil on the dipstick for metallic debris. Look closely under a bright light for fine, glittering silver or bronze flakes. These flakes are pulverized bearing material, a clear sign of catastrophic bearing failure.
3. Check for coolant contamination. If the oil resembles a milky brown milkshake, coolant has breached the combustion chambers or crankcase, which can cause hydrolock or strip the oil of its lubricating properties, leading to mechanical seizure.

Step 3: Rule Out Parasitic Accessory Lock

Sometimes, the engine itself is perfectly fine, but an engine-driven accessory—such as the air conditioning compressor, alternator, power steering pump, or water pump—has seized internally. Because these accessories are mechanically linked to the crankshaft via the serpentine or drive belts, a frozen accessory can completely prevent the engine from turning over.

1. Locate the drive belt tensioner. Using a long wrench or socket, rotate the tensioner to release tension on the serpentine belt.
2. Slide the belt off the pulleys.
3. Manually spin every accessory pulley, including the alternator, A/C compressor, power steering pump, and idler pulleys.
4. If one of these pulleys refuses to spin freely, it is seized. Attempt to crank the engine with the accessory belt completely removed. If the engine starts or turns over freely with the belt off, the engine is not seized; you simply need to replace the locked accessory.

Pro-Tip: Running an engine without its serpentine belt means the water pump and alternator may not be functional. Only run the engine for a maximum of 30 seconds to confirm it starts, preventing rapid engine overheating.

Step 4: Isolate Hydrolock by Removing Spark Plugs

Hydrolock occurs when a liquid (coolant, fuel, or water) enters one or more cylinders. Because liquid is incompressible, the piston cannot complete its compression stroke, completely halting the engine's rotation. This mimics a mechanical metal-on-metal seizure.

1. Disable the ignition system and fuel pump by removing their respective fuses or relays from the engine bay fuse box to prevent accidental combustion or fuel spraying.
2. Carefully remove all spark plugs (on a gasoline engine) or glow plugs (on a diesel engine).
3. With the spark plugs removed, the combustion chambers are vented directly to the atmosphere.
4. Place a clean shop towel over the spark plug holes, then attempt to turn the ignition key to the start position.
5. If the engine suddenly spins rapidly, it was hydrolocked. Observe the shop towel to see which cylinder sprays liquid. If coolant sprays out, you likely have a blown head gasket; if raw fuel sprays out, you have a stuck-open fuel injector.

Step 5: Attempt Manual Crankshaft Rotation (The Definitive Test)

If the electrical system is functioning, the accessory belt is off, and the spark plugs are removed, but the engine still will not budge, you must perform a manual rotation test. This bypasses all electrical systems to directly test the mechanical freedom of the rotating assembly.

1. Safely raise the vehicle using a hydraulic jack and secure it on heavy-duty jack stands. Chock the rear wheels and ensure the vehicle is in Neutral (for manual transmissions) or Park (for automatic transmissions).
2. Locate the harmonic balancer pulley at the very bottom center of the engine. This pulley is mounted directly onto the snout of the crankshaft.
3. Select a socket that fits the large central bolt of the crankshaft pulley tightly. Using a loose or incorrect socket can easily strip this critical bolt.
4. Attach your 1/2-inch drive breaker bar to the socket and place it securely on the crankshaft bolt.
5. Attempt to pull the breaker bar clockwise (the standard direction of engine rotation) with smooth, firm pressure. Do not bounce or jerk the bar.
6. If the engine is healthy, you should be able to rotate the crankshaft smoothly. It will require some effort due to normal internal friction, but it will turn.
7. If the breaker bar does not move at all, try to rotate it counter-clockwise by about 10 to 15 degrees. If it moves slightly in one direction and then hits a hard, metallic stop, you are likely dealing with a broken connecting rod, a dropped valve, or a broken timing chain jamming the valve train.

Engine Mechanical Failure Modes & Torque Limits

Different mechanical failures present unique physical symptoms when testing rotation. The table below outlines how to differentiate these failure modes during your diagnostic procedure.

Diagnostic Roadblocks & Field Solutions

Scenario 1: The crankshaft turns partially, then comes to a hard, sudden stop in both directions.

• Root Cause: This is highly indicative of a mechanical interference issue inside the combustion chamber. It occurs when a valve has dropped (snapped and fallen into the cylinder), a connecting rod has broken and is wedged against the engine block web, or the timing chain has jumped, causing the pistons to strike the valves.
• Actionable Fix: Remove the valve covers and inspect the timing belt or chain alignment. Use a flexible borescope camera inserted into each spark plug hole to visually inspect the tops of the pistons. Look for physical impact marks, metal fragments, or a valve head lying flat on a piston crown. Do not force the engine past this mechanical stop under any circumstances.

Scenario 2: The crankshaft bolt begins to loosen or tighten, but the engine pulley does not rotate.

• Root Cause: When attempting to rotate the engine counter-clockwise, you may simply be loosening the crankshaft pulley bolt rather than rotating the engine assembly. Conversely, rotating clockwise with excessive force can overtighten and shear the bolt head off.
• Actionable Fix: Only apply rotational force in the clockwise direction to prevent loosening the bolt. If the bolt is tightening without moving the engine and you have exceeded approximately 150 lb-ft of manual torque, stop immediately. Exceeding this torque limit risks snapping the crankshaft snout. The engine is fully seized.

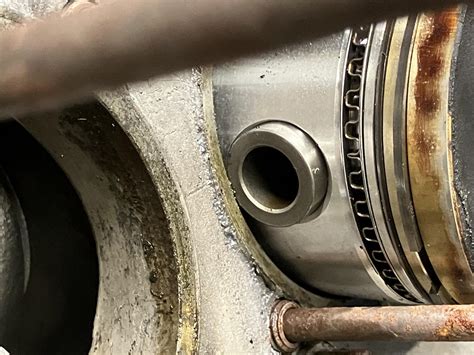

Scenario 3: The engine is locked due to years of outdoor storage, and you want to save the block.

• Root Cause: Piston rings have rusted directly to the cast-iron cylinder walls, forming a chemical bond.
• Actionable Fix: Remove all spark plugs and fill each cylinder with a 50/50 mixture of acetone and automatic transmission fluid (ATF), or a dedicated deep-penetrating oil. Allow the cylinders to soak for 48 to 72 hours. Periodically apply gentle, rocking pressure to the crankshaft pulley bolt using your breaker bar. Once the engine breaks free, rotate it several times by hand, extract the remaining fluid, and perform a complete oil change before attempting to start it.

Frequently Asked Questions

Can you jump-start a car with a seized engine?

No, jump-starting will not resolve a seized engine. Jump-starting increases the available electrical current to the starter motor, but because the internal engine components are physically locked, the starter still cannot rotate the flywheel. Attempting to jump-start a seized engine will only cause the jumper cables or starter wiring to get dangerously hot.

What does a seized engine sound like when you try to start it?

When you turn the key, a seized engine typically produces a single, loud metallic "clack" or "thud" as the starter bendix gear engages with the flywheel but cannot turn it. In some cases, there may be complete silence accompanied by the rapid dimming of your dashboard lights, indicating an extreme electrical load on the system.

How can I tell the difference between a bad starter and a seized engine?

A bad starter can be diagnosed by checking the battery voltage drop during cranking. If you attempt to start the car and see little to no voltage drop (the battery remains at 12V or higher) while hearing a clicking noise, the starter solenoid or motor is weak or failing. If you see a massive voltage drop down to 8V or below and the wiring gets hot, the starter is trying to turn a seized engine. To confirm, try rotating the engine manually with a breaker bar.

Can an engine seize while you are driving?

Yes, an engine can seize while driving, which is a highly dangerous situation. If the engine loses oil pressure or overheats severely at highway speeds, the pistons can weld themselves to the cylinder walls almost instantly. The engine will abruptly lose all power, the drive wheels may lock up (in a manual transmission vehicle), and you will hear a loud screeching or grinding noise before the engine dies completely.

Professional Engine Restoration & Core Diagnostics

If your diagnostic tests confirm that the crankshaft will not rotate manually, your engine has suffered structural mechanical failure. Contact an ASE-certified automotive machinist or a professional engine remanufacturer to discuss block boring, crankshaft turning, or complete drop-in crate engine replacement options to get your vehicle back on the road safely.
