How To Test A Fuel Sending Unit: A Complete Step-by-Step Diagnostic Guide

Testing a fuel sending unit requires measuring its electrical resistance (ohms) across its entire mechanical sweep using a digital multimeter. A properly functioning sending unit must transition smoothly between its designated empty and full resistance specifications without signal dropouts or erratic spikes. Isolating whether your fuel gauge issue stems from the sending unit, the gauge itself, or the vehicle wiring prevents costly misdiagnoses and unnecessary parts replacement.

Pre-Diagnostic Preparation and Safety Equipment Checklist

Diagnosing fuel system components demands strict adherence to safety protocols due to the presence of highly flammable gasoline vapors. Before attempting to access, probe, or remove the fuel sending unit, you must establish a clean, spark-free workspace and gather the correct diagnostic instruments.

Essential Gear and Tools

• Digital Multimeter (DMM): Capable of reading DC voltage and electrical resistance (ohms) with manual or auto-ranging capabilities.
• Safety Glasses and Nitrile Gloves: Fuel-resistant barrier protection for eyes and skin.
• Hand Tools: Socket set (typically 8mm to 13mm), flathead and Phillips screwdrivers, and a fuel tank lock ring tool if tank removal or access is required.
• Brass Drift Punch or Non-Sparking Mallet: Essential for loosening metal lock rings without generating sparks.
• Jumper Wires: Fitted with alligator clips for secure connection testing.
• Class B Fire Extinguisher: Dry chemical or carbon dioxide extinguisher kept within arm's reach.

Mandatory Prerequisite Knowledge and Environmental Standards

• Battery Disconnection: Always disconnect the negative battery terminal before opening any electrical connectors near the fuel tank to eliminate the risk of accidental electrical arcing.
• Ventilation: Work in a well-ventilated outdoor area or an open shop bay with an active exhaust extraction system. Never test fuel systems in closed garages.
• Fuel Level Preparation: If the fuel tank must be lowered to access the sending unit, drain the fuel into an approved storage container until the tank is less than one-quarter full to reduce weight and prevent spills.

Estimated Diagnostic Benchmarks

• Estimated Budget: $15 to $50 (assuming a digital multimeter is already owned).
• Estimated Duration: 45 minutes for vehicles with interior cabin access panels; 2 to 3 hours for vehicles requiring fuel tank removal.

Step-by-Step Fuel Sending Unit Diagnostic Protocols

This diagnostic sequence isolates the fuel gauge, the vehicle chassis wiring, and the fuel sending unit itself. By following these steps in order, you will pinpoint the exact point of electrical failure.

Step 1: Isolate the Instrument Cluster Gauge and Wiring Harness

Before accessing the physical fuel sending unit, you must determine if the dashboard fuel gauge and the wiring leading to the tank are functional. This test bypasses the sending unit to check for circuit continuity.

1. Locate the electrical connector plugged into the fuel sending unit. This is often found under an access panel beneath the rear passenger seat, in the trunk floor, or directly on top of the fuel tank.
2. Switch the ignition key to the "Run" or "On" position without starting the engine.
3. Disconnect the wiring harness plug from the sending unit.
4. Observe the dashboard fuel gauge. With the harness disconnected (an open circuit), the gauge needle should sweep to one extreme limit, typically way past "Empty" or way past "Full," depending on the vehicle manufacturer's design.
5. Using a fused jumper wire, temporarily connect the harness signal terminal pin to a clean chassis ground point.
6. Observe the fuel gauge again. With the signal wire grounded (zero resistance), the gauge needle should sweep completely to the opposite extreme.

Pro-Tip: If the fuel gauge fails to move during this bypass test, your problem lies in a blown fuse, a broken wire in the chassis harness, or a failed dashboard instrument cluster rather than the fuel sending unit.

Step 2: Measure In-Tank Resistance at Current Fuel Levels

If the dashboard gauge responds correctly to the bypass test in Step 1, the wiring harness is intact. You must now measure the resistance of the sending unit as it sits inside the fuel tank.

1. Switch the ignition key back to the "Off" position.
2. Set your digital multimeter to the resistance setting, designated by the Omega symbol (Ω). If your multimeter is manual-ranging, select the 200-ohm or 2,000-ohm scale.
3. Identify the "Signal" (or Send) and "Ground" pins on the male connector of the fuel sending unit itself. Refer to a vehicle repair manual or wiring schematic if the connector contains more than two pins (which is common on modern vehicles where the fuel pump and sending unit share a single flange).
4. Connect the positive red probe of the multimeter to the sending unit's signal pin and the negative black probe to the sending unit's ground pin.
5. Note the resistance value displayed on the screen. Compare this reading against your approximate physical fuel level. For example, if you know the tank is half full, the ohm reading should be roughly halfway between the manufacturer's empty and full specifications.

Warning: Never use the resistance setting on your multimeter while the vehicle's wiring harness is connected and powered. Applying external voltage to your meter while in ohm mode can destroy the meter's internal circuitry.

Step 3: Perform a Bench Sweep Test for Signal Continuity

If your static reading from Step 2 is questionable, or if you suspect the unit has a dead zone that causes the gauge to drop out at specific fuel levels, you must remove the fuel sending unit from the tank to conduct a dynamic bench sweep test.

1. Relieve any residual fuel system pressure and disconnect the vehicle's negative battery cable.

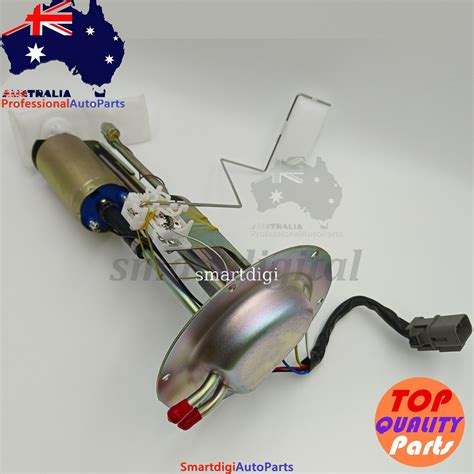

2. Use a brass punch or a dedicated lock ring tool to rotate and remove the fuel pump/sending unit locking ring.
3. Carefully lift the sending unit assembly out of the fuel tank, paying close attention to the float arm. Do not bend or deform the metal float arm during removal, as this will permanently ruin the gauge calibration.
4. Allow any residual fuel to drain from the assembly back into the tank. Place the unit on a clean, dry, non-conductive workbench.

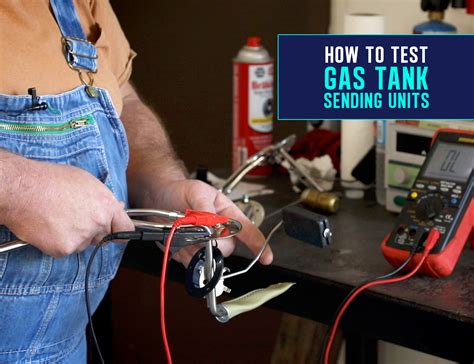

5. Attach alligator-clip test leads from your multimeter probes directly to the signal and ground terminals of the sending unit.
6. Manually move the float arm slowly from its lowest position (Empty) to its highest position (Full) while watching the digital display.
7. Observe the sweep. The resistance numbers should climb or descend smoothly and progressively. There should be no sudden jumps to "OL" (Open Loop/Infinite Resistance) or random drops to zero ohms during this motion.
8. Reverse the motion, moving the float arm slowly back from Full to Empty, ensuring the resistance readings scale down or up smoothly.

Fuel Sending Unit Resistance and Calibration Specifications

Different vehicle manufacturers use highly specific ohm ranges to calibrate their fuel gauges. Using the wrong sending unit or failing to understand your vehicle's specific calibration parameters will result in highly inaccurate dashboard readings.

Common Electrical Failures and Field Remedies

When diagnosing a sending unit, you will typically encounter specific failure modes on the ceramic resistor card or the mechanical float assembly. Here is how to diagnose and correct these issues.

• Scenario 1: The multimeter reads "OL" (Open Loop) or infinite resistance at all float positions.




  • Root Cause: The fine copper wiper arm contact on the float rod has lost physical contact with the ceramic resistor board, or the internal ground lead on the sending unit is severed.
  • Actionable Fix: Inspect the wiper arm tension. Gently bend the thin metal contact finger backward so that it exerts firm, positive pressure against the black resistor tracks on the ceramic card. If the black resistive tracks are completely worn away down to the bare ceramic, the entire sending unit assembly must be replaced.

• Scenario 2: The resistance reading freezes or drops to "OL" at a specific point along the sweep.




  • Root Cause: The conductive carbon/silver ink on the ceramic circuit board has worn thin or been scratched off by sediment, creating a dead spot where the electrical path is broken.
  • Actionable Fix: Clean the ceramic circuit card gently with electronics cleaner and a cotton swab to remove fuel varnishing or varnish buildup. If the conductive track is physically worn through to the substrate, repair is impossible; replace the sending unit.

• Scenario 3: The multimeter reads 0 ohms across the entire range, and the gauge stays stuck on one end.




  • Root Cause: The signal circuit is shorted to the ground wire or the metal frame of the sending unit assembly. This is frequently caused by damaged wire insulation inside the tank or a pinched wire under the mounting flange.
  • Actionable Fix: Trace the wiring leading from the external plug down to the wiper board. Look for worn insulation exposing bare copper. Wrap any exposed wires with fuel-resistant heat-shrink tubing or replace the internal harness wires using fuel-rated wiring.

• Scenario 4: The resistance readings are correct on the bench, but the fuel gauge reads empty on the dashboard.




  • Root Cause: The hollow brass, plastic, or foam float at the end of the arm has developed a pinhole leak or absorbed fuel, causing it to lose buoyancy and sink to the bottom of the tank.
  • Actionable Fix: Submerge the float in a container of water or shake it near your ear. If you hear liquid sloshing inside or see air bubbles rising, the float is compromised. Replace the brass or plastic float bobber; you do not need to replace the entire electrical sending unit.

Frequently Asked Questions

Can I test a fuel sending unit without dropping the fuel tank?

Yes, if your vehicle features an access panel beneath the rear seat cushion or trunk carpet, you can unplug the electrical connector and perform basic continuity, voltage, and static resistance tests directly from inside the cabin. If your vehicle lacks this panel, you must lower the tank to access the electrical pins.

Why does my fuel gauge fluctuate wildly when I drive around corners?

This is typically caused by a failed fuel tank baffle or a worn sending unit resistor card. In older vehicles, a lack of dampening in the gauge circuit or a worn resistor track allows the wiper to slide over dead zones as fuel sloshes, causing sudden voltage drops that translate to erratic needle movement on the dashboard.

What voltage should be going to my fuel sending unit?

Most modern instrument clusters or body control modules feed a regulated 5-volt or 12-volt reference signal to the fuel sending unit. This low-amperage reference voltage prevents the fuel tank wiring from generating enough thermal energy to ignite fuel vapors in the event of an electrical short.

Can bad fuel cause a sending unit to fail?

Yes. High-sulfur fuel or high-ethanol gasoline blends can accelerate corrosion on the silver-alloy contact tracks of the ceramic resistor card. This chemical reaction forms black silver-sulfide deposits that insulate the wiper arm from the resistor track, resulting in intermittent or dead fuel gauge readings.
