How To Test A Mechanical Fuel Pump: A Comprehensive Diagnostic Guide

Testing a mechanical fuel pump requires verifying the output pressure and volume against the vehicle manufacturer’s specific PSI and Gallons Per Hour (GPH) requirements using a calibrated fuel pressure gauge. If the pump fails to maintain pressure during cranking or lacks sufficient flow rate, it indicates a compromised diaphragm, worn internal valves, or a fatigued operating arm that necessitates immediate replacement.

Essential Diagnostic Preparation and Equipment Requirements

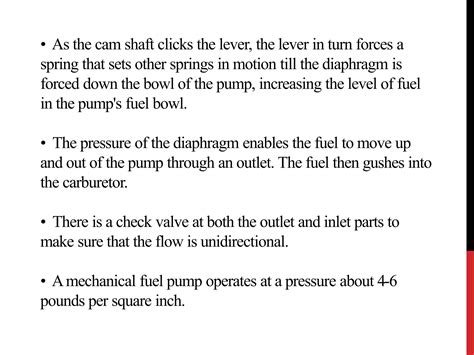

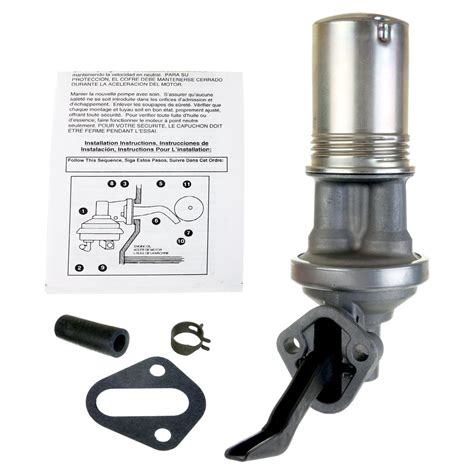

Before beginning the diagnostic process, ensure the vehicle is parked on a level surface with the engine cooled to ambient temperature. Mechanical fuel pumps, typically found on carbureted engines, rely on a physical lever or plunger arm actuated by an eccentric on the engine's camshaft. Because these components are internal to the engine block or timing cover, the test is performed externally by measuring the fuel flow at the carburetor inlet.

• Essential Diagnostic Tools: A mechanical fuel pressure gauge (0-15 PSI range), a graduated container for volume testing, high-quality fuel-rated hose clamps, a length of reinforced fuel-rated hose, and shop rags to manage fuel spillover.
• Mandatory Prerequisite Knowledge: Understanding that mechanical pumps are pressure-sensitive and volume-dependent. A pump may show correct static pressure but fail to deliver adequate volume under load.
• Safety Standards: Always work in a well-ventilated area away from open flames or electrical sparks. Keep a Class B fire extinguisher within reach.
• Estimated Duration: 30 to 45 minutes for a full pressure and volume test.

Step-by-Step Mechanical Fuel Pump Diagnostic Workflow

Step 1: Verification of Fuel Supply Integrity

Before testing the pump itself, eliminate the fuel supply chain as a variable. Inspect the fuel line between the tank and the pump for cracks, dry rot, or pinched sections. If the pump cannot pull fuel from the tank due to a vacuum leak, the test results will be inaccurate. Ensure the fuel filter located before the pump is clean and free of sediment.

Step 2: The Static Fuel Pressure Test

Disconnect the fuel line at the inlet of the carburetor. Connect the fuel pressure gauge between the pump output line and the carburetor inlet using a T-fitting or by connecting the gauge directly to the pump output line. Ensure all connections are tight to prevent aeration.

1. Crank the engine for 5 to 10 seconds. Observe the needle on the pressure gauge during cranking.
2. Compare the recorded PSI against the manufacturer’s specification (typically 4-7 PSI for most standard street carburetors).
3. If the pressure is below the minimum threshold, the pump's internal check valves are likely leaking or the diaphragm is failing.

Warning: Never crank the engine for more than 10 seconds at a time to prevent starter motor overheating. Always ground the ignition coil wire to prevent the engine from starting during this stage.

Step 3: The Fuel Volume (Flow) Test

Pressure alone is not a guarantee of pump health; the pump must also move enough fuel to maintain the carburetor float bowl level during high-RPM operation.

1. Disconnect the fuel line from the carburetor and insert the end into a graduated container, such as a large measuring cup or an empty one-liter bottle.
2. Crank the engine for exactly 15 seconds.
3. Measure the amount of fuel in the container. A healthy mechanical fuel pump should typically deliver at least one pint of fuel in 30 seconds of cranking time. If the pump delivers significantly less, the internal cam arm may be worn, or the diaphragm travel is insufficient.

Step 4: Diaphragm Integrity and Oil Dilution Check

A common failure in mechanical fuel pumps is a ruptured diaphragm, which allows fuel to bypass the pump housing and leak directly into the engine crankcase.

1. Check the engine oil dipstick. If the oil level is abnormally high and smells strongly of gasoline, the pump diaphragm is likely compromised.
2. Inspect the "weep hole" on the base of the fuel pump. If fuel is dripping from this hole, the internal seal has failed, and the pump must be replaced immediately to prevent engine fire or catastrophic rod bearing failure.

Technical Specifications and Performance Parameters

The following table outlines the standard benchmarks for evaluating the health of a typical automotive mechanical fuel pump used in vintage or high-performance applications.

Field Troubleshooting and Failure Remedies

Understanding the root cause of pump failure ensures that the replacement process is not wasted on a system that will simply destroy the new pump.

• Root Cause: Clogged Fuel Pickup or Vent. If the fuel tank vent is blocked, the pump creates a vacuum in the tank, making it impossible to pull fuel despite a healthy pump.


  • Actionable Fix: Open the fuel cap; if the engine starts or fuel flow returns to normal, clear the tank ventilation line.
• Root Cause: Cam Eccentric Wear. The mechanical pump relies on a cam-driven eccentric. If this metal lobe is worn flat, the pump arm does not have the full range of motion required to move fuel.


  • Actionable Fix: Remove the pump and inspect the pushrod or arm for physical shortening or metal fatigue. Replace the eccentric or the pump assembly.
• Root Cause: Fuel Percolation (Vapor Lock). In extreme heat, fuel vaporizes before reaching the pump, causing it to "pump air" rather than liquid.


  • Actionable Fix: Use thermal insulation sleeves on fuel lines near heat sources like exhaust manifolds to prevent fuel boiling.

Frequently Asked Questions

Can a mechanical fuel pump be rebuilt?

Yes, many mechanical fuel pumps can be rebuilt using a diaphragm kit, provided the housing is not corroded. However, given the low cost of modern replacement pumps and the critical nature of fuel system reliability, replacement is generally recommended over rebuilding.

Why is there gasoline in my engine oil?

Gasoline in the oil is a primary indicator of a ruptured fuel pump diaphragm. When the diaphragm tears, fuel flows through the pump’s mounting base and directly into the crankcase; you must change the oil and replace the pump immediately to prevent engine damage.

Does a higher PSI rating always mean better performance?

No, excessive pressure will overwhelm the carburetor’s needle and seat assembly, leading to flooding, rough idling, and poor fuel economy. Always match the pump's pressure output to the requirements specified by your carburetor manufacturer.

Should I use a fuel pressure regulator with a mechanical pump?

If your mechanical pump provides more than 6-7 PSI for a standard carburetor, a fuel pressure regulator is required to prevent overflowing the float bowl. Performance-oriented mechanical pumps often require a regulator to maintain consistent pressure during high-demand operation.

Restore Your Fuel System Performance

A properly functioning mechanical fuel pump is the heartbeat of your engine’s intake system, ensuring reliable power delivery across the entire RPM range. Follow these testing procedures to restore your vehicle’s performance and consult your service manual for specific pressure ratings to ensure long-term reliability.
